പ്രധാനപ്പെട്ട സുരക്ഷാ നിർദ്ദേശങ്ങൾ
Please read these instructions carefully before using your Beldray Ice Cube Plus+ Personal Space Cooler. Retain this manual for future reference.
- Ensure the product is placed on a stable, flat, and dry surface.
- Do not immerse the unit, power cord, or plug in water or any other liquid.
- Unplug the cooler from the power supply when not in use, before filling or emptying water tanks, and before cleaning.
- Keep out of reach of children and pets. This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- എയർ ഇൻലെറ്റുകളോ ഔട്ട്ലെറ്റുകളോ തടയരുത്. യൂണിറ്റിന് ചുറ്റും മതിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
- Only use the provided USB cable and mains adaptor.
- Do not attempt to repair or modify the appliance yourself. Refer all servicing to qualified personnel.
- Avoid tipping the unit when water tanks are filled to prevent spillage.
- Do not use the appliance in areas with high humidity or near water sources like bathtubs, showers, or swimming pools.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The Beldray Ice Cube Plus+ is a compact and portable personal space cooler designed to provide cool, humidified air. It features two removable water tanks, a machine-washable filter, three speed settings, and seven color-changing LED lights.
ചിത്രം 1: കഴിഞ്ഞുview of the Beldray Ice Cube Plus+ with key features highlighted, such as easy portability, freezable water tanks, 3 speed settings, machine washable filter, cooling and humidifying function, and USB & mains plug connectivity.
ഘടകങ്ങൾ:
- Main Unit with Fan and Controls
- 2 x 300 ml Removable Water Tanks (600 ml combined capacity)
- Machine Washable Filter
- USB കേബിൾ
- മെയിൻ അഡാപ്റ്റർ
സജ്ജമാക്കുക
ആമുഖം:
- അൺപാക്ക്: Carefully remove the Beldray Ice Cube Plus+ from its packaging. Ensure all components listed in the "Product Overview" വിഭാഗം നിലവിലുണ്ട്.
- സ്ഥാനനിർണ്ണയം: Place the cooler on a flat, stable surface in your desired location, such as an office desk, bedside table, or kitchen worktop. Ensure there is clear space around the air inlets and outlets.
- വാട്ടർ ടാങ്കുകൾ തയ്യാറാക്കുക:
- Remove the two 300 ml water tanks from the sides of the unit.
- For enhanced cooling, you can freeze the water tanks and the central filter. Ensure the screw caps are removed from the tanks before freezing to prevent damage.
- Fill the water tanks with clean, cold water. The combined capacity is 600 ml.
- Carefully reinsert the filled water tanks into their respective slots on the sides of the unit. Ensure they are securely fitted.
- പവർ ബന്ധിപ്പിക്കുക: Insert the USB cable into the port on the back of the unit. Connect the other end of the USB cable to the provided mains adaptor, and then plug the adaptor into a suitable wall socket. Alternatively, you can connect the USB cable to a compatible USB power source.
ചിത്രം 2: The Beldray Ice Cube Plus+ ready for use, emphasizing its key features for personal cooling.
ഓപ്പറേഷൻ
Operating Your Ice Cube Plus+:
ചിത്രം 3: Control panel of the Beldray Ice Cube Plus+.
- പവർ ഓൺ/ഓഫ്: അമർത്തുക പവർ ബട്ടൺ (⑁) located on the top panel to turn the unit on or off. The unit will start on the lowest fan speed.
- ഫാൻ വേഗത ക്രമീകരിക്കുക: അമർത്തുക ഫാൻ സ്പീഡ് ബട്ടൺ (☀) repeatedly to cycle through the three available fan speeds: Low, Medium, and High. Select the speed that best suits your comfort level.
- LED Mood Lights: അമർത്തുക ലൈറ്റ് ബട്ടൺ (☼) to activate the seven color-changing LED lights. Press again to cycle through the colors or turn them off.
- വായുപ്രവാഹ ക്രമീകരണം: Manually adjust the vertical louvers on the front of the unit to direct the airflow as desired.
ചിത്രം 4: The Beldray Ice Cube Plus+ with its vibrant LED mood lighting feature activated.
The cooler is designed to provide up to 8 hours of cool air, depending on the fan speed and water tank preparation (freezing). It is ideal for personal use in small spaces.
മെയിൻ്റനൻസ്
പരിചരണവും ശുചീകരണവും:
Regular cleaning will help maintain the performance and longevity of your Beldray Ice Cube Plus+.
- വൃത്തിയാക്കുന്നതിന് മുമ്പ്: Always unplug the unit from the power supply and remove the water tanks.
- വാട്ടർ ടാങ്കുകൾ: Empty any remaining water from the tanks. Clean the tanks with warm, soapy water and rinse thoroughly. Allow them to air dry completely before reinserting.
- ഫിൽട്ടർ: The filter is machine washable. Carefully remove the filter from the unit. Wash it according to the instructions on the filter itself or by hand with mild soap and water. Ensure the filter is completely dry before placing it back into the unit to prevent mold or mildew growth.
- പ്രധാന യൂണിറ്റ്: ഒരു സോഫ്റ്റ്, ഡി ഉപയോഗിച്ച് യൂണിറ്റിൻ്റെ പുറംഭാഗം തുടയ്ക്കുകamp cloth. Do not use abrasive cleaners or solvents. Do not allow water to enter the fan or electrical components.
- സംഭരണം: If storing the unit for an extended period, ensure all components are clean and dry. Store in a cool, dry place away from direct sunlight.
പ്രശ്ന പരിഹാരത്തിന് സഹായിക്കുന്ന മാർഗധർശി
If you experience issues with your Beldray Ice Cube Plus+, please consult the following table before contacting customer support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| യൂണിറ്റ് ഓണാക്കുന്നില്ല. | Not plugged in correctly; Power outlet issue; Faulty cable/adaptor. | Ensure the USB cable and mains adaptor are securely connected and plugged into a working power outlet. Try a different outlet. |
| Air is not cool. | Water tanks not filled with cold/frozen water; Filter is dry; Ambient temperature is too high for personal cooler. | Fill water tanks with cold or frozen water. Ensure the filter is moist. Remember this is a personal space cooler, not a room air conditioner. |
| വെള്ളം ചോർച്ച. | Water tanks not properly sealed or inserted; Unit tipped over. | Ensure water tank caps are tightly secured and tanks are correctly seated in their slots. Avoid moving or tipping the unit when water tanks are full. Empty excess water from the base if present. |
| യൂണിറ്റ് ശബ്ദമയമാണ്. | Fan speed is too high; Obstruction in fan; Unit not on a stable surface. | Reduce fan speed. Check for any obstructions near the fan blades. Ensure the unit is on a flat, stable surface. |
സാങ്കേതിക സവിശേഷതകൾ
Detailed specifications for the Beldray Ice Cube Plus+ Personal Space Cooler.
| ബ്രാൻഡ് | ബെൽഡ്രെ |
| മോഡൽ നമ്പർ | EH3139V2 |
| നിറം | വെള്ള |
| ഉൽപ്പന്ന അളവുകൾ | 16.5 x 15.7 x 16.2 സെ.മീ (L x W x H) |
| ഇനത്തിൻ്റെ ഭാരം | 1.06 കി.ഗ്രാം |
| ശക്തി | 5 W |
| വാല്യംtage | 230 വോൾട്ട് |
| വേഗതകളുടെ എണ്ണം | 3 |
| റിസർവോയർ കപ്പാസിറ്റി | 600 ml (2 x 300 ml tanks) |
| USB കേബിൾ ദൈർഘ്യം | 1.5 മീറ്റർ |
| പ്രത്യേക സവിശേഷതകൾ | Quiet Operation, 7 Colour Changing LED Lights, Slip Resistant Feet, Easy to Use Controls, Machine Washable Filter, Cools & Humidifies, Personal Space Cooler, Up to 8 Hours of Cool Air. |

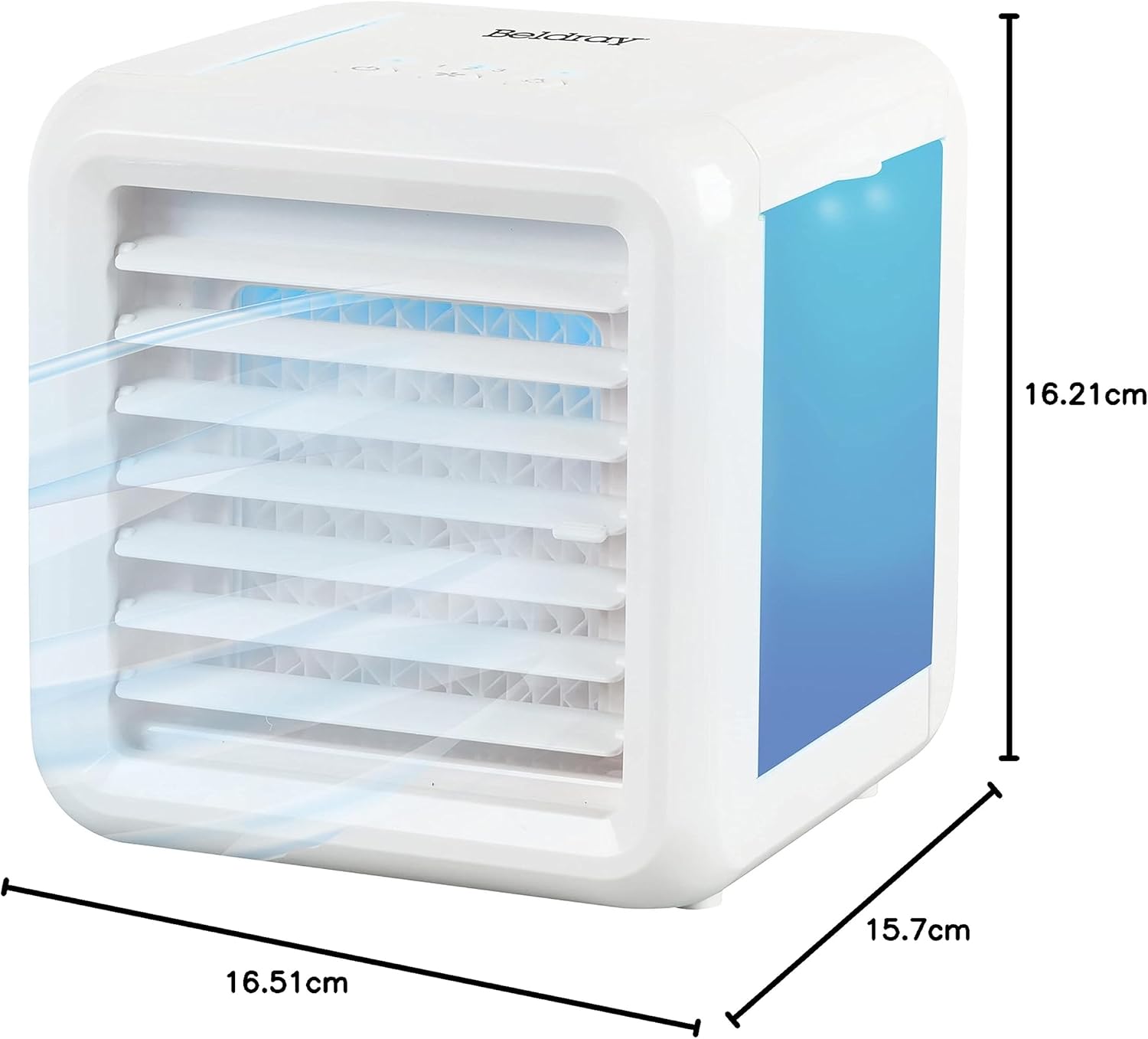

ചിത്രം 5: Dimensions of the Beldray Ice Cube Plus+.
വാറന്റി വിവരങ്ങളും ഉപഭോക്തൃ പിന്തുണയും
For warranty details, please refer to the documentation provided with your purchase or contact Beldray customer support. Beldray products are designed for quality and reliability.
If you require further assistance or have questions not covered in this manual, please visit the official Beldray webഅവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗത്തെ സൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ ബന്ധപ്പെടുക. കോൺടാക്റ്റ് വിശദാംശങ്ങൾ സാധാരണയായി ഉൽപ്പന്ന പാക്കേജിംഗിലോ ബ്രാൻഡിന്റെ ഔദ്യോഗിക വെബ്സൈറ്റിലോ കാണാം. webസൈറ്റ്.
Webസൈറ്റ്: www.beldray.com
