ആമുഖം
Thank you for choosing the MAONO AU-PM320S XLR Condenser Microphone Kit. This professional-grade microphone is designed to deliver high-quality audio for various applications, including streaming, podcasting, singing, voice-overs, and home studio recording. This manual provides essential information for setting up, operating, and maintaining your microphone kit to ensure optimal performance.
ബോക്സിൽ എന്താണുള്ളത്
Your MAONO AU-PM320S kit includes the following components:
- XLR Condenser Microphone (AU-PM320S)
- ക്രമീകരിക്കാവുന്ന ബൂം ആം
- Metal Shock Mount
- പോപ്പ് ഫിൽട്ടർ
- വിൻഡ്സ്ക്രീൻ
- എക്സ്എൽആർ മുതൽ എക്സ്എൽആർ കേബിൾ വരെ
- ഉപയോക്തൃ മാനുവൽ
സജ്ജീകരണ ഗൈഡ്
Follow these steps to set up your MAONO AU-PM320S microphone kit:
- ബൂം ആം ഘടിപ്പിക്കുക: Secure the adjustable boom arm to your desk or table using the stable table mounting clamp. Ensure it is tightened firmly to prevent movement.
- ഷോക്ക് മൗണ്ട് ഇൻസ്റ്റാൾ ചെയ്യുക: Mount the metal shock mount onto the boom arm. The shock mount helps to isolate the microphone from physical vibrations, reducing unwanted noise.
- മൈക്രോഫോൺ ചേർക്കുക: Carefully place the AU-PM320S condenser microphone into the shock mount.

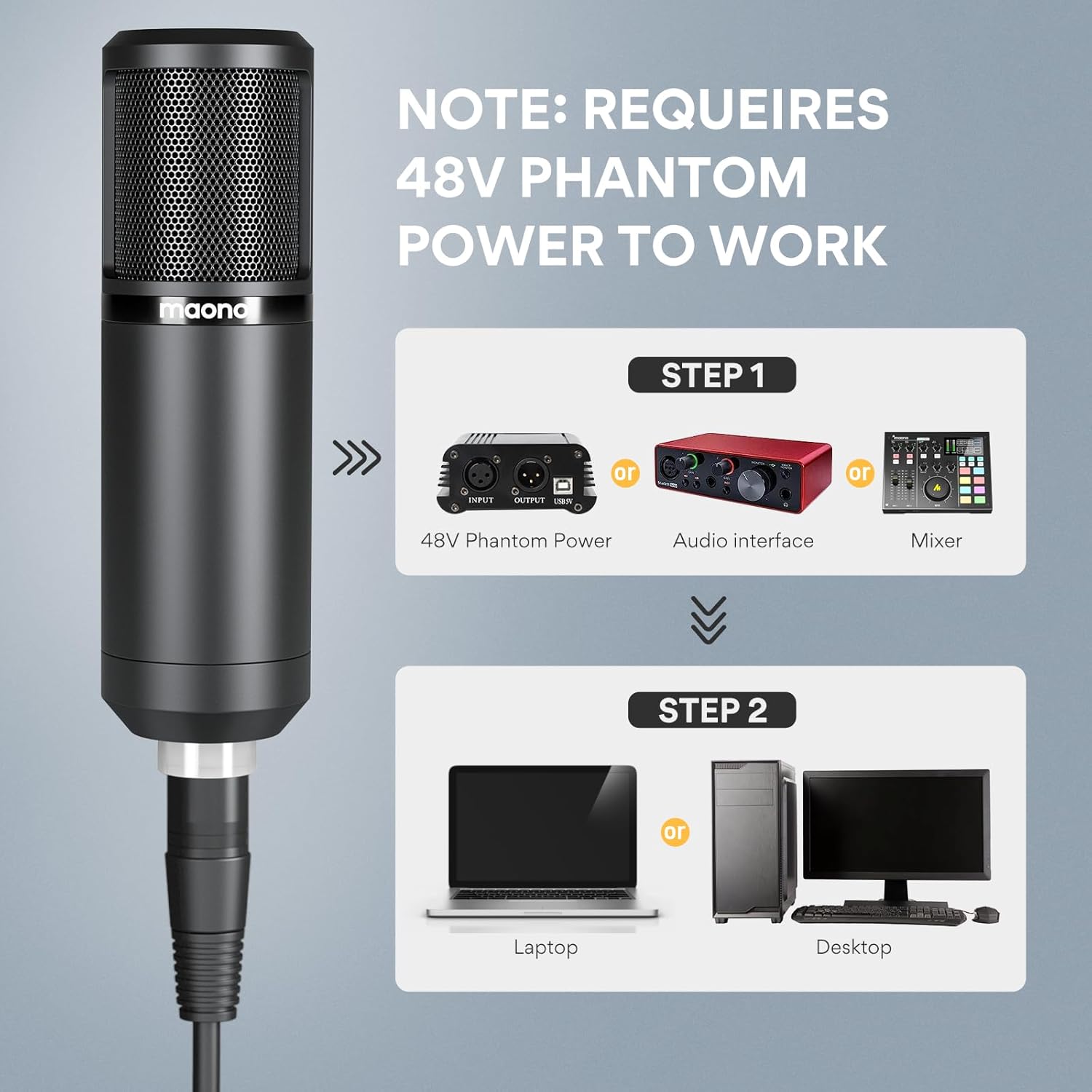

- XLR കേബിൾ ബന്ധിപ്പിക്കുക: Connect one end of the provided XLR to XLR cable to the bottom of the microphone and the other end to a 48V phantom power supply, audio interface, or mixer.
- കമ്പ്യൂട്ടറുമായി ബന്ധിപ്പിക്കുക: Connect your 48V phantom power supply, audio interface, or mixer to your computer (laptop or desktop) using the appropriate cable (not included with the microphone kit, typically USB or other audio cables).
- Attach Pop Filter and Windscreen: Position the pop filter in front of the microphone to reduce plosive sounds (P, B, T, K sounds). For additional wind noise reduction, place the foam windscreen over the microphone capsule.
പവറിനെക്കുറിച്ചുള്ള പ്രധാന കുറിപ്പ്:
The MAONO AU-PM320S is an XLR condenser microphone and requires 48V phantom power to operate correctly. This power is typically supplied by an audio interface, mixer, or dedicated phantom power supply. Ensure your setup includes a compatible 48V power source.
Video: How It Works
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The MAONO AU-PM320S is designed for ease of use while delivering professional audio quality.
മൈക്രോഫോൺ പ്ലേസ്മെൻ്റ്:
- The microphone features a cardioid pickup pattern, meaning it is most sensitive to sounds coming from the front and less sensitive to sounds from the sides and rear. This helps to reduce background noise.
- For optimal vocal recording, speak directly into the front of the microphone (where the MAONO logo is located) at a distance of 6-12 inches.
- Utilize the adjustable boom arm to position the microphone comfortably and effectively for your recording needs.
Sound Quality and Features:
- The built-in large Dia.16 mm condenser capsule provides an extended frequency response and superior transient response, capturing clear and detailed audio.
- High-SPL handling and a wide dynamic range make this microphone versatile for various sound sources.
- The included pop filter and windscreen effectively reduce plosives, wind noise, and saliva interference, ensuring a clean vocal recording.
- The shock mount further minimizes noise caused by vibrations transmitted through the desk or stand.
അപേക്ഷകൾ:
This microphone is ideal for:
- പോഡ്കാസ്റ്റിംഗ്
- Streaming (YouTube, Skype, Twitch)
- Singing and Vocal Recording
- Voice-overs
- Home Studio Recording
മെയിൻ്റനൻസ്
To ensure the longevity and optimal performance of your MAONO AU-PM320S microphone, follow these maintenance guidelines:
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the microphone body and boom arm. Avoid using liquid cleaners or solvents, as they may damage the finish or internal components.
- സംഭരണം: ഉപയോഗത്തിലില്ലാത്തപ്പോൾ, ഉയർന്ന താപനിലയും ഈർപ്പവും ഇല്ലാത്ത വൃത്തിയുള്ളതും വരണ്ടതുമായ സ്ഥലത്ത് മൈക്രോഫോൺ സൂക്ഷിക്കുക.
- കൈകാര്യം ചെയ്യൽ: The microphone features a full metal construction for durability. However, avoid dropping or subjecting the microphone to harsh impacts, as this can damage the internal capsule.
- കേബിൾ കെയർ: Handle the XLR cable carefully. Avoid sharp bends or kinks, which can damage the internal wiring.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your MAONO AU-PM320S microphone, refer to the following common troubleshooting tips:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സൗണ്ട് ഔട്ട്പുട്ട് ഇല്ല | No 48V phantom power; Incorrect cable connection; Incorrect input selection on computer/interface. | Ensure 48V phantom power is enabled on your audio interface/mixer. Check all XLR cable connections. Verify the correct input device is selected in your computer's sound settings or recording software. |
| Low Volume/Weak Signal | Low gain setting on interface/mixer; Microphone too far from sound source. | Increase the gain level on your audio interface or mixer. Position the microphone closer to the sound source (6-12 inches is recommended for vocals). |
| അമിതമായ പശ്ചാത്തല ശബ്ദം | Microphone picking up ambient noise; Vibrations from desk/stand. | Ensure the microphone's cardioid pattern is facing the desired sound source. Use the included pop filter and windscreen. Ensure the microphone is securely in the shock mount and the boom arm is stable. Record in a quiet environment. |
| Popping Sounds (Plosives) | Air blasts from speaking directly into the microphone. | Ensure the pop filter is correctly positioned between your mouth and the microphone. Adjust microphone distance. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | AU-PM320S |
| മൈക്രോഫോൺ തരം | കണ്ടൻസർ |
| പോളാർ പാറ്റേൺ | ഏകദിശയിലുള്ള (കാർഡിയോയിഡ്) |
| ഡയഫ്രം വലിപ്പം | Dia.16 mm |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | XLR |
| പവർ ഉറവിടം | 48V Phantom Power Required |
| ഫ്രീക്വൻസി പ്രതികരണം | 18 KHz (20-18,000 Hz as per A+ content) |
| ഓഡിയോ സെൻസിറ്റിവിറ്റി | 82 Decibels (-34dB±3dB high sensitivity as per A+ content) |
| പ്രതിരോധം | 200 ഓം |
| സിഗ്നൽ-ടു-നോയിസ് അനുപാതം | 75 ഡി.ബി |
| മെറ്റീരിയൽ | Metal, Plastic (Full metal casing) |
| ഇനത്തിൻ്റെ ഭാരം | 3.25 പൗണ്ട് |
| പാക്കേജ് അളവുകൾ | 17.17 x 8.23 x 3.58 ഇഞ്ച് |
വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, or any inquiries regarding your MAONO AU-PM320S microphone kit, please refer to the official MAONO website or contact their customer service directly. Details can typically be found in the included User Manual or on the product packaging.
