കഡ്‌ബാക്ക് സോളാർ പവർ ബാങ്ക് PW-3600 ഇൻസ്ട്രക്ഷൻ മാനുവൽ

ആമുഖം

The Cuddeback Solar Power Bank PW-3600 is designed to provide continuous power to compatible Cuddeback trail cameras, extending their operational runtime indefinitely. This unit features a polycrystalline solar panel that charges an internal NiMH battery, which is engineered to perform effectively even in sub-freezing temperatures. Should the solar battery deplete, the connected camera will seamlessly switch to its internal batteries. Once the solar battery recharges sufficiently, it will resume powering the camera.

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Cuddeback Solar Power Bank PW-3600.

ഉൽപ്പന്നം കഴിഞ്ഞുview

ബോക്സിൽ എന്താണുള്ളത്

• Cuddeback Solar Panel with built-in NiMH battery
• ബന്ധിപ്പിക്കുന്ന കേബിൾ
• Genius Tilt Mount
• മൗണ്ടിംഗ് സ്ട്രാപ്പ്
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

Image: The Cuddeback Solar Power Bank PW-3600, including the solar panel, connecting cable, Genius Tilt mount, and mounting strap.

പ്രധാന സവിശേഷതകൾ

• Polycrystalline Solar Panel: Efficiently charges the internal battery using sunlight.
• Integrated NiMH Battery: Provides reliable power and performs in cold conditions.
• Automatic Power Switching: Seamlessly transitions between solar and camera internal batteries.
• അനുയോജ്യത: Designed for use with all Cuddeback CuddeLink and Tracks cameras.
• Built-in LED Indicators: Displays power status and charging activity.

സ്പെസിഫിക്കേഷനുകൾ

ചിത്രം: മുൻവശവും വശവും view of the Cuddeback Solar Power Bank PW-3600 with dimensions indicated.

സജ്ജമാക്കുക

1. ഒരു മൗണ്ടിംഗ് ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Choose a location that receives direct sunlight for the majority of the day. The solar panel's efficiency is directly related to the amount of direct sunlight it receives. Avoid shaded areas.
2. Attach the Genius Tilt Mount: Secure the Genius Tilt Mount to a tree or post using the provided mounting strap. Ensure the mount is stable.
3. സോളാർ പാനൽ മൌണ്ട് ചെയ്യുക: Attach the Cuddeback Solar Power Bank to the Genius Tilt Mount. Adjust the angle of the panel to face the sun directly for optimal charging.
4. ക്യാമറയിലേക്ക് കണക്റ്റുചെയ്യുക: Use the provided connecting cable to link the solar power bank to your compatible Cuddeback CuddeLink or Tracks camera. Ensure the connection is secure.

Image: The Cuddeback Solar Power Bank PW-3600 mounted on a tree, connected to a trail camera, positioned for direct sunlight exposure.

Image: The Cuddeback Solar Power Bank PW-3600 mounted on a cactus, demonstrating placement for optimal sun exposure in an outdoor environment.

ഓപ്പറേഷൻ

Once connected and exposed to sunlight, the Cuddeback Solar Power Bank will begin charging its internal NiMH battery. This charged battery then powers your Cuddeback camera. The system is designed for continuous operation, reducing the need for frequent battery changes in your camera.

• ചാർജിംഗ്: The solar panel converts sunlight into electrical energy to charge the internal NiMH battery.
• പവർ ഡെലിവറി: The charged NiMH battery provides power to the connected Cuddeback camera.
• ബാറ്ററി ബാക്കപ്പ്: If the solar battery's charge level drops too low (e.g., during prolonged periods of low light), the camera will automatically draw power from its own internal batteries.
• Automatic Resumption: When the solar battery recharges sufficiently, it will automatically resume powering the camera, preserving the camera's internal battery life.

LED സൂചകങ്ങൾ

The solar power bank features built-in LED lights to indicate its operational status:

• ചാർജിംഗ് സൂചകം: An LED will illuminate when the solar panel is actively charging the internal battery.
• സ്റ്റാറ്റസ് ഇൻഡിക്കേറ്റർ: An LED will show the current power status of the internal battery (e.g., fully charged, low charge). Refer to the specific LED color/pattern in the included quick start guide for detailed interpretation.

ചിത്രം: പിൻഭാഗം view of the Cuddeback Solar Power Bank PW-3600 showing the location of the built-in LED lights for power status and charging indication.

മെയിൻ്റനൻസ്

• സോളാർ പാനൽ വൃത്തിയാക്കുക: Periodically inspect and clean the surface of the solar panel to remove dirt, dust, snow, or debris. A clean panel ensures maximum sunlight absorption and charging efficiency. Use a soft, damp വൃത്തിയാക്കാനുള്ള തുണി.
• കണക്ഷനുകൾ പരിശോധിക്കുക: Ensure all cable connections between the solar power bank and the camera remain secure and free from corrosion.
• Monitor Sunlight Exposure: Regularly check that the solar panel is still receiving adequate direct sunlight, especially after changes in foliage or seasons. Adjust the panel's angle or location if necessary.

Image: The Cuddeback Solar Power Bank PW-3600 mounted in a snowy forest, demonstrating its ability to operate in harsh conditions. Regular cleaning of snow from the panel is recommended.

ട്രബിൾഷൂട്ടിംഗ്

• Camera Not Receiving Power:
  • Verify the solar panel is receiving direct sunlight.
  • Check all cable connections for tightness and proper insertion.
  • Ensure the solar panel's surface is clean and free of obstructions.
  • Confirm the camera's internal batteries are installed and functional as a backup.
• Shortened Camera Runtime:
  • The solar panel may not be receiving sufficient sunlight. Re-evaluate its placement and angle.
  • Heavy cloud cover or short daylight hours can reduce charging efficiency.
  • Ensure the panel is clean.
• LED സൂചകങ്ങൾ പ്രവർത്തിക്കുന്നില്ല:
  • Ensure the unit is exposed to sunlight for the charging indicator.
  • Check for physical damage to the unit or cable.

അനുയോജ്യത

The Cuddeback Solar Power Bank PW-3600 is fully compatible with all Cuddeback CuddeLink and Tracks series trail cameras. It is designed to integrate seamlessly with these camera systems to provide extended power.

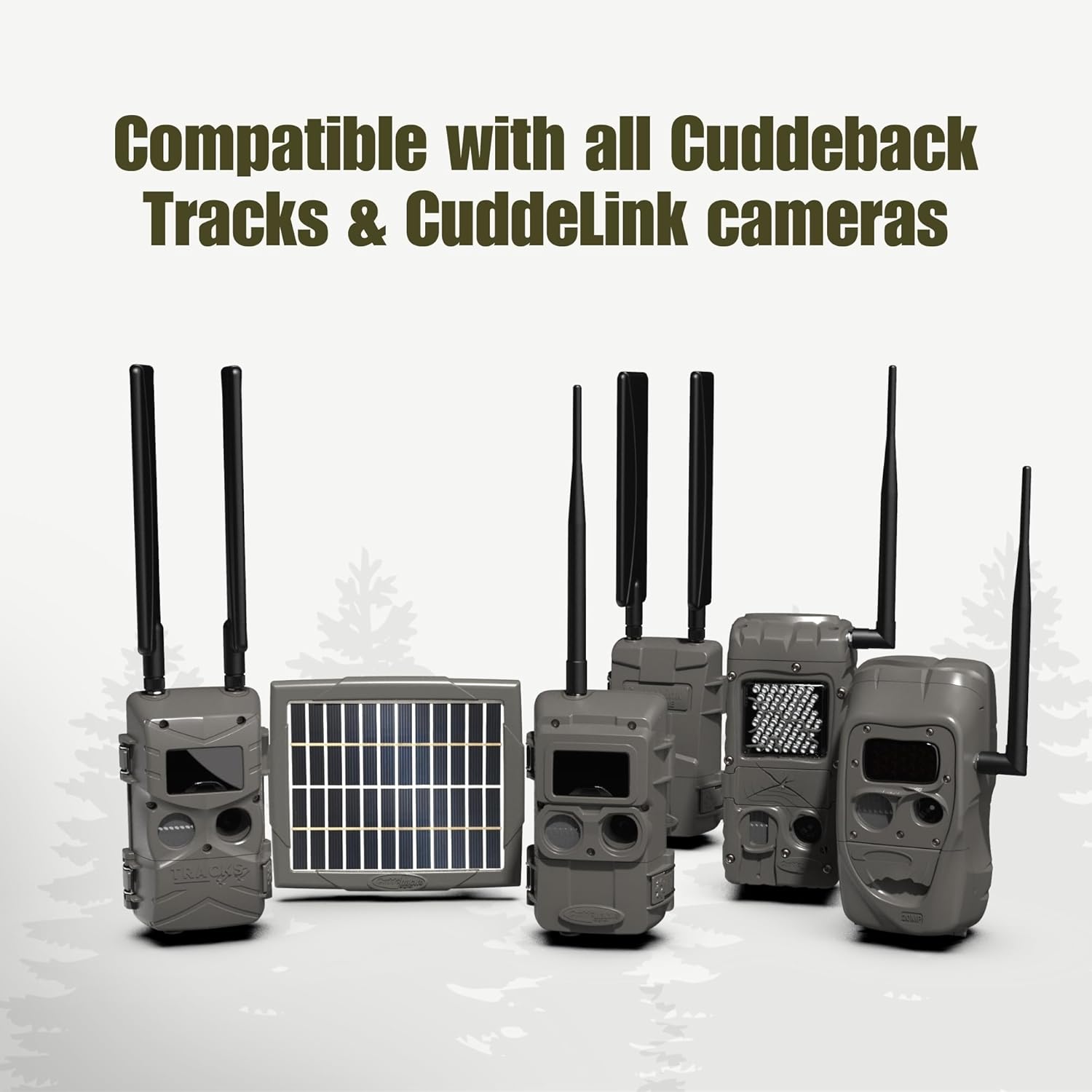

Image: The Cuddeback Solar Power Bank PW-3600 shown alongside several Cuddeback CuddeLink and Tracks cameras, illustrating its broad compatibility.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: ഈ ഉൽപ്പന്നത്തിൽ കാൻസർ, ജനന വൈകല്യങ്ങൾ അല്ലെങ്കിൽ മറ്റ് പ്രത്യുൽപാദന തകരാറുകൾ എന്നിവയ്ക്ക് കാരണമാകുന്ന കാലിഫോർണിയ സംസ്ഥാനത്തിന് അറിയപ്പെടുന്ന രാസവസ്തുക്കൾ അടങ്ങിയിരിക്കുന്നു.

Always handle the product with care and follow all local regulations for disposal.

വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries, please refer to the official Cuddeback website or contact Cuddeback customer service directly. Keep your purchase receipt for warranty claims.
