1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The CATCHFACE TTLock Smart Lock offers advanced 4-in-1 keyless entry for enhanced security and convenience. It integrates fingerprint recognition, anti-peep virtual password entry, smartphone access via the TT Lock app, and traditional physical keys. This smart lock is designed for easy DIY installation and is suitable for various applications including homes, apartments, and co-working spaces.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- Advanced 4-in-1 Keyless Entry: Fingerprint recognition, anti-peep virtual password entry, smartphone access, and physical keys (2 included).
- USB + Backup Key: Low battery alarms via the TT Lock app and a micro USB port for temporary power supply in emergencies. Physical keys provide a fail-safe option.
- വിശാലമായ അനുയോജ്യത: Fits door thicknesses from 1.38 to 1.97 inches (35 to 50mm) with an adjustable deadbolt size of 2.36 to 2.76 inches (60 to 70mm). Replaces standard single-cylinder U.S. door locks and fits both left and right-handed doors.
- Remote Control & Management: Ideal for rental hosts and homeowners, allowing creation and sharing of virtual keys (permanent or scheduled), monitoring access, and remote lock/unlock via the TT Lock App. Optional CATCHFACE WiFi Gateway (sold separately) enables Amazon Alexa and Google Home integration.
- Intelligent Management: Supports fingerprints and multiple user codes, with options for one-time, permanent, scheduled, and recurring codes.
- അപ്ലിക്കേഷനും & Web Portal Control: Manage the smart lock via smartphone, generate eKeys, manage users, and view access records using the free app and website management system.
2. പാക്കേജ് ഉള്ളടക്കം
Your CATCHFACE Smart Lock package includes all necessary components for installation and operation:
Figure 2.1: All components included in the CATCHFACE Smart Lock package.
- 1 x Smart Lock (Front Panel with keypad and fingerprint sensor)
- 1 x Back Panel (Interior handle with battery compartment)
- 1 x 60/70mm Adjustable Backset Latch
- 1 x Latch Box and Strike Plate
- 1 x സ്പിൻഡിൽ
- 1 x അലൻ കീ
- 1 x Installation Screws Bag
- 2 x മെക്കാനിക്കൽ കീകൾ
- IC Cards (quantity may vary based on package)
- 1 x User Manual (physical copy)
- 1 x Installation Manual (physical copy)
- 1 x Hole Template
3. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്
The CATCHFACE Smart Lock is designed for easy DIY installation. A physical installation pamphlet and a hole template are included in the box. For a visual step-by-step guide, please refer to the official installation video provided by the seller.
Video 3.1: CATCHFACE Smart Lock Unboxing and Overview
The lock is compatible with most standard U.S. door sizes. Ensure your door thickness and backset size match the product specifications for proper fit.

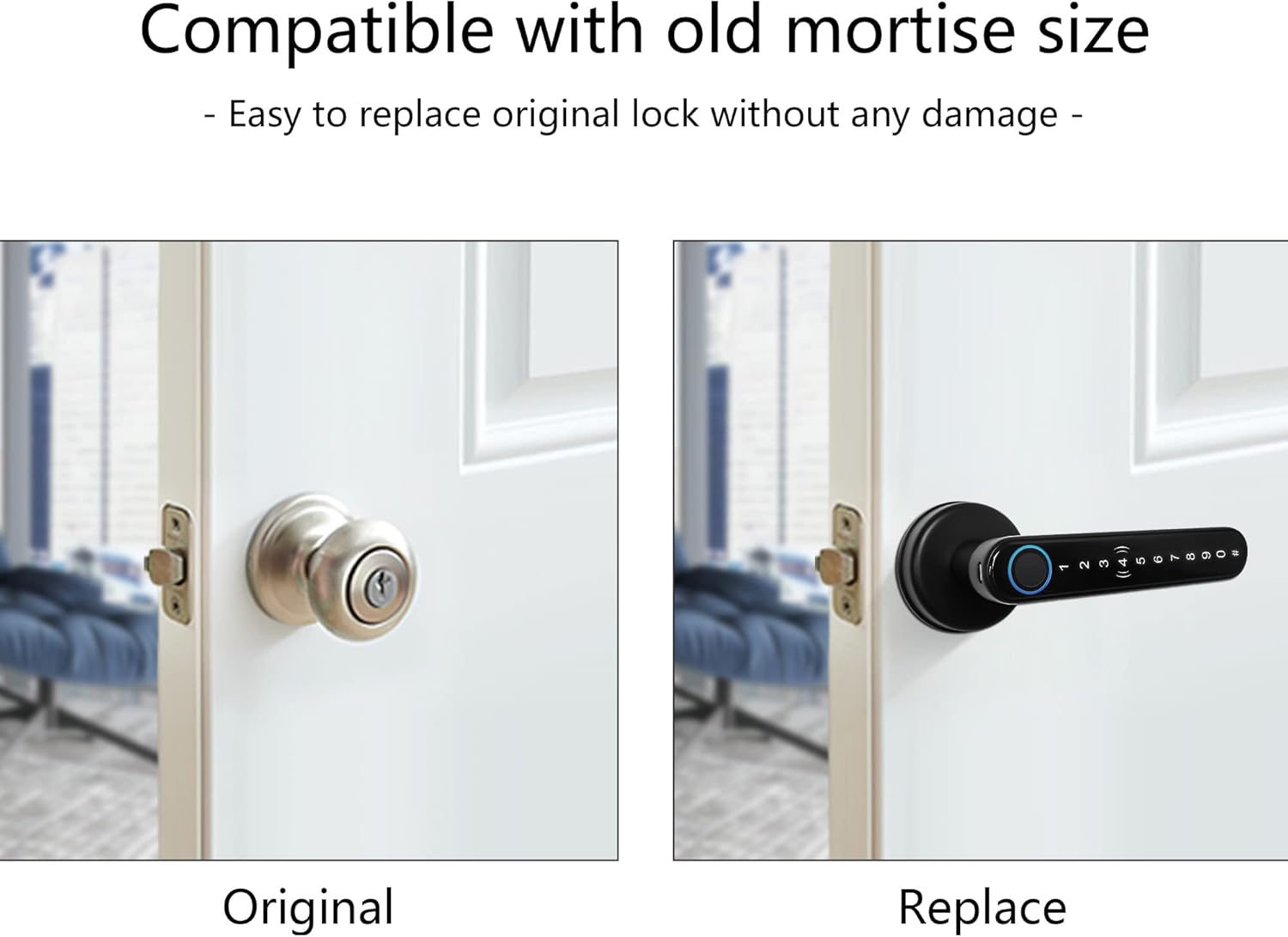

Figure 3.1: The CATCHFACE Smart Lock is designed to easily replace existing mortise locks without damage.
Figure 3.2: The smart lock is compatible with various door types and includes adjustable latch for easy installation.
For detailed installation steps, refer to the User Manual (PDF) provided with your product or available online: ഉപയോക്തൃ ഗൈഡ് (PDF) ഒപ്പം ഉപയോക്തൃ മാനുവൽ (PDF).
4. നിങ്ങളുടെ സ്മാർട്ട് ലോക്ക് പ്രവർത്തിപ്പിക്കൽ
The CATCHFACE Smart Lock offers multiple convenient ways to unlock your door:
4.1 ഫിംഗർപ്രിന്റ് അൺലോക്ക്
The biometric fingerprint sensor provides quick and secure access. Simply place your registered finger on the sensor for instant unlocking.
Figure 4.1: The fingerprint sensor offers sensitive recognition and fast unlocking in 0.3 seconds, with 360° fingerprint recognition and storage for up to 100 fingerprints.
Figure 4.2: Biometric fingerprint quick unlock with a low false recognition rate, suitable for all ages.
4.2 പാസ്കോഡ് അൺലോക്ക്
Enter your unique numerical code on the backlit touch keypad. The anti-peep virtual password feature allows you to enter random numbers before or after your actual code to prevent others from guessing your password.
Figure 4.3: Anti-peeping password allows adding random numbers before or after your real password. The keypad is backlit for easy use at night.
4.3 IC Card Unlock
For users who prefer not to use a smartphone, IC cards provide a convenient and secure unlocking method. Simply tap the card on the lock to gain entry.
Figure 4.4: Smart Card Unlock is perfect for individuals who prefer not to use a smartphone, such as children and the elderly.
4.4 Physical Key Unlock
Two mechanical keys are included as a traditional backup method for unlocking the door.
4.5 ഓട്ടോ-ലോക്ക് ഫംഗ്ഷൻ
The smart lock features an auto-lock function for added security. It will automatically lock after a set period of time.
5. Advanced Features & Management
5.1 TT Lock App Control
The TT Lock app allows comprehensive control over your smart lock from your smartphone. You can monitor lock status, send eKeys, manage users, and check operation logs.
Figure 5.1: The TTLock Smart APP allows you to manage your lock anywhere, anytime.
5.2 Multiple Passcode Types
Generate various types of passcodes to suit different needs:
- Permanent Passcode: For long-term access.
- Timed Passcode: Valid for a specific duration, ideal for guests or service providers.
- One-Time Passcode: For single-use access.
- Recurring Passcode: For regular, repeated access on specific days/times.
- Custom Passcode: Create personalized codes.
Figure 5.2: The TT Lock app supports multiple passcode types for flexible access management.
5.3 Access Logs
Keep track of who enters and exits your property with real-time access logs available in the app.
Figure 5.3: Monitor who has accessed the door lock in real time with detailed unlock records.
5.4 Remote Control (Requires Gateway)
For remote lock/unlock functionality and integration with smart home systems like Amazon Alexa and Google Home, the optional CATCHFACE WiFi Gateway (ASIN: B085HFFF9T) is required.
Figure 5.4: The CATCHFACE WiFi Gateway (sold separately) enables remote control and voice commands via smart assistants.
5.5 വൈവിധ്യമാർന്ന ആപ്ലിക്കേഷനുകൾ
The smart lock's management features make it suitable for various environments, including Airbnb, homes, offices, and schools.
Figure 5.5: One-stop management for various applications.
6. ഉൽപ്പന്ന സവിശേഷതകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ക്യാച്ച്ഫേസ് |
| മോഡലിൻ്റെ പേര് | FBA-G01 |
| നിറം | കറുപ്പ് |
| മെറ്റീരിയൽ | സിങ്ക് |
| ഇനത്തിൻ്റെ ഭാരം | 2 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 5.8 x 2.5 x 2.8 ഇഞ്ച് |
| ലോക്ക് തരം | App control smart door lock, Biometric door lock with fingerprint, Digital touch screen door lock, Smart door lock with key |
| പ്രത്യേക സവിശേഷതകൾ | Anti-Peeping Password, Auto-Lock, Back-Lit Keypad, One-Touch Lock, Passcode Unlock |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | 1 x smart lock, 1x 60/70mm adjustable backset latch, 1x installation crews bag, 1x latch box and strike plate, 2 x mechanical keys |
| കൺട്രോളർ തരം | ആമസോൺ അലക്സ, ആൻഡ്രോയിഡ്, ഗൂഗിൾ അസിസ്റ്റന്റ്, ഐഒഎസ് |
| കണക്റ്റിവിറ്റി പ്രോട്ടോക്കോൾ | Bluetooth, Wi-Fi (with optional Gateway) |

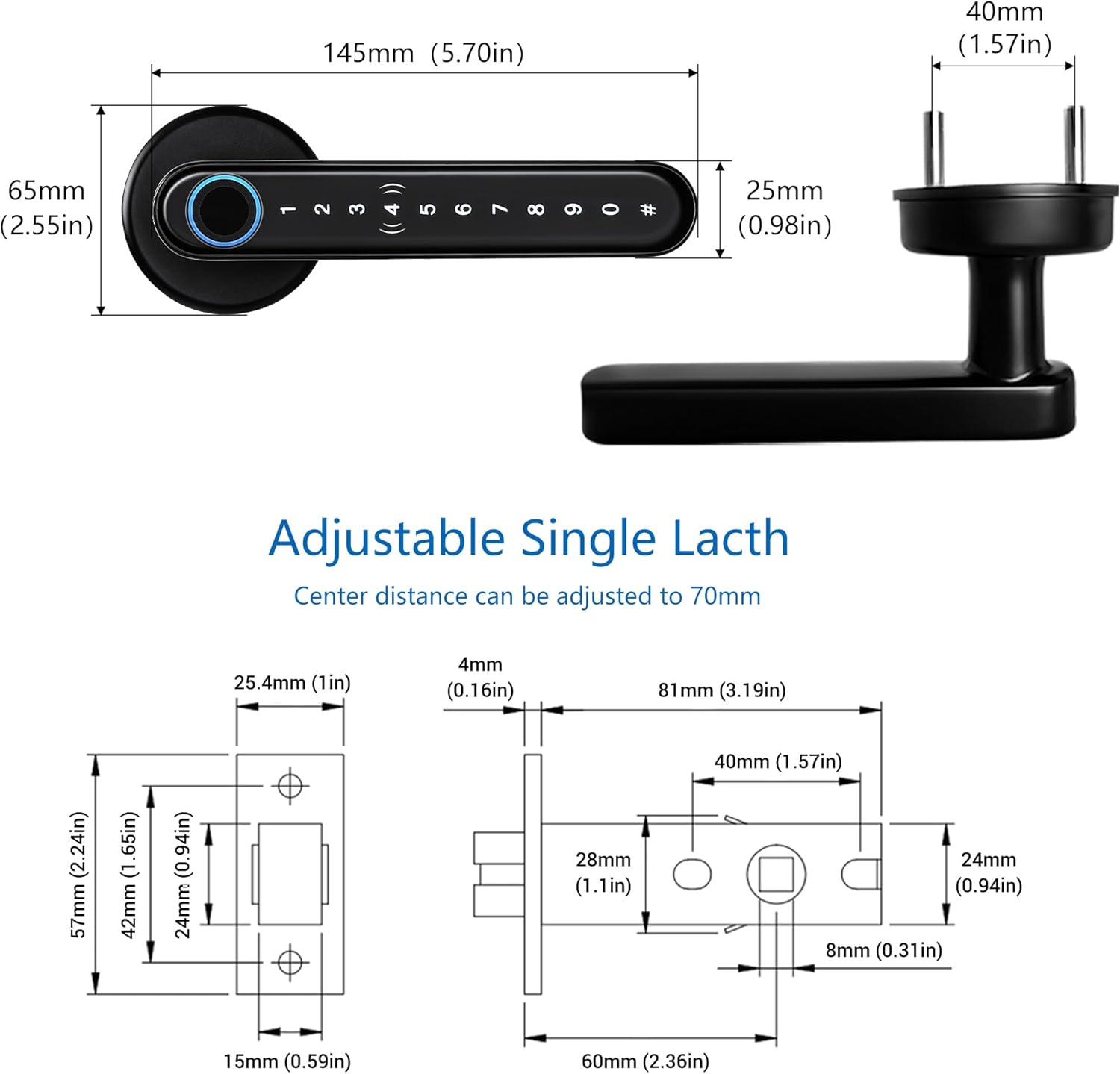

Figure 6.1: Detailed dimensions and adjustable single latch mechanism.
7. പരിപാലനം
To ensure optimal performance and longevity of your CATCHFACE Smart Lock, regular maintenance is recommended:
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: The lock is powered by 4 AAA alkaline batteries. The TT Lock app will provide low battery alerts. Replace batteries promptly when indicated.
- അടിയന്തര പവർ: In case of complete battery drain, use a micro USB power bank to temporarily power the lock via the port located on the handle.
- വൃത്തിയാക്കൽ: Wipe the lock surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.
Figure 7.1: The smart lock is powered by 4 AAA batteries and features a micro USB port for emergency charging.
8. പ്രശ്നപരിഹാരം
If you encounter any issues with your CATCHFACE Smart Lock, consider the following general troubleshooting tips:
- ലോക്ക് പ്രതികരിക്കുന്നില്ല: Check battery levels in the TT Lock app. If batteries are low, replace them or use the micro USB port for temporary power.
- വിരലടയാളം തിരിച്ചറിയാൻ കഴിയാത്തത്: Ensure your finger is clean and dry. Try re-registering your fingerprint in the app if the issue persists.
- Passcode Issues: Verify the correct passcode. Utilize the anti-peep virtual password feature correctly. If you suspect the passcode has been compromised, change it immediately via the app.
- ആപ്പ് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure Bluetooth is enabled on your smartphone and you are within range of the lock. If using a Gateway, ensure it is properly connected to Wi-Fi and powered on.
- Physical Key Not Working: Ensure the key is fully inserted and turned correctly. If the lock is jammed, do not force it.
- ലോക്ക് പുനഃസജ്ജമാക്കുന്നു: If persistent issues occur, you may need to perform a factory reset. Refer to the user manual for specific instructions on how to reset the device.
For further assistance, please consult the detailed user manual or contact CATCHFACE customer support.
9. വാറണ്ടിയും പിന്തുണയും
For information regarding product warranty, please refer to the warranty section within the comprehensive User Manual (PDF) provided with your purchase. This document outlines the terms and conditions of the product warranty.
For technical support and customer service inquiries, please refer to the contact information provided in your User Manual or visit the CATCHFACE official webസൈറ്റ്.
ഉപയോക്തൃ മാനുവൽ (PDF): ഉപയോക്തൃ ഗൈഡ് (PDF) ഒപ്പം ഉപയോക്തൃ മാനുവൽ (PDF)
