LiTime 12V 200Ah LiFePO4 ലിഥിയം ബാറ്ററി ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This manual provides essential information for the safe and efficient use of your LiTime 12V 200Ah LiFePO4 Lithium Battery. This battery is designed for energy storage purposes in applications such as RVs, solar energy systems, marine vessels, and off-grid setups. It is not intended for use as starting batteries, golf cart batteries, or jacks.

സുരക്ഷാ വിവരങ്ങൾ

WARNING: Risk of Fire, Explosion or Burns.

• DO NOT Short circuit.
• DO NOT Reverse connections from charger to battery.
• DO NOT Disassemble.
• DO NOT Throw into fire or incinerate.
• DO NOT Heat above 70°C (158°F).
• Always wear insulating gloves when handling batteries and making connections.

ഉൽപ്പന്നം കഴിഞ്ഞുview

പ്രധാന സവിശേഷതകൾ

• Automotive Grade LiFePO4 Cells: Higher energy density, stable performance, and greater power.
• Built-in 100A BMS (Battery Management System): Protects against overcharge, over-discharge, over-current, short circuit, and high-temp cut-off (above 75°C / 167°F).
• ദീർഘായുസ്സ്: 4000+ cycles at 100% Depth of Discharge (DOD), up to 15000 cycles at 60% DOD. Expected 10-year service life.

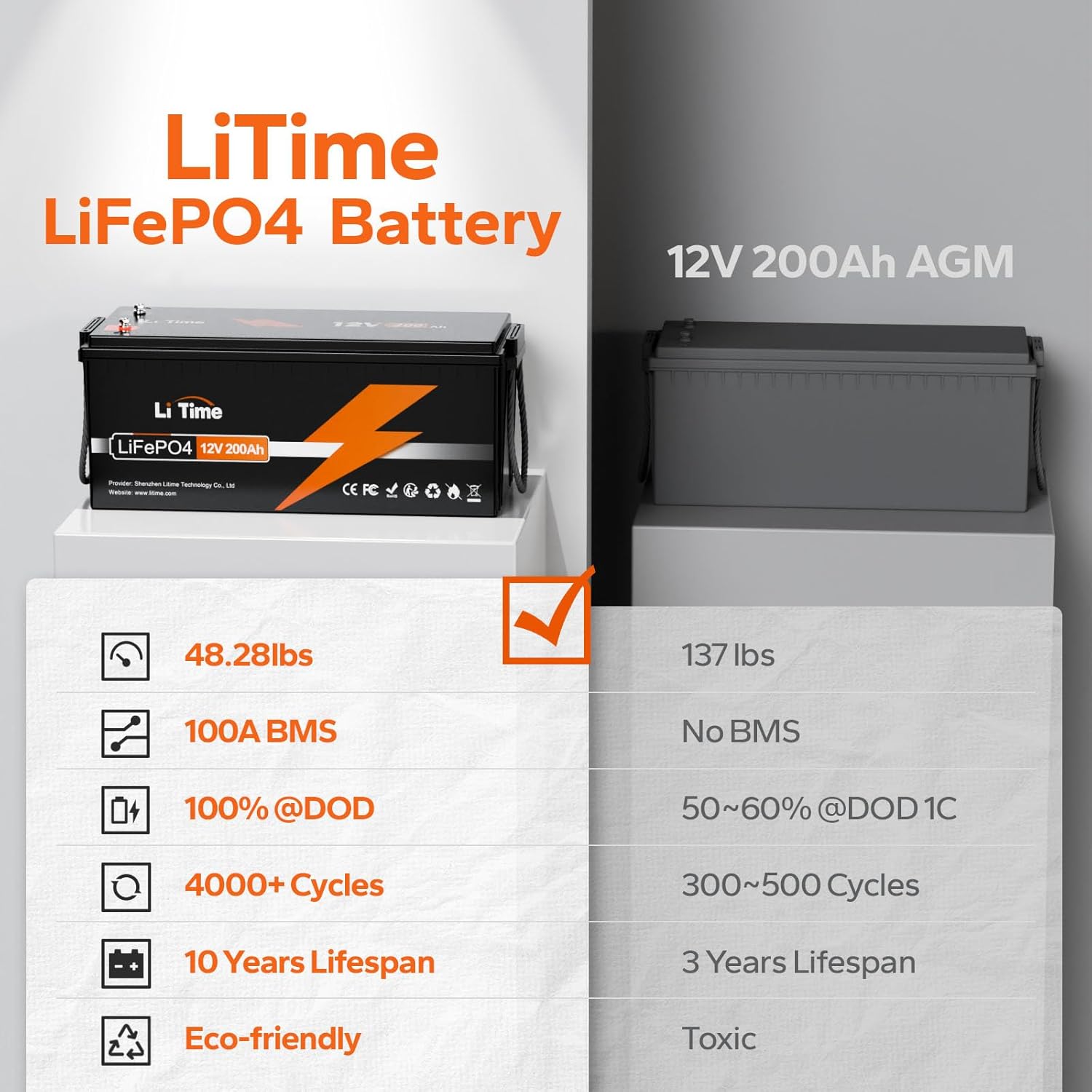

• ഭാരം കുറഞ്ഞ: Approximately 45.85 lbs, about 1/3 the weight of comparable lead-acid batteries.
• ഉയർന്ന കാര്യക്ഷമത: Flat discharge curve holds above 12.8V for up to 95% of its capacity usage.
• IP65 വാട്ടർപ്രൂഫ് റേറ്റിംഗ്: Suitable for indoor or outdoor installation.

സജ്ജമാക്കുക

Pre-Connection Requirements

Before connecting batteries in series or parallel, ensure all batteries meet the following conditions:

• Identical Battery Specifications: All batteries must be of the same battery type, capacity (Ah), voltage (V), and have the same BMS.
• Identical Brand: All batteries must be from the same brand (e.g., LiTime).
• Recent Purchase: Batteries should be purchased within one month of each other.
• Fully Charged & Balanced: Each battery must be fully charged separately and balanced before being used in a system to maintain constant voltage.

Wire Thickness Guidance

The size of the PVC wire required must meet the requirements of the entire battery system. Refer to the user manual provided with your battery for recommended cable sizing charts.

സമാന്തര കണക്ഷൻ

Parallel connections increase the battery capacity and amperage while maintaining the same voltage. For parallel connections, using copper bus bars is recommended to balance input and output currents and protect terminals from overheating.

Steps for Parallel Connection:

1. Wear insulating gloves throughout the process.
2. Connect the negative terminals of all batteries to a negative copper bus bar.
3. Connect the positive terminals of all batteries to a positive copper bus bar.
4. Use a torque wrench to tighten all bolts to between 12 to 14 N·m.
5. For systems with more than four batteries in parallel, contact LiTime customer service for specialized guidance.

സീരീസ് കണക്ഷൻ

Series connections increase the overall voltage of the battery system while maintaining the same amperage. It is recommended to use a battery balancer for series connections to ensure proper voltagഇ വിതരണം.

Steps for Series Connection:

1. Wear insulating gloves throughout the process.
2. Connect the negative terminal of one battery to the positive terminal of the next battery in the series.
3. Use a torque wrench to tighten all bolts to between 12 to 14 N·m.
4. Connect the negative cable of the balancer to the negative terminal of the first battery in the series.
5. Connect the positive cable of the balancer to the positive terminal of the last battery in the series.
6. മൊത്തം വോളിയംtage of the entire battery system should not exceed 51.2V.

പ്രവർത്തിക്കുന്നു

പൊതുവായ ഉപയോഗം

The LiTime 12V 200Ah LiFePO4 battery offers a flat discharge curve, maintaining voltage above 12.8V for up to 95% of its capacity. This provides consistent power for your appliances.

മെയിൻ്റനൻസ്

ചാർജിംഗ്

Always use a compatible LiFePO4 charger. When connecting the charger, ensure the power indicator turns from green to red, indicating active charging.

ദീർഘകാല സംഭരണം

For long-term storage, it is recommended to store the battery between 10°C to 35°C (50°F to 95°F) at a 50% charge level. Recharge the battery every three months to maintain its health.

ട്രബിൾഷൂട്ടിംഗ്

പൊതുവായ പ്രശ്നങ്ങൾ

• Battery in Sleep Mode: If the battery arrives in sleep mode or enters it due to low voltage, it may require a lithium charger with a "wake" feature to reactivate.
• Charging Below Freezing: The built-in BMS includes a high-temp cut-off to prevent charging over 167°F (75°C). However, charging below 32°F (0°C) can damage LiFePO4 batteries without low-temperature protection. Ensure your battery has this feature or charge in warmer conditions.
• വാല്യംtage Drop Under Load: A slight voltage drop is normal under load. For accurate capacity readings, check the voltage with loads removed.
• വയറിംഗ് പ്രശ്നങ്ങൾ: Incorrect wiring (e.g., mixing different battery types/brands in series/parallel, loose connections) can lead to performance issues or damage. Always follow the connection guidelines carefully.

സ്പെസിഫിക്കേഷനുകൾ

LiTime 12V 200Ah LiFePO4 Battery

വാറൻ്റി & പിന്തുണ

വാറൻ്റി വിവരങ്ങൾ

LiTime LiFePO4 batteries typically come with a 5-year service warranty. Please refer to your purchase documentation for specific warranty terms.

ഉപഭോക്തൃ പിന്തുണ

For professional technical support or any product-related issues, please contact LiTime support team directly. Fast feedback is typically provided within 24 hours.

ഇമെയിൽ: service@litime.com
