TECKNET Wireless Battery Doorbell User Manual

1. ആമുഖം

Thank you for choosing the TECKNET Wireless Battery Doorbell. This manual provides detailed instructions for setting up, operating, and maintaining your new doorbell system. Please read it carefully to ensure proper use and to maximize the product's lifespan.

This doorbell system is designed for convenience and reliability, featuring a robust IP67 waterproof rating for outdoor use, an extended wireless range, and customizable chime options.

Image: The TECKNET Wireless Battery Doorbell set, showing the larger receiver unit and the smaller transmitter button.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

• 60 Chimes & 5 Volume Levels: Offers a wide selection of melodies and adjustable volume from 0 dB (silent mode) to 110 dB.
• 400m Wireless Range: Provides extensive coverage, ensuring reliable signal transmission even through walls.
• IP67 വാട്ടർപ്രൂഫ് ട്രാൻസ്മിറ്റർ: Designed to withstand various weather conditions, from -20°C to 60°C.
• നീണ്ട ബാറ്ററി ലൈഫ്: The transmitter battery lasts up to 4.5 years, minimizing maintenance.
• മെമ്മറി പ്രവർത്തനം: Automatically saves your preferred chime and volume settings, even after power interruptions.
• എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Drill-free installation with included adhesive, suitable for various surfaces.

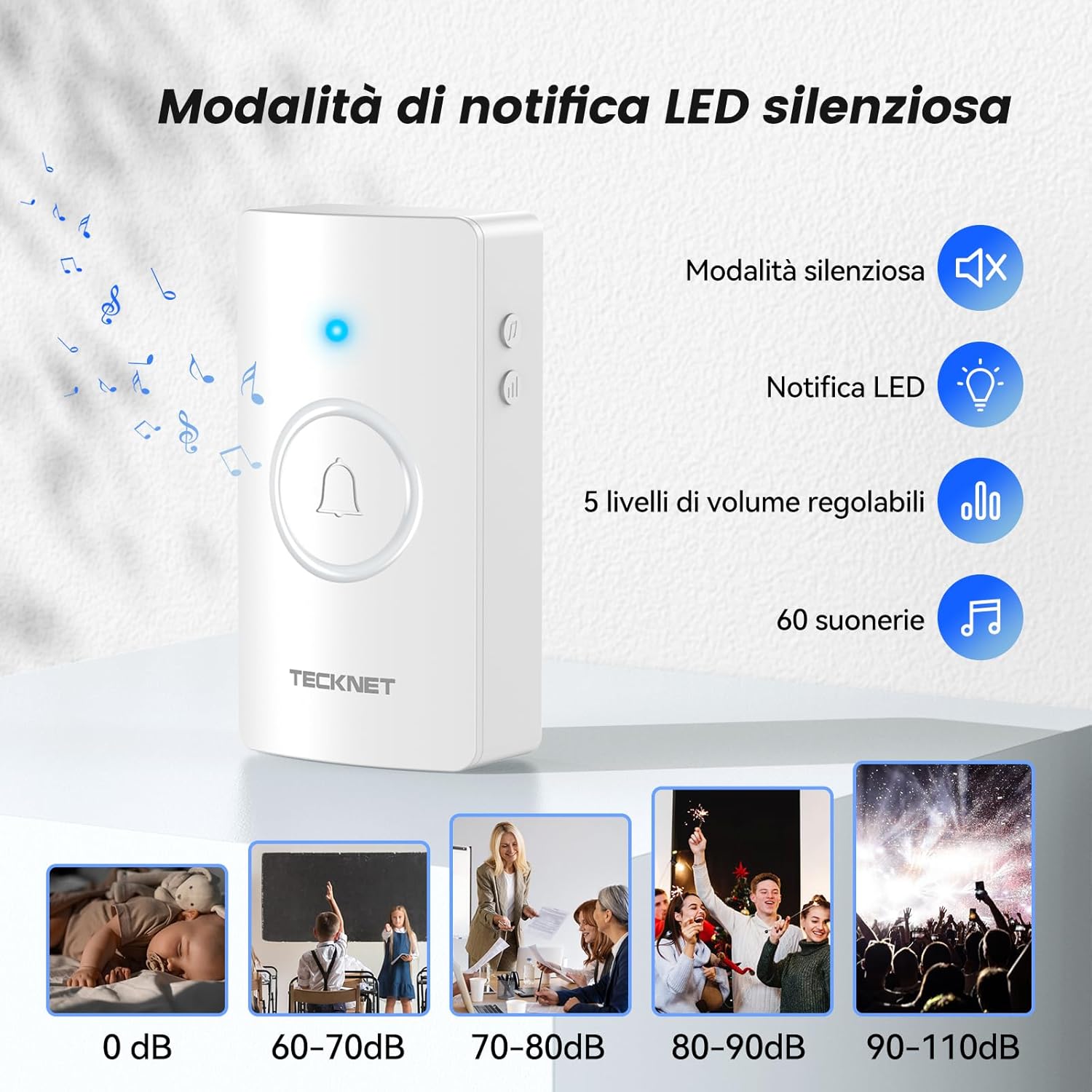

Image: Illustration of the doorbell receiver's features, including silent mode, LED notification, 5 adjustable volume levels (0-110dB), and 60 available chimes.

Image: Close-up of the doorbell transmitter highlighting its IP67 dustproof and waterproof rating, operational temperature range of -20°C to 60°C, and a maximum battery life of 4.5 years.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The TECKNET Wireless Doorbell is designed for quick and easy installation without the need for drilling.

Transmitter (Push Button) Installation:

1. Step 1: Remove the insulating strip. Locate the insulating strip on the transmitter's battery compartment and pull it out to activate the battery.
2. Step 2: Install the transmitter. Use the provided double-sided adhesive tape to attach the transmitter to your desired outdoor location, such as near your front door. Ensure the surface is clean and dry before application.

റിസീവർ ഇൻസ്റ്റാളേഷൻ:

1. Step 3: Insert batteries (if applicable). For battery-powered receivers, insert 3 AA batteries (not included) into the receiver's battery compartment and close the cover.
2. Step 4: Position the receiver. Hang the receiver on a wall or place it on a table in a central location within your home where the chime can be easily heard.

Image: A visual guide illustrating the four steps for installing the doorbell: removing the insulating strip, attaching the transmitter with adhesive, inserting batteries into the receiver, and positioning the receiver.

The wireless design allows for flexible placement of both the transmitter and receiver, adapting to various home layouts and environments.

Image: An illustration demonstrating the doorbell's 400-meter wireless range and its ability to penetrate various obstacles like wooden doors, brick walls, and concrete, ensuring connectivity throughout a large house.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Changing Chimes:

The receiver features a sound selection button to cycle through the 60 available chimes.

• ഒറ്റ ക്ലിക്ക്: Press the sound selection button once to advance to the next chime.
• ഇരട്ട ഞെക്കിലൂടെ: Press the sound selection button twice quickly to go back to the previous chime.

വോളിയം ക്രമീകരിക്കുന്നു:

Use the volume button on the receiver to adjust the sound level.

• Press the volume button repeatedly to cycle through the 5 volume levels (0 dB to 110 dB).
• Select 0 dB for silent mode, which will activate the LED notification instead of a sound.

Image: A close-up of the doorbell receiver, indicating the sound selection button (single click for next sound, double click for previous sound) and the volume button.

മെമ്മറി പ്രവർത്തനം:

The doorbell system is equipped with a memory function that automatically saves your last selected chime and volume level. This ensures that your settings are retained even after a power outage or if the receiver is accidentally unplugged.

Image: An abstract illustration representing the doorbell's memory function, depicted as gears and a music note within a human head silhouette, symbolizing automatic saving of settings.

5. പരിപാലനം

To ensure the longevity and optimal performance of your TECKNET Wireless Doorbell, follow these simple maintenance guidelines:

• വൃത്തിയാക്കൽ: Wipe the doorbell units with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: The transmitter battery has a life of up to 4.5 years. When the signal weakens or the transmitter stops working, replace the battery with a new CR2032 lithium coin cell battery. For the receiver, replace AA batteries as needed.
• പരിസ്ഥിതി വ്യവസ്ഥകൾ: While the transmitter is IP67 waterproof and designed for outdoor use, extreme conditions outside the -20°C to 60°C operating range may affect performance.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your doorbell, please refer to the following common troubleshooting steps:

If the problem persists after trying these steps, please contact TECKNET customer support for further assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

TECKNET is committed to providing high-quality products and excellent customer service.

വാറൻ്റി വിവരങ്ങൾ:

ഈ ഉൽപ്പന്നം എ 36-month technical support warranty for registered users. Please register your product to avail of this extended support.

തിരികെ നൽകൽ നയം:

If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the relevant return policy on the purchase platform. For defective or damaged products, please refer to the specific return and refund policies provided by the seller or platform.

ഉപഭോക്തൃ പിന്തുണ:

Should you encounter any issues during the use of this product, please do not hesitate to contact TECKNET's professional customer service team. We are dedicated to assisting you with any technical support needs.

പിന്തുണയ്ക്ക്, ദയവായി സന്ദർശിക്കുക ആമസോണിലെ TECKNET സ്റ്റോർ അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങലിനൊപ്പം നൽകിയിരിക്കുന്ന കോൺടാക്റ്റ് വിവരങ്ങൾ പരിശോധിക്കുക.
