Gaggia Cadorna Barista Plus Super-Automatic Espresso Machine User Manual

1. ആമുഖം

This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Gaggia Cadorna Barista Plus Super-Automatic Espresso Machine. Please read this manual thoroughly before first use and retain it for future reference. The Gaggia Cadorna Barista Plus is designed to deliver a variety of coffee beverages with ease, featuring 6 pre-programmed options and the ability to save up to 4 personalized user profiles.

Figure 1: Gaggia Cadorna Barista Plus Super-Automatic Espresso Machine.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview ഫീച്ചറുകളും

The Gaggia Cadorna Barista Plus is engineered for convenience and quality, offering a range of features to enhance your coffee experience.

പ്രധാന സവിശേഷതകൾ:

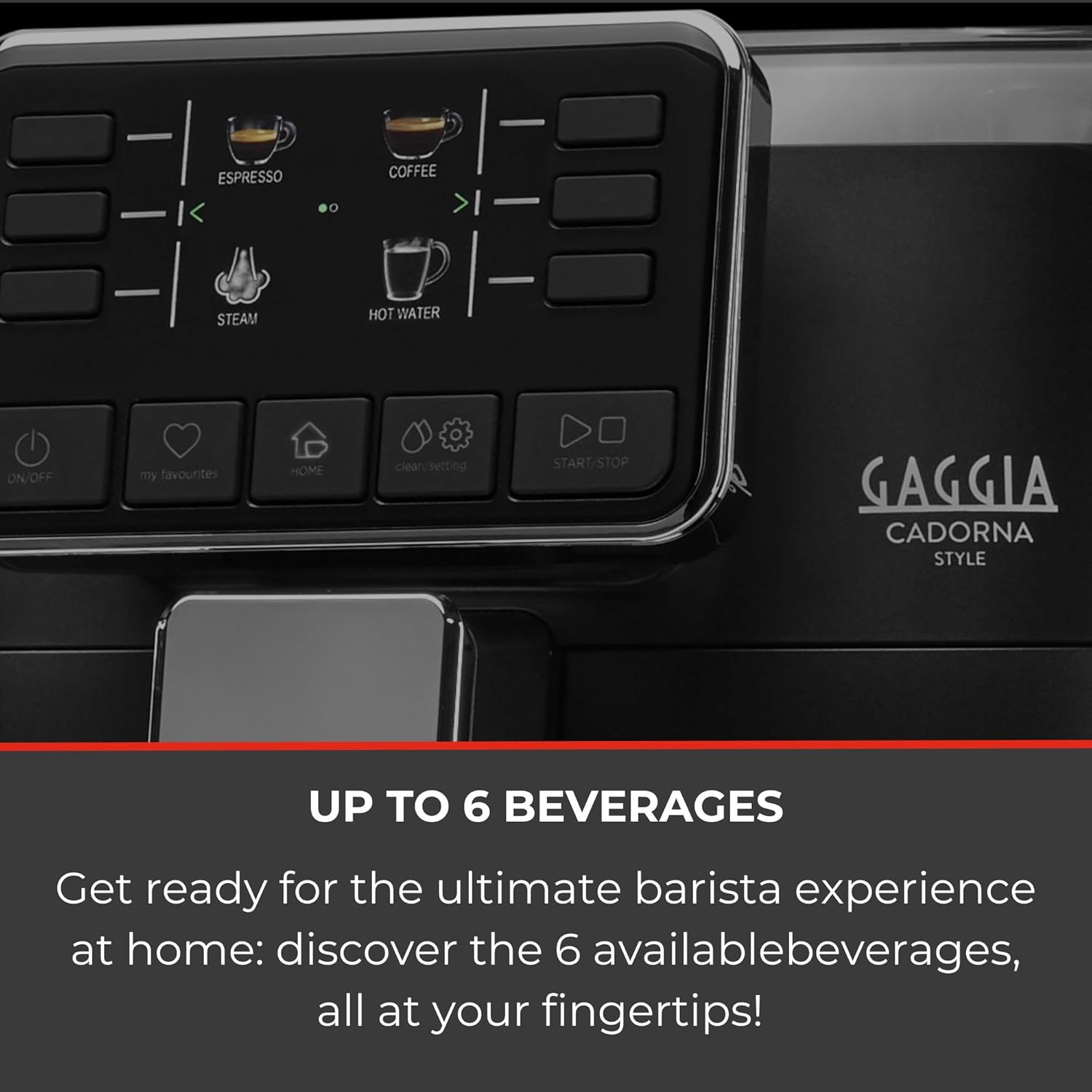

• 6 Pre-Programmed Beverages: Easily prepare Ristretto, Espresso, Espresso Lungo, Coffee, Americano, and Hot Water.
• 4 Personalized Profiles: Create and save custom beverage settings for up to four users, ensuring consistent results.
• Quick Heat Boiler: Equipped with a lightweight aluminum and durable stainless steel boiler for rapid heating.
• Commercial-Style Steam Wand: Designed for manual milk frothing, allowing for creation of lattes, cappuccinos, and flat whites.

3. സജ്ജീകരണം

Follow these steps for initial setup of your espresso machine.

3.1 അൺപാക്കിംഗും പ്ലേസ്മെന്റും

1. Carefully remove all packaging materials and protective films from the machine.
2. Place the machine on a stable, level surface, away from heat sources and water splashes. Ensure adequate ventilation around the unit.
3. പവർ കോർഡ് എളുപ്പത്തിൽ ആക്സസ് ചെയ്യാവുന്നതാണെന്നും തടസ്സങ്ങളൊന്നുമില്ലെന്നും ഉറപ്പാക്കുക.

3.2 പ്രാരംഭ തയ്യാറെടുപ്പ്

1. വാട്ടർ ടാങ്ക്: Remove the water tank, rinse it, and fill it with fresh, cold water up to the MAX level. Insert the included water filter if desired. Reinsert the tank securely.
2. ബീൻ ഹോപ്പർ: Open the bean hopper lid and fill it with whole coffee beans. Do not use ground coffee in the bean hopper.
3. പവർ കണക്ഷൻ: ഗ്രൗണ്ടഡ് ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് മെഷീൻ പ്ലഗ് ചെയ്യുക.
4. പ്രാരംഭ കഴുകൽ ചക്രം: Follow the on-screen prompts for the initial rinse cycle. This primes the system and cleans internal components. Place a container under the dispensing spout during this process.

ചിത്രം 5: വശം view of the machine, illustrating components like the water tank.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Learn how to brew your favorite coffee beverages and utilize the machine's features.

4.1 ബ്രൂയിംഗ് കോഫി

1. Turn on the machine using the power button. Wait for the machine to complete its self-test and heating cycle.
2. ഡിസ്പെൻസിങ് സ്പൗട്ടിന് കീഴിൽ ഒരു കപ്പ് വയ്ക്കുക.
3. Select your desired beverage from the control panel (e.g., Espresso, Coffee, Americano).
4. Adjust coffee strength or volume if prompted, or if using a personalized profile.
5. Press the Start/Stop button to begin brewing.

Figure 6: Machine dispensing espresso into two cups.

4.2 സ്റ്റീം വാൻഡ് ഉപയോഗം

1. Fill a pitcher with cold milk.
2. Select the 'Steam' function on the control panel.
3. Once the machine indicates it's ready, immerse the steam wand tip just below the surface of the milk.
4. Open the steam valve to begin frothing. Move the pitcher up and down to create desired foam texture.
5. Close the steam valve when finished. Clean the steam wand immediately after use with a damp തുണി.

4.3 Grinder Adjustment

Important: Adjust the grinder only while the grinder is operating. Adjusting the grinder when it is not running can damage the grinding mechanism. Make adjustments one click at a time to avoid damage.

1. Locate the grinder adjustment knob inside the bean hopper.
2. While the machine is grinding beans for a beverage, turn the knob one click towards a finer (smaller number) or coarser (larger number) setting.
3. Brew a few coffees to observe the change in extraction and taste before making further adjustments.

5. പരിപാലനം

Regular maintenance ensures optimal performance and longevity of your Gaggia Cadorna Barista Plus.

5.1 പ്രതിദിന ശുചീകരണം

• ഡ്രിപ്പ് ട്രേ: ഡ്രിപ്പ് ട്രേയും കോഫി ഗ്രൗണ്ട് പാത്രവും ദിവസവും കാലിയാക്കി കഴുകുക.
• ആവി വടി: Wipe the steam wand immediately after each use to prevent milk residue buildup.
• വാട്ടർ ടാങ്ക്: Rinse and refill the water tank with fresh water daily.

Figure 7: Espresso tray and drip tray for daily cleaning.

5.2 Weekly/Bi-Weekly Cleaning

• ബ്രൂ ഗ്രൂപ്പ്: Remove the brew group (refer to the machine's display for instructions), rinse it under lukewarm water, and allow it to air dry before reinserting. Apply the included group lubricant as needed.
• കാപ്പി സ്പൗട്ട്: Clean the coffee dispensing spout with a damp തുണി.

5.3 ഡെസ്കലിംഗ്

The machine will prompt you when descaling is required. Use Gaggia descaling solution and follow the on-screen instructions carefully. Regular descaling prevents mineral buildup and maintains machine efficiency.

5.4 വാട്ടർ ഫിൽറ്റർ

Replace the water filter approximately every two months, or as indicated by the machine, to ensure optimal water quality and reduce descaling frequency.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your Gaggia Cadorna Barista Plus.

For issues not listed here or if solutions do not resolve the problem, please refer to the warranty and support section.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Your Gaggia Cadorna Barista Plus Super-Automatic Espresso Machine comes with a 1 വർഷത്തെ വാറൻ്റി. This warranty is handled directly by Gaggia. For warranty claims, technical assistance, or further support, please contact Gaggia customer service. Keep your proof of purchase for warranty validation.
