1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Dynamic Barcelona DYN-6106-01 Infrared Sauna is designed to provide a relaxing and beneficial sauna experience within your home. This 1 to 2-person sauna features low EMF FAR infrared carbon heating panels, natural hemlock wood construction, and integrated audio capabilities for enhanced relaxation.
Image 1.1: The Dynamic Barcelona DYN-6106-01 Infrared Sauna positioned in a home environment, showcasing its compact design and wooden finish.
പ്രധാന സവിശേഷതകൾ:
- Low EMF FAR Infrared Heat: Utilizes six carbon heating elements designed to emit low electromagnetic fields (under 8 mG), promoting a safe and effective infrared sauna experience.
- Natural Hemlock Wood Construction: Crafted from lightweight yet durable hemlock wood, providing a traditional aesthetic and robust structure.
- ഇന്റഗ്രേറ്റഡ് ഓഡിയോ സിസ്റ്റം: Features Bluetooth connectivity and an MP3 auxiliary connection with built-in speakers, allowing users to enjoy music or audio during sessions.
- Chromotherapy and Red-Light Therapy: Includes interior chromotherapy lighting and a red-light therapy feature for additional health benefits and ambiance.
- ഉപയോക്തൃ സൗഹൃദ നിയന്ത്രണങ്ങൾ: Equipped with an LED display and soft-touch control panel for easy operation of temperature, time, and lighting.
- ടെമ്പർഡ് ഗ്ലാസ് ഡോർ: Allows for visibility while maintaining internal heat.
2 സുരക്ഷാ വിവരങ്ങൾ
Please read all safety instructions carefully before operating your sauna. Failure to follow these instructions may result in injury or damage to the unit.
പ്രധാന മുൻകരുതലുകൾ:
- Consult a physician before use if you have any medical conditions, are pregnant, or are taking medication.
- Do not use the sauna under the influence of alcohol or drugs.
- Ensure the sauna is plugged into a dedicated 15-amp, 120-volt outlet. Do not use extension cords or multi-outlets.
- ഓപ്പറേഷൻ സമയത്ത് കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും നീരാവിക്കുളത്തിൽ നിന്ന് അകറ്റി നിർത്തുക.
- Avoid touching heating elements directly during operation.
- Do not pour water or any liquids onto the heating elements or interior of the sauna.
- Limit sauna sessions to recommended durations to prevent overheating or dehydration.
- Always ensure proper ventilation around the sauna.
3. സജ്ജീകരണവും അസംബ്ലിയും
The Dynamic Barcelona sauna is designed for simple clasp-together assembly. While straightforward, it is recommended that two people assist with the assembly process due to the size and weight of the panels.
അസംബ്ലി ഘട്ടങ്ങൾ (പൊതു ഗൈഡ്):
- ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully unpack all components and verify against the packing list. Ensure no parts are damaged.
- Prepare Location: Choose a flat, stable indoor location. The sauna can be placed on carpet. Ensure access to a dedicated 15-amp, 120-വോൾട്ട് ഔട്ട്ലെറ്റ്.
- Assemble Base and Back Panel: Position the base, then connect the back panel securely.
- സൈഡ് പാനലുകൾ ഘടിപ്പിക്കുക: Connect the left and right side panels to the back panel and base, ensuring all clasps are engaged.
- Install Front Panel and Door: Secure the front panel, which includes the tempered glass door.
- Place Bench and Floor Grate: Insert the wooden bench and floor grate into their designated positions.
- Install Roof Panel: Carefully place the roof panel on top, aligning all electrical connections. The roof panel typically houses the main control unit and wiring.
- Connect Internal Wiring: Connect any internal wiring for heaters, lights, and control panel as per the detailed assembly manual included with your product. All plugs and cords are typically labeled for ease of connection.
- അന്തിമ പരിശോധന: Before plugging in, ensure all panels are securely fastened, and all electrical connections are firm.
Image 3.1: Exterior and interior views of the Dynamic Barcelona sauna, illustrating its design and internal layout.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once assembled and connected to power, your Dynamic Barcelona sauna is ready for use. The control panel allows you to manage temperature, time, lighting, and audio.
4.1. നിയന്ത്രണ പാനൽ ഓവർview
Image 4.1: The soft-touch control panel, displaying temperature, time, and various function buttons.
നിയന്ത്രണ പാനലിൽ സാധാരണയായി ഇവ ഉൾപ്പെടുന്നു:
- പവർ ബട്ടൺ: Turns the sauna on/off.
- Temperature Display/Adjustment: Shows current and set temperature. Use arrow buttons to adjust.
- Time Display/Adjustment: Shows remaining and set session time. Use arrow buttons to adjust.
- ലൈറ്റ് ബട്ടൺ: Controls interior lighting, including chromotherapy and red-light therapy features.
- Bluetooth/MP3 Button: Activates audio functions.
- °C/°F ബട്ടൺ: സെൽഷ്യസിനും ഫാരൻഹീറ്റിനും ഇടയിൽ താപനില ഡിസ്പ്ലേ ടോഗിൾ ചെയ്യുന്നു.
4.2. Starting a Sauna Session
- Ensure the sauna is properly plugged into a dedicated 120V/15A outlet.
- അമർത്തുക പവർ ബട്ടൺ to turn on the sauna.
- Use the temperature adjustment buttons to set your desired temperature (e.g., 120°F - 150°F). The sauna will begin to heat up.
- Set your desired session time using the time adjustment buttons (e.g., 30-60 minutes).
- Allow the sauna to preheat for 10-15 minutes to reach the set temperature.
- നീരാവിക്കുഴിയിൽ പ്രവേശിച്ച് വാതിൽ സുരക്ഷിതമായി അടയ്ക്കുക.
- To end a session early, press the പവർ ബട്ടൺ വീണ്ടും.
4.3. Using Audio Features (Bluetooth/MP3)
- ബ്ലൂടൂത്ത്: Activate Bluetooth on your mobile device. On the sauna control panel, press the Bluetooth/MP3 button to enable pairing mode. Select "Dynamic Sauna" or similar from your device's Bluetooth list to connect.
- MP3 Auxiliary Input: Locate the MP3 AUX INPUT jack inside the sauna (refer to Image 4.2). Connect your audio device using a standard 3.5mm audio cable.
Image 4.2: MP3 Auxiliary Input jack for connecting external audio devices.
4.4. Chromotherapy and Red-Light Therapy
അമർത്തുക ലൈറ്റ് ബട്ടൺ on the control panel to cycle through different light modes, including various colors for chromotherapy and the red-light therapy feature. Each press will change the light setting.
ചിത്രം 4.3: ഉദാamples of chromotherapy lighting options available within the sauna.
5. പരിപാലനം
Proper maintenance will ensure the longevity and optimal performance of your Dynamic Barcelona sauna.
വൃത്തിയാക്കൽ:
- ഇൻ്റീരിയർ: Wipe down the interior wood surfaces with a clean, damp cloth after each use. For deeper cleaning, use a mild, non-toxic wood cleaner specifically designed for saunas. Do not use harsh chemicals or abrasive cleaners.
- പുറം: മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് പുറംഭാഗം വൃത്തിയാക്കുക.
- ഗ്ലാസ് വാതിൽ: Use a standard glass cleaner for the tempered glass door.
- Floor Grate: The floor grate can be removed for easier cleaning underneath.
വുഡ് കെയർ:
- Hemlock wood is naturally resistant to moisture, but avoid excessive moisture exposure.
- Do not apply wood stains or sealants to the interior of the sauna, as they can release harmful fumes when heated.
- Minor scuffs or marks on the wood can often be lightly sanded with fine-grit sandpaper.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your sauna, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| സൗന ഓണാക്കുന്നില്ല. | വൈദ്യുതിയില്ല, കണക്ഷൻ നഷ്ടപ്പെട്ടു, സർക്യൂട്ട് ബ്രേക്കർ വീണു. | Check power cord connection. Ensure outlet has power. Reset circuit breaker. Verify all internal wiring connections are secure. |
| Sauna not heating sufficiently. | Temperature set too low, door not fully closed, faulty heating element. | Increase set temperature. Ensure door is latched. Contact customer service if heating elements appear non-functional (refer to Image 6.1 for a typical heating panel). |
| നിയന്ത്രണ പാനൽ പ്രതികരിക്കുന്നില്ല. | Loose wiring, power surge. | Turn off and unplug the sauna, wait 5 minutes, then plug back in and restart. Check control panel wiring connections. |
| ബ്ലൂടൂത്ത് കണക്റ്റ് ചെയ്യുന്നില്ല. | Device too far, pairing mode not active, interference. | Ensure your device is close to the sauna. Activate Bluetooth pairing mode on the sauna. Restart both devices. |

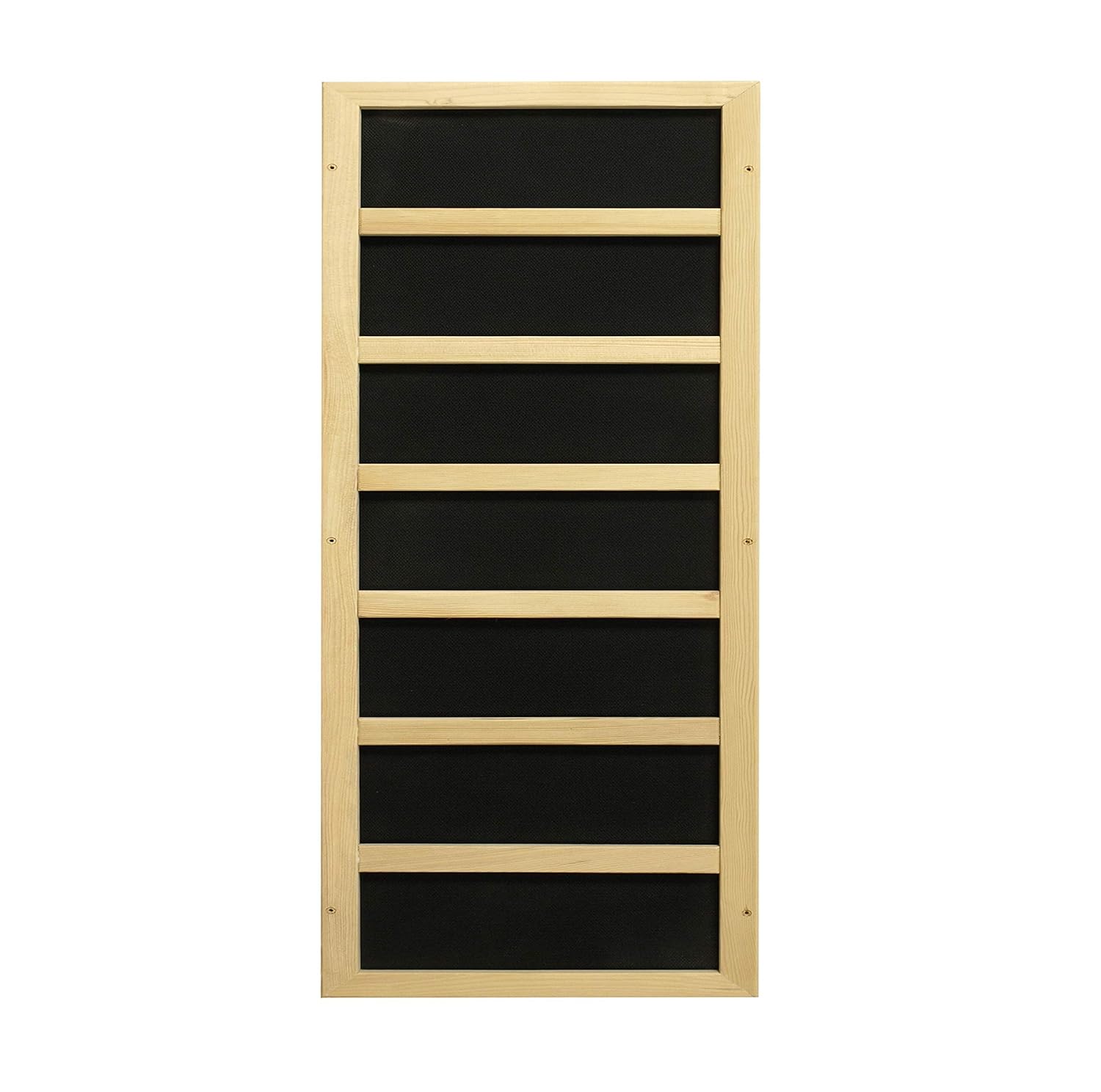

ചിത്രം 6.1: ഉദാample of a carbon infrared heating panel, one of six in the sauna.
7 സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | DYN-6106-01 |
| ടൈപ്പ് ചെയ്യുക | FAR ഇൻഫ്രാറെഡ് സൗന |
| ശേഷി | 1 മുതൽ 2 വരെ ആൾക്കാർ |
| ചൂടാക്കൽ ഘടകങ്ങൾ | 6 Low EMF FAR Infrared Carbon Heaters |
| മരത്തിന്റെ തരം | Natural Hemlock Wood |
| പവർ ആവശ്യകത | 15 സമർപ്പിക്കുന്നു Amp, 120 Volt Outlet |
| നിയന്ത്രണ സംവിധാനം | LED Display with Soft-Touch Control Panel |
| ഓഡിയോ സവിശേഷതകൾ | Bluetooth, MP3 Auxiliary Connection, Built-in Speakers |
| ലൈറ്റിംഗ് | Chromotherapy Lighting, Red-Light Therapy |
| നിർമ്മാതാവ് | Golden Designs Inc. (NA) |
| ASIN | B089FNDFBG |
8. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
For customer service, warranty inquiries, or technical support regarding your Dynamic Barcelona sauna, please contact the manufacturer directly.
- ഫോൺ: 888-939-8877
- ഇമെയിൽ: info@goldendesignsinc.com
Please have your model number (DYN-6106-01) and purchase information ready when contacting support.
