1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The AURSINC MMDVM Duplex Hotspot Module is a digital voice modem (MMDVM) designed for amateur radio enthusiasts. This module supports various digital modes including DMR, P-25, D-Star, and System Fusion. It features a 0.96-inch OLED display for status indication and is engineered for duplex operation, allowing simultaneous transmission and reception across two time slots on DMR networks. The module integrates two ADF7021 transceivers and is compatible with a range of Raspberry Pi models.
1.1 പ്രധാന സവിശേഷതകൾ
- വിശാലമായ അനുയോജ്യത: Supports DMR, P-25, D-Star, and System Fusion digital modes.
- ഉയർന്ന പ്രകടനം: Equipped with a 32-bit ARM processor and up to 10mW RF power.
- ഡ്യുപ്ലെക്സ് ഓപ്പറേഷൻ: Features two ADF7021 transceivers for simultaneous transmit and receive.
- OLED ഡിസ്പ്ലേ: Includes a 0.96-inch OLED screen for real-time status.
- Raspberry Pi Compatible: Designed for use with Raspberry Pi 1, 2/2b, 3/3b/3b+, 4/4b, Pi Zero, and Pi Zero 2W.
- ഫേംവെയർ: Ships with V1.5.2 firmware, upgradable to V1.6.1.
1.2 പാക്കേജ് ഉള്ളടക്കം
- 1x MMDVM Duplex Hotspot Module (with 0.96-inch OLED)
- 2x ആന്റിനകൾ
- 2x SMA Sockets

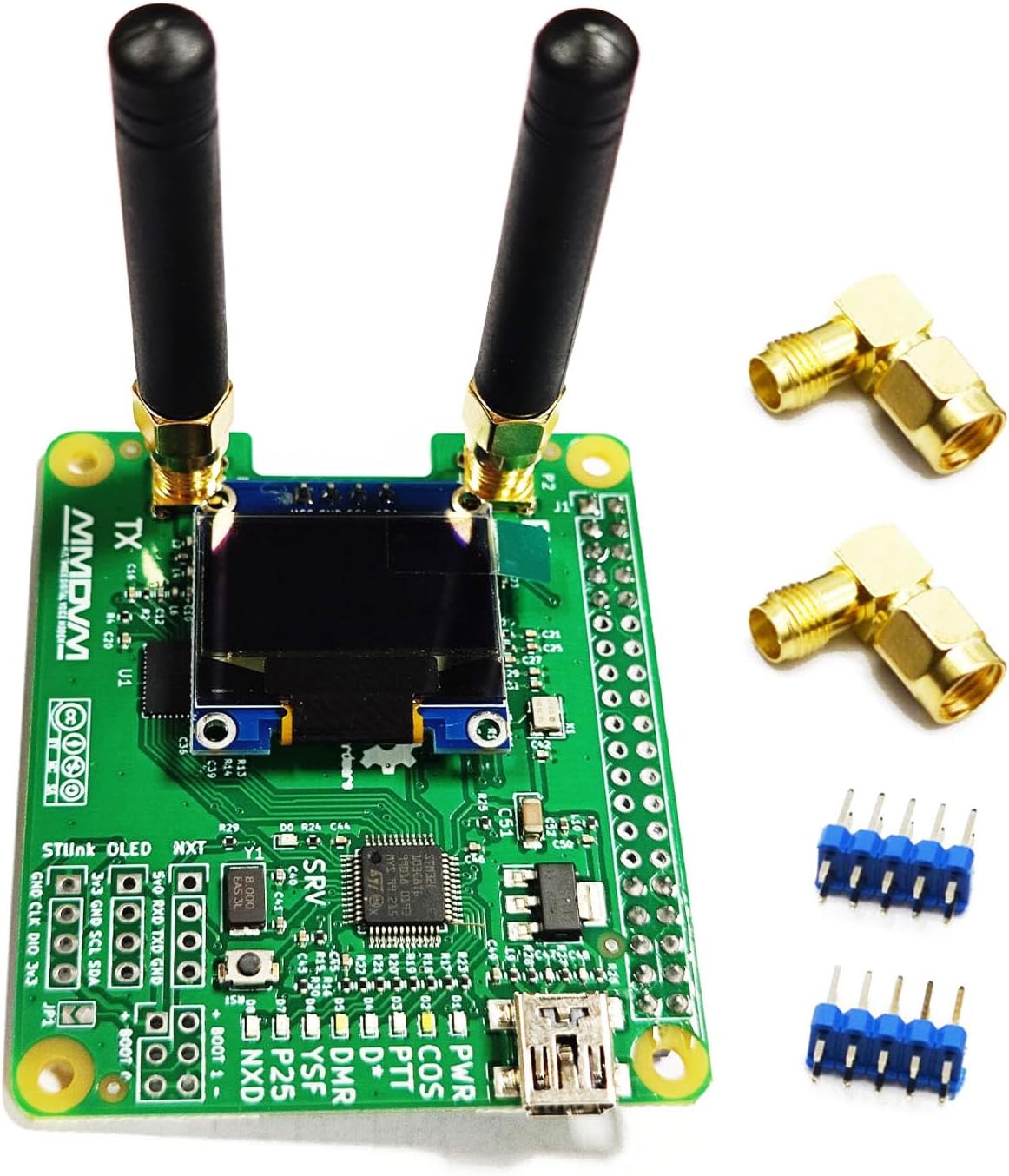

Image 1.1: AURSINC MMDVM Duplex Hotspot Module with attached antennas and OLED display.
2 സാങ്കേതിക സവിശേഷതകൾ
| സ്പെസിഫിക്കേഷൻ | മൂല്യം |
|---|---|
| ബ്രാൻഡ് | AURSINC |
| മോഡലിൻ്റെ പേര് | MMDVM duplex Hotspot Module |
| ഇനം മോഡൽ നമ്പർ | 2020 |
| പ്രോസസ്സർ ബ്രാൻഡ് | ARM |
| പ്രോസസ്സറുകളുടെ എണ്ണം | 1 |
| റാം | LPDDR3 |
| ഓപ്പറേറ്റിംഗ് സിസ്റ്റം | Raspberry Pi OS (based on Linux) |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | ജിപിഐഒ |
| വയർലെസ് തരം | റേഡിയോ ആവൃത്തി |
| ഇനത്തിൻ്റെ ഭാരം | 2.53 ഔൺസ് |
| പാക്കേജ് അളവുകൾ | 3.74 x 3.66 x 1.42 ഇഞ്ച് |
| നിറം | With OLED |
| ആദ്യ തീയതി ലഭ്യമാണ് | ജൂൺ 1, 2020 |
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
3.1 ഹാർഡ്വെയർ കണക്ഷൻ
The MMDVM Duplex Hotspot Module is designed as a HAT (Hardware Attached on Top) for Raspberry Pi boards. Ensure your Raspberry Pi is powered off before connecting the module.
- Carefully align the 40-pin GPIO header on the MMDVM module with the corresponding pins on your Raspberry Pi.
- Gently press the module onto the Raspberry Pi's GPIO header until it is securely seated.
- Attach the two provided antennas to the SMA connectors on the MMDVM module. Ensure they are finger-tight.
Image 3.1: MMDVM Duplex Hotspot Module with antennas, ready for Raspberry Pi connection.
ചിത്രം 3.2: മുകളിൽ view of the module, highlighting the OLED display and various components.
ചിത്രം 3.3: താഴെ view of the module's printed circuit board.
3.2 സോഫ്റ്റ്വെയർ കോൺഫിഗറേഷൻ
After physically connecting the module to your Raspberry Pi, you will need to configure the software (e.g., Pi-Star or WPSD) to recognize and operate the hotspot.
- Modem Selection: In your hotspot software's configuration settings, select the modem type as "STM32-DVM/MMDVM_HS-Raspberry pi Hat (GPIO)" or a similar GPIO board option.
- ഫ്രീക്വൻസി ക്രമീകരണങ്ങൾ: Ensure your transmit (TX) and receive (RX) frequencies are correctly configured. The module operates best on the amateur band: 430-440 MHz. Note that in some software configurations, the radio's TX and RX frequencies may be opposite to the software's displayed TX and RX settings.
4. ഓപ്പറേഷൻ
Once configured, the MMDVM Duplex Hotspot Module allows your radio to connect to various digital voice networks. The OLED display will show operational status, including connected mode, callsign, and other relevant information.
4.1 Supported Modes
The module supports the following digital amateur radio modes:
- DMR (Digital Mobile Radio)
- P-25 (Project 25)
- D-Star
- System Fusion (C4FM)
- NXDN
4.2 Radio Frequency Range
The module supports a broad frequency range, with optimal performance in the amateur bands:
- 144-148 MHz
- 219-225 MHz
- 420-475 MHz (Main Band, recommended 430-440 MHz)
- 842-950 MHz
5 ഫേംവെയർ അപ്ഡേറ്റ്
The MMDVM Duplex Hotspot board ships with firmware V1.5.2 and can be upgraded to V1.6.1 or newer versions. Regular firmware updates can improve performance and add new features.
5.1 Current Firmware Verification
To verify your current firmware version, access your Raspberry Pi via SSH (e.g., using Pi-Star's expert mode) and run the appropriate command for your software (e.g., sudo wpsd-detectmodem if using WPSD).
Image 5.1: Terminal output confirming firmware version V1.5.2.
5.2 Upgrade Procedure to V1.6.1
Follow these steps to upgrade your module's firmware:
- Access your Raspberry Pi via SSH. For Pi-Star, use username
pi-starപാസ്വേഡുംraspberry. - Connect JP1: Before running the upgrade command, temporarily connect the JP1 jumper on the MMDVM board. This puts the board into flash mode.
- Run Upgrade Command: Execute the appropriate firmware upgrade command. For Pi-Star, this is typically
sudo pistar-mmdvmhshatflash hs_dual_hat. If using WPSD, refer to their documentation for the specific command. - Disconnect JP1: After the upgrade process is complete, power down your Raspberry Pi and disconnect the JP1 jumper.
- Reboot your Raspberry Pi. The module should now be running the updated firmware.

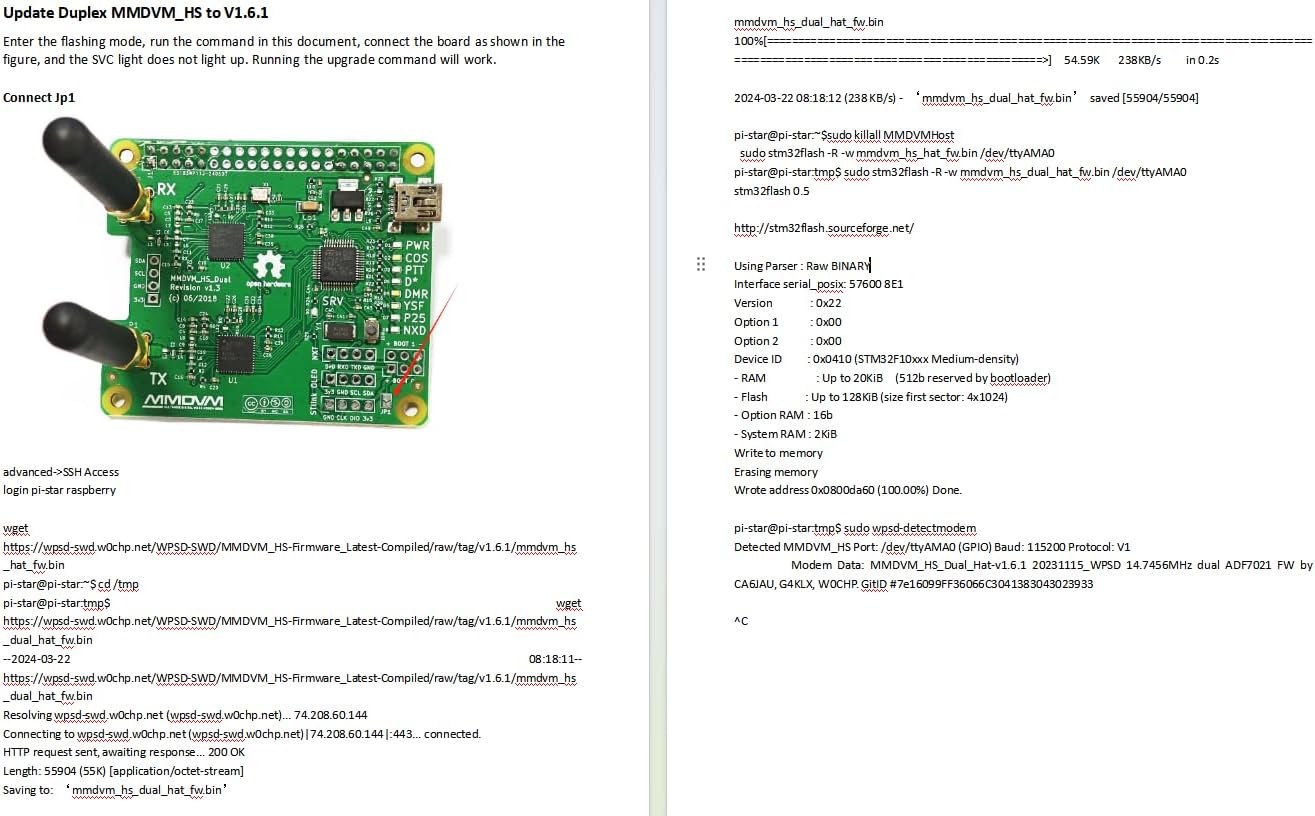

ചിത്രം 5.2: ഉദാample of firmware upgrade commands in a terminal environment.
6. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your MMDVM Duplex Hotspot Module.
6.1 Duplex Mode Not Working
If the board fails to operate in duplex mode, consider the following:
- ഫേംവെയർ അപ്ഡേറ്റ്: Ensure your firmware is up to date. Run the upgrade command:
sudo pistar-mmdvmhshatflash hs_dual_hat. - WPSD Alternative: If the Pi-Star command does not resolve the issue, consider using WPSD (Wireless Personal Digital Station) as an alternative software platform for MMDVM. Refer to the WPSD documentation for installation and configuration.
- Frequency Inversion: Some users report that the transmit (TX) and receive (RX) frequency settings in the hotspot software (e.g., WPSD) might be inverted relative to your radio's settings. Experiment with swapping the TX and RX frequencies in your software configuration.
6.2 Failed Firmware Update
If a firmware update fails, ensure the JP1 jumper is correctly connected during the flashing process. The JP1 jumper is crucial for placing the board into flash mode.

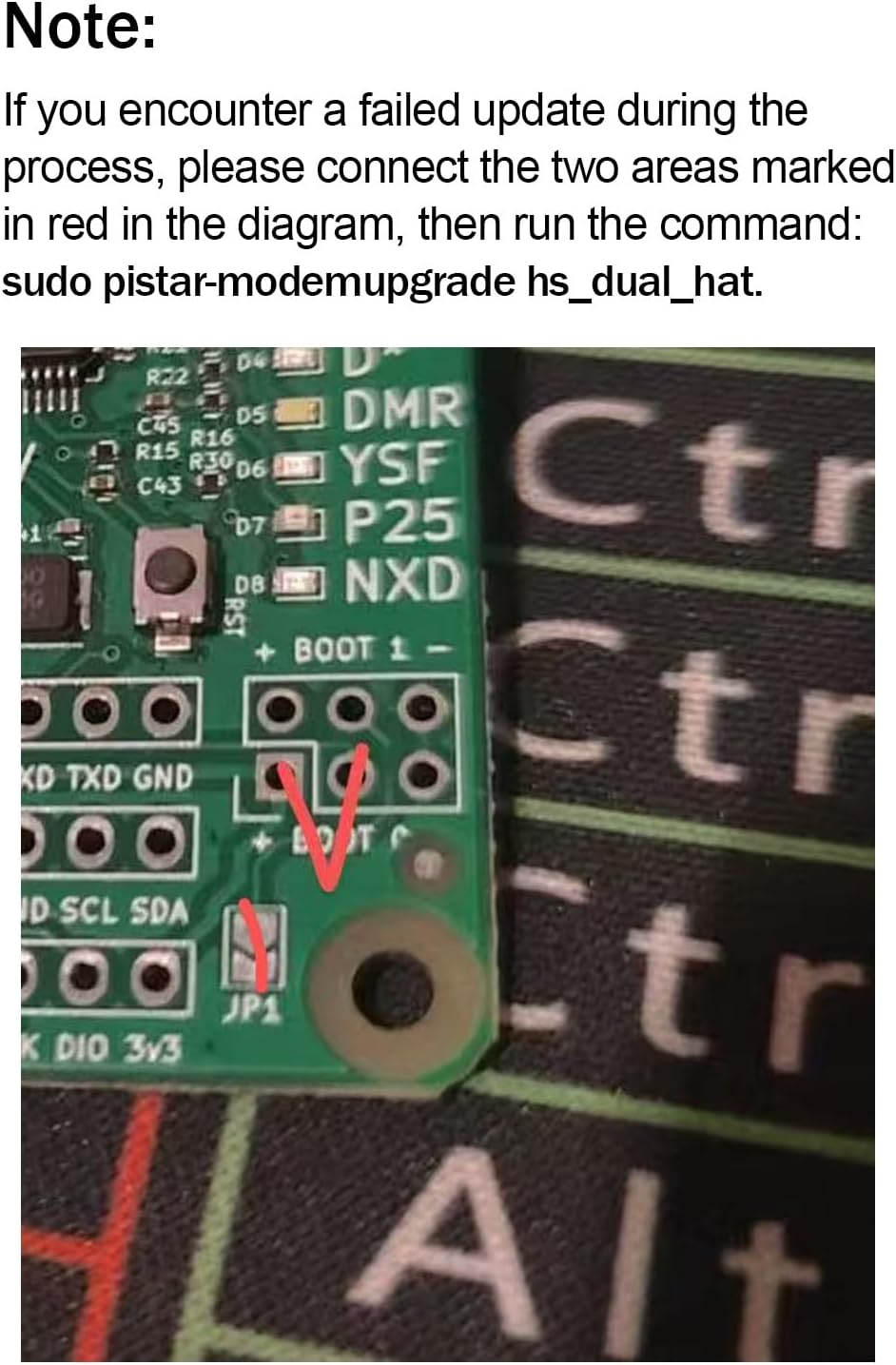

Image 6.1: Location of the JP1 jumper on the MMDVM board, indicated for firmware update.
After connecting JP1, retry the firmware upgrade command. If issues persist, consult online resources or the manufacturer's support.
7. പരിപാലനം
To ensure the longevity and optimal performance of your AURSINC MMDVM Duplex Hotspot Module, follow these general maintenance guidelines:
- പരിസ്ഥിതി വ്യവസ്ഥകൾ: Operate the module in a clean, dry environment, away from extreme temperatures, humidity, and direct sunlight.
- ശാരീരിക കൈകാര്യം ചെയ്യൽ: Handle the module carefully to avoid physical damage to components or connectors. Avoid bending the PCB.
- വൃത്തിയാക്കൽ: If necessary, gently clean the module with a soft, dry cloth. Do not use liquid cleaners or solvents.
- ആന്റിന കണക്ഷൻ: Ensure antennas are securely attached but do not overtighten them, as this can damage the SMA connectors.
- സോഫ്റ്റ്വെയർ അപ്ഡേറ്റുകൾ: Regularly check for and apply software and firmware updates for your Raspberry Pi operating system and hotspot software (Pi-Star, WPSD) to benefit from bug fixes and performance improvements.
8. പിന്തുണയും വാറണ്ടിയും
For any issues encountered during the use of your AURSINC MMDVM Duplex Hotspot Module, please contact AURSINC customer support. Provide your product model and a detailed description of the issue to facilitate assistance.
Information regarding specific warranty terms and conditions can be obtained directly from AURSINC or your point of purchase.
