Moen U361X M-CORE Transfer Valve User Manual

1. ആമുഖം

The Moen U361X M-CORE 3 or 6 Function Transfer Valve is engineered to provide a flexible and efficient solution for controlling water flow to multiple showering devices. Part of the innovative M-CORE system, this valve simplifies installation and offers adaptability for various shower configurations, ensuring a seamless and customizable showering experience.

This manual provides essential information regarding the installation, operation, and maintenance of your Moen U361X M-CORE Transfer Valve.

2 പ്രധാന സവിശേഷതകൾ

• Versatile Device Control: Capable of controlling 2 or 3 showering devices. A simple modification of the transfer cartridge allows switching between two and three outlets.
• Moen M-PACT Common Valve System: Enables future style updates to your faucet without requiring plumbing replacement.
• Flexible Functionality: When using 2 showering devices, the valve offers 2 independent and 1 shared function. When using 3 showering devices, it provides 3 independent and 3 shared functions.
• അഡാപ്റ്റബിൾ ഡിസൈൻ: M-CORE's design allows for rough-in installation with options for functionality and style changes without valve removal.
• Streamlined Installation: Features an integrated mounting bracket for direct securement to a brace, simplifying and speeding up the installation process.
• PEX Connections: Designed with Crimp Ring PEX Connections for reliable and secure plumbing.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Moen U361X M-CORE Transfer Valve is designed for straightforward installation. It features an integrated mounting bracket that secures the valve directly to a brace, streamlining the process. This valve utilizes Crimp Ring PEX Connections for reliable plumbing.

For detailed, step-by-step installation instructions, please refer to the official Installation Manual (PDF) provided by Moen. This document contains critical diagrams and specific guidance for proper setup.

ചിത്രം 3.1: ഫ്രണ്ട് view of the Moen U361X M-CORE Transfer Valve, showing the PEX connections and the main valve body.

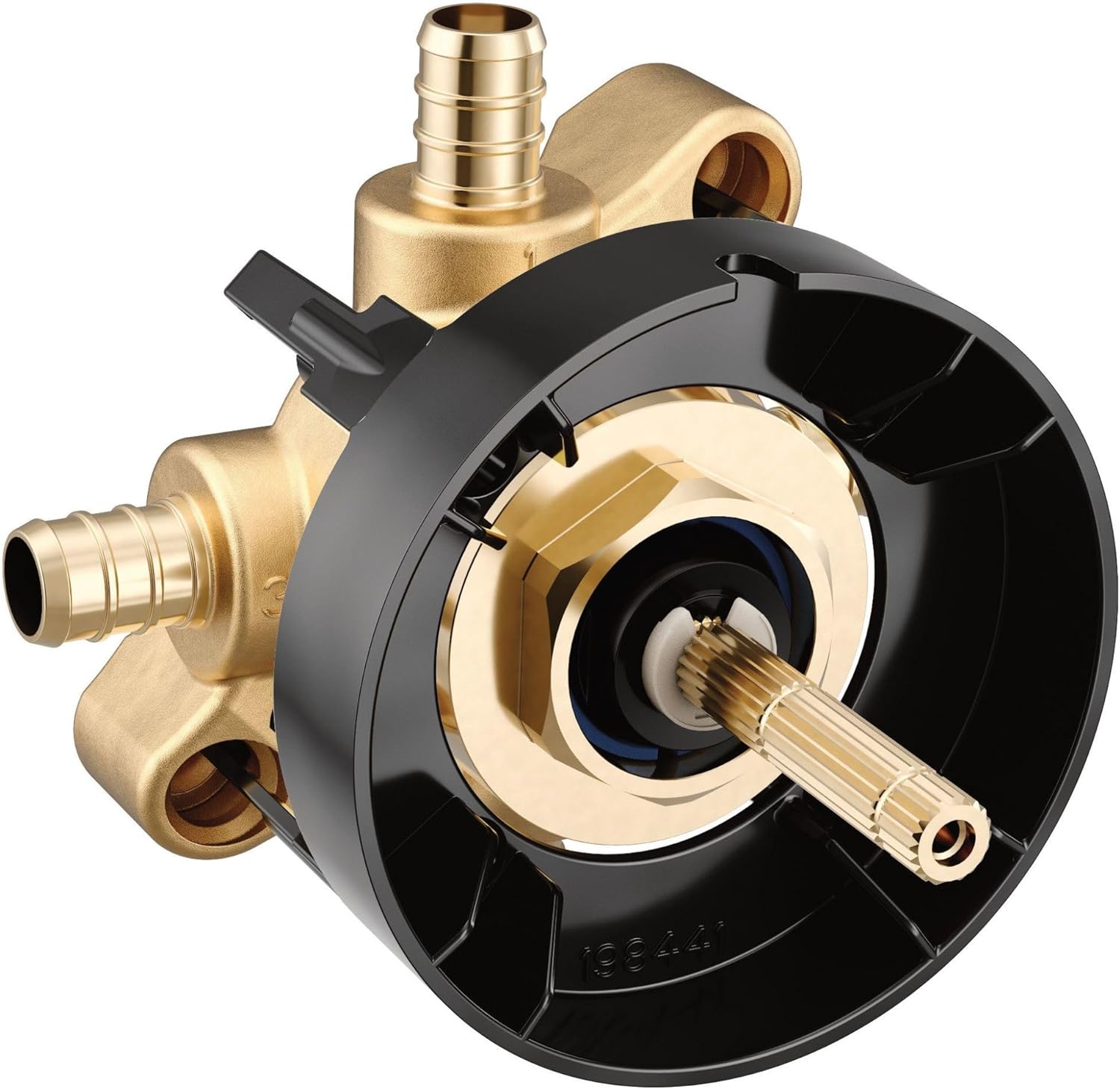

ചിത്രം 3.2: Moen U361X M-CORE Transfer Valve with a black protective cover, illustrating its compact design and readiness for installation.

ചിത്രം 3.3: Comparison table of M-CORE valve options, detailing connection types, number of ports, and functionality for various Moen M-CORE valves, including transfer valves.

3.1 Important Installation Notes:

• When using 2 showering devices, the designated outlet 3 must be CAPPED. Caps are sold separately.
• The valve's adaptability allows for rough-in installation, providing flexibility for future functionality and style changes without requiring valve removal or replacement.

4. ഓപ്പറേഷൻ

The Moen U361X M-CORE Transfer Valve allows you to direct water flow to different showering devices. Its functionality varies based on the number of devices connected:

• For 2 Showering Devices: The valve provides 2 independent functions and 1 shared function. This means you can operate each device separately or both together.
• For 3 Showering Devices: The valve provides 3 independent functions and 3 shared functions. To enable this configuration, the transfer valve cartridge must be modified. This simple cartridge modification changes the valve's flow from two outlets to three outlets. Refer to the detailed Transfer Valve Instructions for specific guidance on this modification.

The M-CORE system is designed for intuitive control, allowing you to easily switch between your desired showering outlets.

5. പരിപാലനം

The Moen U361X M-CORE Transfer Valve is engineered for durability and requires minimal routine maintenance. To ensure optimal performance and longevity:

• പതിവ് വൃത്തിയാക്കൽ: Keep the visible parts of the valve and trim clean using a soft cloth and mild, non-abrasive cleaning solutions. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
• ചോർച്ചകൾ പരിശോധിക്കുക: Periodically check for any signs of leaks around the valve body or connections. Address any leaks promptly to prevent water damage.
• പ്രൊഫഷണൽ പരിശോധന: For any internal concerns or complex issues, it is recommended to consult a qualified plumbing professional.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Moen U361X M-CORE Transfer Valve, consider the following general troubleshooting steps:

• No Water Flow/Low Pressure: Ensure the main water supply to the valve is fully open. Check for any blockages in the connected showering devices or supply lines.
• Difficulty Switching Outlets: Verify that the transfer valve cartridge is correctly installed and, if applicable, modified for 3-device operation. Ensure no debris is obstructing the cartridge movement.
• ചോർച്ച: Check all connections for tightness. If leaks persist from the valve body, professional inspection may be required to assess internal components.

For persistent problems or issues requiring internal access to the valve, it is strongly recommended to contact a certified plumber or Moen customer support for assistance.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റി വിവരങ്ങൾ

The Moen U361X M-CORE Transfer Valve is backed by a പരിമിതമായ ആജീവനാന്ത വാറൻ്റി. This warranty covers defects in material and manufacturing under normal use and service. For full details regarding warranty coverage, terms, and conditions, please refer to the official warranty documentation provided with your product or visit the Moen official webസൈറ്റ്.

9. ഉപഭോക്തൃ പിന്തുണ

For further assistance, technical support, or to inquire about replacement parts, please contact Moen customer service. You can also visit the official Moen store for more product information and resources:

ആമസോണിലെ മോയിൻ സ്റ്റോർ സന്ദർശിക്കുക

No official product videos were found that meet the criteria for inclusion in this manual.
