1 സുരക്ഷാ വിവരങ്ങൾ
വെൽഡിംഗ് ഉപകരണങ്ങൾ പ്രവർത്തിപ്പിക്കുമ്പോൾ എപ്പോഴും സുരക്ഷയ്ക്ക് മുൻഗണന നൽകുക. സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് ഗുരുതരമായ പരിക്കിനോ മരണത്തിനോ കാരണമാകും.
- വൈദ്യുതാഘാതം: Welding current can kill. Do not touch live electrical parts. Wear dry welding gloves and protective clothing. Ensure proper grounding.
- പുകയും വാതകങ്ങളും: Welding fumes and gases can be hazardous to your health. Work in a well-ventilated area. Use a fume extractor if necessary.
- ആർക്ക് കിരണങ്ങൾ: Arc rays can burn eyes and skin. Wear a welding helmet with appropriate shade filter and protective clothing.
- തീയും സ്ഫോടനവും: Welding can cause fire or explosion. Keep flammable materials away from the welding area. Have a fire extinguisher readily available.
- പൊള്ളലുകൾ: Hot metal and sparks can cause burns. Wear protective gloves, long sleeves, and other appropriate clothing.
- Overheating and Overload Protection: The TIG-250P is equipped with automatic shutdown systems for overheating and overload conditions. If the machine shuts down, allow it to cool before resuming operation.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The YESWELDER TIG-250P is a versatile 250 Amp AC/DC Aluminum TIG Welder with Pulse functionality. It is a digital inverter-based machine capable of multiple welding processes.
പ്രധാന സവിശേഷതകൾ:
- AC/DC TIG Welding: Software-controlled square wave AC/DC TIG inverter for precise aluminum and other metal welding.
- 6-ഇൻ-1 പ്രവർത്തനം: Capable of AC/DC TIG, AC/DC Pulse TIG, STICK, and Spot welding.
- ഡിജിറ്റൽ ക്രമീകരണങ്ങൾ: Allows precise adjustment of Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level, and Post Gas.
- 2T/4T Trigger Function: Provides control over the welding process from start to finish.
- Autosave: Automatically saves welding parameters even when powered off, with auto-recovery of last used settings.
- Unique Air Channel: Enhances heat dissipation for power devices and control circuits, minimizing dust absorption and improving longevity.
ഘടകങ്ങൾ:
The package includes the TIG-250P welding machine, 13' WP-26 TIG Torch, 13' WP-9 Spot TIG Torch, 10' Electrode Holder & Cable, 10' Work Clamp & Cable, Gas Hose, Power Adapter Cord, and additional TIG accessories (3 Collets, 1 Collet Body, 3 Alumina Ceramic Cup, 1 Long Back Cap, 1 Short Back Cap).
The front panel features a digital display, parameter indicators, welding mode selection, 2T/4T/Spot buttons, and an adjustment knob. The rear panel includes the power switch, power cable, cooling fan, and gas inlet.
3. സജ്ജീകരണം
- പവർ കണക്ഷൻ: Connect the power adapter cord to the machine's power input and a suitable 220V power source. Ensure the power source meets the machine's requirements.
- ഗ്രൗണ്ട് Clamp കണക്ഷൻ: Attach the 10' Work Clamp & Cable to the appropriate terminal on the front panel (usually the negative terminal for DC TIG, or as indicated for AC TIG). Securely clamp ജോലിസ്ഥലംamp to the workpiece or welding table.
- TIG Torch Connection: Connect the TIG torch (WP-26 or WP-9) to the designated TIG torch connector on the front panel. Ensure a secure connection.
- ഗ്യാസ് ഹോസ് കണക്ഷൻ: Connect the 8ft Argon Gas Hose to the gas inlet on the rear panel of the machine and to your argon gas cylinder regulator. Ensure all connections are tight to prevent gas leaks.
- Electrode Holder (for Stick Welding): If performing Stick welding, connect the 10' Electrode Holder & Cable to the positive terminal on the front panel.
- TIG Accessories: Install the appropriate collet, collet body, and alumina ceramic cup onto the TIG torch. Insert the tungsten electrode and secure it with the back cap.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The TIG-250P offers various welding modes and adjustable parameters for optimal performance.
4.1. വെൽഡിംഗ് മോഡുകൾ
- AC HF TIG: Ideal for welding aluminum and its alloys.
- AC Pulsed TIG: Provides enhanced control for thin materials and reduces heat input.
- Spot TIG: For precise spot welding applications.
- DC HF TIG: Suitable for welding stainless steel, carbon steel, copper, and other non-ferrous metals.
- DC Pulsed TIG: Offers improved control and reduced distortion for DC TIG applications.
- STICK (MMA): For traditional shielded metal arc welding.
4.2. Parameter Adjustment
Use the digital display and adjustment knob on the front panel to set welding parameters. The parameter indicators will show which setting is currently being adjusted.
- Pre Gas Time: Duration of shielding gas flow before arc ignition.
- നിലവിലുള്ളത് ആരംഭിക്കുക: Initial current level at the start of the weld.
- Up Slope Time: Time taken for the current to ramp up from start current to peak current.
- Down Slope Time: Time taken for the current to ramp down from peak current to finish current.
- Finish Current Level: Current level at the end of the weld.
- Post Gas Time: Duration of shielding gas flow after the arc is extinguished to protect the cooling weld puddle and tungsten.
- 2T/4T Function: Select between 2-stroke (press and hold for arc) or 4-stroke (press to start, press to stop) trigger operation for the TIG torch.
The machine automatically saves your welding parameters, ensuring that your last settings are recovered upon power-on.
4.3. മെറ്റീരിയൽ അനുയോജ്യത

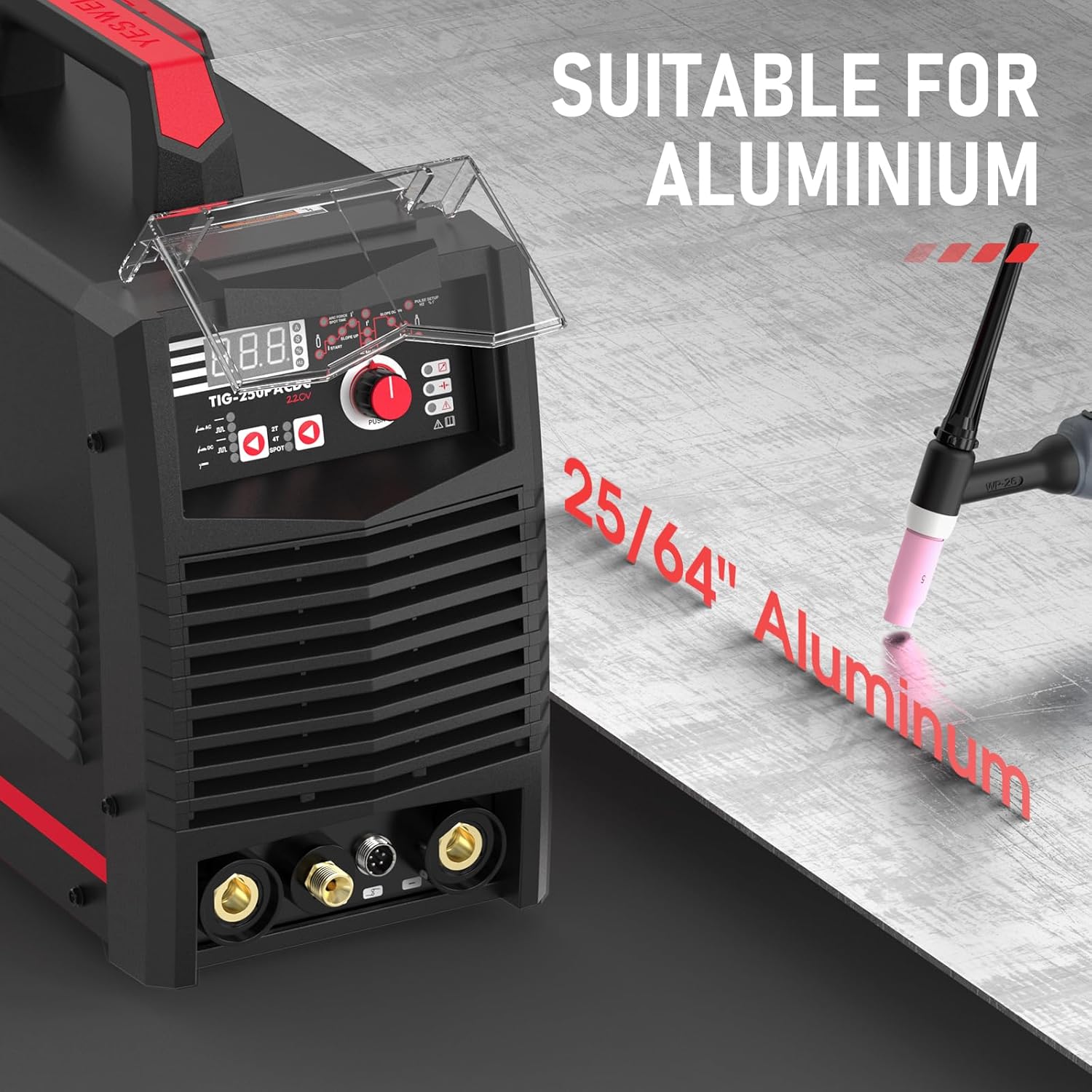

The TIG-250P is designed for welding a variety of metals, including aluminum up to 25/64" thickness, stainless steel, low-carbon steel, and copper.
5. പരിപാലനം
പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ വെൽഡിംഗ് മെഷീനിന്റെ ദീർഘായുസ്സും ഒപ്റ്റിമൽ പ്രകടനവും ഉറപ്പാക്കുന്നു.
- വൃത്തിയാക്കൽ: Keep the machine clean and free from dust and debris. The unique air channel design helps minimize dust absorption, but periodic cleaning of vents is recommended.
- കേബിൾ പരിശോധന: Regularly inspect all cables (power, ground, torch) for damage, cuts, or frayed insulation. Replace damaged cables immediately.
- TIG Torch Consumables: Check and replace TIG torch consumables (tungsten, collets, collet bodies, ceramic cups) as they wear out to maintain arc quality and performance.
- ഗ്യാസ് കണക്ഷനുകൾ: Periodically check gas hose and connections for leaks.
6. പ്രശ്നപരിഹാരം
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള മാർഗ്ഗനിർദ്ദേശം ഈ വിഭാഗം നൽകുന്നു.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മെഷീൻ പവർ ഓൺ ചെയ്യുന്നില്ല. | No power supply, faulty power cable, power switch off. | Check power connection, ensure switch is on, inspect power cable. |
| ആർക്ക് അല്ലെങ്കിൽ ദുർബല ആർക്ക് ഇല്ല. | Improper ground connection, incorrect gas flow, worn tungsten, wrong settings. | Verify ground clamp, check gas cylinder and flow rate, replace tungsten, adjust welding parameters. |
| Machine shuts down during operation. | Overheating or overload protection activated. | Allow the machine to cool down. Reduce duty cycle or welding current. Ensure proper ventilation. |
| Poor weld quality (porosity, discoloration). | Insufficient shielding gas, contaminated workpiece, incorrect travel speed. | Check gas flow, clean workpiece thoroughly, adjust welding technique. |
For issues not covered here, please contact YESWELDER customer support.
7 സ്പെസിഫിക്കേഷനുകൾ
| സ്പെസിഫിക്കേഷൻ | മൂല്യം |
|---|---|
| മോഡൽ നമ്പർ | TIG-250P ACDC |
| പാക്കേജ് അളവുകൾ | 19.25 x 16.5 x 12.75 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 34.9 പൗണ്ട് |
| പവർ ഉറവിടം | എസി/ഡിസി |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ | വീട് |
| കൂളിംഗ് മോഡ് | ഫാൻ തണുപ്പിക്കൽ |
| ഇൻസുലേഷൻ ഗ്രേഡ് | F |
| സംരക്ഷണ നിലവാരം | IP21S |
8. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോകൾ
Video 8.1: An official product video from YESWELDER demonstrating the TIG-250P 250 Amp AC/DC Aluminum Tig Welder with Pulse functionality.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, or any inquiries regarding your YESWELDER TIG-250P, please contact YESWELDER customer service. Refer to the product packaging or the official YESWELDER webഏറ്റവും കാലികമായ ബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങൾക്കായി സൈറ്റ്.
YESWELDER is committed to providing quality welding equipment and support to its users.
