ആമുഖം
This manual provides detailed instructions for the setup, operation, and maintenance of your AcuRite Iris 5-in-1 Wireless Weather Station (Model 01536M) and the AcuRite Iris 06003 PRO+ Upgrade for 5-in-1 Weather Sensor (Model 06003M). Please read this manual thoroughly before installation and use to ensure proper functionality and longevity of your devices.
ഉൽപ്പന്നം കഴിഞ്ഞുview
AcuRite Iris 5-in-1 Wireless Weather Station (Model 01536M)
The AcuRite Iris 5-in-1 Wireless Weather Station provides comprehensive environmental monitoring. It accurately measures indoor and outdoor temperature, humidity, rainfall, wind speed, and wind direction. The system includes a color display unit with a weather ticker for real-time information and connectivity to the My AcuRite app for remote monitoring via smartphone, tablet, or computer. A USB port allows for data storage, tracking, and analysis, with options to share data with communities like Weather Underground.

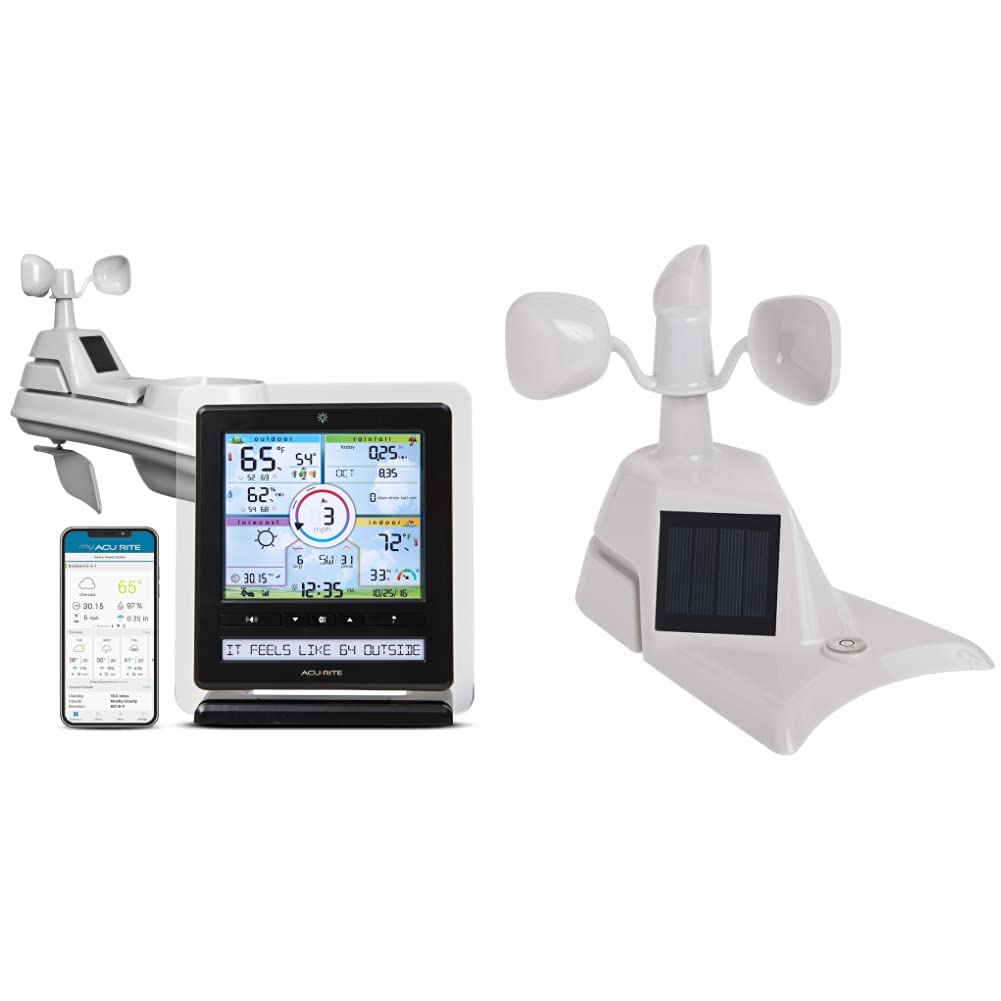

Image: The AcuRite Iris 5-in-1 Wireless Weather Station, showing the outdoor sensor, indoor color display, and the My AcuRite mobile application interface.
Image: Key features of the AcuRite Iris 5-in-1 Weather Station, including indoor/outdoor temperature and humidity, wind speed/direction/rainfall monitoring, visual readouts, and a real-time weather ticker, alongside the mobile app.
Image: The AcuRite Iris 5-in-1 Weather Station display, highlighting its ability to accurately measure indoor and outdoor temperature and humidity, monitor wind speed, direction, and rainfall, provide a visual readout of current weather conditions, and offer a real-time weather ticker.
Image: A close-up of the AcuRite Iris 5-in-1 Weather Station display, illustrating its presentation of weather, humidity, and wind information with trend indicators, barometer readings, future forecasts, and the current date and time.
AcuRite Iris 06003 PRO+ Upgrade for 5-in-1 Weather Sensor (Model 06003M)
The PRO+ Upgrade is designed to enhance the performance of your existing AcuRite 5-in-1 weather sensor. It features dual solar panels to maximize sun exposure and power a solar-powered aspirating fan. This fan improves internal airflow within the sensor, leading to more accurate ambient temperature readings throughout the day. The upgrade is a replacement assembly for the standard solar panel component of the 5-in-1 sensor.
ചിത്രം: മുകളിൽ view of the AcuRite 06003 PRO+ Upgrade for the 5-in-1 Weather Sensor, showing the dual solar panels and wind cups.
ചിത്രം: വശം view of the AcuRite 06003 PRO+ Upgrade for the 5-in-1 Weather Sensor, highlighting the solar panel and overall design.
ചിത്രം: ആന്തരികം view of the AcuRite 06003 PRO+ Upgrade for the 5-in-1 Weather Sensor, showing the aspirating fan component designed to improve temperature accuracy.
പാക്കേജ് ഉള്ളടക്കം
AcuRite Iris 5-in-1 Wireless Weather Station (01536M)
- 5-ഇൻ-1 ഔട്ട്ഡോർ സെൻസർ
- കളർ ഡിസ്പ്ലേ യൂണിറ്റ്
- ഡിസ്പ്ലേ യൂണിറ്റിനുള്ള പവർ അഡാപ്റ്റർ
- Mounting Hardware for Sensor
- നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)
AcuRite Iris 06003 PRO+ Upgrade (06003M)
- PRO+ Upgrade Assembly (with dual solar panels and aspirating fan)
- Installation Guide for PRO+ Upgrade
സജ്ജമാക്കുക
1. Install Batteries in 5-in-1 Sensor
- Locate the battery compartment on the underside of the 5-in-1 sensor.
- ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ നീക്കം ചെയ്യുക.
- Insert 4 AA alkaline or lithium batteries (not included) according to the polarity markings. -4°F (-20°C)-ന് താഴെയുള്ള താപനിലയിൽ ലിഥിയം ബാറ്ററികൾ ശുപാർശ ചെയ്യുന്നു.
- ബാറ്ററി കമ്പാർട്ട്മെന്റ് കവർ സുരക്ഷിതമായി മാറ്റിസ്ഥാപിക്കുക.
2. Install the 5-in-1 Sensor
Proper placement of the 5-in-1 sensor is crucial for accurate readings.
- സ്ഥാനം: Choose an open location at least 5 feet (1.5 meters) off the ground, away from heat sources (e.g., exhaust vents, engines) and reflective surfaces (e.g., large windows, concrete). Ensure clear access to wind and rain.
- മൗണ്ടിംഗ്: Use the included mounting hardware to secure the sensor to a post or pole. Ensure the sensor is level for accurate rain collection. The wind cups should be able to spin freely.
3. Install the PRO+ Upgrade (06003M)
This section applies if you are upgrading your existing 5-in-1 sensor with the PRO+ assembly.
- ആവശ്യമായ ഉപകരണങ്ങൾ: Small Phillips head screwdriver.
- Remove Existing Assembly: Carefully detach the existing solar panel and fan assembly from your 5-in-1 sensor. This usually involves unscrewing a few small screws. Refer to the PRO+ Upgrade Installation Guide for specific steps.
- Install PRO+ Assembly: Align the PRO+ Upgrade assembly with the mounting points on your 5-in-1 sensor. Secure it in place using the screws. Ensure the aspirating fan is correctly positioned and can rotate freely.
4. Setup the Color Display Unit
- പവർ ഓൺ: പവർ അഡാപ്റ്റർ ഡിസ്പ്ലേ യൂണിറ്റിലേക്കും തുടർന്ന് ഒരു സ്റ്റാൻഡേർഡ് ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്കും പ്ലഗ് ചെയ്യുക.
- പ്രാരംഭ കോൺഫിഗറേഷൻ: The display will power on. Follow the on-screen prompts to set the time, date, and measurement units (Fahrenheit/Celsius, mph/kmh, etc.).
- സെൻസർ കണക്ഷൻ: The display unit will automatically search for and connect to your 5-in-1 sensor. This may take a few minutes. Once connected, outdoor readings will appear on the display.
- My AcuRite App (Optional): Download the My AcuRite app from your device's app store. Follow the in-app instructions to create an account and connect your display unit for remote monitoring. You will need your display unit's Device ID, typically found on a sticker on the back or bottom of the unit.
ഓപ്പറേഷൻ
Color Display Unit Features
The color display unit provides a wealth of information at a glance:
- പുറത്തെ അവസ്ഥകൾ: Current temperature, humidity, wind speed, wind direction, and rainfall.
- ഇൻഡോർ അവസ്ഥകൾ: Current indoor temperature and humidity.
- കാലാവസ്ഥാ പ്രവചനം: A 12 to 24-hour weather forecast based on barometric pressure changes.
- കാലാവസ്ഥ ടിക്കർ: Scrolls through real-time weather information and alerts.
- ചരിത്രപരമായ ഡാറ്റ: View daily, weekly, or monthly highs and lows for various measurements.
- അലാറങ്ങൾ: Set customizable alarms for specific weather conditions (e.g., high wind, low temperature).
My AcuRite App
The My AcuRite app extends the functionality of your weather station:
- റിമോട്ട് മോണിറ്ററിംഗ്: View your weather data from anywhere using your smartphone or tablet.
- ഇഷ്ടാനുസൃത അലേർട്ടുകൾ: Receive push notifications or email alerts when conditions exceed your preset ranges.
- ഡാറ്റ ചരിത്രം: Access detailed historical data and charts.
- പങ്കിടൽ: Share your weather data with friends, family, or online weather communities like Weather Underground.
യുഎസ്ബി പോർട്ട് പ്രവർത്തനം
The display unit includes a USB port for connecting to a computer. This allows you to:
- Store and archive weather data.
- Analyze long-term weather trends.
- Export data for use in other applications.
മെയിൻ്റനൻസ്
Cleaning the 5-in-1 Sensor
Periodically clean the sensor to ensure accurate readings:
- മഴ കളക്ടർ: Remove any debris (leaves, insects) from the rain collector funnel.
- Wind Cups/Vane: Ensure the wind cups and wind vane rotate freely. Clean any obstructions.
- പുറം: പരസ്യം ഉപയോഗിച്ച് പുറംഭാഗം തുടയ്ക്കുകamp തുണി. ഉരച്ചിലുകൾ ഉള്ള ക്ലീനറുകൾ ഒഴിവാക്കുക.
ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ
Replace batteries in the 5-in-1 sensor approximately every 12-24 months, or when the low battery indicator appears on the display unit. Always replace all batteries at once with fresh ones.
റീകാലിബ്രേഷൻ
If you suspect inaccurate readings, refer to the AcuRite support website for instructions on recalibrating specific sensors (e.g., rain gauge, temperature offset).
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ പരിഹാരം |
|---|---|
| പ്രദർശനത്തിന് ഔട്ട്ഡോർ ഡാറ്റയില്ല. |
|
| കൃത്യമല്ലാത്ത താപനില / ഈർപ്പം |
|
| കൃത്യമല്ലാത്ത മഴ |
|
| Inaccurate wind speed/direction |
|
| My AcuRite app not connecting |
|
സ്പെസിഫിക്കേഷനുകൾ
- ബ്രാൻഡ്: അക്യുറൈറ്റ്
- മോഡലുകൾ: 01536M (Weather Station), 06003M (PRO+ Upgrade)
- Power Source (5-in-1 Sensor): 4 x AA batteries (not included), Solar Powered (for internal fan/aspirator)
- Power Source (Display Unit): എസി പവർ അഡാപ്റ്റർ
- കണക്റ്റിവിറ്റി ടെക്നോളജി: Wireless (sensor to display), USB Port (display to PC), Wi-Fi (for My AcuRite app, if applicable)
- താപനില കൃത്യത: ±1°C (±2°F)
- ഡിസ്പ്ലേ തരം: കളർ ഡിസ്പ്ലേ
- Sensor Technology (PRO+ Upgrade): Aspirating Fan, Dual Solar Panels
- വയർലെസ് ശ്രേണി: 330 അടി വരെ (100 മീറ്റർ)
വാറൻ്റി & പിന്തുണ
പരിമിത വാറൻ്റി
Your AcuRite Iris 5-in-1 Wireless Weather Station and PRO+ Upgrade are covered by a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship. For full warranty details, please refer to the official AcuRite webസൈറ്റ് അല്ലെങ്കിൽ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.
ഉപഭോക്തൃ പിന്തുണ
സാങ്കേതിക സഹായം, ട്രബിൾഷൂട്ടിംഗ് അല്ലെങ്കിൽ വാറന്റി ക്ലെയിമുകൾ എന്നിവയ്ക്കായി, ദയവായി ഔദ്യോഗിക AcuRite പിന്തുണ സന്ദർശിക്കുക. website or contact their customer service department. Contact information can typically be found on the AcuRite webസൈറ്റ് അല്ലെങ്കിൽ യഥാർത്ഥ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
