iDOO Hydroponics Growing System ID-IG201 User Manual

1. ആമുഖം

The iDOO Hydroponics Growing System ID-IG201 is an indoor herb garden starter kit designed for cultivating plants without soil. It features a water circulation system, LED grow lights, and smart modes to support plant growth from germination to harvest. This manual provides essential information for setting up, operating, and maintaining your hydroponic system.

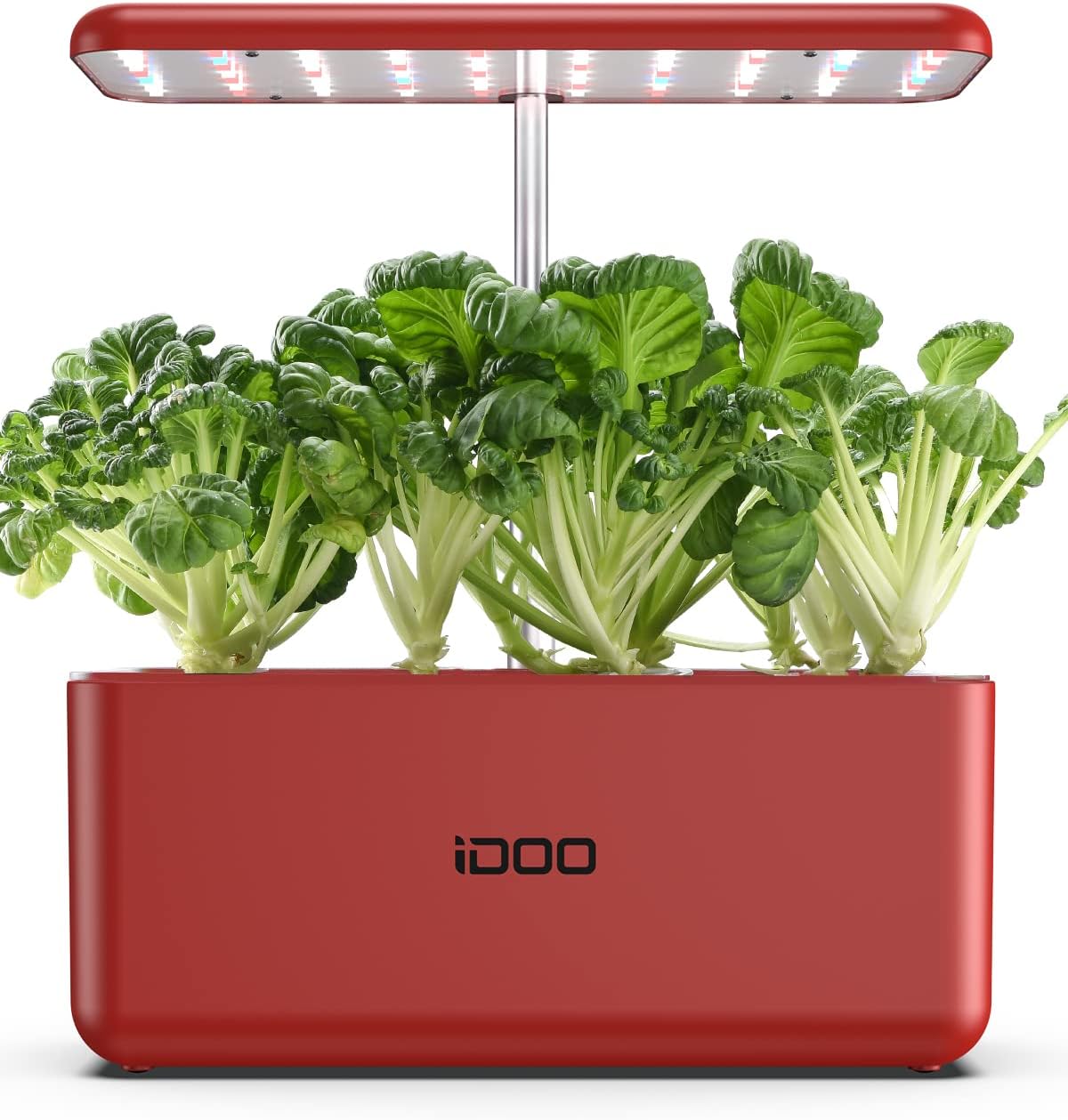

Figure 1: The iDOO Hydroponics Growing System with mature plants.

2. ഘടകങ്ങൾ കഴിഞ്ഞുview

അസംബ്ലി ചെയ്യുന്നതിനുമുമ്പ്, എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Hydroponic Growing System Base with Water Tank
• Adjustable LED Grow Light Panel
• 7 Plant Pods (Baskets)
• 7 സ്പോഞ്ചുകൾ വളർത്തുക
• Nutrient Solutions (A and B)
• Dome Covers for Germination
• Plant Support Sticks (if included)

Figure 2: Essential components for planting, including grow sponges and nutrient bottles.

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

1. സിസ്റ്റം കൂട്ടിച്ചേർക്കുക: Place the LED grow light panel onto the adjustable pole and secure it to the system base.
2. Prepare Water and Nutrients: Fill the water tank with clean water up to the 'Max' line. Add the recommended amount of Nutrient Solution A and Nutrient Solution B according to the instructions on the bottles. Stir gently to mix.
3. Plant Seeds: Place one or two seeds into each grow sponge. Insert the seeded sponges into the plant pods. Place the pods into the designated holes on the system base. For optimal germination, cover each pod with a clear dome.
4. പ്രാരംഭ പ്രകാശ ക്രമീകരണം: Position the LED grow light panel approximately 4-6 inches above the plant pods.

Figure 3: Illustration of the hydroponic circulation system and nutrient application.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The system features smart modes for lighting and water circulation.

4.1. LED Grow Light Modes

The 24-Watt LED lights simulate the sunlight spectrum. Select the appropriate mode based on plant growth stage:

• സാധാരണ നില: 14 hours on, 10 hours off. Uses red, blue, and white LED lights. Suitable for sprouts, seedlings, and young plants.
• GROW MODE: 16 hours on, 8 hours off. Uses red and white LED lights. Ideal for growing plants.
• ENJOY MODE: 12 hours on, 12 hours off. Uses 50% red and white LED lights. Good for grown plants and flowering stages. Lights will be less intense in this mode.

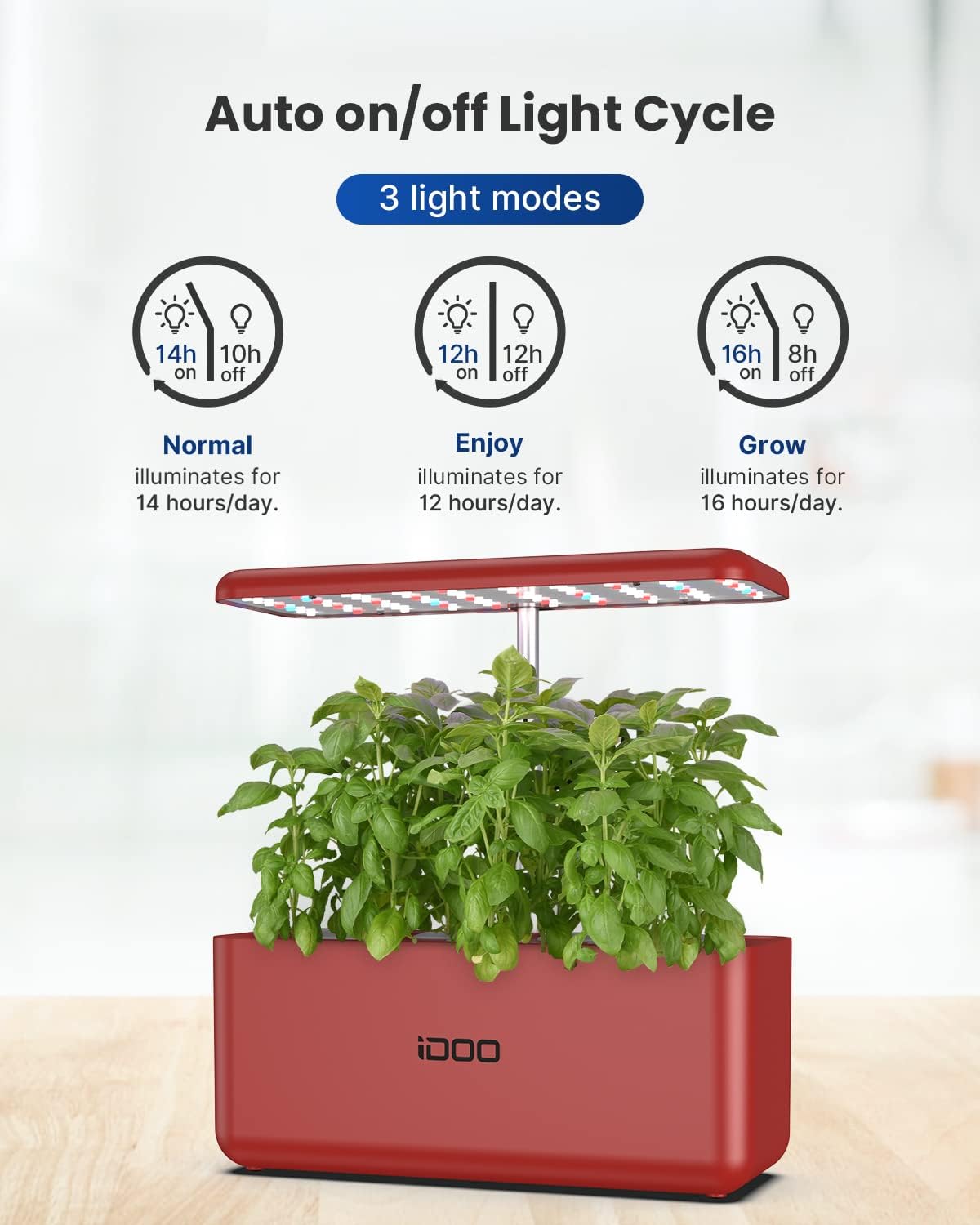

ചിത്രം 4: ഓവർview of the automatic on/off light cycles for different growth stages.

4.2. Water Pump Circulation Modes

The water pump ensures oxygenation of the water.

• സാധാരണ മോഡ്: The water pump operates for 5 minutes and pauses for 30 minutes.
• സ്ലീപ്പ് മോഡ്: To activate, long-press the "PUMP SWITCH" button for 5 seconds. The pump will turn off for 12 hours and then resume its normal cycle. This mode is useful for reducing noise during rest periods.

4.3 ഉയരം ക്രമീകരിക്കൽ

The height of the LED grow light panel is adjustable to accommodate plants at different growth stages. Raise the light as plants grow to maintain the optimal distance (typically 4-6 inches above the tallest plant).

Figure 5: The adjustable lamp pole allows for varying plant heights up to 16 inches.

5. പരിപാലനം

Regular maintenance ensures healthy plant growth and system longevity.

• ജലനിരപ്പ്: Monitor the water level regularly. Refill the tank with fresh water when the level is low.
• പോഷക സമ്പുഷ്ടീകരണം: Add nutrient solutions according to the plant's needs and the manufacturer's recommendations (typically every 1-2 weeks or with water refills).
• വൃത്തിയാക്കൽ: Periodically clean the water tank and pump to prevent algae buildup and ensure optimal performance. Disconnect power before cleaning.

6. പ്രശ്‌നപരിഹാരം

സാധാരണ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും:

• Seeds Not Germinating: Ensure proper temperature, adequate moisture (use dome covers), and fresh seeds. Some seeds may require soaking before planting.
• Slow Growth: Check nutrient levels and light distance. Ensure the correct light mode is selected for the plant's stage.
• Algae Growth: This can occur due to excessive light exposure to the water or high nutrient levels. Ensure pods are covered and clean the tank regularly.
• Leaves Burning/Leggy Plants: Adjust the height of the grow light. If leaves are burning, the light is too close. If plants are leggy (stretching), the light is too far away.
• വാട്ടർ പമ്പ് തകരാർ: Check for blockages in the pump or tubing. Ensure the pump is properly connected and the water level is sufficient.

7 സ്പെസിഫിക്കേഷനുകൾ

8. ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or replacement parts, please refer to the contact information provided with your product packaging or visit the official iDOO webസൈറ്റ്. വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
