1. ആമുഖം
The Fanvil H2U Compact IP Phone is a stylish and powerful communication device designed for various scenarios, including hotels, campuses, hospitals, and retail environments. It offers essential features for efficient communication in a compact form factor.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- 2 SIP Lines for flexible call handling.
- HD Audio with wideband codecs (G.722, Opus) for clear voice quality.
- 10 speed dial keys for quick access to frequently called numbers.
- 1 programmable DSS Key for custom functions.
- 3-way conference capability.
- Support for both desk and wall-mounted installations.
- Handset and hands-free operation modes.
- 10/100 Mbps Ethernet port.
- Power over Ethernet (PoE) or power adapter support.
Figure 1: Fanvil H2U Compact IP Phone (White)
This image displays the Fanvil H2U Compact IP Phone in white, featuring its sleek design, integrated speaker, and coiled handset cord. A small green LED indicator is visible on the phone's body.
2. സജ്ജീകരണ ഗൈഡ്
Follow these steps to set up your Fanvil H2U IP Phone:
- പെട്ടി അൺപാക്ക് ചെയ്യുക: Carefully remove all components from the packaging. You should find the Fanvil H2U phone unit and a coiled handset cord. Note: A power adapter is not typically included and may need to be purchased separately if PoE is not available.
- ഹാൻഡ്സെറ്റ് ബന്ധിപ്പിക്കുക: Plug one end of the coiled handset cord into the port labeled with a handset icon on the side of the phone unit. Plug the other end into the corresponding port on the handset.
- നെറ്റ്വർക്ക്/പവറിലേക്ക് കണക്റ്റുചെയ്യുക:
- PoE (പവർ ഓവർ ഇതർനെറ്റ്) ഉപയോഗിക്കുന്നു: Connect an Ethernet cable from your PoE-enabled network switch or router to the LAN port on the back of the phone. The phone will receive both power and network connectivity through this single cable.
- Using a Power Adapter (if PoE is not available): Connect an Ethernet cable from your network switch or router to the LAN port on the back of the phone. Then, connect a compatible 5V/1A DC power adapter (not included) to the power port on the back of the phone and plug it into a power outlet.
- പ്ലേസ്മെൻ്റ്: The Fanvil H2U can be placed on a desk or mounted on a wall. For wall mounting, use the integrated mounting holes on the back of the phone. Ensure the phone is placed in a stable location with good ventilation.

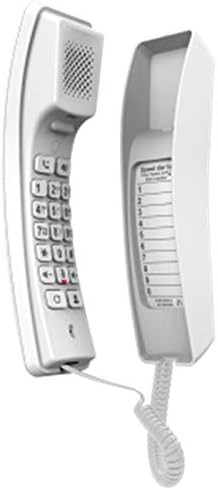

Figure 2: Fanvil H2U Side View with Wall Mount Option
ഈ ചിത്രം ഒരു സൈഡ് പ്രൊഫഷണലിനെ കാണിക്കുന്നുfile of the Fanvil H2U IP Phone, highlighting the design that allows for both desk placement and wall mounting. The recessed area for wall mounting is visible.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
This section covers the basic operation of your Fanvil H2U IP Phone.
3.1 അടിസ്ഥാന കോൾ പ്രവർത്തനങ്ങൾ
- ഒരു കോൾ ചെയ്യുന്നു: Lift the handset or press the speakerphone button. Dial the desired number using the keypad and wait for the call to connect.
- ഒരു കോളിന് മറുപടി നൽകുന്നു: When the phone rings, lift the handset or press the speakerphone button to answer.
- ഒരു കോൾ അവസാനിപ്പിക്കുന്നു: Place the handset back on the phone unit or press the speakerphone button again.
3.2 Speed Dial Keys
The Fanvil H2U features 10 dedicated speed dial keys (0-9) located on the phone's keypad. These keys can be programmed to quickly dial frequently used numbers or services.
- ഉപയോഗിക്കുന്നതിന്: Simply press and hold the desired speed dial key (0-9) for a few seconds to dial the pre-programmed number.
- പ്രോഗ്രാമിംഗ്: Refer to your IP PBX system's administration guide or contact your system administrator for instructions on how to program these speed dial keys.
3.3 Programmable DSS Key
The phone includes one programmable DSS (Direct Station Select) key, which can be configured for various functions such as BLF (Busy Lamp Field), intercom, or speed dial. The specific function depends on your system's configuration.
- ഉപയോഗിക്കുന്നതിന്: Press the programmable DSS key to activate its assigned function.
- കോൺഫിഗറേഷൻ: Contact your system administrator to configure the function of this key.
3.4 3-Way Conference
To initiate a 3-way conference call:
- Make a call to the first party.
- While on the call, press the സമ്മേളനം button (if available and configured, or follow your system's specific conference initiation method).
- Dial the number of the second party.
- രണ്ടാമത്തെ കക്ഷി ഉത്തരം നൽകിയാൽ, അമർത്തുക സമ്മേളനം button again to join all three parties into a conference call.

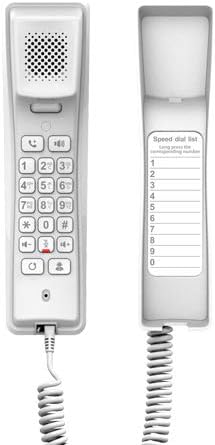

Figure 3: Fanvil H2U Keypad and Speed Dial Area
ഈ ചിത്രം വ്യക്തമായ ഒരു ആശയം നൽകുന്നു view of the Fanvil H2U IP Phone's keypad, including the numeric keys, function buttons, and the dedicated area for the speed dial list, which can be customized by the user.
4. പരിപാലനം
Proper maintenance ensures the longevity and optimal performance of your Fanvil H2U IP Phone.
- വൃത്തിയാക്കൽ: Use a soft, dry, lint-free cloth to clean the phone's surface. For stubborn marks, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the phone's finish.
- പരിസ്ഥിതി: Keep the phone away from excessive heat, direct sunlight, and moisture. Ensure it is placed in a well-ventilated area.
- കേബിളുകൾ: Periodically check all connected cables (Ethernet, handset cord) for any signs of wear or damage. Replace damaged cables immediately.
- സംഭരണം: If storing the phone for an extended period, disconnect all cables and store it in a cool, dry place, preferably in its original packaging.
5. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your Fanvil H2U IP Phone.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഫോൺ പവർ ഓൺ ആകുന്നില്ല. | No power supply; PoE not active; faulty power adapter/cable. | Ensure Ethernet cable is connected to a PoE-enabled port, or a compatible power adapter is securely connected and plugged into a working outlet. Verify the power source. |
| ഡയൽ ടോൺ ഇല്ല. | Network connectivity issue; SIP registration failure; incorrect configuration. | Check Ethernet cable connection. Verify network status. Contact your system administrator to check SIP registration and phone configuration. |
| മോശം കോൾ നിലവാരം (എക്കോ, സ്റ്റാറ്റിക്). | Network congestion; faulty handset cord; environmental interference. | Check your network connection and bandwidth. Try replacing the handset cord. Ensure the phone is not near devices causing electromagnetic interference. |
| കോളുകൾ വിളിക്കാനോ സ്വീകരിക്കാനോ കഴിയില്ല. | SIP account not registered; network firewall issues; incorrect dialing plan. | Confirm SIP account status with your administrator. Check firewall settings. Verify the dialing procedure. |
If the problem persists after trying these solutions, please contact your IT support or system administrator for further assistance.
6 സാങ്കേതിക സവിശേഷതകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| SIP Lines | 2 |
| ഓഡിയോ കോഡെക്കുകൾ | G.722, Opus (HD Audio) |
| Speed Dial Keys | 10 |
| Programmable DSS Key | 1 |
| കോൺഫറൻസ് കോൾ ശേഷി | 3-വഴി |
| നെറ്റ്വർക്ക് ഇന്റർഫേസ് | 10/100 Mbps ഇഥർനെറ്റ് |
| പവർ ഉറവിടം | PoE / Power Adaptor (5V/1A DC) |
| നിറം | White (also available in Black) |
| ടെലിഫോൺ തരം | കോർഡഡ് |
| ഡയലർ തരം | ഒറ്റ കീപാഡ് |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 5.91 x 5.91 x 3.15 ഇഞ്ച് (15 x 15 x 8 സെ.മീ) |
| ഇനത്തിൻ്റെ ഭാരം | 10.6 ഔൺസ് (0.3 കിലോഗ്രാം) |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Computer systems, VoIP services, SIP devices, and various networks |
7. വാറൻ്റിയും പിന്തുണയും
For detailed warranty information regarding your Fanvil H2U Compact IP Phone, please refer to the official Fanvil webഉൽപ്പന്നത്തിന്റെ സൈറ്റിലോ ഉൽപ്പന്നത്തിനൊപ്പം ഉൾപ്പെടുത്തിയിരിക്കുന്ന വാറന്റി കാർഡിലോ ഉള്ള വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും പ്രദേശത്തെയും റീട്ടെയിലറെയും ആശ്രയിച്ച് വ്യത്യാസപ്പെടാം.
For technical support, product inquiries, or assistance with advanced configurations, please contact your vendor, system administrator, or Fanvil's official customer support channels. You can typically find contact information on the Fanvil webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷനിൽ.
