ആമുഖം

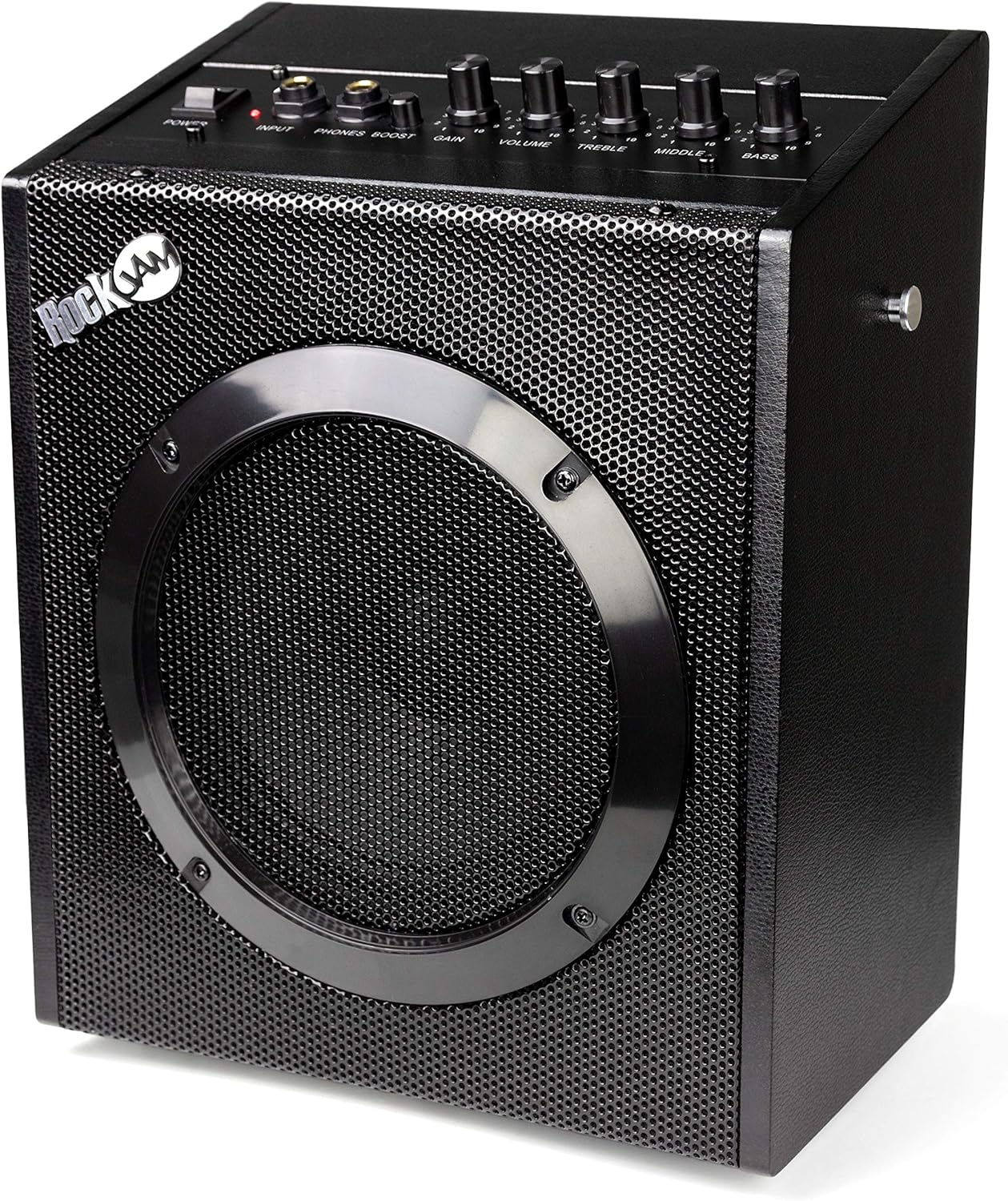

The RockJam 20-Watt guitar amplifier is designed as an ideal practice amp for guitarists of all levels. It incorporates essential features such as a three-band EQ, volume, gain control, and an overdrive boost function, allowing users to fine-tune their sound. This amplifier also includes a headphone jack for private practice sessions and a universal input, making it compatible with various instruments including electric guitars, bass guitars, and electronic drums. For convenience, a storage compartment is built into the rear for the mains lead, and its lightweight design (4.2kg) with a sturdy carry handle ensures easy portability.
ബോക്സിൽ എന്താണുള്ളത്
- ഗിറ്റാർ Amp
- Guitar Lead
പ്രധാന സവിശേഷതകൾ
- വാട്ട്tage: This RockJam electric guitar amplifier is a true 20-watt RMS amp, ideal for both practicing and small performances.
- ഇക്വലൈസർ: With a three-band equaliser (Bass, Treble & Middle), you can balance the output of your amp according to your playing style and environment.
- ഗിറ്റാർ Amplifier With Effects: With both overdrive and gain functions, this guitar amplifier allows you to truly personalise your sound.
- ഇൻപുട്ട് ഔട്ട്പുട്ട്: Features a 6.55mm headphone output for private practice and a universal input for use with electric guitars, bass guitars, and drum ampജീവപര്യന്തം.
- പോർട്ടബിൾ: Weighing in at 4.2 KG and coming with a handy carry handle, this amplifier is great for taking on the move.
സജ്ജീകരണ ഗൈഡ്
- അൺപാക്ക് ചെയ്യുന്നു: ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക amplifier and all accessories from the packaging. Ensure all items listed in "What's in the Box" are present.
- പവർ കണക്ഷൻ: Locate the power input on the rear of the amplifier. Connect the provided power cable to the amplifier and then to a suitable wall outlet. Ensure the power switch on the amplifier is in the "OFF" position before plugging it in.
- ഉപകരണ കണക്ഷൻ: Plug one end of the provided guitar lead into your instrument (electric guitar, bass, or electronic drum kit). Plug the other end of the guitar lead into the "INPUT" jack on the front panel of the ampജീവൻ.
- ഹെഡ്ഫോൺ കണക്ഷൻ (ഓപ്ഷണൽ): For private practice, connect your headphones to the "PHONES" jack on the front panel. This will mute the main speaker output.

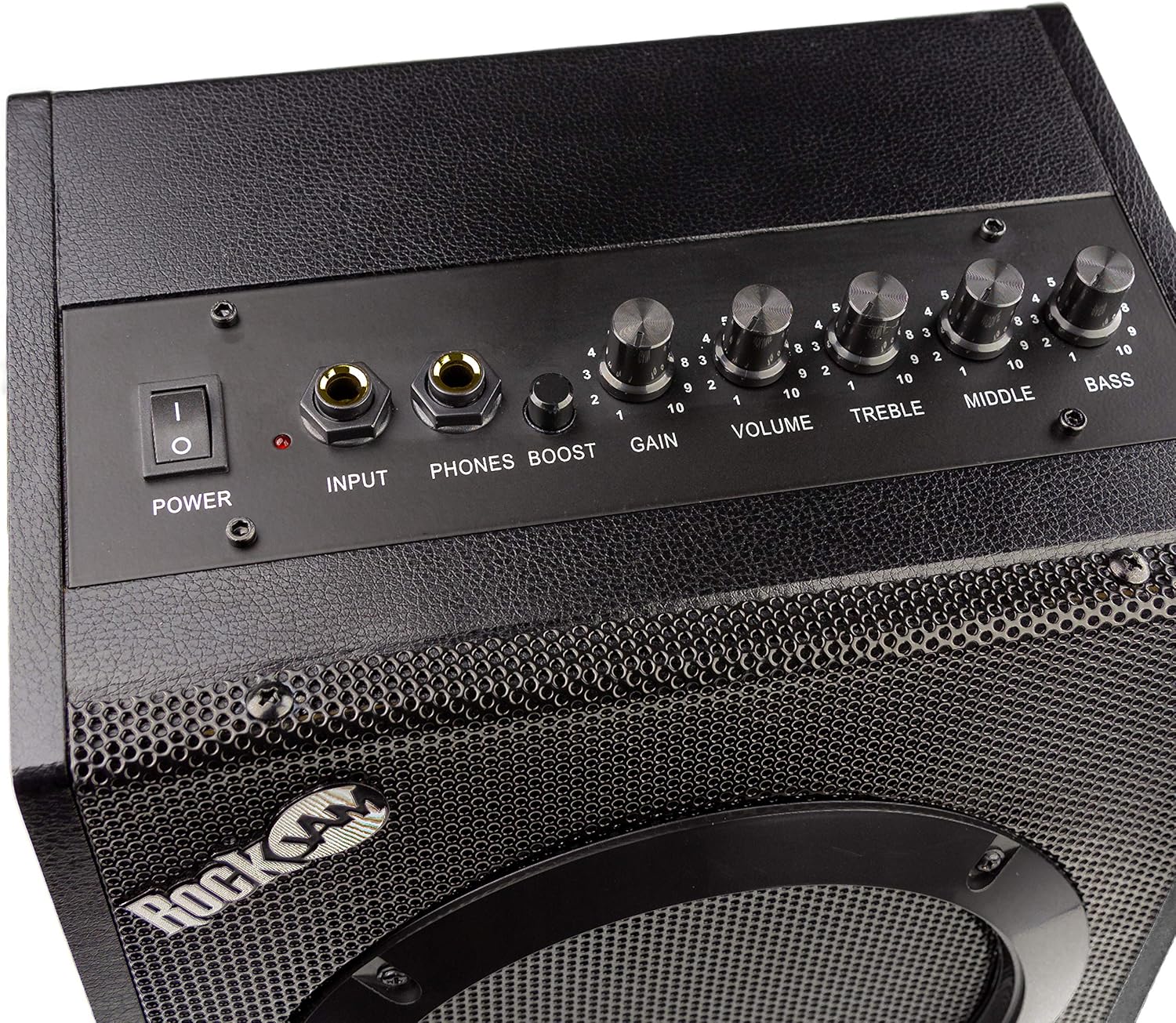

- പ്രാരംഭ ക്രമീകരണങ്ങൾ: Before powering on, set the "VOLUME", "GAIN", "TREBLE", "MIDDLE", and "BASS" knobs to their minimum (0) positions. Ensure the "BOOST" button is disengaged (out).
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
- പവർ ഓൺ: Once all connections are secure and initial settings are adjusted, flip the "POWER" switch to the "ON" position. The power indicator light will illuminate.
- വോളിയം ക്രമീകരിക്കുന്നു: Slowly increase the "VOLUME" knob to your desired listening level.
- Gain and Overdrive:
- For a clean sound, keep the "GAIN" knob at a lower setting and ensure the "BOOST" button is disengaged.
- To achieve an overdriven or distorted sound, increase the "GAIN" knob. For a more aggressive tone, engage the "BOOST" button. Experiment with these settings to find your preferred sound.
- Equalisation (EQ): Use the "TREBLE", "MIDDLE", and "BASS" knobs to shape your tone.
- ട്രെബിൾ: Adjusts the high frequencies for brightness or warmth.
- മധ്യഭാഗം: Controls the mid-range frequencies, affecting the presence and punch of your sound.
- ബാസ്: Adjusts the low frequencies for depth and fullness.
- പവർ ഓഫ്: When finished, turn the "VOLUME" and "GAIN" knobs down to minimum, then flip the "POWER" switch to "OFF". Disconnect your instrument and power cable.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: തുടയ്ക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക amplifier's exterior. Avoid using abrasive cleaners or solvents, as they may damage the finish.
- സംഭരണം: സംഭരിക്കുക amplifier in a cool, dry place away from direct sunlight and extreme temperatures. Utilize the built-in storage compartment at the rear to neatly tuck away the mains lead when not in use.
- കൈകാര്യം ചെയ്യൽ: Always use the sturdy carry handle when transporting the amplifier. Avoid dropping or subjecting the unit to strong impacts.
- വെൻ്റിലേഷൻ: ഉറപ്പാക്കുക amplifier has adequate ventilation during operation to prevent overheating. Do not block any vents.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| വൈദ്യുതി ഇല്ല / യൂണിറ്റ് ഓണാകുന്നില്ല | Power cable not properly connected; Power outlet not working; Power switch is off. | Ensure power cable is securely plugged into the amplifier and wall outlet. Test the outlet with another device. Flip the power switch to "ON". |
| ശബ്ദ ഔട്ട്പുട്ട് ഇല്ല | Instrument cable not connected; Volume/Gain knobs are at minimum; Headphones plugged in; Faulty instrument cable or instrument. | Check instrument cable connections. Increase Volume and Gain. Unplug headphones from the "PHONES" jack. Test with a different cable or instrument. |
| വികലമായ അല്ലെങ്കിൽ മോശം ശബ്ദ നിലവാരം | Gain/Volume too high; Incorrect EQ settings; Faulty instrument or cable. | Reduce Gain and Volume. Adjust Treble, Middle, and Bass knobs. Test with a different instrument or cable. |
| അമിതമായ മൂളൽ അല്ലെങ്കിൽ ശബ്ദം | Interference from other electronic devices; Ground loop issue; Faulty cable. | നീക്കുക amplifier away from other electronics. Try plugging into a different outlet. Use a high-quality, shielded instrument cable. |
സ്പെസിഫിക്കേഷനുകൾ
- ഇനത്തിൻ്റെ ഭാരം: 8.43 പൗണ്ട്
- ഉൽപ്പന്ന അളവുകൾ: 9.3 x 5.9 x 11.4 ഇഞ്ച്
- ഇനം മോഡൽ നമ്പർ: RJ20WAR2
- നിറത്തിൻ്റെ പേര്: കറുപ്പ്
- അനുയോജ്യമായ ഉപകരണങ്ങൾ: Guitar, Drum
- കണക്റ്റർ തരം: 3.5 എംഎം ജാക്ക്
- മെറ്റീരിയൽ തരം: പ്ലാസ്റ്റിക്, മെറ്റൽ
- ഔട്ട്പുട്ട് വാട്ട്tage: 20 വാട്ട്സ്
- വലിപ്പം: 20 വാട്ട്
- ഊർജ്ജ സ്രോതസ്സ്: ഇലക്ട്രിക്
- ബ്രാൻഡ്: റോക്ക്ജാം
ഉൽപ്പന്ന മീഡിയ
ഉൽപ്പന്ന ചിത്രങ്ങൾ
ഔദ്യോഗിക ഉൽപ്പന്ന വീഡിയോകൾ
No official seller videos are available for this product that meet the embedding criteria.
വാറൻ്റിയും പിന്തുണയും
For warranty information and customer support, please refer to the official RockJam website or the documentation included with your product. You may also find additional support resources and FAQs on the RockJam Store on Amazon.
A downloadable User Guide (PDF) is available for further reference: ഉപയോക്തൃ ഗൈഡ് (PDF)
