CURT 11599 ക്ലാസ് 1 ട്രെയിലർ ഹിച്ച്

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The CURT 11599 Class 1 Trailer Hitch is a light-duty towing receiver designed specifically for select Mazda CX-30 vehicles. Engineered for a custom fit, it provides seamless integration and optimal towing capacity for various light-duty applications.

This hitch is rated for a gross trailer weight (GTW) of 2,000 lbs. and a tongue weight (TW) of 200 lbs. It features a standard 1-1/4-inch receiver tube opening, suitable for a ball mount shank or other hitch-mounted accessories like bike racks or cargo carriers. The hitch is constructed from high-strength carbon steel and features a dual-coat finish, including a liquid A-coat and a durable black powder coat, for superior resistance against rust, chips, and UV rays. All CURT hitches are thoroughly tested to SAE J684 specifications for safety.

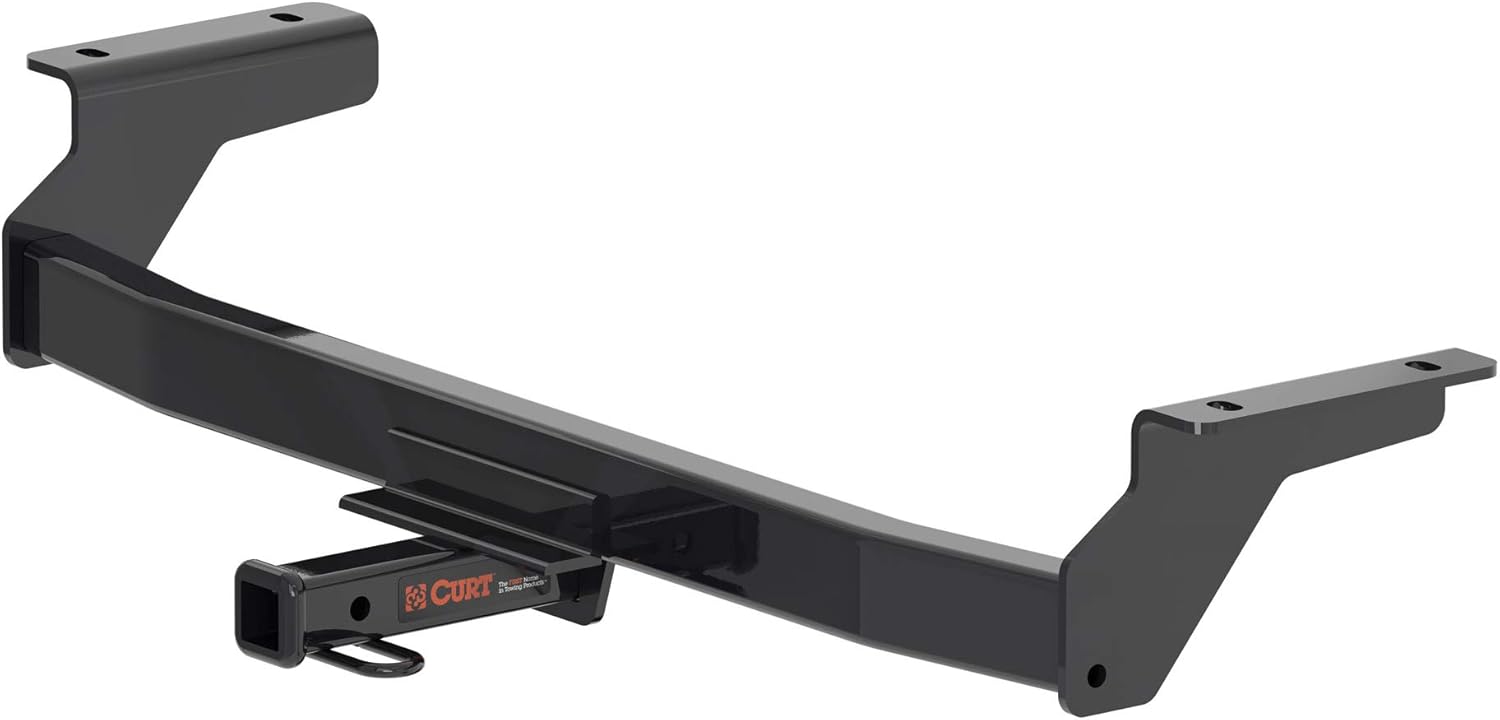

Figure 1.1: CURT 11599 Class 1 Trailer Hitch

പ്രധാന സവിശേഷതകൾ:

• ആശ്രയിക്കാവുന്ന ശക്തി: Rated for 2,000 lbs. GTW and 200 lbs. TW.
• ഉയർന്ന വൈവിധ്യമാർന്നത്: Standard 1-1/4-inch receiver hitch (not compatible with vertical hanging bike racks).
• ഡ്യുവൽ-കോട്ട് ഫിനിഷ്: Liquid A-coat and black powder coat for industry-leading rust, chip, and UV resistance.
• എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Designed for a factory fit on select Mazda CX-30 models.
• സുരക്ഷയ്ക്കായി പരീക്ഷിച്ചു: Each design is thoroughly tested to SAE J684 specifications.

2 സ്പെസിഫിക്കേഷനുകൾ

Figure 2.1: Receiver Tube Size

3. ഇൻസ്റ്റലേഷൻ

The CURT 11599 trailer hitch is designed for a custom, factory-fit installation on select Mazda CX-30 models, often requiring no drilling into the vehicle's frame. Installation typically involves mounting the hitch to existing frame holes and may require lowering the exhaust for access.

പൊതുവായ ഇൻസ്റ്റാളേഷൻ പരിഗണനകൾ:

• വാഹന-നിർദ്ദിഷ്ട രൂപകൽപ്പന: This hitch is engineered to fit the specific contours of the Mazda CX-30, ensuring a precise and secure attachment.
• ഡ്രില്ലിംഗ് ആവശ്യമില്ല: For most applications, this hitch utilizes existing mounting points on the vehicle's frame, eliminating the need for drilling.
• Exhaust Access: It may be necessary to temporarily lower the vehicle's exhaust system to gain sufficient access to the mounting points.
• ഹാർഡ്‌വെയറും ഉപകരണങ്ങളും: Ensure all necessary mounting hardware is present. Refer to the detailed installation instructions provided with your product for specific tool requirements and torque specifications.
• സഹായം: While installation can be performed by an individual, having a helper can significantly ease the process, especially when aligning and securing the hitch.

For detailed, step-by-step installation instructions, please refer to the specific guide included with your CURT 11599 trailer hitch or visit the official CURT Manufacturing website for model-specific installation videos and documents.

Figure 3.1: No Drilling Required for Installation

ചിത്രം 3.2: ഓവർview of Hitch Features and Benefits

4. ട്രെയിലർ ഹിച്ച് പ്രവർത്തിപ്പിക്കൽ

Once installed, your CURT Class 1 trailer hitch provides a reliable connection point for towing light trailers or carrying hitch-mounted accessories. Proper operation involves understanding its capacities and ensuring secure connections.

ഉപയോഗ മാർഗ്ഗനിർദ്ദേശങ്ങൾ:

• ഭാരം ശേഷി: Always adhere to the maximum gross trailer weight (2,000 lbs.) and tongue weight (200 lbs.) ratings of the hitch. Never exceed the lowest weight capacity of any towing component, including your vehicle, the hitch, the ball mount, or the trailer itself.
• റിസീവർ അനുയോജ്യത: The 1-1/4-inch receiver is designed for standard ball mounts and compatible accessories. Ensure any accessory used is designed for this receiver size. Note that this hitch is generally not compatible with vertical hanging bike racks that require bikes to be mounted vertically.
• സുരക്ഷിത കണക്ഷൻ: Always ensure the ball mount or accessory is fully inserted into the receiver tube and secured with a hitch pin and clip. For towing, ensure the trailer coupler is properly latched onto the ball and safety chains are correctly attached.
• Lighting and Wiring: If towing a trailer, ensure all trailer lights are functional and properly connected to your vehicle's electrical system.

Figure 4.1: Standard Hitch Receiver with Safety Chain Loops

5. പരിപാലനം

Regular maintenance of your CURT trailer hitch will ensure its longevity and continued safe operation. The dual-coat finish provides excellent protection, but periodic inspection is crucial.

മെയിൻ്റനൻസ് ഷെഡ്യൂൾ:

• ഓരോ ഉപയോഗത്തിനും മുമ്പ്: Visually inspect the hitch for any signs of damage, cracks, excessive rust, or loose bolts. Ensure the receiver tube is clear of debris.
• പതിവ് വൃത്തിയാക്കൽ: Clean the hitch periodically with mild soap and water to remove dirt, salt, and road grime. Rinse thoroughly and allow to dry.
• ഫിനിഷ് പരിശോധിക്കുക: While the dual-coat finish is highly durable, inspect for any chips or scratches that could expose bare metal. Touch up any damaged areas with a rust-preventative paint to maintain protection.
• ബോൾട്ട് ടോർക്ക്: Periodically check the torque of all mounting bolts, especially after the first few uses and after significant towing. Refer to your installation instructions for specific torque values.
• ലൂബ്രിക്കേഷൻ: Apply a light coat of grease to the inside of the receiver tube and to the hitch pin to prevent rust and ease insertion/removal of accessories.

Figure 5.1: Dual-Coat Finish Application Process

6. പ്രശ്‌നപരിഹാരം

നിങ്ങളുടെ ട്രെയിലർ ഹിച്ചിൽ ഉണ്ടാകാവുന്ന പൊതുവായ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു.

പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും:

• Exhaust Rattle: If the exhaust system rattles against the hitch, especially during certain gears or temperatures, inspect the clearance. This can sometimes be resolved by adjusting the exhaust hangers or installing a new rubber spacer to increase the distance between the hitch and exhaust. A rubber bumper guard can also be added between the exhaust and bumper to minimize noise.
• Hitch Wobble/Play: If there is excessive movement or wobble when an accessory is inserted into the receiver, ensure the hitch pin is fully engaged. Consider using a hitch tightener or anti-rattle device, especially with cargo carriers or bike racks, to reduce play.
• ആക്‌സസറികൾ ചേർക്കുന്നതിനോ നീക്കംചെയ്യുന്നതിനോ ഉള്ള ബുദ്ധിമുട്ട്: Ensure the receiver tube is clean and free of debris. A light application of grease or lubricant inside the receiver tube can help. Check for any deformation of the receiver tube or the accessory shank.
• തുരുമ്പ് രൂപീകരണം: Despite the protective coating, rust can occur if the finish is chipped or scratched. Address any exposed metal promptly by cleaning the area and applying a rust-inhibiting paint.
• Mounting Bolts Loosening: Regularly check and re-torque all mounting bolts to the manufacturer's specified values. Loose bolts can compromise the hitch's integrity and safety.

If you encounter issues not covered here or require further assistance, please contact CURT customer support.

Figure 6.1: Hitch Undergoing Rigorous Testing

7 സുരക്ഷാ വിവരങ്ങൾ

Your CURT trailer hitch is designed and tested for safety in accordance with SAE J684 specifications. However, safe towing and usage practices are paramount to prevent accidents and ensure personal safety.

പ്രധാനപ്പെട്ട സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ:

• ഭാരം പരിധി: Never exceed the stated gross trailer weight (GTW) or tongue weight (TW) of the hitch, your vehicle, or any other towing component.
• ശരിയായ കണക്ഷൻ: Always ensure the trailer coupler is securely latched onto the hitch ball and that safety chains are properly crossed and attached to the vehicle's frame or designated attachment points.
• ബ്രേക്കിംഗ് ദൂരം: Towing a trailer increases your vehicle's braking distance. Allow for extra stopping distance, especially in adverse weather conditions.
• വേഗത പരിധി: Adhere to reduced speed limits for towing, as specified by local regulations and your vehicle's manufacturer.
• യാത്രയ്ക്ക് മുമ്പുള്ള പരിശോധന: Before each trip, perform a thorough inspection of the hitch, ball mount, trailer coupler, safety chains, and all lighting connections.
• നിർദ്ദേശം 65 മുന്നറിയിപ്പ്: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

8. വാറൻ്റിയും പിന്തുണയും

CURT Manufacturing stands behind the quality of its products. For specific warranty information regarding your CURT 11599 Class 1 Trailer Hitch, please refer to the warranty documentation included with your purchase or visit the official CURT webസൈറ്റ്.

ഉപഭോക്തൃ പിന്തുണ:

If you have questions about installation, operation, maintenance, or require technical assistance, please contact CURT customer support through their official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.

Webസൈറ്റ്: www.curtmfg.com

Figure 8.1: Made in USA
