ആമുഖം
Thank you for choosing the TOOLPORT 3x6m Folding Tent. This manual provides essential information for the safe and efficient assembly, use, and care of your tent. Please read these instructions carefully before initial setup and retain them for future reference.
This folding tent is designed to provide protection from sun and rain, making it suitable for various outdoor events, receptions, and as a temporary shelter. Its aluminum frame and high-quality polyester canopy ensure durability and ease of transport.
സുരക്ഷാ നിർദ്ദേശങ്ങൾ
നിങ്ങളുടെ സുരക്ഷയാണ് പരമപ്രധാനം. ഇനിപ്പറയുന്ന മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുക:
- കാറ്റിന്റെയും മഞ്ഞിന്റെയും തീവ്രത: Folding tents have not been tested for specific wind and snow loads. In strong winds, heavy rain, or snowfall, we recommend temporarily dismantling the tent to prevent damage.
- മഞ്ഞ് നീക്കം ചെയ്യൽ: Promptly remove any accumulated snow from the roof to avoid structural stress.
- അഗ്നി അപകടം: Keep the canopy away from open flames and any heat sources.
- അസംബ്ലി സുരക്ഷ: Always follow the assembly instructions carefully. Ensure all connections are secure before use.
- ആങ്കറിംഗ്: Always anchor the tent securely to the ground using the provided anchors and guy ropes, especially in outdoor conditions.
- മേൽനോട്ടം: Do not leave the tent unattended in adverse weather conditions.
പാക്കേജ് ഉള്ളടക്കം
അസംബ്ലി ചെയ്യുന്നതിനുമുമ്പ്, എല്ലാ ഘടകങ്ങളും ലഭ്യമാണെന്ന് ഉറപ്പാക്കുക:
- Aluminum Frame Structure (32x32 mm reinforced square profiles)
- 700N Roof Canopy (high-quality polyester with PVC coating, heat-sealed seams)
- Side Panels (optional, quantity may vary based on purchase)
- ഗയ് റോപ്സ്
- Ground Anchors (for soft ground)
- ഗതാഗത ബാഗ്
- അസംബ്ലി നിർദ്ദേശ മാനുവൽ

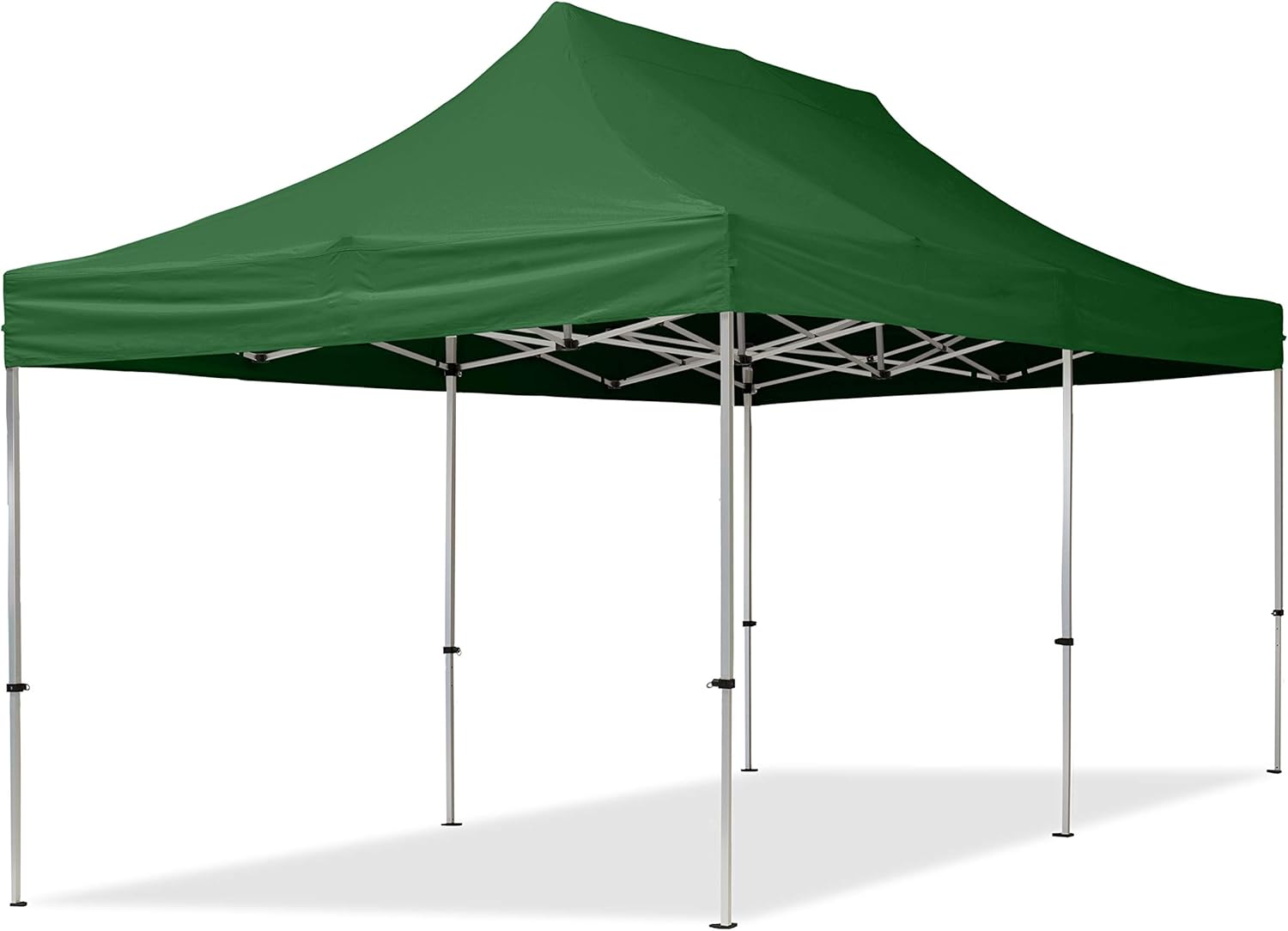

Image: The TOOLPORT 3x6m Folding Tent in green, showcasing its full assembly. This image provides a visual reference of the complete product.
സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
Assembly of the folding tent is designed to be quick and straightforward, typically requiring two people. No special tools are needed.
- Unpack and Position the Frame:
Remove the folded frame from the transport bag. Place the frame in the desired location, ensuring enough space for expansion.
Image: The folded tent frame stored within its black transport bag, illustrating its compact form for easy transportation.
- ഫ്രെയിം ഭാഗികമായി വികസിപ്പിക്കുക:
With one person at each end, gently pull the frame outwards to partially expand it. Do not fully extend it yet.
- Attach the Roof Canopy:
Drape the roof canopy over the partially expanded frame. Ensure the canopy is correctly oriented with the peak aligned with the center of the frame. Secure the canopy to the frame using the integrated straps or clips.
Image: A diagram illustrating the process of attaching the roof canopy to the tent frame, highlighting the connection points.
- ഫ്രെയിം പൂർണ്ണമായും വികസിപ്പിക്കുക:
Continue to pull the frame outwards until it is fully expanded and the roof canopy is taut. Ensure all cross-braces are locked into place.
ചിത്രം: ഒരു ക്ലോസ്-അപ്പ് view of the reinforced roof structure of the tent frame, showing the robust connections and stability.
- ഉയരം ക്രമീകരിക്കുക:
Press the release buttons on each leg and extend the telescopic legs to the desired height. The tent offers 5 height adjustment settings. Ensure all legs are set to the same height and locked securely.
ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the tent leg adjustment mechanism, featuring a pull-pin for securing the desired height setting.
- സൈഡ് പാനലുകൾ ഘടിപ്പിക്കുക (ഓപ്ഷണൽ):
If using side panels, attach them to the frame using the integrated fasteners (e.g., Velcro straps or clips). Ensure they are securely fastened to provide full enclosure.

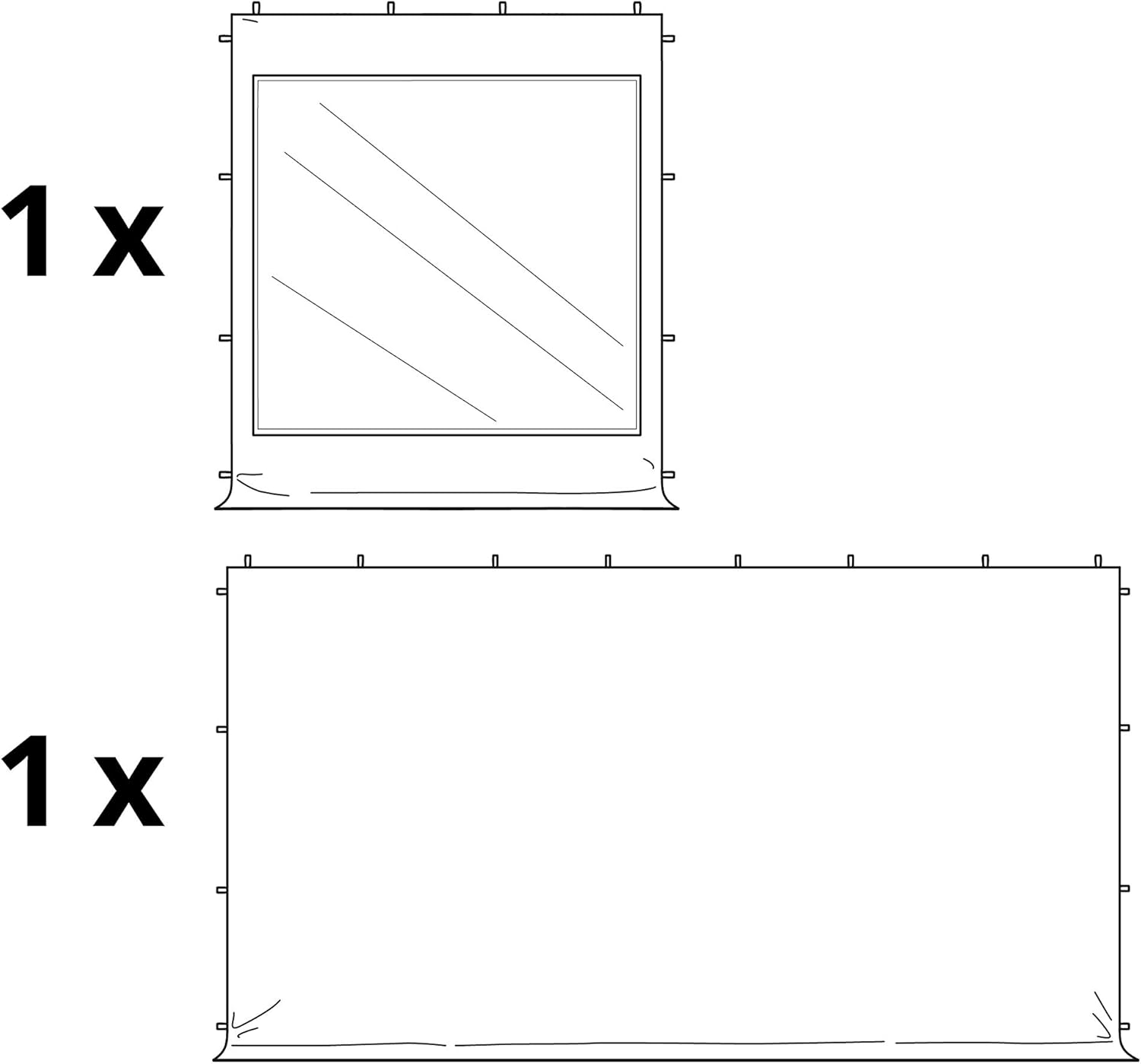

Image: A diagram illustrating two types of side panels: one with a transparent window and another solid panel, indicating their inclusion or optional availability.
- കൂടാരം ഉറപ്പിക്കുക:
Use the provided guy ropes and ground anchors to secure the tent firmly to the ground. This is crucial for stability, especially in windy conditions.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The TOOLPORT folding tent is designed for ease of use. Once assembled, it provides a versatile shelter.
- ഉയരം ക്രമീകരിക്കൽ: The tent offers 5 adjustable heights. To change the height, ensure the tent is not under load, then press the release pins on each leg and slide the inner leg to the desired position until the pin locks into place. Always adjust all legs evenly.
- Side Panel Usage: Side panels can be attached or removed as needed to adapt to weather conditions or privacy requirements. Ensure they are properly zipped or fastened to the frame.
- വേർപെടുത്തുക: To disassemble, reverse the setup steps. Lower the legs, detach side panels, remove the roof canopy, and then fold the frame. Ensure all components are clean and dry before packing into the transport bag.
മെയിൻ്റനൻസ്
Proper maintenance will extend the lifespan of your tent.
- മേലാപ്പ് വൃത്തിയാക്കൽ: The PVC-coated polyester canopy is easy to clean. Use a soft cloth, mild soap, and water. Do not use aggressive detergents or abrasive materials, as these can damage the coating.
- ഫ്രെയിം കെയർ: The aluminum frame is UV-treated and corrosion-resistant. Periodically inspect the frame for any signs of damage or loose connections. Clean with a damp ആവശ്യമെങ്കിൽ തുണി.
- ഉണക്കൽ: Always ensure the canopy and frame are completely dry before folding and storing to prevent mold, mildew, and corrosion.
- സംഭരണം: Store the tent in its transport bag in a cool, dry place, away from direct sunlight and extreme temperatures.
Image: A close-up of water droplets on the green tent fabric, clearly demonstrating its waterproof and water-repellent properties.
ട്രബിൾഷൂട്ടിംഗ്
നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഇതാ:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ടെന്റ് അസ്ഥിരമാണ് അല്ലെങ്കിൽ ഇളകിയിരിക്കുന്നു. | Not properly anchored; legs unevenly adjusted; frame not fully locked. | Ensure all legs are at the same height and locked. Use all provided guy ropes and ground anchors. Check that the frame is fully expanded and locked. |
| മേൽക്കൂരയിൽ വെള്ളം കെട്ടിക്കിടക്കുന്നു. | Insufficient tension in the canopy; incorrect setup. | Ensure the canopy is tightly stretched over the frame. Verify that the frame is fully expanded and the roof structure is properly aligned. |
| Difficulty expanding or folding the frame. | ഫ്രെയിം സന്ധികൾ കട്ടിയുള്ളതോ തെറ്റായി ക്രമീകരിച്ചതോ ആണ്. | Ensure no fabric is caught in the joints. Apply gentle, even pressure. If joints are stiff, a silicone-based lubricant can be applied sparingly to moving parts. |
സ്പെസിഫിക്കേഷനുകൾ
Key technical details of the TOOLPORT 3x6m Folding Tent:
| മോഡൽ നമ്പർ | 59026 |
| അളവുകൾ (L x W x H) | 600 സെ.മീ x 300 സെ.മീ x 338 സെ.മീ (ഏകദേശം 19.69 അടി x 9.84 അടി x 11.09 അടി) |
| ഫ്ലോർ ഏരിയ | 18 ചതുരശ്ര മീറ്റർ |
| ഭാരം | 35 കി.ഗ്രാം |
| ഫ്രെയിം മെറ്റീരിയൽ | Aluminum (32x32 mm square profiles, UV-treated, anti-corrosion) |
| മേലാപ്പ് മെറ്റീരിയൽ | High-quality Polyester with PVC coating (700N), heat-sealed seams |
| ജല പ്രതിരോധം | വാട്ടർപ്രൂഫ് |
| യുവി സംരക്ഷണം | അതെ |
| ക്രമീകരിക്കാവുന്ന ഉയരം | 5 ക്രമീകരണങ്ങൾ |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗം | Folding gazebo, party tent |
Image: A technical diagram illustrating the overall dimensions of the 3x6m folding tent, including height, length, and width in both meters and feet.
വാറൻ്റിയും പിന്തുണയും
TOOLPORT products are manufactured to high standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official TOOLPORT website. In case of issues or for technical support, please contact your retailer or TOOLPORT customer service directly.
Spare parts availability information is not explicitly provided in the product details. For inquiries regarding spare parts, please contact TOOLPORT customer support.
