Camco 42139 RS620 Flying Insect Screen for Dometic RV Refrigerator Vents

ആമുഖം

This instruction manual provides essential information for the proper installation and maintenance of your Camco 42139 RS620 Flying Insect Screens. These screens are designed to protect your Dometic RV refrigerator vents from unwanted pests, ensuring optimal airflow and preventing potential damage.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Camco 42139 RS620 Flying Insect Screens are specifically engineered for new style Dometic RV refrigerator vents that feature 20-inch long louver openings. They provide a protective barrier against insects, birds, and rodents without significantly restricting necessary airflow.

പ്രധാന സവിശേഷതകൾ:

• സംരക്ഷണ തടസ്സം: Effectively keeps out nesting insects, birds, and rodents.
• ഒപ്റ്റിമൽ എയർഫ്ലോ: Designed to minimize airflow restriction for efficient refrigerator operation.
• അനുയോജ്യത: Fits new style Dometic refrigerator vents with 20-inch long louver openings.
• നീണ്ടുനിൽക്കുന്ന നിർമ്മാണം: Made from heavy-duty stainless-steel mesh for longevity.
• എളുപ്പമുള്ള ഇൻസ്റ്റാളേഷൻ: Simple attachment process using included cable ties.

എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്:

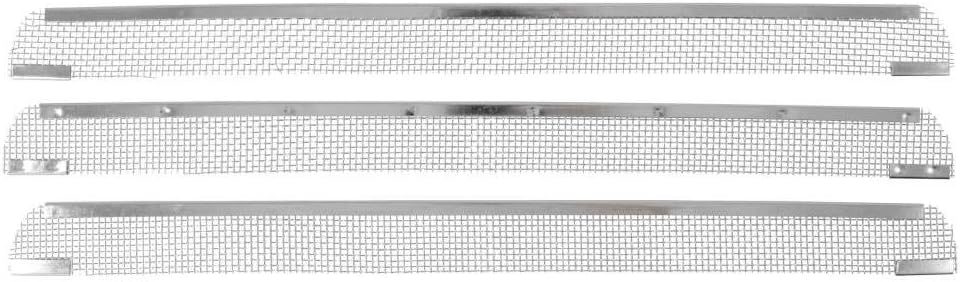

• (3) Stainless Steel Insect Screens (20-inches L x 1.5-inches W)
• (7) Cable Ties for Installation

General Product Video (Installation methods may vary by model):

സുരക്ഷാ വിവരങ്ങൾ

• Always ensure the RV refrigerator is turned off and cooled down before attempting installation or maintenance.
• Wear appropriate personal protective equipment, such as gloves, to prevent cuts from screen edges.
• Keep small parts, like cable ties, out of reach of children.
• Do not obstruct the refrigerator vent openings beyond what the screen is designed for, as this can impair appliance function.

ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ

The Camco 42139 RS620 screens are designed for easy installation using the provided cable ties. Ensure your Dometic RV refrigerator vents have 20-inch long louver openings for proper fit.

1. Prepare the Vent: Ensure the refrigerator vent area is clean and free from debris.
2. സ്ക്രീൻ സ്ഥാപിക്കുക: Place one of the stainless steel insect screens over a louver opening of your Dometic RV refrigerator vent. The screen should cover the entire opening.
3. കേബിൾ ബന്ധനങ്ങൾ ഉപയോഗിച്ച് സുരക്ഷിതമാക്കുക: Thread a cable tie through the mesh of the screen and around a secure point on the vent louver or frame. Ensure the screen is held firmly against the vent.
4. Tighten Cable Ties: Pull the cable tie tight to secure the screen in place. Trim any excess length from the cable tie for a neat finish.
5. Repeat for Remaining Screens: Follow steps 2-4 for the remaining two screens, ensuring all louver openings are adequately covered. Use additional cable ties as needed to ensure a snug fit and prevent gaps.
6. ഇൻസ്റ്റാളേഷൻ പരിശോധിക്കുക: Gently tug on each screen to confirm it is securely attached and there are no gaps large enough for pests to enter.

ഓപ്പറേഷൻ

Once installed, the Camco 42139 RS620 Flying Insect Screens operate passively by providing a physical barrier. No further action is required for their function. They allow air to circulate freely while preventing pests from entering and potentially damaging your RV refrigerator's internal components.

മെയിൻ്റനൻസ്

• പതിവ് പരിശോധന: Periodically inspect the screens for any signs of damage, wear, or accumulation of debris.
• വൃത്തിയാക്കൽ: If debris or dirt accumulates on the screens, gently brush it off or rinse with water. Ensure the screens are dry before re-installation if removed for cleaning.
• സുരക്ഷാ പരിശോധന: Occasionally check that the cable ties are still tight and the screens are securely in place. Replace any broken or loose cable ties.

ട്രബിൾഷൂട്ടിംഗ്

As a passive protective device, the insect screens typically do not require complex troubleshooting. If you encounter issues:

• Pests are still entering: Re-examine the installation to ensure there are no gaps between the screen and the vent frame. Tighten or add more cable ties if necessary. Verify that the screens are correctly sized for your specific Dometic RV refrigerator vents.
• Screen is loose: Check the cable ties. If they are loose or broken, replace them with new ones, ensuring a tight fit.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information or product support, please refer to the official Camco webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവന വിഭാഗവുമായി ബന്ധപ്പെടുകയോ ചെയ്യുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
