DDPAI Mini5 4K Dash Cam User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The DDPAI Mini5 is a high-performance 4K dash camera designed to capture clear footage of your driving. It features a Sony IMX415 sensor for superior image quality, built-in 5G WiFi and GPS for connectivity and tracking, and 64GB of eMMC storage for reliable data retention. Advanced features like NightVIS night vision, Wide Dynamic Range (WDR), G-sensor, and loop recording ensure comprehensive coverage and protection on the road.

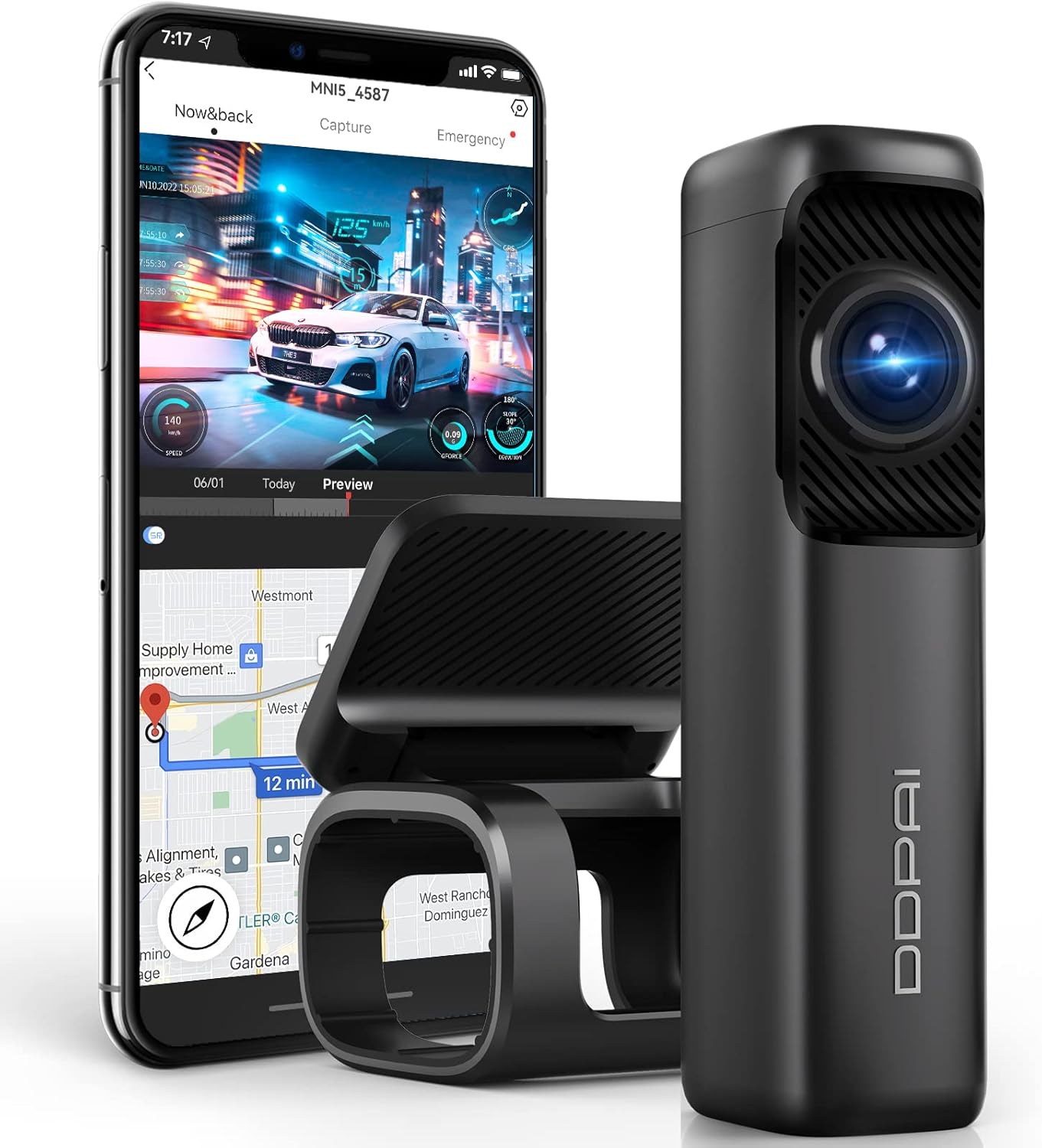

Image: The DDPAI Mini5 Dash Cam shown alongside a smartphone displaying its app interface, highlighting its compact design and connectivity features.

2. ബോക്സിൽ എന്താണുള്ളത്?

നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x Mini5 Dash Cam
• 1 x ബ്രാക്കറ്റ്
• 1 x 3m /10Ft Power Cable
• 1 x USB Car Charger
• 1 x 3M പശ

Image: All included components of the DDPAI Mini5 Dash Cam package laid out on a surface.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 Initial Power-On & App Connection

Before permanent installation, connect the dash cam to power using the provided USB car charger and power cable. Ensure the device powers on and is functional. Download the 'DDPAI' app from your smartphone's app store (Android/iOS) and connect to the dash cam's 5G WiFi hotspot (DDPAI_XXXX_XX) using the default password '1234567890'.

3.2 ഡാഷ് കാം മൌണ്ട് ചെയ്യുന്നു

Clean the windshield thoroughly. Apply the electrostatic sticker to the desired mounting location on the windshield, typically behind the rearview mirror. Attach the dash cam bracket to the electrostatic sticker. Insert the dash cam into the bracket, ensuring the lens faces forward to capture the road ahead. Route the power cable neatly along the windshield trim using the installation wire trim tool to the cigarette lighter port.

Image: The DDPAI Mini5 Dash Cam securely mounted on the interior of a car's windshield, positioned to record the road.

3.3 Hardwire Kit Installation (Optional)

For 24-hour parking surveillance, a hardwire kit (sold separately, ASIN: B08LL4L87C or B0CKPTNRDM) is required. This installation typically involves connecting to your car's fuse box and may require technical skills. Refer to the hardwire kit's specific instructions for detailed steps.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 അടിസ്ഥാന പ്രവർത്തനം

The DDPAI Mini5 automatically begins recording when your vehicle's ignition is turned on. The blue LED indicator light signifies normal recording. When the ignition is turned off and the key is removed, the dash cam enters parking mode (if hardwired) and the LED indicator light turns red.

4.2 Using the DDPAI App

The DDPAI app allows you to manage settings, preview തത്സമയംtage, and download recorded videos directly to your smartphone. Connect your phone to the dash cam's 5G WiFi hotspot to access these features. You can also edit and share videos from within the app.

4.3 വീഡിയോ സവിശേഷതകൾ

• 4K UHD റെസല്യൂഷൻ: Records in 3840x2160P at 30fps, capturing clear and detailed images.


Image: A visual representation of the 4K image quality captured by the DDPAI Mini5 Dash Cam, showing a car on a city street.

• NightVIS Night Vision: With an F1.8 large aperture and Sony IMX415 STARVIS sensor, the dash cam records clear footagകുറഞ്ഞ വെളിച്ചത്തിൽ ഇ.


Image: A side-by-side comparison illustrating the enhanced clarity of night vision footage with NightVIS technology versus without it.

• WDR സാങ്കേതികവിദ്യ: Balances exposure in bright and dark areas, preventing overexposed or underexposed video.
• ലൂപ്പ് റെക്കോർഡിംഗ്: പഴയവയെ യാന്ത്രികമായി ഓവർറൈറ്റ് ചെയ്യുന്നു files when storage is full, ensuring continuous recording.
• G-Sensor & Collision Lock: Detects sudden impacts and automatically saves relevant video clips, protecting them from being overwritten.

Image: An illustration highlighting the three main recording modes of the DDPAI Mini5: G-sensor, 24-hour monitoring, and loop recording.

4.4 GPS and SR Technology

Built-in GPS tracks date, speed, acceleration, driving route, and distance. SR (Sense Reality) technology can display this driving information directly in your footage, creating an immersive driving video experience.

Image: A screenshot from the DDPAI app showing driving information like speed, route, and G-force overlaid on dash cam footage, powered by SR technology.

5. പരിപാലനം

• Regularly clean the dash cam lens with a soft, dry cloth to ensure clear recordings.
• Avoid exposing the dash cam to extreme temperatures for prolonged periods.
• Periodically check for firmware updates via the DDPAI app to ensure optimal performance and new features.

6. പ്രശ്‌നപരിഹാരം

• ഡാഷ് കാം പവർ ഓൺ ചെയ്യുന്നില്ല: Ensure the power cable is securely connected to both the dash cam and the car charger/hardwire kit. Check the car's cigarette lighter socket or fuse for power.
• ആപ്പ് കണക്ഷൻ പ്രശ്നങ്ങൾ: Ensure your phone's Bluetooth and WiFi are enabled. Keep your phone within 2 meters of the device. Restart both the dash cam and your phone if issues persist.
• മോശം വീഡിയോ നിലവാരം: Clean the lens. Ensure the dash cam is securely mounted and not vibrating. Check the recording resolution settings in the app.
• Parking mode not working: Verify that the hardwire kit is correctly installed and connected. Check parking monitoring settings in the DDPAI app.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറണ്ടിയും പിന്തുണയും

DDPAI provides a 12-month warranty and lifelong consultation service for customers. For any inquiries or support needs, please contact our professional customer service team. Refer to the official DDPAI website or your purchase platform for contact details.
