Pramac Automatic Transfer Switch (ATS) PY000A000B2 Instruction Manual

1. ആമുഖവും അവസാനവുംview

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Pramac Automatic Transfer Switch (ATS) model PY000A000B2. Designed for seamless power transfer between a primary power source and a backup generator, this unit ensures continuous power supply for critical applications.

The ATS unit measures approximately 410 x 180 x 310 mm and weighs 7 kg. It features a quick connector for easy integration into your electrical system.

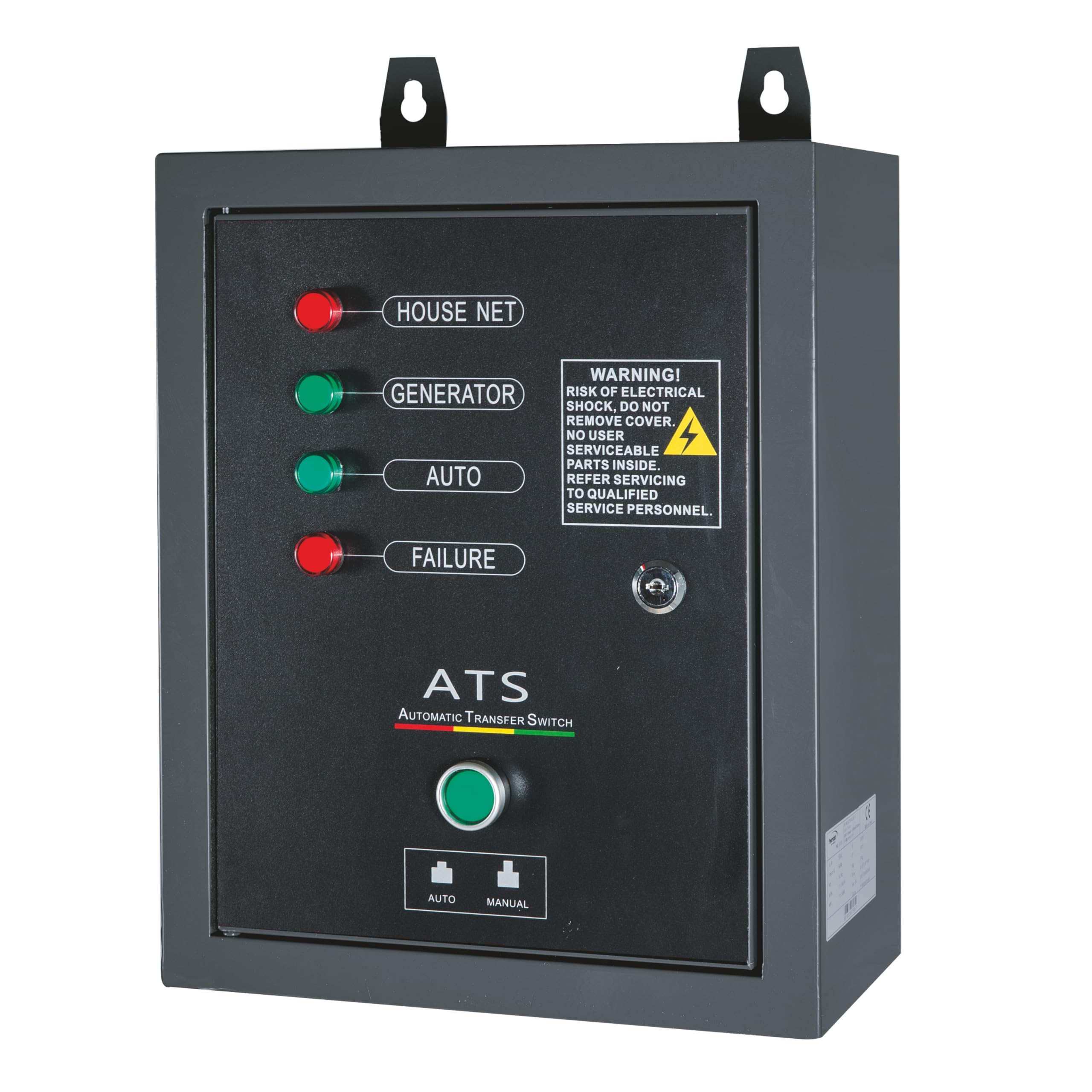

ചിത്രം 1: മുൻഭാഗം view of the Pramac Automatic Transfer Switch (ATS) PY000A000B2 unit.

2. സജ്ജീകരണവും വയറിംഗും

Proper installation and wiring are crucial for the safe and correct operation of the ATS. It is recommended that installation be performed by a qualified electrician.

2.1. വയറിംഗ് നിർദ്ദേശങ്ങൾ

The ATS is designed to manage two power sources: a primary source (L1) and a backup source (L2, typically a generator). The unit automatically switches between these sources based on availability and priority settings.

1. വോളിയം പരിശോധിക്കുകtage: Before connecting any wires, use a multimeter to test the voltage of both the primary (L1) and backup (L2) power lines. Ensure they match the specifications of the ATS unit.
2. Connect Neutral Lines: Connect the neutral line from the primary power supply (N1) to the designated neutral terminal on the ATS. Repeat for the backup power supply (N2).
3. Connect Live Lines: Connect the live line from the primary power supply (L1) to its corresponding terminal. Repeat for the backup power supply (L2).
4. Connect Load Indicator: Connect the load indicator to the appropriate terminals to monitor the active power source.
5. സുരക്ഷിത കണക്ഷനുകൾ: Ensure all wire connections are tight and secure to prevent loose contacts and potential hazards.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The Pramac ATS is designed for automatic operation, ensuring a seamless transition between power sources. It also features a manual override option.

3.1. ഓട്ടോമാറ്റിക് മോഡ്

In automatic mode, the ATS continuously monitors the primary power source (L1). If L1 fails or its voltage drops below acceptable levels, the ATS will automatically initiate a transfer to the backup power source (L2) after a pre-set delay (typically 5 seconds). When L1 power is restored, the ATS will automatically switch back to L1 after another pre-set delay, prioritizing the primary source.

3.2. മാനുവൽ മോഡ്

The ATS unit includes a manual/auto selector switch. For automatic operation, ensure this switch is in the 'Auto' position. If manual intervention is required, always switch the selector to 'Manual' mode first before attempting to operate the transfer mechanism. Attempting to manually push the transfer mechanism while in 'Auto' mode can cause a short circuit and damage the unit.

4. പരിപാലനം

Regular inspection and basic maintenance will ensure the longevity and reliable operation of your ATS unit.

• വിഷ്വൽ പരിശോധന: Periodically inspect the ATS unit for any signs of physical damage, loose connections, or overheating.
• ശുചിത്വം: Keep the unit free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• കണക്ഷൻ പരിശോധനകൾ: Ensure all electrical connections remain tight and secure. Loose connections can lead to arcing and potential fire hazards.
• വെൻ്റിലേഷൻ: Ensure the installation area provides adequate ventilation to prevent overheating of the unit.

5. പ്രശ്‌നപരിഹാരം

If you encounter issues with your ATS unit, refer to the following common troubleshooting steps:

• No Automatic Switching: Verify that the 'Manual/Auto' selector switch is firmly in the 'Auto' position. Check if both primary (L1) and backup (L2) power sources are active and providing the correct voltage.
• Power Source Not Detected: Use a multimeter to confirm voltage presence at the input terminals of the ATS for both L1 and L2. Inspect all wiring connections for continuity and proper installation.
• ഇൻഡിക്കേറ്റർ ലൈറ്റുകൾ: Familiarize yourself with the meaning of the indicator lights on your ATS unit. These lights typically show which power source is active and if there are any fault conditions.
• Manual Override Issues: If you are unable to manually operate the transfer mechanism, ensure the selector switch is in 'Manual' mode. Never force the mechanism.

ഈ ഘട്ടങ്ങൾ പാലിച്ചതിന് ശേഷവും പ്രശ്നങ്ങൾ നിലനിൽക്കുകയാണെങ്കിൽ, യോഗ്യതയുള്ള സാങ്കേതിക പിന്തുണയുമായി ബന്ധപ്പെടുക.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, technical assistance, or service requests, please refer to the documentation provided with your purchase or contact Pramac customer service directly. Ensure you have your product model number (PY000A000B2) and proof of purchase available when seeking support.
