Gardena Rollup Wall Hose Box XL 35m Instruction Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Gardena Rollup Wall Hose Box XL 35m is a wall-mounted hose storage solution designed for convenient garden watering. This model features a 35-meter hose that automatically retracts, providing a tidy and efficient way to manage your garden hose.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Automatic Hose Retraction: A short pull on the hose activates the RollControl mechanism, which retracts the hose at an even speed, preventing tangles and ensuring safe storage.
• Flexible Wall Mount: The wall mount allows the hose box to swivel 180 degrees, enabling flexible use in various directions and reaching all corners of your garden.
• Integrated Hose Guide: Ensures the hose rolls up neatly and without kinking or twisting, layer by layer.
• Short Locking Stops: The hose can be extended to the desired length and will lock into place at short intervals, allowing you to work comfortably.
• ആക്സസറി സ്റ്റോറേജ്: Features a practical holder for storing Gardena sprayers or nozzles directly on the wall bracket.
• Frost-Proof Design: Engineered to withstand frost, allowing the unit to remain outdoors year-round without damage.

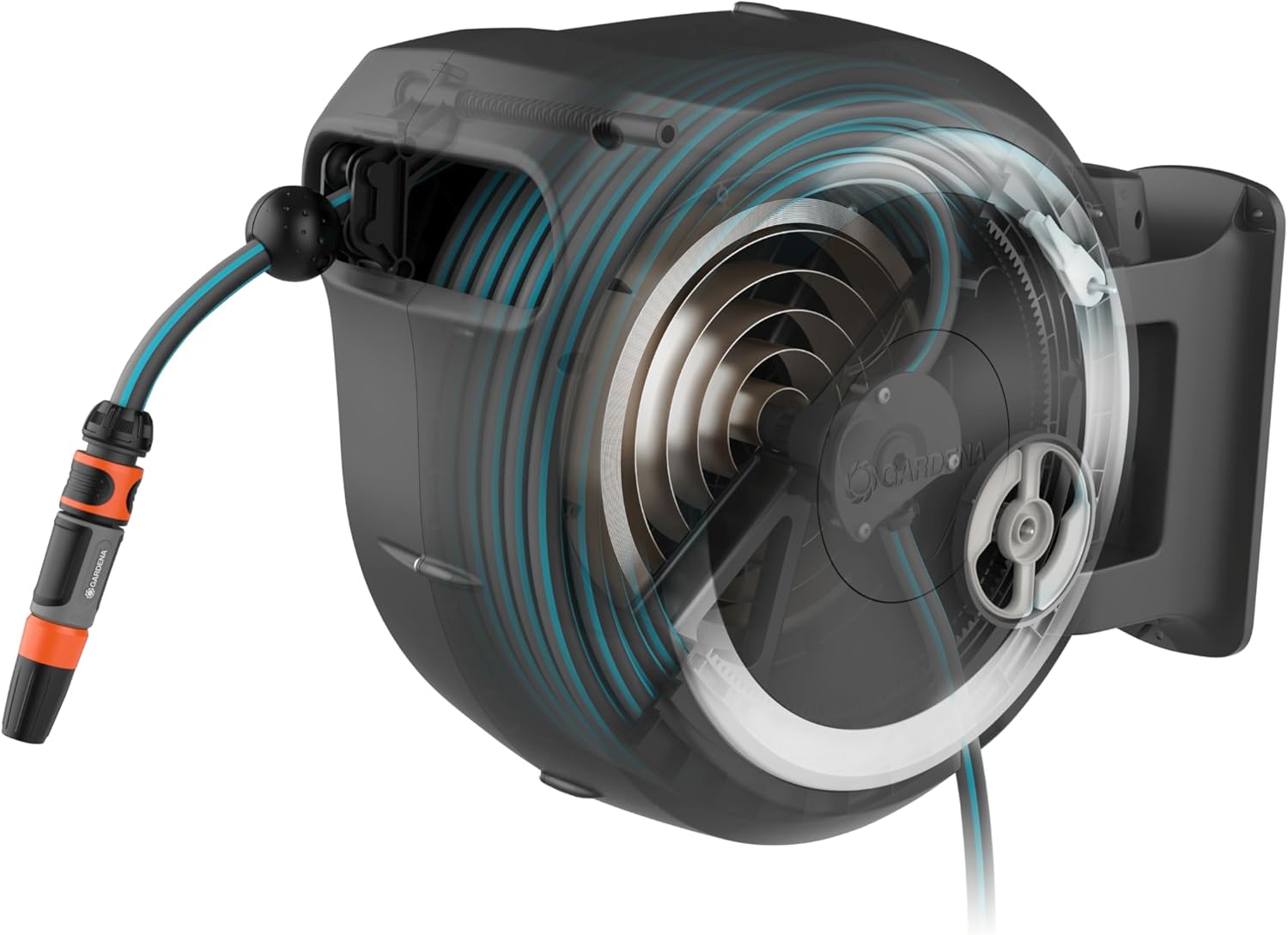

ചിത്രം 1: ആന്തരികം view of the hose box, illustrating the coiled hose and the automatic retraction mechanism.

2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Gardena Rollup Wall Hose Box is designed for easy wall mounting. All necessary mounting hardware is included with the product.

2.1 മ ing ണ്ടിംഗ് സ്ഥാനം

Choose a suitable wall location near your water source. Ensure the wall material can support the weight of the hose box when filled with water. The box should be mounted at a height that allows comfortable access and operation.

2.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

1. Mark the drilling points on the wall using the provided wall bracket as a template.
2. അടയാളപ്പെടുത്തിയ പോയിന്റുകളിൽ ദ്വാരങ്ങൾ തുരത്തുക.
3. Insert the appropriate wall plugs (included) into the drilled holes.
4. Secure the wall bracket to the wall using the provided screws.
5. Attach the hose box to the mounted wall bracket. Ensure it clicks securely into place.
6. Connect the short connection hose from the hose box to your water tap.

Image 2: The hose box securely mounted on a wall, ready for use.

ചിത്രം 3: ഇൻസ്റ്റലേഷൻ പ്ലാനിംഗിനായുള്ള ഉൽപ്പന്ന അളവുകൾ.

2.3 Video Guide: Setup and Operation

Video 1: Official product summary video demonstrating the setup and key operational features of the Gardena Rollup Wall Hose Box.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

3.1 ഹോസ് നീട്ടൽ

To extend the hose, simply pull it out to the desired length. The hose will automatically lock into place at short intervals. You will hear a clicking sound as it locks. This allows you to stop at any point without the hose retracting.

Image 4: The hose extended from the box, illustrating its operational length.

3.2 Retracting the Hose (RollControl)

When you are finished watering, give the hose a short, firm tug. This will disengage the locking mechanism. The hose will then automatically and smoothly retract into the box thanks to the integrated RollControl technology and centrifugal brake. The built-in hose guide ensures the hose winds up evenly without kinks or twists.

Image 5: A user operating the hose, highlighting the convenience of the wall-mounted system.

3.3 ആക്‌സസറികളുടെ ഉപയോഗം

The wall bracket includes a convenient holder for your Gardena sprayers, nozzles, or other watering accessories. This keeps them organized and readily accessible.

ചിത്രം 6: ഉദാample of Gardena hose connectors and a spray nozzle.

4. പരിപാലനം

The Gardena Rollup Wall Hose Box is designed for durability and minimal maintenance.

• മഞ്ഞ് സംരക്ഷണം: The hose box is frost-proof and can remain outdoors year-round. However, for optimal longevity, it is recommended to drain any remaining water from the hose and disconnect it from the tap during freezing temperatures if possible.
• വൃത്തിയാക്കൽ: Periodically wipe down the exterior of the hose box with a damp അഴുക്കും അവശിഷ്ടങ്ങളും നീക്കം ചെയ്യാനുള്ള തുണി.
• ഹോസ് പരിശോധന: Regularly inspect the hose for any signs of wear, cracks, or damage. Replace the hose if necessary to ensure proper function and prevent leaks.

5. പ്രശ്‌നപരിഹാരം

• ഹോസ് പിൻവലിക്കുന്നില്ല: Ensure the hose is not tangled or obstructed. Give a short, firm tug to disengage the locking mechanism. If the issue persists, check for debris inside the retraction mechanism.
• Hose retracting too slowly/quickly: The RollControl mechanism is designed for even speed. If you notice significant deviation, ensure the hose is clean and free of obstructions.
• കണക്ഷനുകളിൽ നിന്നുള്ള ചോർച്ചകൾ: Check that all hose connections to the tap and accessories are securely tightened. Inspect rubber washers for wear and replace if damaged.
• Water pressure issues: Ensure your water tap is fully open and there are no kinks in the hose.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

Gardena provides a 5 വർഷത്തെ EU സ്പെയർ പാർട്സ് ലഭ്യത കാലാവധി for this product, ensuring components are available for repairs and maintenance within this period.

For specific warranty terms, technical support, or to inquire about spare parts, please refer to the official Gardena webസൈറ്റിൽ ബന്ധപ്പെടുകയോ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുകയോ ചെയ്യുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
