ഡിക്സൺ HS152 വേം ഗിയർ Clamp ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Dixon HS152 Worm Gear Clamp is designed for securing hoses to fittings, ensuring a tight and leak-free connection. This clamp features a 9/16" band and is suitable for hoses with an outer diameter ranging from 7-8/64" to 10". It meets SAEJ1508 standards, which supersedes Mil Spec WW-C-440B, indicating its adherence to specific quality and performance criteria.

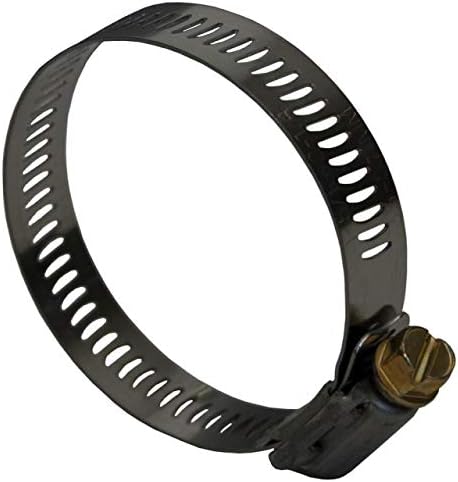

ചിത്രം 1.1: A single Dixon HS152 Worm Gear Clamp. This image displays the stainless steel band with perforations and the brass-colored hex head screw mechanism used for tightening the clamp around a hose.

2 സ്പെസിഫിക്കേഷനുകൾ

3 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety guidelines when handling and installing worm gear clamps:

• cl ഉറപ്പാക്കുകamp size is appropriate for the hose and fitting outer diameter to achieve a secure seal without over-tightening.
• CL അമിതമായി മുറുക്കരുത്amp, as this can damage the hose, fitting, or the clamp itself, leading to potential leaks or failure.
• Verify material compatibility between the clamp, hose, and the fluid being conveyed to prevent corrosion or degradation.
• cl പരിശോധിക്കുകamps regularly for signs of wear, corrosion, or damage, especially in critical applications.
• Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation and maintenance.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper installation of the Dixon HS152 Worm Gear Clamp:

1. ഹോസും ഫിറ്റിംഗും തയ്യാറാക്കുക: Ensure both the hose and the fitting are clean and free from debris. The hose end should be cut squarely.
2. Cl സ്ഥാനം വയ്ക്കുകamp: cl അഴിക്കുകamp screw sufficiently to allow the clamp band to open. Slide the clamp over the end of the hose before attaching the hose to the fitting.
3. Attach Hose to Fitting: Push the hose firmly onto the fitting, ensuring it is fully seated and covers the barb or sealing surface.
4. Cl സ്ഥാനം വയ്ക്കുകamp on the Connection: cl സ്ലൈഡ് ചെയ്യുകamp into position over the hose and fitting connection. The clamp band should be centered over the sealing area of the hose and fitting.
5. Cl മുറുക്കുകamp: Using a 5/16" slotted screwdriver or a hex driver, gradually tighten the screw on the clamp. Tighten until the hose is securely gripped by the fitting and the clamp feels snug. Avoid excessive force.
6. Inspect for Security: After tightening, visually inspect the connection to ensure the hose is firmly attached and the clamp ശരിയായി ഇരിക്കുന്നു.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly installed, the Dixon HS152 Worm Gear Clamp functions by maintaining a constant radial force around the hose, compressing it onto the fitting. This creates a secure, leak-resistant seal. The clamp is designed for static applications where the hose connection needs to be reliably maintained under specified pressure and temperature conditions. No further operational steps are required after correct installation.

6. പരിപാലനം

Regular maintenance helps ensure the longevity and effectiveness of your worm gear clamps:

• ആനുകാലിക പരിശോധന: Regularly check all installed clamps for signs of corrosion, cracks, deformation, or loosening. The frequency of inspection should be determined by the operating environment and application criticality.
• വൃത്തിയാക്കൽ: If operating in dirty or corrosive environments, periodically clean the clamps to remove accumulated debris or corrosive agents. Use a mild cleaner and rinse thoroughly.
• Re-tightening: Over time, hoses can compress or settle. Periodically check the tightness of the clamp screw and re-tighten if necessary, ensuring not to over-tighten.
• മാറ്റിസ്ഥാപിക്കൽ: Replace any clamp that shows signs of significant wear, damage, or corrosion. Do not attempt to repair damaged clamps.
• സംഭരണം: Store unused clamps in a dry, clean environment to prevent premature corrosion.

7. പ്രശ്‌നപരിഹാരം

സാധാരണ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും:

8. വാറൻ്റി വിവരങ്ങൾ

Dixon products are manufactured to high standards. For specific warranty details regarding the HS152 Worm Gear Clamp, please refer to the official Dixon Valve & Coupling Company warranty policy available on their official webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

9. ഉപഭോക്തൃ പിന്തുണ

For technical assistance, product inquiries, or to report issues, please contact Dixon Valve & Coupling Company customer support through their official channels. Visit the ഡിക്സൺ വാൽവ് webസൈറ്റ് for contact information and additional resources.
