POMIACAM VGA to USB 2.0 Video Capture Card User Manual

ആമുഖം

This manual provides detailed instructions for the POMIACAM VGA to USB 2.0 Video Capture Card. This device is designed to convert VGA signals from various sources into a USB 2.0 output for capture and recording on a computer. It supports UVC/UAC specifications and is compatible with Windows, Linux, and Android operating systems.

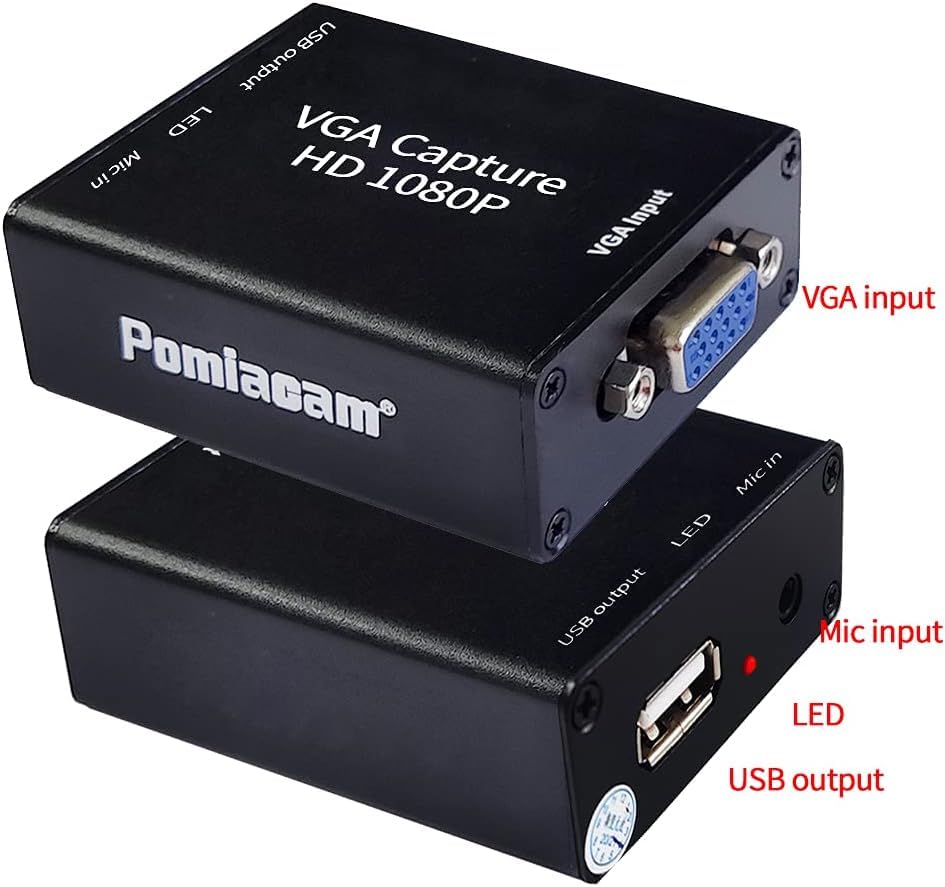

Figure 0: POMIACAM VGA to USB 2.0 Video Capture Card. മൊത്തത്തിൽ view of the capture card, highlighting its compact form factor and primary connection ports.

എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉൾപ്പെടുന്നു:

• VGA Capture Card

ചിത്രം 1: പാക്കേജ് ഉള്ളടക്കങ്ങൾ. This image displays the VGA Capture Card along with its included accessories: a VGA cable and a USB cable.

ഫീച്ചറുകൾ

• VGA to USB Conversion: Converts VGA signal input to USB 2.0 output.
• Audio and Video Capture: Functions as an audio and video capture device.
• UVC/UAC കംപ്ലയിന്റ്: Adheres to USB Video Class and USB Audio Class specifications.
• വിശാലമായ അനുയോജ്യത: Supports Windows, Linux, and Android systems.
• Driver-Free: Plug-and-play functionality without the need for driver installation.
• Independent Audio Input: Allows for separate audio input via a microphone jack.
• ഹൈ-ഡെഫനിഷൻ ക്യാപ്‌ചർ: Captures 1080P at 30 frames/sec and 720P at 60 frames/sec.
• ബാഹ്യ ശക്തി ആവശ്യമില്ല: Operates without an additional power supply.
• കോംപാക്റ്റ് ഡിസൈൻ: Mini size for portability and convenience.

സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to set up your POMIACAM VGA to USB 2.0 Video Capture Card:

1. Connect VGA Signal Source: Connect the VGA signal source (e.g., computer, ultrasound machine, industrial camera) to the VGA input interface on the capture card.
2. കമ്പ്യൂട്ടറുമായി ബന്ധിപ്പിക്കുക: Connect the USB output of the capture card to a USB port on your computer using the provided USB cable. The device is drive-free.
3. ഓഡിയോ ഇൻപുട്ട് (ഓപ്ഷണൽ): For audio input, connect an audio signal source (e.g., microphone) to the "Mic in" port on the capture card.

Figure 2: VGA Signal Input Sources. This diagram shows common devices that can connect to the capture card's VGA input, including a laptop, an ultrasound machine, and a VGA industrial camera.

Figure 3: Connection Diagram. This illustration details the setup process, showing a VGA signal source connected to the capture card, an optional microphone connected for audio input, and the capture card's USB output connected to a laptop for data transfer.

Figure 4: USB Output Connection. എ വിശദമായി view of the capture card's USB output port connected to a laptop, emphasizing its USB 2.0 interface and driver-free operation.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once the capture card is connected, follow these steps to begin capturing video:

1. Open Acquisition Software: On your computer, open your preferred video acquisition software (e.g., OBS, Potplayer, AMCAP, VLC).
2. ഉപകരണം തിരഞ്ഞെടുക്കുക: Within the software, select the device named "AFN_Cap video" and activate it.
3. സിഗ്നൽ പരിശോധിക്കുക: A red LED light on the capture card will flash, indicating successful signal acquisition.
4. റെക്കോർഡിംഗ്/സ്ട്രീമിംഗ് ആരംഭിക്കുക: You can now use the software to record or stream the VGA input.

The capture card supports real-time capture of 1080P at 30 frames/second and 720P at 60 frames/second. The lowest supported resolution is 640x480p.

Figure 5: High-Definition Capture Example. This image illustrates the capture card's ability to capture high-definition video, showing a projector connected to a laptop, capable of real-time 1080P 30fps or 720P 60fps capture.

അപേക്ഷകൾ

The POMIACAM VGA to USB 2.0 Video Capture Card is suitable for a variety of applications, including:

• Equipment video collection
• Corporate video conferencing
• Educational presentations (PTT)
• Church services and events
• Using a laptop/PC as a monitor for devices or game consoles
• Connecting a projector to a computer

Figure 6: Diverse Applications. A visual collage showcasing the versatility of the VGA Capture Card across different environments, such as medical facilities, home entertainment setups, and professional video conferencing or streaming.

സ്പെസിഫിക്കേഷനുകൾ

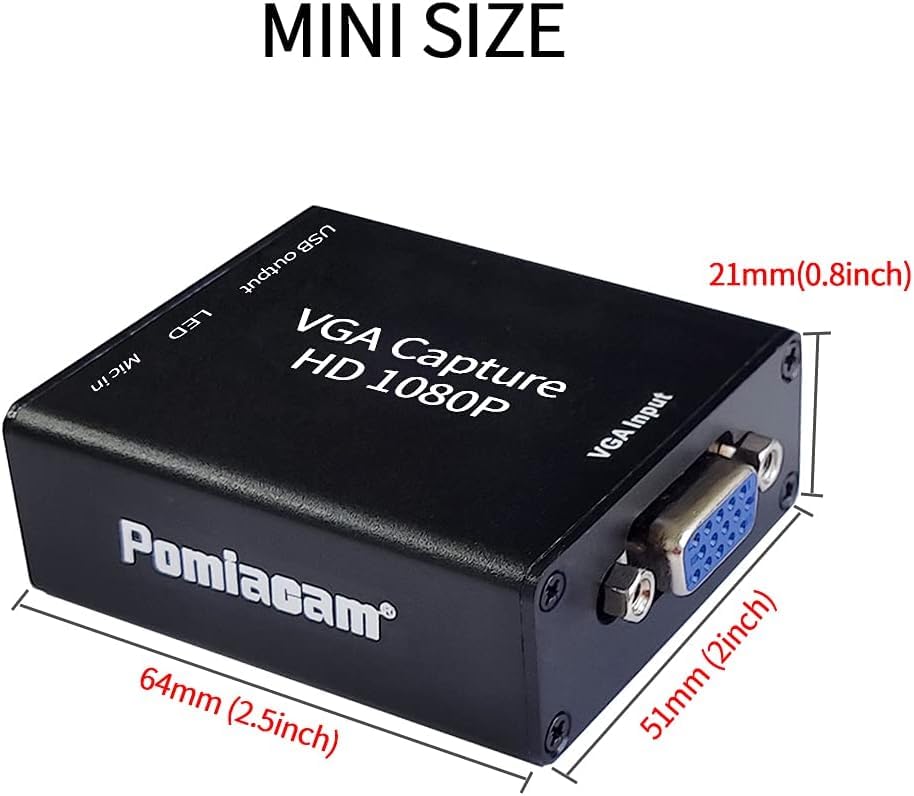

ചിത്രം 7: ഉൽപ്പന്ന അളവുകൾ. This image provides a clear visual of the capture card's compact size, with precise measurements for length, width, and height.

ട്രബിൾഷൂട്ടിംഗ്

• സിഗ്നൽ ഇല്ല/കറുത്ത സ്‌ക്രീൻ:
  • Ensure all cables (VGA and USB) are securely connected.
  • Verify that the VGA source device is powered on and outputting a signal.
  • Check your acquisition software settings to ensure the correct device ("AFN_Cap video") is selected and active.
  • Confirm the red LED on the capture card is flashing, indicating signal acquisition.
• ഓഡിയോ ഇല്ല:
  • Ensure the audio source is properly connected to the "Mic in" port.
  • Check audio settings within your acquisition software and computer's sound settings.
  • Verify the audio source is active and producing sound.
• മോശം വീഡിയോ നിലവാരം/കാലതാമസം:
  • Ensure your computer meets the minimum system requirements for video capture.
  • പശ്ചാത്തലത്തിൽ പ്രവർത്തിക്കുന്ന മറ്റ് ആവശ്യപ്പെടുന്ന ആപ്ലിക്കേഷനുകൾ അടയ്ക്കുക.
  • Try a different USB 2.0 port on your computer.
  • Reduce the capture resolution or frame rate in your software settings if your system struggles with higher settings.
• ഉപകരണം തിരിച്ചറിഞ്ഞിട്ടില്ല:
  • Try connecting the capture card to a different USB port.
  • നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിക്കുക.
  • Although driver-free, ensure your operating system is up-to-date.

വാറൻ്റിയും പിന്തുണയും

The POMIACAM VGA to USB 2.0 Video Capture Card comes with a free one-year warranty. For any questions or support regarding the VGA capture card, please contact customer service. You can leave a message, and a response will be provided within 24 hours.
