Dogtra Edge Electronic Dog Training Collar User Manual

ആമുഖം

The Dogtra Edge Electronic Dog Training Collar is designed for effective and humane training of large and medium dogs weighing 35+ lbs. This system offers advanced features for precise control, including a 1-mile range, vibration, and 127 stimulation levels. It is waterproof and expandable for up to 4 dogs, making it suitable for various training scenarios including hunting, field training, and professional K9 work.

Image: The Dogtra Edge system, showing the remote transmitter, receiver collar, and packaging.

പ്രധാന സവിശേഷതകൾ:

• Up to a 1-mile range for extensive coverage.
• Effective, humane, and safe training modes: Nick (quick 1/2-second), Constant (up to 12 seconds) stimulation, and Pager Vibration.
• Two stimulation level dials: a smooth 0-127 stimulation levels dial for precise control and an intuitive 1-8 correction level selection dial for faster adjustments.
• One-handed operation with a tube-shaped remote.
• Fully waterproof design for both transmitter and receiver.
• 2-hour rapid charge batteries for quick readiness.
• Expandable to a 4-dog system with additional receivers.
• Equipped with a clear LED locator light on the receiver.

Image: A visual summary of the Dogtra Edge's key features, including 1-mile range, waterproof design, high output, LED locate lights, Nick/Constant stimulation, Pager Vibration, interchangeable stimulation dial, suitability for dogs 35+ lbs, and expandability to a 4-dog system.

പാക്കേജ് ഉള്ളടക്കം

Upon opening your Dogtra Edge package, you should find the following components:

• റിസീവർ കോളർ
• വിദൂര ട്രാൻസ്മിറ്റർ
• ബാറ്ററി ചാർജർ
• സ്പ്ലിറ്റർ കേബിൾ
• ബെൽറ്റ് ക്ലിപ്പ്
• ടെസ്റ്റ് ലൈറ്റ്
• Interchangeable Selector Dial
• Contact Points (5/8 in. and 3/4 in.)
• അഡ്ജസ്റ്റ്മെന്റ് ടൂൾ
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
• PetsTEK ക്ലിക്കർ

Image: The Dogtra Edge remote transmitter and receiver collar, ready for use.

സജ്ജമാക്കുക

1. ബാറ്ററികൾ ചാർജ് ചെയ്യുന്നു:

Before initial use, fully charge both the remote transmitter and the receiver collar. Connect the splitter cable to the charger and then to the charging ports on both devices. A full charge typically takes 2 hours. The LED indicator on the devices will change color to indicate charging status (e.g., red for charging, green for fully charged).

2. Attaching the Contact Points:

Select the appropriate contact points (5/8 in. or 3/4 in.) based on your dog's coat length. Longer contact points are generally needed for dogs with thicker coats to ensure proper skin contact. Use the provided adjustment tool to securely screw the contact points onto the receiver.

3. Fitting the Collar:

Proper collar fit is crucial for effective and safe operation. The receiver should be positioned on the underside of your dog's neck, directly below the windpipe. The contact points must make consistent contact with the dog's skin. You should be able to fit two fingers snugly between the collar strap and your dog's neck. A loose fit can lead to inconsistent stimulation and skin irritation.

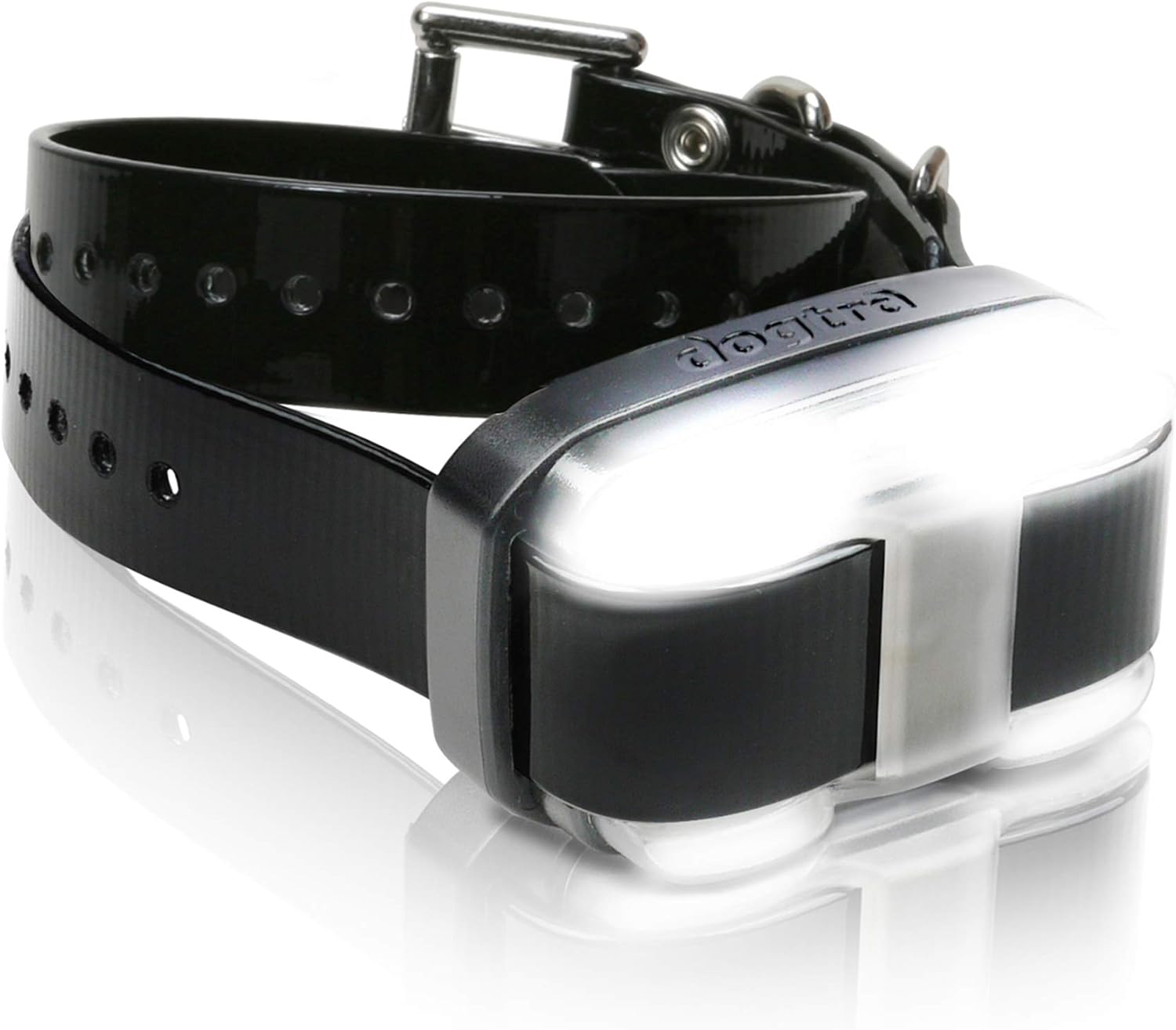

Image: Close-up of the Dogtra Edge receiver collar, showing the contact points and strap.

4. Pairing (if necessary):

The Dogtra Edge system typically comes pre-paired. If you are adding additional receiver collars (up to 4 dogs total), follow the pairing instructions in the full manual to link each receiver to a specific colored button on the remote transmitter.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Remote Transmitter Overview:

Image: A detailed diagram of the Dogtra Edge remote transmitter, highlighting the Mode Selection Dial, Rheostat Dial & Selector/Step Intensity Dial, 1-Mile Range, and individual buttons for 1-Dog, 2-Dog, 3-Dog, and 4-Dog control.

• Mode Selection Dial: Located at the top, this dial allows you to switch between Nick, Constant, Pager Vibration, and Locator Light options.
• Level Selector Dial: Two interchangeable options are provided:
  • Smooth Dial (0-127 levels): For precise adjustment of stimulation intensity.
  • Instant Dial (0-8 levels): For quick adjustments, ideal for working dogs.
• നിറമുള്ള ബട്ടണുകൾ: Each button (orange, green, blue, etc.) can be assigned to a specific dog's receiver collar, allowing individual control in multi-dog setups.
• LCD സ്ക്രീൻ: Displays current stimulation level and battery status.

പരിശീലന മോഡുകൾ:

• Nick Stimulation: Delivers a single, quick (1/2-second) pulse of stimulation. Useful for immediate correction.
• Constant Stimulation: Delivers continuous stimulation for up to 12 seconds, or until the button is released. Use for more persistent corrections or to reinforce commands.
• പേജർ വൈബ്രേഷൻ: Provides a non-stimulating vibration. Ideal for warning or attention-getting, especially for sensitive dogs or as an initial cue.
• Locator Light: Activates an LED light on the receiver collar, useful for locating your dog in low-light conditions.

സിസ്റ്റം ഉപയോഗിക്കുന്നത്:

1. ഓൺ/ഓഫ് ചെയ്യുക: Press and hold the power button on both the transmitter and receiver until the LED indicator lights up. To turn off, repeat the process.
2. Select Dog (Multi-Dog System): If using multiple collars, press the corresponding colored button on the remote to select the dog you wish to train.
3. മോഡ് തിരഞ്ഞെടുക്കുക: Rotate the Mode Selection Dial to select Nick, Constant, Pager, or Locator Light.
4. ലെവൽ ക്രമീകരിക്കുക: Rotate the Level Selector Dial to set the desired stimulation intensity. Start at the lowest level and gradually increase until your dog responds with a slight ear twitch or head turn, indicating they feel the stimulation without distress.
5. Deliver Correction: Press the appropriate colored button on the remote to deliver the selected mode (Nick, Constant, Pager).

Image: A black dog wearing the Dogtra Edge collar, looking attentively during a training session in an outdoor setting.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Regularly clean the receiver collar and remote transmitter with a damp cloth. Avoid harsh chemicals. Ensure contact points are free of debris.
• Contact Point Inspection: Periodically check the contact points for wear and tear. Replace if damaged. Ensure they are always securely fastened.
• ബാറ്ററി കെയർ: For optimal battery life, avoid fully discharging the units frequently. Store in a cool, dry place when not in use.
• സ്ട്രാപ്പ് മെയിൻ്റനൻസ്: Inspect the collar strap for signs of wear. Replace if it becomes frayed or damaged to ensure secure fit.
• വാട്ടർപ്രൂഫ് ഇന്റഗ്രിറ്റി: While the units are waterproof, always ensure charging port covers are securely closed before exposing to water.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

• മോഡൽ: AA
• പരിധി: 1 മൈൽ വരെ
• Stimulation Levels: 0-127 (smooth dial), 0-8 (instant dial)
• പരിശീലന മോഡുകൾ: Nick, Constant, Pager Vibration, Locator Light
• വിപുലീകരണക്ഷമത: 4 നായ്ക്കൾ വരെ
• വാട്ടർപ്രൂഫ്: Yes (transmitter and receiver)
• ബാറ്ററി തരം: ലിഥിയം പോളിമർ (ഉൾപ്പെടുത്തിയിരിക്കുന്നു)
• ചാർജ്ജ് സമയം: 2 hours (rapid charge)
• Recommended Dog Weight: 35+ പൗണ്ട്
• Recommended Neck Circumference: 12-23 ഇഞ്ച്
• ഇനത്തിൻ്റെ ഭാരം: Approximately 3.54 pounds (entire package)
• നിർമ്മാതാവ്: ഡോഗ്‌ട്ര
• നിറം: കറുപ്പ്

Image: An illustration demonstrating the 1-mile range capability of the Dogtra Edge system between the remote and the dog's collar.

വാറൻ്റിയും പിന്തുണയും

The Dogtra Edge Electronic Dog Training Collar comes with a 2 വർഷത്തെ വാറൻ്റി. Dogtra also offers a 30-day full product return policy. For any questions, technical assistance, or warranty claims, please contact Dogtra's USA-based customer service. Contact information can typically be found on the Dogtra webഉൽപ്പന്ന പാക്കേജിംഗിനുള്ളിൽ.

For further assistance, visit the official Dogtra website or refer to the contact details provided in your product's original documentation.
