SONOFF T2EU-RF 86 തരം വാൾ പാനൽ സ്റ്റിക്കി 433MHz വയർലെസ് RF റിമോട്ട് 3 ഗാംഗ് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The SONOFF T2EU-RF is a 433MHz wireless RF remote wall panel switch designed to provide convenient control over compatible SONOFF smart devices. This stick-on remote controller offers the appearance of a traditional wall switch but operates wirelessly, eliminating the need for complex wiring. It can be affixed to any wall surface, offering flexible placement options for controlling your lights or other connected devices.

Image: The SONOFF 433MHz Wireless Stick-on Smart Wall Switch, highlighting its RF control capability.

Image: The SONOFF T2EU-RF 3-gang wireless switch alongside its product packaging.

2 പ്രധാന സവിശേഷതകൾ

• Wiring-Free Installation: Designed for easy setup without the need for electrical wiring, allowing for flexible placement anywhere in your home.
• Easy-to-Locate Backlight: Features a subtle backlight for improved visibility in low-light conditions.
• സ്പ്ലാഷ്-പ്രൂഫ് ഡിസൈൻ: Offers protection against splashes, making it suitable for various indoor environments.
• Strong Wall Penetration: Utilizes 433MHz RF technology for reliable signal transmission through walls, ensuring consistent control.
• "One for More" Control: A single wireless switch can control multiple compatible SONOFF devices or lights.
• "More to One" Control: Multiple T2EU-RF switches can be paired to control a single compatible SONOFF device or light.
• Two-Way Control Capability: Can be paired with SONOFF TX wall switches (sold separately) to enable two-way control of lights from different locations without additional wiring.
• 433MHz RF പ്രോട്ടോക്കോൾ: Compatible with a range of SONOFF smart devices that support the 433MHz RF protocol.

Image: Visual representation of key features including wiring-free, backlight, splash-proof, strong wall penetration, one for more, and more to one control.

3. പാക്കേജ് ഉള്ളടക്കം

താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• SONOFF 433MHz Wireless Stick-on Smart Wall Switch (T2EU-RF) x 1
• സ്ക്രൂകൾ x 2
• 3M Adhesive Tape x 2
• ഉപയോക്തൃ മാനുവൽ x 1

Image: The back of the product box, detailing the package contents and product specifications.

4 സ്പെസിഫിക്കേഷനുകൾ

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The SONOFF T2EU-RF is designed for simple, non-invasive installation. It does not require electrical wiring.

5.1 സ്വിച്ച് മൗണ്ട് ചെയ്യുന്നു

You have two primary options for mounting the wireless switch:

1. Using 3M Adhesive Tape:
   • Clean the desired wall surface thoroughly to ensure it is free of dust and grease.
   • Peel off the protective backing from the 3M adhesive tape provided.
   • Firmly press the switch onto the cleaned surface for at least 30 seconds.
2. സ്ക്രൂകൾ ഉപയോഗിച്ച്:
   • Identify the screw holes on the back or mounting plate of the switch.
   • Mark the desired drilling locations on the wall.
   • Drill pilot holes if necessary and secure the switch to the wall using the provided screws.

5.2 Pairing with Compatible Devices

The T2EU-RF is a remote controller and must be paired with a compatible SONOFF 433MHz RF receiver device (e.g., SONOFF RF Bridge, RFR2, 4CHPROR3, etc.) to control lights or other appliances. The pairing process typically involves putting the receiver device into pairing mode and then pressing a button on the T2EU-RF switch.

Refer to the user manual of your specific SONOFF receiver device for detailed pairing instructions.

Image: The T2EU-RF wireless switch being used to control a compatible SONOFF smart device, such as the SlampferR2 smart bulb adapter.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once successfully paired with a compatible SONOFF RF receiver, the T2EU-RF switch operates as a remote control for your connected devices.

6.1 അടിസ്ഥാന പ്രവർത്തനം

• ഓൺ/ഓഫ് ചെയ്യുന്നു: Press any of the three buttons on the T2EU-RF switch to toggle the state (on/off) of the paired device or light. Each button can be assigned to control a different device or channel on a multi-channel receiver.

6.2 Advanced Control Scenarios

The T2EU-RF supports flexible control configurations:

• "One for More" (Control Multiple Devices): A single T2EU-RF switch can be paired to control multiple lights or devices. For example, one button could turn on all lights in a room, or each button could control a different light.
• "More to One" (Control One Device from Multiple Locations): Multiple T2EU-RF switches can be paired to control a single light or device. This allows you to turn a light on or off from different entry points in a room or hallway.
• ടു-വേ നിയന്ത്രണം: When paired with a SONOFF TX series wall switch (not included), the T2EU-RF can enable two-way control, allowing you to operate a light from two distinct locations without the need for traditional two-way wiring.

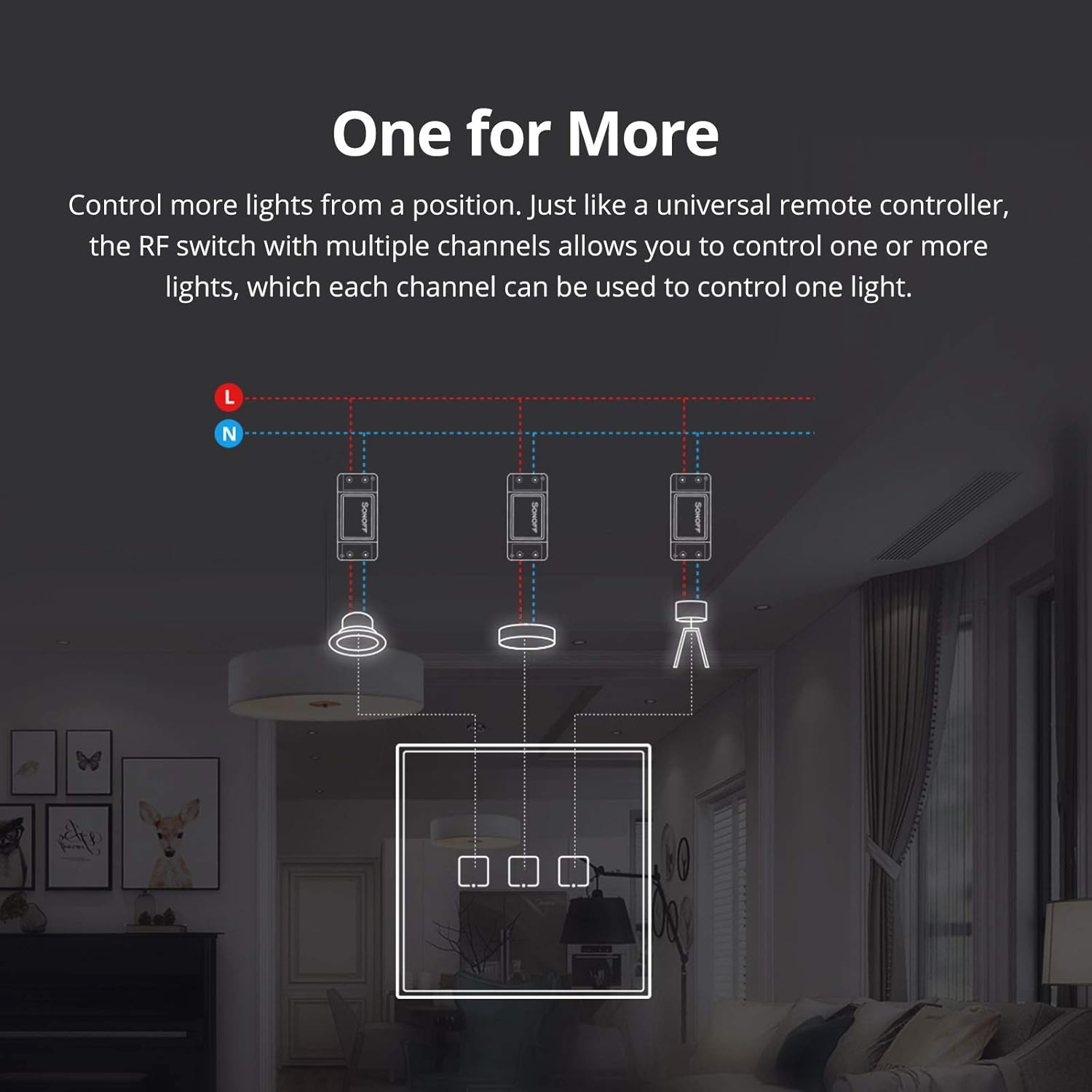

Image: Diagram showing how one T2EU-RF switch can control multiple lights or devices.

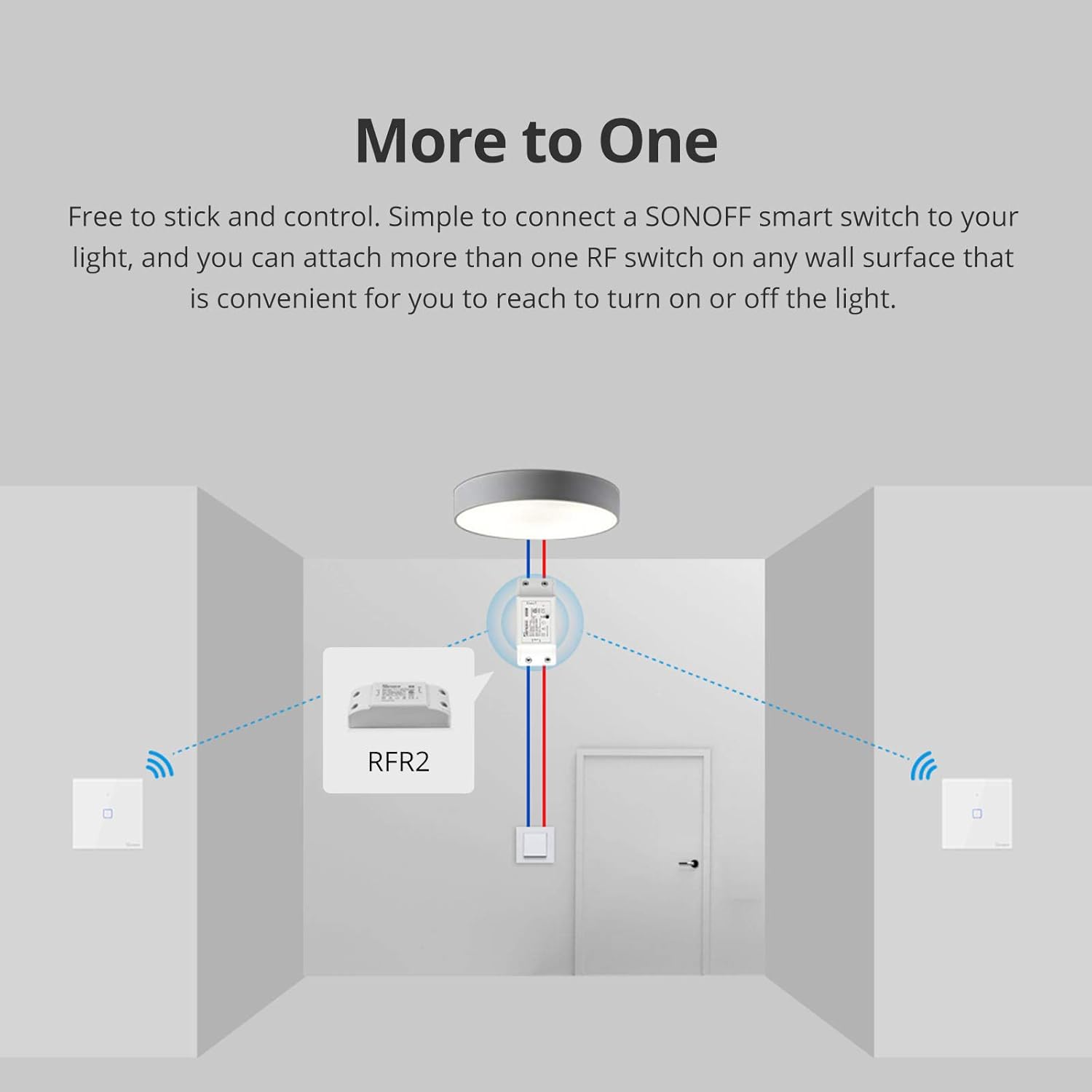

Image: Diagram showing how multiple T2EU-RF switches can control a single light or device.

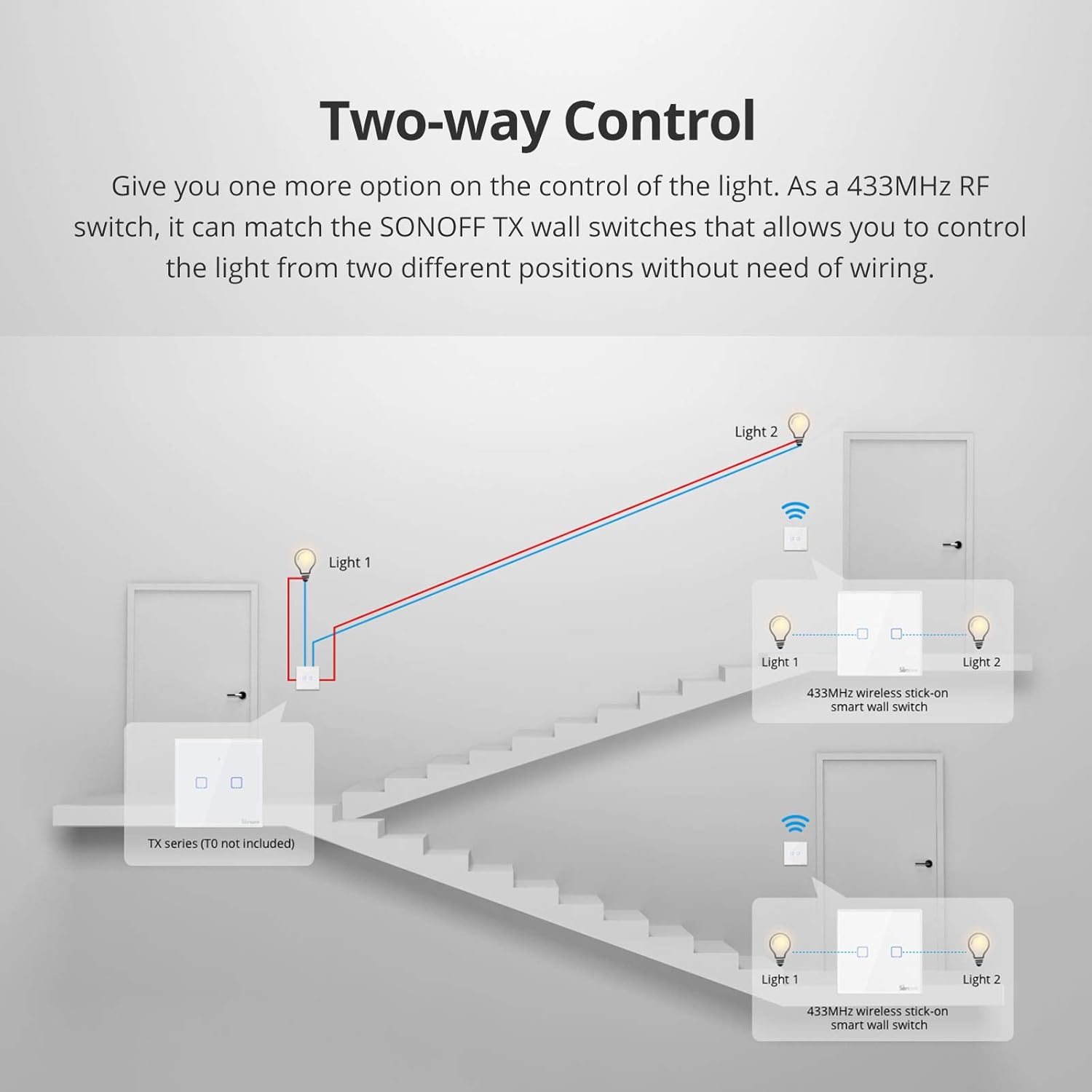

Image: Diagram demonstrating two-way control functionality when the T2EU-RF is paired with a SONOFF TX series wall switch.

7. പരിപാലനം

7.1 ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ

The T2EU-RF switch is powered by two CR2032 button cell batteries. If the switch becomes unresponsive or its range decreases significantly, the batteries may need replacement.

1. Carefully pry open the back cover of the switch.
2. പഴയ CR2032 ബാറ്ററികൾ നീക്കം ചെയ്യുക.
3. Insert two new CR2032 batteries, ensuring correct polarity (+/-).
4. Snap the back cover securely into place.

7.2 വൃത്തിയാക്കൽ

To clean the surface of the switch:

• മൃദുവായ, ചെറുതായി ഡി ഉപയോഗിക്കുകamp തുണി.
• അബ്രാസീവ് ക്ലീനറുകളോ, ലായകങ്ങളോ, കഠിനമായ രാസവസ്തുക്കളോ ഉപയോഗിക്കരുത്, കാരണം ഇവ ഫിനിഷിനോ ആന്തരിക ഘടകങ്ങളോ നശിപ്പിക്കും.
• Ensure no liquid enters the device. Although splash-proof, it is not designed to be submerged or exposed to direct water jets.

8. പ്രശ്‌നപരിഹാരം

9. വാറൻ്റിയും പിന്തുണയും

For technical support, warranty information, or further inquiries, please contact SONOFF directly.

• നിർമ്മാതാവ്: SONOFF (Shenzhen Sonoff Technologies Co., Ltd.)
• ഉദ്യോഗസ്ഥൻ Webസൈറ്റ്: sonoff.tech
• സേവന ഇമെയിൽ: support@itead.cc

Note: According to product information, this model (T2EU3C-RF) has been discontinued by the manufacturer. Support availability may vary.
