ആമുഖം
This manual provides detailed instructions for the setup, operation, and maintenance of your LENSGO 318C Wireless Lavalier Microphone system. The LENSGO 318C is a compact UHF wireless microphone system designed for clear audio recording with various devices, including cameras, smartphones, and camcorders.
Please read this manual thoroughly before using the product to ensure proper function and to maximize its performance.
പാക്കേജ് ഉള്ളടക്കം
താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക:
- Transmitter (TX) Unit
- Receiver (RX) Unit
- കാന്തിക ക്ലിപ്പ്
- Windproof Frabbit Fur (Windscreen)
- കാന്തിക ബക്കിൾ
- Microphone Collar Clip
- Camera Cable (TRS)
- External Lavalier Microphone
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ (മൈക്രോ യുഎസ്ബി)
- Smartphone Cable (TRRS)
- Card Pin (for reset)
- സ്റ്റോറേജ് ബാഗ്
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
- വാറൻ്റി കാർഡ്

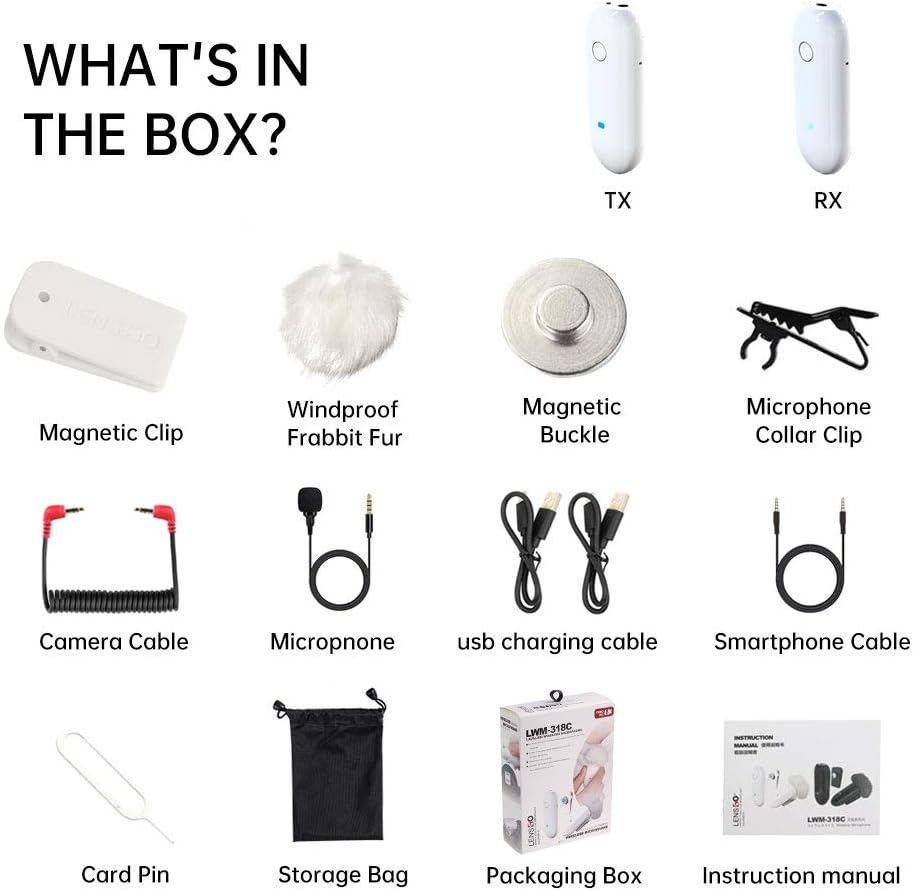

Image: All components included in the LENSGO 318C Wireless Lavalier Microphone system package.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The LENSGO 318C system consists of a transmitter (TX) and a receiver (RX) unit, both featuring a compact design and magnetic attachment for versatile placement.
പ്രധാന സവിശേഷതകൾ:
- UHF Wireless Transmission: Utilizes UHF technology for stable signal transmission over distances up to 30 meters (98.4 ft) in open areas.
- 20 Selectable Channels: Offers multiple channels to avoid interference and ensure clear audio.
- Magnetic Module Combination: Allows for convenient disassembly and assembly, enabling flexible mounting options.
- Built-in and External Microphone Options: Features a built-in microphone, with an option to connect an external lavalier microphone for enhanced audio capture.
- റീചാർജ് ചെയ്യാവുന്ന ബാറ്ററി: Each unit includes a 500 mAh rechargeable battery, providing approximately 4 hours of operation on a full charge.
- വിശാലമായ അനുയോജ്യത: Compatible with DSLR cameras, camcorders, iPhones, Android smartphones, iPads, and computers (may require additional adapters).
Image: Detailed product analysis highlighting the various parts and functions of the LENSGO 318C transmitter and receiver units.
Image: The LENSGO 318C units demonstrating the magnetic module combination for easy attachment.
സജ്ജീകരണ ഗൈഡ്
1. യൂണിറ്റുകൾ ചാർജ് ചെയ്യുന്നു:
Before first use, fully charge both the transmitter (TX) and receiver (RX) units using the provided Micro USB charging cable. The charging port is located on the side of each unit. A full charge typically takes approximately 1.5 hours and provides up to 4 hours of operation.
Image: The Micro USB charging port and the single button for powering on the device.
2. പവർ ചെയ്യലും ജോടിയാക്കലും:
- Press and hold the power button on both the TX and RX units for a few seconds to turn them on.
- The units will automatically attempt to pair. Once successfully paired, the signal indicator light on the receiver will change from blue to cyan.
- If pairing fails, ensure both units are charged and within range, then try again.
3. നിങ്ങളുടെ ഉപകരണത്തിലേക്ക് ബന്ധിപ്പിക്കുന്നു:
- സ്മാർട്ട്ഫോണുകൾ/ടാബ്ലെറ്റുകൾക്ക്: Use the provided TRRS (3-ring) smartphone cable. Connect one end to the receiver's audio output interface and the other end to your smartphone's 3.5mm audio jack. (Note: Newer iPhones may require a Lightning to 3.5mm adapter, and some Android phones may require a USB-C to 3.5mm adapter, not included).
- For Cameras/Camcorders: Use the provided TRS (2-ring) camera cable. Connect one end to the receiver's audio output interface and the other end to your camera's microphone input jack.
Image: Visual representation of the wide compatibility of the LENSGO 318C with different recording devices.
4. Attaching the Microphone:
The transmitter unit can be attached to clothing using the magnetic clip or the microphone collar clip. For optimal audio quality, position the microphone approximately 6-8 inches (15-20 cm) from the speaker's mouth. If using the external lavalier microphone, plug it into the external microphone port on the transmitter. The built-in microphone will automatically deactivate when an external microphone is connected.
Image: The LENSGO 318C transmitter clipped to a person's shirt, with the external lavalier microphone attached.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ചാനൽ തിരഞ്ഞെടുക്കൽ:
The LENSGO 318C features 20 UHF selectable channels. If you experience interference, you can change the operating frequency. To do this, simply press the power/frequency selection button on the transmitter unit. The receiver will automatically match the new frequency. It is recommended to select a channel with the least interference for optimal audio quality.
ഓഡിയോ മോണിറ്ററിംഗ്:
Some recording devices allow for real-time audio monitoring through their headphone jack. If your device supports this, connect headphones to monitor the audio being captured by the microphone. This helps ensure proper levels and sound quality during recording.
റെക്കോർഡിംഗ്:
Once the microphone system is set up and connected to your recording device, begin recording as you normally would with your camera, smartphone, or camcorder. Ensure the microphone input is selected on your device if applicable.
ചിത്രം: ഉദാamples of the LENSGO 318C in use for different recording applications.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the microphone units. Avoid using liquids or abrasive cleaners.
- സംഭരണം: Store the microphone system in the provided storage bag in a cool, dry place when not in use.
- ബാറ്ററി കെയർ: To prolong battery life, avoid fully discharging the units frequently. Recharge them regularly, even if not in constant use.
- വിൻഡ്സ്ക്രീൻ: Use the windproof fur (windscreen) when recording outdoors to minimize wind noise.
ട്രബിൾഷൂട്ടിംഗ്
- ശബ്ദമില്ല/കുറഞ്ഞ ശബ്ദം:
- Ensure both TX and RX units are powered on and successfully paired (receiver light is cyan).
- Check that cables are securely connected to both the receiver and your recording device.
- Verify that the correct cable (TRS for camera, TRRS for smartphone) is being used.
- Adjust the microphone input level on your recording device.
- Ensure the external lavalier microphone is fully plugged into the transmitter if used.
- ഇടപെടൽ/മോശം ഓഡിയോ നിലവാരം:
- Change the operating channel by pressing the power/frequency selection button on the transmitter.
- Ensure the transmitter and receiver are within the optimal operating range (within 20 meters / 65.6 ft for best results).
- Avoid obstacles between the transmitter and receiver that might block the signal.
- Minimize proximity to other wireless devices that might cause interference.
- Units Not Powering On/Charging:
- Ensure the USB charging cable is properly connected to a power source and the units.
- വ്യത്യസ്തമായ ഒരു USB ചാർജിംഗ് കേബിളോ പവർ അഡാപ്റ്ററോ പരീക്ഷിച്ചുനോക്കൂ.
- If a unit is unresponsive, use the provided card pin to press the reset button (Insurance key) on the unit.
സ്പെസിഫിക്കേഷനുകൾ
| മോഡൽ | 318C |
| മൈക്രോഫോൺ ഫോം ഫാക്ടർ | ലാവലിയർ |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | യുഎച്ച്എഫ് വയർലെസ് |
| ചാനലുകളുടെ എണ്ണം | 20 |
| പ്രവർത്തന ശ്രേണി | Up to 30 meters (98.4 ft) in open areas; optimal within 20 meters (65.6 ft) |
| ഫ്രീക്വൻസി പ്രതികരണം | 20 KHz |
| സിഗ്നൽ-ടു-നോയിസ് അനുപാതം | 74 ഡി.ബി |
| ബാറ്ററി തരം | Lithium Polymer (500 mAh per unit) |
| ബാറ്ററി ലൈഫ് | ഏകദേശം 4 മണിക്കൂർ |
| ചാർജിംഗ് പോർട്ട് | മൈക്രോ യുഎസ്ബി |
| ഇനത്തിൻ്റെ ഭാരം | 30 ഗ്രാം (1.06 ഔൺസ്) |
| മെറ്റീരിയൽ | പ്ലാസ്റ്റിക് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | കാംകോർഡർ, ക്യാമറ, സ്മാർട്ട്ഫോൺ |
വാറൻ്റിയും പിന്തുണയും
LENSGO provides comprehensive after-sales support for the 318C Wireless Lavalier Microphone system.
- പ്രതികരണ സമയം: Customer inquiries are typically responded to within 24 hours.
- തിരികെ നൽകൽ നയം: 60-day worry-free return period.
- മാറ്റിസ്ഥാപിക്കൽ: Replacement available within 12 months of purchase.
- സാങ്കേതിക സഹായം: Lifetime after-sales consultation and technical support are provided.
For any questions or assistance, please contact LENSGO customer service.
Image: LENSGO customer service commitment details.
