BGS Technic 68510 Workshop Trolley Insert with Measurement Tools User Manual

1. ആമുഖം

This manual provides detailed instructions for the BGS Technic 68510 workshop trolley insert, a comprehensive set of measurement tools designed for professional and DIY use. This insert occupies 1/3 of a standard workshop trolley drawer and includes a variety of precision instruments for accurate measurements in various applications.

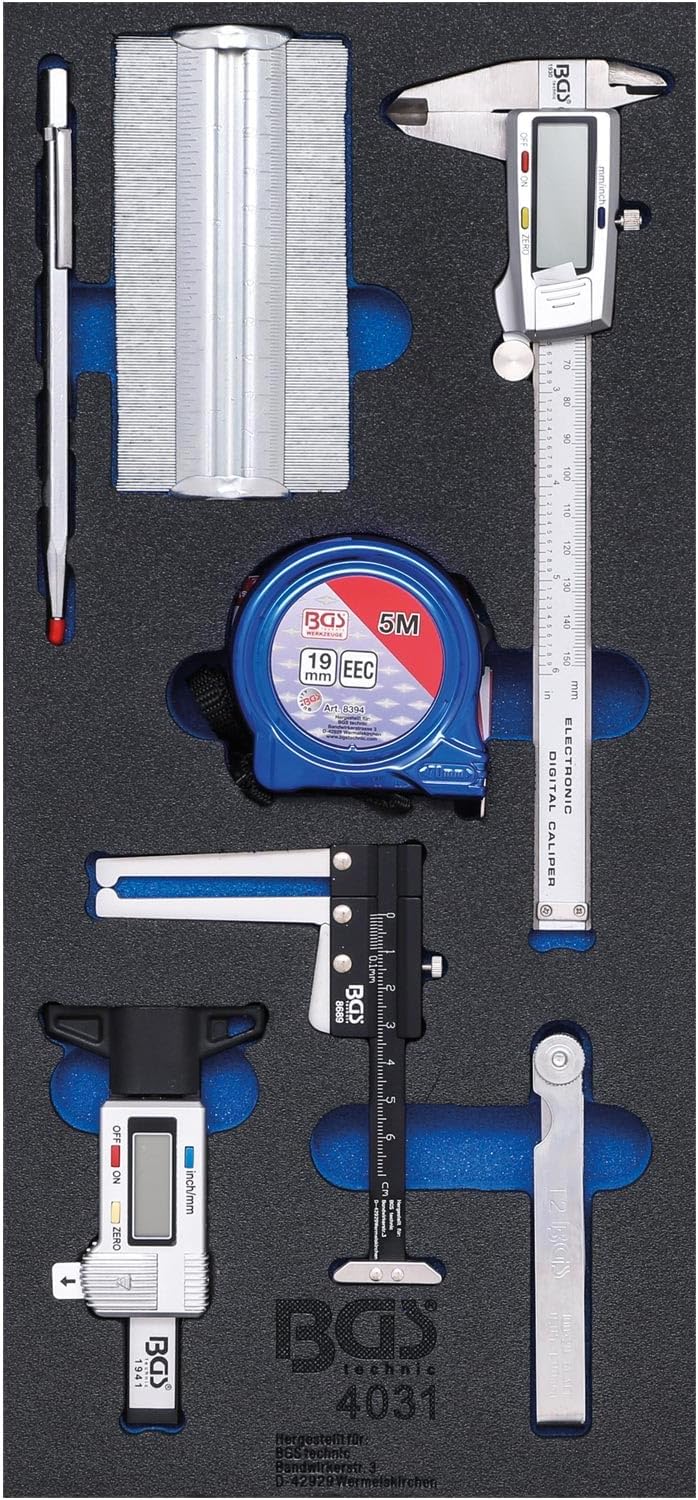

ചിത്രം 1: The BGS Technic 68510 workshop trolley insert, showcasing all included measurement tools neatly organized within its robust foam tray.

2. ഘടകങ്ങൾ കഴിഞ്ഞുview

The BGS Technic 68510 insert includes the following precision measurement tools:

• Digital Caliper (150 mm): For precise external, internal, depth, and step measurements.
• Precision Feeler Gauge (20 blades): Used for measuring small gaps and clearances.
• Metal Contour Gauge (125 mm): For duplicating shapes and profiles.
• Tape Measure (19 mm x 5 m): A standard retractable tape measure for linear measurements.
• Carbide Scriber (150 mm): For marking lines on various materials.
• Digital Tire Tread Depth Gauge (0-28 mm): Specifically designed for measuring tire tread wear.
• Aluminum Brake Disc Caliper (max. 60 mm depth): For measuring brake disc thickness and other depths.

3. സജ്ജീകരണം

The BGS Technic 68510 measurement tool insert is designed for immediate use within a workshop trolley. No assembly is required for the insert itself.

3.1 Placing the Insert

1. Ensure your workshop trolley drawer is clean and free of debris.
2. Carefully place the foam insert into the designated 1/3 section of the trolley drawer. The robust foam is designed to securely hold each tool in place.
3. Verify that all tools are seated correctly within their respective cutouts to prevent movement during transport or drawer operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Each tool in the BGS Technic 68510 set is designed for specific measurement tasks. Familiarize yourself with the operation of each instrument before use.

4.1 Digital Caliper (150 mm)

ചിത്രം 2: The 150 mm digital caliper, featuring an extra-large display for clear readings.

• പവർ ഓൺ/ഓഫ്: Press the 'ON/OFF' button to activate or deactivate the caliper.
• പൂജ്യം ക്രമീകരണം: Close the jaws completely and press the 'ZERO' button to set the display to zero at any point.
• യൂണിറ്റ് പരിവർത്തനം: Press the 'mm/inch' button to switch between metric and imperial units.
• അളവ്: Open the jaws, position the object between them (for external measurement) or use the internal jaws (for internal measurement), or the depth rod (for depth measurement). Read the value on the extra-large digital display.

4.2 Precision Feeler Gauge (20 Blades)

ചിത്രം 3: The 20-blade precision feeler gauge, used for measuring small gaps.

• തിരഞ്ഞെടുപ്പ്: Identify the blade with the desired thickness (ranging from 0.05 mm to 1.0 mm).
• അളവ്: Insert the selected blade into the gap or clearance to be measured. The blade should fit snugly without forcing. If multiple blades are needed, stack them carefully.

4.3 Metal Contour Gauge (125 mm)

• Duplication: Press the contour gauge against the object whose profile you wish to duplicate. The fine metal pins will conform to the shape.
• കൈമാറ്റം: Carefully remove the gauge and transfer the duplicated contour onto a workpiece for cutting or marking.

4.4 Tape Measure (19 mm x 5 m)

• വിപുലീകരണം: Pull the tape out to the desired length.
• ലോക്കിംഗ്: Use the tape lock mechanism to hold the tape at a specific length for accurate reading or marking.
• പിൻവലിക്കൽ: Release the lock and gently guide the tape back into the housing.

4.5 Carbide Scriber (150 mm)

• അടയാളപ്പെടുത്തൽ: Hold the scriber firmly and draw its hard metal tip along the surface of the material to create a precise, permanent line.
• സുരക്ഷ: Always use appropriate safety measures, such as eye protection, when marking materials.

4.6 Digital Tire Tread Depth Gauge (0-28 mm)

ചിത്രം 4: The digital tire tread depth gauge, showing a measurement on its display.

• പവർ ഓൺ/ഓഫ്: 'ഓൺ/ഓഫ്' ബട്ടൺ അമർത്തുക.
• പൂജ്യം ക്രമീകരണം: Place the gauge on a flat surface and press 'ZERO' to calibrate.
• യൂണിറ്റ് പരിവർത്തനം: Use the 'mm/inch' button to switch units.
• അളവ്: Insert the measuring pin into the deepest part of a tire tread groove. Press the base of the gauge firmly against the tire surface. Read the depth on the digital display.

4.7 Aluminum Brake Disc Caliper (max. 60 mm depth)

ചിത്രം 5: The aluminum brake disc caliper, designed for measuring brake disc thickness and similar depths.

• സ്ഥാനനിർണ്ണയം: Place the caliper over the edge of the brake disc or other component to be measured.
• വായന: Read the measurement directly from the scale. This tool is also suitable for measuring tire tread depth and other similar applications up to 60 mm.

5. പരിപാലനവും പരിചരണവും

Proper maintenance ensures the longevity and accuracy of your measurement tools.

• വൃത്തിയാക്കൽ: After each use, wipe down all tools with a clean, dry cloth to remove dirt, oil, or moisture. For digital tools, avoid excessive moisture.
• സംഭരണം: Always return tools to their designated cutouts in the foam insert. Store the insert in a dry, temperate environment to prevent corrosion and damage.
• Battery Replacement (Digital Tools): If the digital display on the caliper or tire tread depth gauge becomes dim or unresponsive, replace the battery according to the instructions provided with the individual tool. Typically, this involves opening a small battery compartment and inserting a new button cell battery.
• കാലിബ്രേഷൻ: Periodically check the accuracy of your tools against known standards. If a tool appears inaccurate, it may require professional calibration or replacement.

6. പ്രശ്‌നപരിഹാരം

Most issues with these tools are minor and can be resolved with simple checks.

• ഡിജിറ്റൽ ഡിസ്പ്ലേ പ്രവർത്തിക്കുന്നില്ല: Check the battery. Ensure it is correctly inserted and has sufficient charge. Replace if necessary.
• Inaccurate Readings (Digital Tools): Ensure the 'ZERO' function has been properly applied before measurement. Clean the measuring surfaces to remove any debris.
• Sticking Blades/Pins: For feeler gauges or contour gauges, ensure they are clean and free of foreign material. A light application of dry lubricant may help if movement is stiff.
• Tape Measure Not Retracting: Check for any obstructions in the tape's path. Ensure the lock mechanism is fully disengaged.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or replacement parts, please contact the manufacturer, OC-PRO, or your authorized retailer. Keep your purchase receipt as proof of purchase.

Manufacturer: OC-PRO
Model Reference: 68510
