1. ആമുഖം
Thank you for choosing the RESTMO Heavy Duty Metal Water Hose Sprayer. This manual provides essential information for the proper setup, operation, and maintenance of your new hose nozzle. Designed for durability and versatility, this sprayer features a robust metal construction, 9 distinct spray patterns, and convenient thumb flow control, making it ideal for various outdoor watering and cleaning tasks.
Image 1.1: The RESTMO Heavy Duty Metal Water Hose Sprayer.
ഉൽപ്പന്ന സവിശേഷതകൾ:
- Heavy Duty Metal Construction: Crafted from premium zinc-alloy material with bronze powder painting and TPU coating for enhanced durability and resistance to impacts.
- Thumb Flow Control: Allows for easy and precise adjustment of water flow and pressure with a simple thumb movement.
- 9 സ്പ്രേ പാറ്റേണുകൾ: Offers a wide range of spray options including Shower, Flat, Full, Mist, Jet, Center, Cone, Angle, and Vertical for diverse applications.
- എർഗണോമിക് ഡിസൈൻ: Features a comfortable, non-slip TPU rubber-coated handle suitable for various hand sizes, reducing hand fatigue during prolonged use.
- അടിസ്ഥാന അനുയോജ്യത: Equipped with a 3/4" NH Thread and rubber seal gasket for a leak-free connection to all standard garden hoses.
Image 1.2: Key components of the RESTMO Hose Nozzle, including the shock-resistant rubber dial, thumb flow controller, ergonomic handle, and 3/4" leak-free hose thread.
2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The RESTMO Hose Nozzle is designed for quick and easy installation on any standard garden hose.
- Prepare Your Hose: Ensure your garden hose has a standard 3/4" GHT (Garden Hose Thread) connection.
- Check Gasket: Verify that the rubber seal gasket is properly seated inside the nozzle's connection end. This gasket is crucial for preventing leaks.
- നോസൽ അറ്റാച്ചുചെയ്യുക: Screw the RESTMO hose nozzle onto the end of your garden hose. Turn clockwise until it is hand-tight. Avoid over-tightening, which can damage the threads or gasket.
- ടെസ്റ്റ് കണക്ഷൻ: Turn on the water supply to your hose. Check for any leaks at the connection point. If leaks occur, tighten slightly or re-seat the rubber gasket.
Image 2.1: The 3/4" leak-proof hose thread ensures a secure connection to standard garden hoses.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The RESTMO hose nozzle offers intuitive controls for water flow and spray pattern selection.
3.1. Thumb Flow Control
The integrated thumb control allows for easy adjustment of water pressure and flow without needing to hold a trigger. Simply push or pull the lever with your thumb to increase or decrease the water output.
- To Turn On/Increase Flow: Push the thumb lever forward towards the nozzle head.
- To Turn Off/Decrease Flow: Pull the thumb lever backward towards the handle.
ചിത്രം 3.1: വിശദമായത് view of the thumb flow control for precise water management.
Image 3.2: Demonstrating the anti-slip thumb flow control for exact water flow adjustment.
3.2. Selecting Spray Patterns
The nozzle features a rotating head with 9 distinct spray patterns to suit various tasks. To change the spray pattern, simply rotate the rubberized bezel dial on the nozzle head until the desired pattern aligns with the indicator.
- ഷവർ: Gentle, wide spray for watering delicate plants and flowers.
- ഫ്ലാറ്റ്: Broad, flat spray for general watering and rinsing.
- പൂർണ്ണം: Strong, wide spray for quick watering of larger areas.
- മൂടൽമഞ്ഞ്: Fine, soft mist for seedlings or humidifying.
- ജെറ്റ്: Powerful, concentrated stream for cleaning tough dirt or reaching distant areas.
- കേന്ദ്രം: Focused spray for targeted watering.
- കോൺ: Conical spray for general garden use.
- ആംഗിൾ: Angled spray for specific cleaning or watering needs.
- ലംബം: Vertical fan spray for broad coverage.

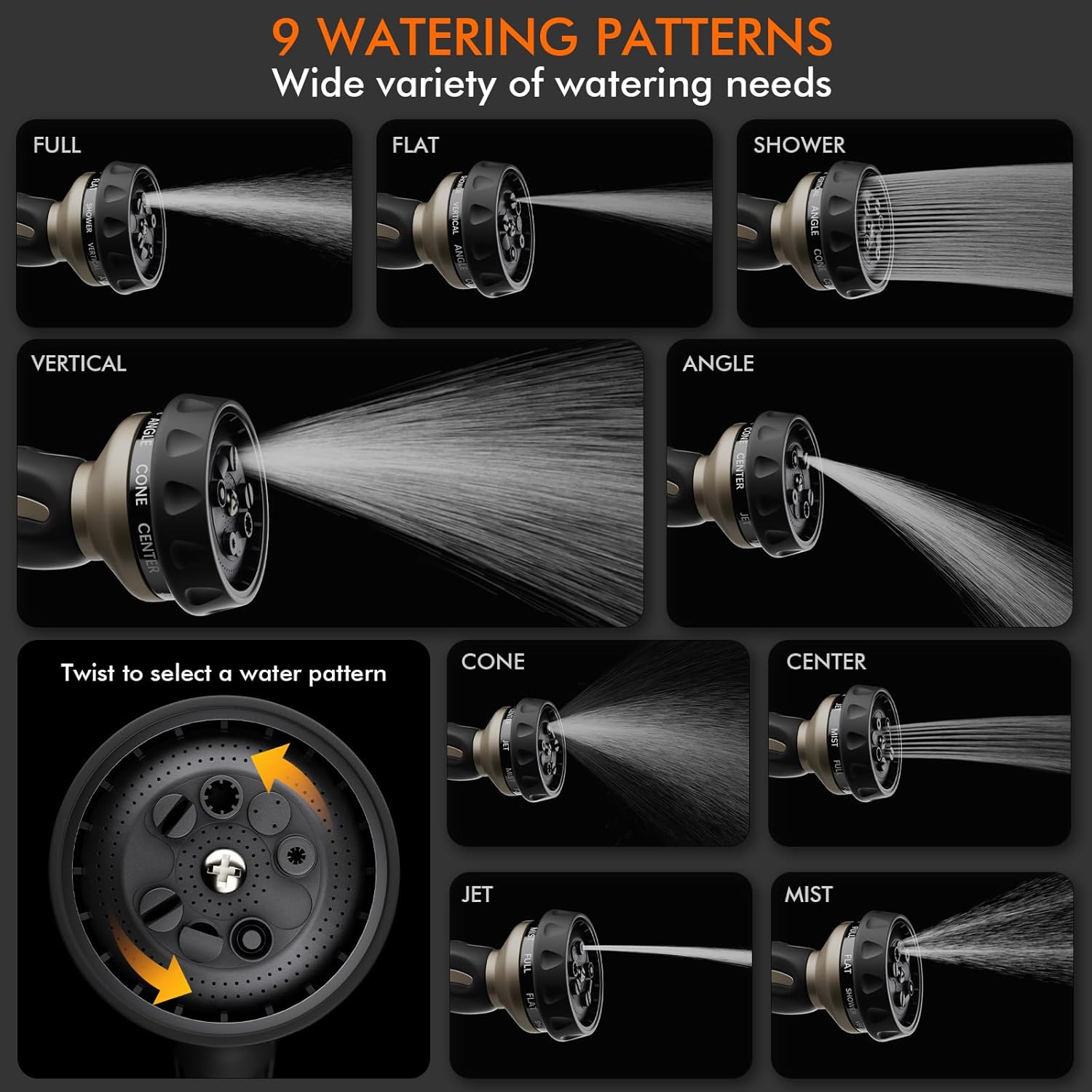

Image 3.3: Visual representation of the 9 available watering patterns.
Image 3.4: The hose nozzle in use, providing a gentle spray for plant watering.
Image 3.5: Utilizing the jet spray pattern for effective car washing.
Image 3.6: The shower spray pattern is suitable for washing pets.
4. പരിപാലനം
Proper maintenance will extend the lifespan and ensure optimal performance of your RESTMO hose nozzle.
- ശൈത്യകാല സംഭരണം: During freezing temperatures, always store the hose nozzle in a warm, dry place indoors. Leaving it exposed to freezing conditions can cause internal components to crack or break, leading to leaks and malfunction.
- പതിവായി വൃത്തിയാക്കുക: Periodically clean the nozzle head to remove any mineral deposits or debris that may accumulate and affect spray patterns. Use a soft brush and mild soap if necessary.
- Check Gaskets: Inspect the rubber seal gasket at the hose connection point regularly for wear or damage. Replace if necessary to maintain a leak-free seal. Replacement gaskets are typically included or can be purchased separately.
- വീഴുന്നത് ഒഴിവാക്കുക: While designed to be heavy-duty, repeated drops on hard surfaces can eventually lead to damage or leaks. Handle with care.
5. പ്രശ്നപരിഹാരം
If you encounter issues with your RESTMO hose nozzle, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഹോസ് കണക്ഷനിൽ നിന്ന് വെള്ളം ചോരുന്നു | Loose connection, damaged or missing rubber gasket. | Ensure the nozzle is tightly screwed onto the hose. Check if the rubber gasket is properly seated and undamaged. Replace the gasket if worn. |
| Water leaking from nozzle body | Internal seal damage, exposure to freezing temperatures. | If the leak is from the body, especially after cold weather, internal components may be damaged. Contact customer support for assistance. |
| Inconsistent or weak spray patterns | Debris in nozzle head, low water pressure. | Clean the nozzle head to remove any blockages. Ensure your water source has adequate pressure. |
| Thumb flow control is stiff or difficult to move | Mineral buildup, lack of lubrication. | Rinse the control mechanism with water. If persistent, a small amount of silicone lubricant might help, but avoid petroleum-based products. |
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | O-HN-3 |
| ബ്രാൻഡ് | റെസ്റ്റ്മോ |
| മെറ്റീരിയൽ | Zinc-alloy (Metal) with TPU coating |
| അളവുകൾ (L x W x H) | 6.3 x 1.97 x 1.18 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 12.2 ഔൺസ് |
| ഔട്ട്ലെറ്റ് കണക്ഷൻ തരം | 3/4" GHT (Garden Hose Thread) |
| Number of Spray Patterns | 9 (Shower, Flat, Full, Mist, Jet, Center, Cone, Angle, Vertical) |
| ഒഴുക്ക് നിയന്ത്രണം | Thumb-operated On/Off Valve |
7. വാറണ്ടിയും ഉപഭോക്തൃ പിന്തുണയും
RESTMO products are manufactured to high-quality standards. This product comes with an 18 മാസ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ, സാധാരണ ഉപയോഗത്തിലുള്ള മെറ്റീരിയലുകളിലെയും ജോലികളിലെയും പോരായ്മകൾ ഉൾക്കൊള്ളുന്നു.
വാറൻ്റി സേവനം എങ്ങനെ നേടാം:
If you experience any issues with your RESTMO hose nozzle within the warranty period, please contact RESTMO Customer Support. You may be asked to provide proof of purchase and a description or image of the issue.
ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ:
For support, please visit the official ആമസോണിലെ റെസ്റ്റ്മോ സ്റ്റോർ or refer to the contact details provided with your product packaging. Our customer service team is dedicated to assisting you with any questions or concerns.
Note: The warranty does not cover damage caused by misuse, neglect, unauthorized modifications, or exposure to extreme conditions such as freezing temperatures.
