1. ആമുഖവും അവസാനവുംview
The SINGER M1000 Mending Machine is a compact, lightweight, and portable sewing machine designed for light to medium-weight fabrics and quick repairs. Weighing only 5.5 pounds, it is an ideal companion for sewists who need mobility and easy storage. This machine offers 32 stitch applications, making mending and garment repairs straightforward and efficient.
Key features include preset stitch length and width for ease of use, a top drop-in bobbin for convenient monitoring, and a free arm for sewing tubular items like cuffs and sleeves. The machine comes with essential accessories to get you started immediately.
Figure 1: SINGER M1000 Mending Machine with its accessories, including bobbins, needles, and foot pedal.
2. സജ്ജീകരണം
2.1 അൺപാക്കിംഗും പ്ലേസ്മെന്റും
Carefully remove the machine from its packaging. Place the machine on a stable, flat surface. Ensure there is adequate space around the machine for fabric handling and comfortable operation. Connect the power cord to the machine and then to a suitable electrical outlet.
2.2 ബോബിൻ വൈൻഡിംഗ്
The SINGER M1000 features a top drop-in bobbin system for easy winding and insertion. Follow the threading guides on the machine to wind thread onto an empty Class 15 transparent bobbin. Ensure the thread is wound evenly to prevent tension issues during sewing.
Figure 2: The transparent top drop-in bobbin cover allows for easy monitoring of thread supply.
2.3 മെഷീനിൽ ത്രെഡിംഗ്
Proper threading is crucial for successful sewing. Follow the numbered threading path indicated on the machine for the upper thread. For the bobbin, place the wound bobbin into the bobbin case, ensuring the thread feeds correctly through the tension spring. Pull both the upper and bobbin threads under the presser foot and towards the back of the machine.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1 തുന്നൽ തിരഞ്ഞെടുക്കൽ
The SINGER M1000 offers 32 stitch applications. To select a stitch, simply turn the stitch selection dial located on the front of the machine to the desired stitch pattern. The machine has preset stitch length and width for most applications, simplifying the process for beginners.
Figure 3: The stitch selection dial allows easy choice from 32 stitch applications, including straight and zigzag stitches.
3.2 തയ്യൽ ആരംഭിക്കൽ
Place your fabric under the presser foot. Lower the presser foot lever. Gently press the foot pedal to begin sewing. To reinforce seams at the beginning and end of your stitching, use the reverse stitch lever. This helps prevent stitches from unraveling.
3.3 സ്വതന്ത്ര കൈ പ്രവർത്തനം
The machine features a built-in free arm, which is ideal for sewing tubular items such as sleeves, cuffs, and pant hems. To access the free arm, simply remove the accessory storage compartment from the base of the machine.

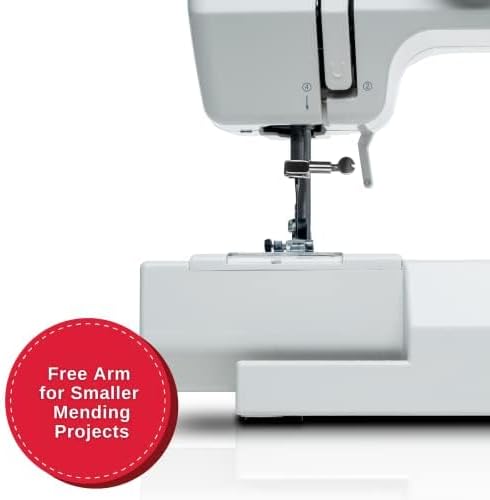

Figure 4: The free arm provides easy access for sewing small, circular projects.
3.4 തുണി അനുയോജ്യത
The SINGER M1000 is best suited for light to medium-weight fabrics. For thicker materials or heavy-duty projects, a full-size sewing machine is recommended.
4. പരിപാലനം
പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ തയ്യൽ മെഷീനിന്റെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു.
- വൃത്തിയാക്കൽ: Periodically clean the bobbin area and feed dogs to remove lint and dust buildup. Use a small brush or lint remover.
- സൂചി മാറ്റിസ്ഥാപിക്കൽ: Replace the needle regularly, especially after 8-10 hours of sewing or if it becomes bent or dull. A dull needle can cause skipped stitches or fabric damage.
- സംഭരണം: When not in use, cover the machine to protect it from dust. Store it in a dry, cool place.
5. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter. For more detailed troubleshooting, refer to the official user manual.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ത്രെഡ് ബ്രേക്കിംഗ് | Incorrect threading, improper tension, dull or bent needle, poor quality thread. | Re-thread the machine, adjust tension, replace needle, use good quality thread. |
| ഒഴിവാക്കിയ തുന്നലുകൾ | Incorrect needle insertion, wrong needle type for fabric, bent needle. | Ensure needle is fully inserted and facing correctly, use appropriate needle, replace needle. |
| Bobbin Problems (e.g., tangling) | Improper bobbin winding, incorrect bobbin insertion, lint in bobbin case. | Re-wind bobbin evenly, ensure correct bobbin orientation, clean bobbin area. |
| മെഷീൻ തയ്യൽ അല്ല | Machine not plugged in, bobbin winder engaged, thread tangled. | Check power connection, disengage bobbin winder, clear any thread jams. |
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | M1000.662 |
| അളവുകൾ (L x W x H) | 11.4 x 5.1 x 9.4 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 5.5 പൗണ്ട് |
| തുന്നൽ ആപ്ലിക്കേഷനുകൾ | 32 |
| ബോബിൻ തരം | Class 15 (Transparent Top Drop-in) |
| ആക്സസറികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട് | All-Purpose Foot, Extra Needle, Bobbins, Manual Needle Threader |
| പവർ ഉറവിടം | പവർ കോർഡ് (ഉൾപ്പെടുത്തിയിരിക്കുന്നു) |
| സ Ar ജന്യ ആയുധം | അതെ |
| LED ലൈറ്റ് | അതെ |
Figure 5: The compact dimensions of the SINGER M1000, measuring 11.4 inches in length and 9.4 inches in height.
7. വാറൻ്റിയും പിന്തുണയും
For detailed warranty information and customer support, please refer to the official SINGER website or the full user manual provided with your product. You can download the comprehensive User Manual (PDF) ഇവിടെ.
For further assistance, please contact SINGER customer service.
