D-Link AC1750 WiFi Range Extender (DAP-1720) User Manual

1. ആമുഖം

The D-Link AC1750 WiFi Range Extender (DAP-1720) is designed to expand the coverage of your existing wireless network, providing a stronger and more reliable Wi-Fi signal throughout your home or office. This device supports dual-band connectivity (2.4 GHz and 5 GHz) with combined speeds up to 1750 Mbps, making it ideal for high-bandwidth activities like 4K streaming and online gaming across multiple devices. Its smart signal indicator assists in finding the optimal placement for maximum coverage.

2. ഉൽപ്പന്നം കഴിഞ്ഞുview

The DAP-1720 features a compact, plug-in design with external antennas for enhanced signal strength. It includes a Gigabit Ethernet port for wired connections and a smart signal indicator for easy setup.

2.1 പ്രധാന സവിശേഷതകൾ

• Extends Wi-Fi coverage and eliminates dead spots with Dual Band connectivity.
• Supports both 2.4 GHz and 5 GHz bands for combined speeds up to 1750 Mbps.
• Smart Signal Indicator helps identify the best location for optimal Wi-Fi coverage.
• Features a 3x3 antenna configuration for improved data rates and reliability.
• Includes a 10/100/1000 Gigabit Ethernet Port for wired device connectivity.

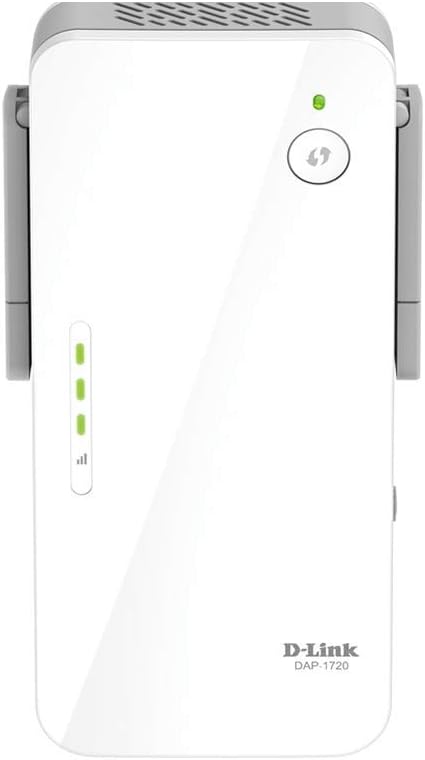

2.2 ഉപകരണ ലേayട്ട്

3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

There are two primary methods to set up your D-Link DAP-1720 Range Extender: using Wi-Fi Protected Setup (WPS) or manual configuration via a web ബ്രൗസർ.

3.1 WPS സജ്ജീകരണം (ശുപാർശ ചെയ്യുന്നത്)

1. പവർ ഓൺ: Plug the DAP-1720 into a power outlet near your existing wireless router. Wait for the power LED to turn solid green.
2. റൂട്ടറിൽ WPS സജീവമാക്കുക: Press the WPS button on your wireless router. Refer to your router's manual for the exact location of this button.
3. എക്സ്റ്റെൻഡറിൽ WPS സജീവമാക്കുക: Within two minutes, press the WPS button on the DAP-1720 (often indicated by a circular arrow icon).
4. മോണിറ്റർ നില: The signal indicator LEDs on the DAP-1720 will flash during the connection process. Once connected, the LEDs will turn solid green, indicating a successful connection.
5. ഒപ്റ്റിമൽ പ്ലേസ്മെൻ്റ്: Unplug the DAP-1720 and move it to a location halfway between your router and the Wi-Fi dead zone. Plug it into a power outlet. The Smart Signal Indicator LEDs will help you find the best spot. Aim for at least two solid green bars for good signal strength.

Note: If the signal indicator shows red or only one bar, move the extender closer to your router.

3.2 മാനുവൽ സജ്ജീകരണം (Web ബ്രൗസർ)

1. പവർ ഓൺ: Plug the DAP-1720 into a power outlet near your existing wireless router.
2. എക്സ്റ്റെൻഡറിലേക്ക് കണക്റ്റുചെയ്യുക: On your computer or mobile device, connect to the D-Link extender's default Wi-Fi network (e.g., "dlink-XXXX"). The default Wi-Fi name and password are usually found on a label on the device or in the Quick Installation Guide (QIG).
3. ആക്‌സസ് സജ്ജീകരണ വിസാർഡ്: എ തുറക്കുക web ബ്രൗസറും ടൈപ്പും http://dlinkap.local or the default IP address (e.g., 192.168.0.50) വിലാസ ബാറിലേക്ക്.
4. ഓൺ-സ്ക്രീൻ നിർദ്ദേശങ്ങൾ പാലിക്കുക: The setup wizard will guide you through selecting your existing Wi-Fi network(s) and configuring the extender's settings, including its new Wi-Fi name and password.
5. ഒപ്റ്റിമൽ പ്ലേസ്മെൻ്റ്: After configuration, unplug the DAP-1720 and move it to a suitable location as described in step 5 of the WPS setup.

4. നിങ്ങളുടെ റേഞ്ച് എക്സ്റ്റെൻഡർ പ്രവർത്തിപ്പിക്കുന്നു

4.1 ഉപകരണങ്ങൾ ബന്ധിപ്പിക്കുന്നു

• വയർലെസ് ഉപകരണങ്ങൾ: Once the extender is set up, search for the new extended Wi-Fi network name (SSID) on your devices (e.g., "YourNetworkName_EXT" or "YourNetworkName_5G_EXT") and connect using the password you configured.
• വയർഡ് ഉപകരണങ്ങൾ: For devices like smart TVs, gaming consoles, or desktop computers that benefit from a stable wired connection, use an Ethernet cable to connect them to the Gigabit Ethernet port on the DAP-1720.

4.2 ഡ്യുവൽ-ബാൻഡ് പ്രവർത്തനം

The DAP-1720 operates on both 2.4 GHz and 5 GHz frequency bands. The 2.4 GHz band offers wider coverage and better penetration through walls, while the 5 GHz band provides faster speeds over shorter distances with less interference. Your devices will automatically connect to the optimal band, or you can manually select the preferred band if separate SSIDs were configured during setup.

5. പരിപാലനം

• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: ഡി-ലിങ്ക് പിന്തുണ ഇടയ്ക്കിടെ പരിശോധിക്കുക. website for firmware updates. Keeping your device's firmware up-to-date ensures optimal performance, security, and access to new features.
• വൃത്തിയാക്കൽ: Ensure the device's ventilation slots are clear of dust to prevent overheating. Use a soft, dry cloth for cleaning. Do not use liquid cleaners.
• ഉപകരണം പുനഃസജ്ജമാക്കുന്നു: If you encounter persistent issues or wish to reconfigure the extender from scratch, you can perform a factory reset. Locate the reset button (usually a small pinhole) on the device, and while the device is powered on, press and hold it for about 10 seconds using a paperclip until the LEDs flash.

6. പ്രശ്‌നപരിഹാരം

6.1 No Internet Access After Connecting to Extender

• Check Router Connection: Ensure your main router is working correctly and has internet access.
• എക്സ്റ്റെൻഡർ പ്ലേസ്മെന്റ്: Verify the DAP-1720 is placed within range of your main router. The Smart Signal Indicator should show at least two green bars. Relocate if necessary.
• Re-run Setup: Try re-running the WPS or manual setup process to ensure the extender is properly connected to your main Wi-Fi network.
• IP വിലാസ വൈരുദ്ധ്യം: If you manually configured the extender, ensure its IP address does not conflict with other devices on your network.

6.2 Poor Signal or Slow Speeds

• എക്സ്റ്റെൻഡർ മാറ്റിസ്ഥാപിക്കുക: Move the extender closer to your main router. The ideal location is halfway between the router and the area needing coverage.
• ഇടപെടൽ കുറയ്ക്കുക: Keep the extender away from large metal objects, concrete walls, and devices that emit radio frequency interference (e.g., microwaves, cordless phones).
• Check Router Performance: Ensure your main router is providing adequate signal strength and speed.
• ഫേംവെയർ അപ്‌ഡേറ്റ്: Ensure the extender's firmware is up-to-date.

6.3 ആക്‌സസ് ചെയ്യാൻ കഴിയില്ല Web-Based Setup Page

• കണക്ഷൻ സ്ഥിരീകരിക്കുക: Ensure your device is connected to the extender's Wi-Fi network (e.g., "dlink-XXXX") or directly via Ethernet.
• ശരിയായ വിലാസം: നിങ്ങൾ ടൈപ്പ് ചെയ്യുകയാണോ എന്ന് രണ്ടുതവണ പരിശോധിക്കുക http://dlinkap.local or the correct IP address into your browser's address bar.
• ബ്രൗസർ കാഷെ മായ്‌ക്കുക: നിങ്ങളുടെ ബ്രൗസറിന്റെ കാഷെയും കുക്കികളും മായ്‌ക്കാൻ ശ്രമിക്കുക, അല്ലെങ്കിൽ മറ്റൊരു ബ്രൗസർ ഉപയോഗിക്കുക.
• Temporarily Disable Firewall/Antivirus: Your computer's security software might be blocking access.
• ഫാക്ടറി പുന et സജ്ജമാക്കുക: If all else fails, perform a factory reset and attempt the manual setup again.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, technical support, and additional resources, please visit the official D-Link support website. You can find FAQs, updated drivers, and contact information for customer service.

ഡി-ലിങ്ക് പിന്തുണ Webസൈറ്റ്: www.dlink.com/support
