1. ആമുഖം
This manual provides essential instructions for the proper installation, operation, and maintenance of the Weil-McLain Wiring Harness, Model 591-391-824. This harness is designed to connect the control module to the circulator in Weil-McLain GV Boilers. Please read this manual thoroughly before installation to ensure safe and efficient use.
2 സുരക്ഷാ വിവരങ്ങൾ
മുന്നറിയിപ്പ്: Electrical work should only be performed by qualified personnel. Disconnect all power to the boiler system before installing or servicing this wiring harness. Failure to do so may result in electric shock, injury, or death.
- എപ്പോഴും പ്രാദേശിക വൈദ്യുത കോഡുകളും നിയന്ത്രണങ്ങളും പാലിക്കുക.
- എല്ലാ കണക്ഷനുകളും സുരക്ഷിതവും ശരിയായി ഇൻസുലേറ്റ് ചെയ്തതുമാണെന്ന് ഉറപ്പാക്കുക.
- Do not operate the boiler system with damaged wiring.
- ഇൻസ്റ്റാളേഷൻ ഏരിയയിൽ നിന്ന് കുട്ടികളെയും അനധികൃത ജീവനക്കാരെയും അകറ്റി നിർത്തുക.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Weil-McLain Wiring Harness (Model 591-391-824) facilitates the electrical connection between the boiler's control module and the circulator pump. It features a multi-pin connector for the control module side and individual wire leads with quick-connect/push-in terminals for the circulator side, along with strain relief connectors.
ചിത്രം 3.1: The Weil-McLain Wiring Harness in a coiled state, showing the main cable, connectors, and individual wires. This image provides a general view of the product as it would appear out of the packaging.
ചിത്രം 3.2: The Weil-McLain Wiring Harness laid out, illustrating its full length and the various connection points. This view helps in understanding the overall structure and components of the harness.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
- വൈദ്യുതി വിച്ഛേദിക്കൽ: Ensure the main power supply to the Weil-McLain GV Boiler is completely disconnected at the circuit breaker before beginning any installation. Verify with a voltagഇ ടെസ്റ്റർ.
- Access Boiler Components: Carefully open the boiler's control panel or access cover to expose the control module and circulator wiring terminals. Refer to your specific GV Boiler manual for access instructions.
- കണക്ഷൻ പോയിന്റുകൾ തിരിച്ചറിയുക: Locate the designated multi-pin receptacle on the control module for the harness. Identify the power input terminals on the circulator pump.
- Connect to Control Module: Plug the multi-pin connector of the wiring harness firmly into the corresponding receptacle on the control module. Ensure it clicks into place if applicable.
ചിത്രം 4.1: വിശദമായി view of the multi-pin connector end of the wiring harness, designed to interface with the control module. This image highlights the specific connector type for proper identification during installation.
- റൂട്ട് വയറിംഗ്: Carefully route the harness wiring to the circulator pump, ensuring it does not interfere with moving parts, sharp edges, or heat sources. Use existing cable management clips or ties if available.
- Connect to Circulator: Connect the individual wire leads from the harness to the circulator pump's power terminals. Typically, these are quick-connect or push-in terminals. Match wire colors according to the boiler's wiring diagram (e.g., black to line, white to neutral, green to ground). Secure the wires using the provided strain relief connectors if necessary.

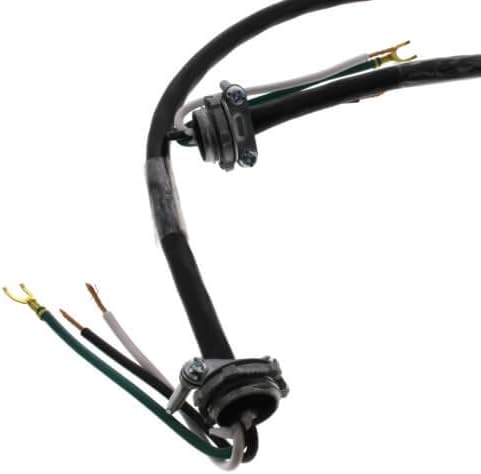

ചിത്രം 4.2: Close-up of the circulator connection end of the wiring harness, showing the individual wire leads and strain relief connectors. This image helps in identifying the correct wires and securing them to the circulator.
- സുരക്ഷിത കണക്ഷനുകൾ: Double-check all connections for tightness and proper insulation. Ensure no bare wires are exposed.
- Close Access: Replace the boiler's control panel or access cover, ensuring all screws are tightened.
- പവർ പുന ore സ്ഥാപിക്കുക: Restore power to the boiler system at the circuit breaker.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed, the wiring harness operates passively as part of the boiler's electrical system. Its function is to reliably transmit power and control signals between the control module and the circulator. Proper operation is indicated by the circulator functioning as expected when called for by the boiler's control system.
Refer to your Weil-McLain GV Boiler's main operating manual for specific instructions on how to start, operate, and shut down your boiler system, as well as how to verify circulator operation.
6. പരിപാലനം
The Weil-McLain Wiring Harness requires minimal maintenance. Periodically, during routine boiler servicing (at least annually), inspect the harness for:
- ശാരീരിക ക്ഷതം: Check for cuts, abrasions, or signs of heat damage to the cable insulation.
- സുരക്ഷിത കണക്ഷനുകൾ: Ensure all connectors are firmly seated and wires are not loose.
- നാശം: Inspect terminals for any signs of corrosion.
If any damage or loose connections are found, disconnect power immediately and have the harness inspected or replaced by a qualified technician.
7. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Circulator not running | Loose or disconnected harness connection; Damaged harness; No power to boiler/control module; Faulty circulator. | Verify all harness connections are secure (with power off). Inspect harness for damage. Check boiler power supply and control module status. Test circulator independently if possible. |
| Intermittent circulator operation | Poor connection at harness terminals; Intermittent fault in harness wiring. | Inspect and re-secure all connections. If problem persists, replace harness. |
| Boiler error code related to circulator | Harness wiring issue; Control module fault; Circulator fault. | Consult your Weil-McLain GV Boiler manual for specific error code troubleshooting. Check harness integrity. |
If troubleshooting steps do not resolve the issue, contact a qualified HVAC technician or Weil-McLain customer support.
8 സ്പെസിഫിക്കേഷനുകൾ
- മോഡൽ: 591-391-824
- ബ്രാൻഡ്: വെയിൽ-മക്ലെയ്ൻ
- അപേക്ഷ: Connects Control Module to Circulator
- ഉപയോഗിച്ചത്: Weil-McLain GV Boilers
- കണക്റ്റർ തരം: Multi-pin (Control Module side), Quick-connect/Push-in (Circulator side)
- ഭാഗം നമ്പർ: 591-391-824
9. വാറൻ്റിയും പിന്തുണയും
For warranty information regarding the Weil-McLain Wiring Harness (Model 591-391-824), please refer to the documentation provided with your Weil-McLain GV Boiler or contact Weil-McLain customer service directly. Warranty terms typically cover manufacturing defects.
For technical support or assistance with installation, please contact a certified HVAC professional or visit the official Weil-McLain webപിന്തുണാ ഉറവിടങ്ങൾക്കായുള്ള സൈറ്റ്.
Weil-McLain Official Webസൈറ്റ്: www.weil-mclain.com
