ആമുഖം
Thank you for choosing the VINGLI 5-Tier Steel Storage Shelves. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new shelving unit. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
സുരക്ഷാ വിവരങ്ങൾ
- Always assemble the unit on a flat, stable surface.
- ഷെൽഫുകൾ ലോഡ് ചെയ്യുന്നതിനുമുമ്പ് എല്ലാ ഘടകങ്ങളും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
- Do not exceed the maximum weight capacity per shelf or for the entire unit. Refer to the 'Specifications' section for details.
- Distribute weight evenly on each shelf to prevent tipping.
- കുട്ടികളെയും വളർത്തുമൃഗങ്ങളെയും അസംബ്ലി ഏരിയയിൽ നിന്ന് അകറ്റി നിർത്തുക.
- Wear protective gloves during assembly to prevent hand injuries.
- Do not climb on the shelving unit.
പാക്കേജ് ഉള്ളടക്കം
Please verify that all parts are present before assembly. If any parts are missing or damaged, contact customer service.
- Vertical Support Posts (8 sections)
- Horizontal Beams (top/bottom, middle)
- Steel Shelf Panels (5 pieces)
- റബ്ബർ അടി (4 കഷണങ്ങൾ)
- Assembly Gloves (1 pair)
- Rubber Mallet (1 piece)
അസംബ്ലി നിർദ്ദേശങ്ങൾ
The VINGLI 5-Tier Steel Storage Shelves feature a boltless design for easy assembly. It is recommended to wear the included gloves during assembly.
- പ്രദേശം തയ്യാറാക്കുക: Clear a spacious, flat area for assembly. Unpack all components and verify against the package contents list.
- Assemble the Vertical Frame: Connect the vertical support post sections. The boltless design allows them to interlock. Use the rubber mallet to gently tap connections into place for a secure fit.
- Install Horizontal Beams: Attach the horizontal beams to the vertical posts at your desired shelf heights. Ensure the beams are level and fully seated in the keyhole slots. The unit features a middle supporting beam for enhanced stability.
- Place Shelf Panels: Once the horizontal beams for a layer are in place, carefully lay the steel shelf panel onto the beams. Ensure it sits flush and securely. Repeat for all five shelves.
- റബ്ബർ പാദങ്ങൾ ഘടിപ്പിക്കുക: Install the rubber feet onto the bottom of the vertical support posts. These protect your floor and provide additional stability.
Image: The included gloves and rubber mallet facilitate easy assembly of the boltless design.
Image: Detail of the boltless connection mechanism for quick and secure assembly.
Image: Rubber feet provide floor protection and enhance stability.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
ഷെൽഫ് ഉയരം ക്രമീകരിക്കുന്നു
The VINGLI 5-Tier Steel Storage Shelves allow for adjustable shelf heights to accommodate various item sizes. To adjust a shelf:
- ഷെൽഫ് പൂർണ്ണമായും ശൂന്യമാക്കുക.
- Carefully lift the steel panel off its supporting beams.
- Disengage the horizontal beams from the vertical posts by gently tapping them upwards with the rubber mallet.
- Re-attach the horizontal beams to the desired keyhole slots on the vertical posts, ensuring they are level and secure.
- Place the steel shelf panel back onto the re-positioned beams.
Image: Diagram illustrating the adjustable nature of the shelves, allowing customization of storage space.
ശരിയായ ലോഡിംഗ്
- കൂടുതൽ സ്ഥിരതയ്ക്കായി ഭാരം കൂടിയ ഇനങ്ങൾ താഴത്തെ ഷെൽഫുകളിൽ വയ്ക്കുക.
- Distribute items evenly across the entire shelf surface.
- Avoid concentrating heavy loads in one small area of a shelf.
മെയിൻ്റനൻസ്
- വൃത്തിയാക്കൽ: Wipe the shelves and frame with a dry cloth to remove dust and debris. For stubborn dirt, a damp cloth with mild soap can be used, followed by immediate drying to prevent rust.
- പരിശോധന: Periodically check all connections to ensure they remain secure. Re-tap with the rubber mallet if any connections feel loose.
- കഠിനമായ രാസവസ്തുക്കൾ ഒഴിവാക്കുക: Do not use abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Shelf unit is wobbly | Connections not fully seated; uneven floor. | Ensure all horizontal beams are fully tapped into the vertical posts. Adjust rubber feet or place shims under the unit if the floor is uneven. |
| ഭാഗങ്ങൾ കൂട്ടിച്ചേർക്കുന്നതിലെ ബുദ്ധിമുട്ട് | Parts not aligned correctly; insufficient force. | Ensure parts are aligned before tapping. Use the rubber mallet with firm, even taps. Do not force parts if they are misaligned. |
| Shelf panel does not sit flat | Horizontal beams not level or fully seated. | Check that all four horizontal beams supporting the shelf are at the same height and fully engaged in the keyhole slots. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | B08WWYL4ZT |
| അളവുകൾ (W x D x H) | 35.4" x 17.7" x 72" (90സെ.മീ x 45സെ.മീ x 183സെ.മീ) |
| നിരകളുടെ എണ്ണം | 5 |
| മെറ്റീരിയൽ | അലോയ് സ്റ്റീൽ |
| പൂർത്തിയാക്കുക | കറുത്ത പൊടി പൊതിഞ്ഞു |
| അസംബ്ലി ആവശ്യമാണ് | Yes (Boltless Design) |
| മൗണ്ടിംഗ് തരം | ഫ്രീസ്റ്റാൻഡിംഗ് |

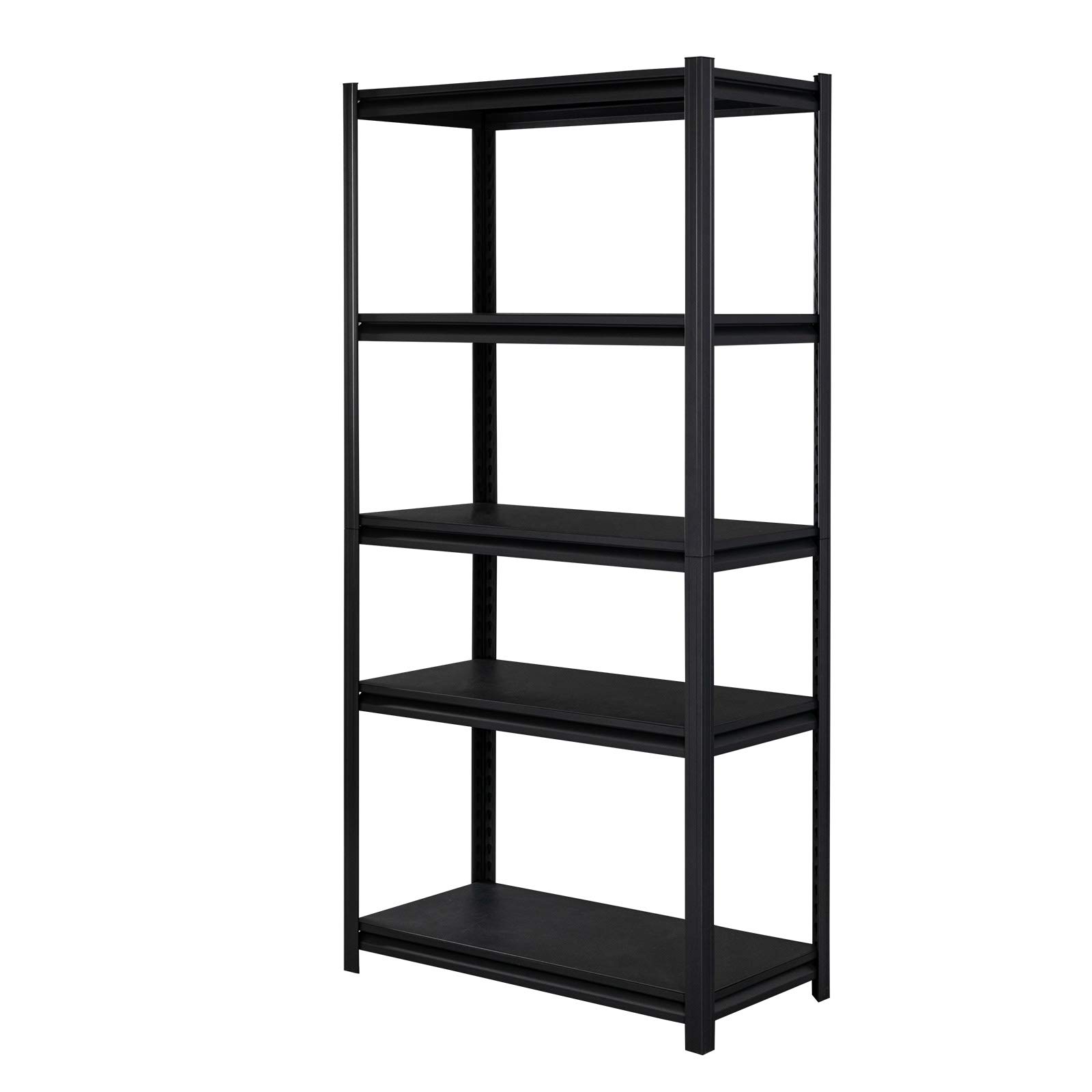

Image: Overall dimensions of the VINGLI 5-Tier Steel Storage Shelves: 35.4" W x 17.7" D x 72" H.

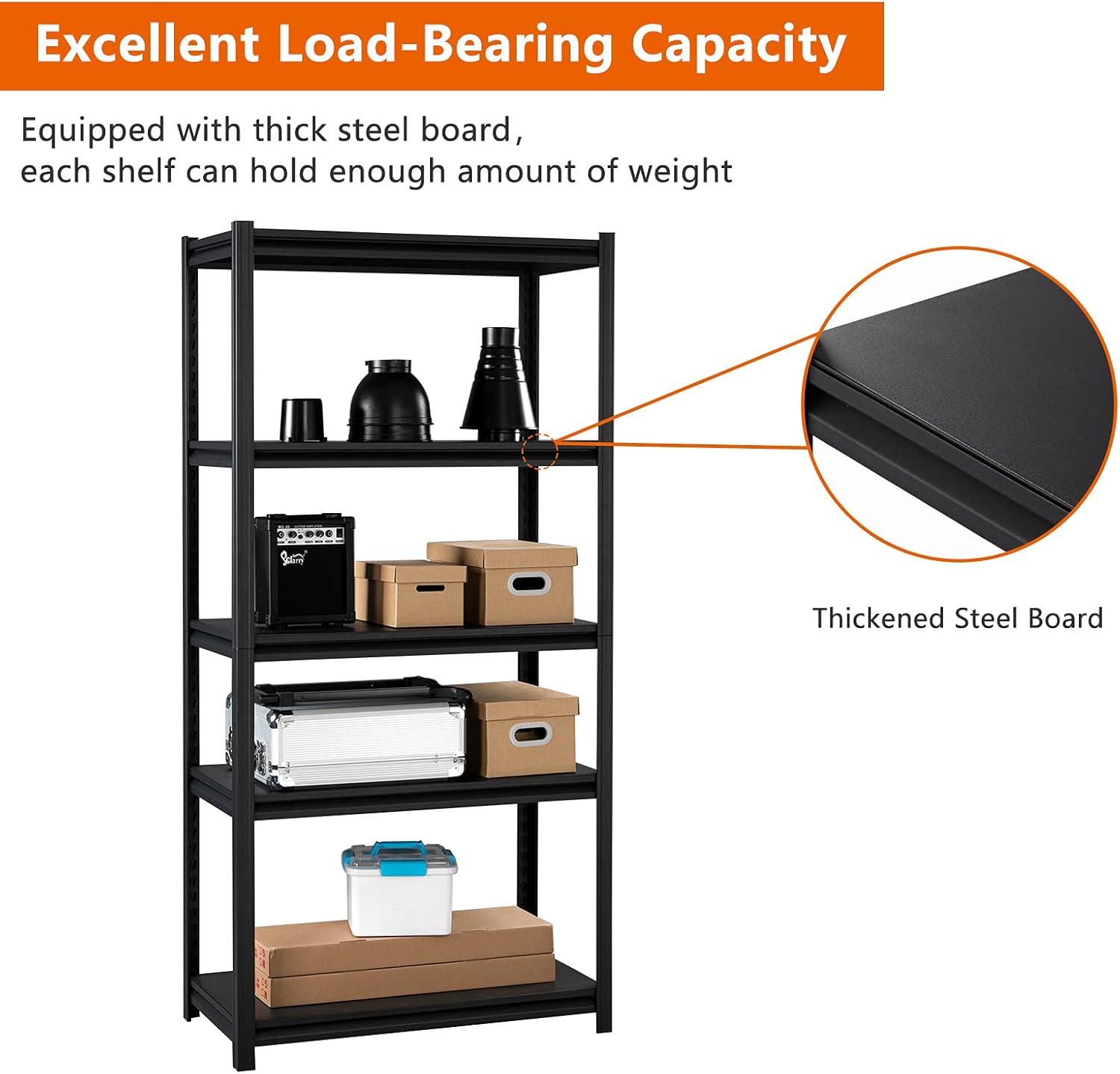

Image: The shelves are equipped with thickened steel boards for excellent load-bearing capacity.
Image: Each tier includes a middle supporting beam, enhancing the shelf's stability and load capacity.
വാറൻ്റിയും പിന്തുണയും
This VINGLI product comes with a Worry-Free 3-Year Quality Warranty. If you encounter any issues or have questions regarding your shelving unit, please do not hesitate to contact our customer service team. Our friendly customer service team will respond within 24 hours to assist you.
For support, please visit the VINGLI store on Amazon or refer to your purchase documentation for contact information.
