BRINKS Commercial Door Exit Device

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The BRINKS Commercial Door Exit Device is a robust and reliable solution designed for commercial door applications. This aluminum finish exit device is engineered to provide secure and efficient egress, meeting stringent industry standards for safety and accessibility.

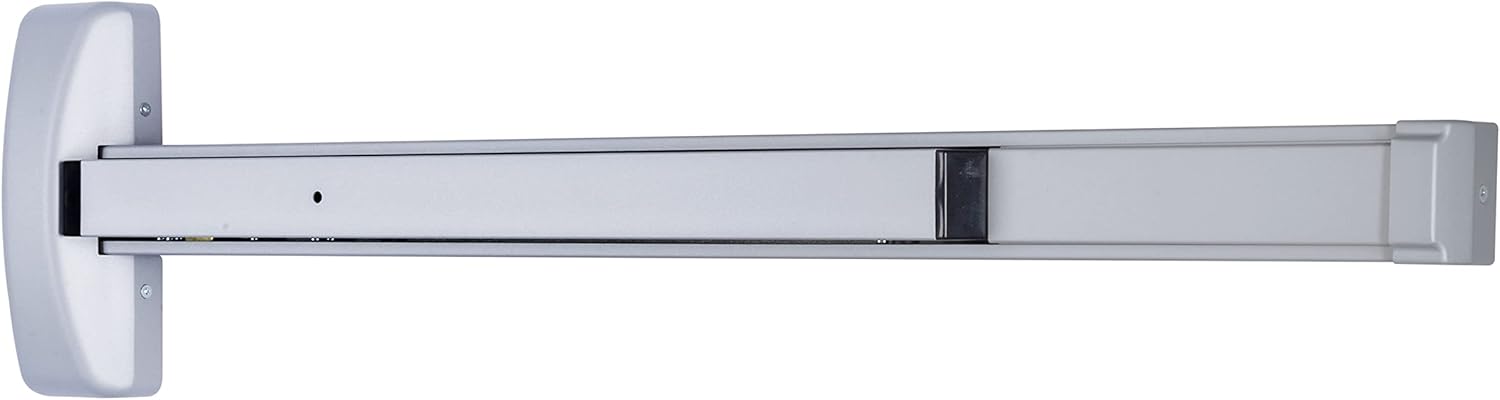

ചിത്രം 1.1: മുൻഭാഗം view of the BRINKS Commercial Door Exit Device.

Key features include its reversibility for both left- and right-handed doors, and the ability to be adjusted with a dogging device for constant open functionality. It is designed to fit doors ranging from 28 inches to 42 inches wide and includes a deadlocking latch bolt with a 5/8-inch projection.

Image 1.2: BRINKS Commercial Exit Device and Pull Trim overview.

2. പ്രധാന സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• ഇൻസ്റ്റാളേഷനും പ്രവർത്തനത്തിനും മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും നന്നായി വായിക്കുക.
• ഇൻസ്റ്റാളേഷൻ സമയത്ത് ഉചിതമായ ഉപകരണങ്ങളും സുരക്ഷാ ഉപകരണങ്ങളും ഉപയോഗിക്കുക.
• Ensure the door and frame are structurally sound and capable of supporting the device.
• For optimal safety and compliance, professional installation is recommended.
• Do not modify the device in any way, as this may compromise its functionality and safety ratings.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• Commercial Door Exit Device (Main Bar Assembly)
• SC4 Brass Rim Cylinder
• Small Steel Pull Plate
• Mounting Hardware (screws, fasteners)
• സിലിണ്ടർ സ്ലീവ്
• ഇൻസ്റ്റാളേഷൻ ടെംപ്ലേറ്റ്

ചിത്രം 3.1: എക്സ്പ്ലോഡഡ് view showing the main components and included hardware.

4. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്

This exit device is designed for straightforward installation on commercial doors. It is reversible, allowing it to be mounted on both left- and right-handed doors. The device fits doors between 28 inches and 42 inches wide.

1. വാതിൽ തയ്യാറാക്കുക: Ensure the door is clean and free of obstructions. Use the provided full-scale drilling template to mark the precise locations for drilling holes on the door. Accurate marking is crucial for proper alignment.
2. തുളകൾ: Carefully drill holes as indicated by the template. For doors requiring 161 door preparation (2-1/8" bore hole), the included cylinder sleeve will simplify the installation process.
3. Install the Exit Device: Mount the main bar assembly to the interior side of the door using the provided mounting hardware. Ensure it is level and securely fastened.
4. Install the Rim Cylinder and Pull Plate: Attach the SC4 brass rim cylinder to the exterior side of the door, aligning it with the mechanism of the exit device. Install the small steel pull plate on the exterior for entry.
5. ക്രമീകരിക്കുക, പരിശോധിക്കുക: After installation, test the device's operation. Ensure the push bar retracts the latch bolt smoothly and fully. Verify that the deadlocking latch bolt engages properly when the door is closed.

For detailed visual instructions, refer to the installation diagrams provided with your product packaging.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The BRINKS Commercial Door Exit Device is designed for intuitive and reliable operation.

• Egress (Exiting): To exit, simply push the horizontal bar on the interior side of the door. This action retracts the latch bolt, allowing the door to open.
• Dogging Device (Hold Open): The device can be adjusted with a dogging device to keep the latch bolt retracted, allowing the door to remain constantly open without needing to push the bar. This is useful for high-traffic periods or when temporary unrestricted access is desired. Consult the installation guide for specific instructions on engaging and disengaging the dogging device.
• Entry (From Exterior): Entry from the exterior is typically achieved using the SC4 brass rim cylinder with a key, or by using the small steel pull plate if the dogging device is engaged. Note that this device does not include an exterior handle for unkeyed entry unless the dogging device is active.

6. പരിചരണവും പരിപാലനവും

Regular maintenance will ensure the longevity and optimal performance of your BRINKS Commercial Door Exit Device.

• വൃത്തിയാക്കൽ: ഒരു സോഫ്റ്റ്, ഡി ക്ലീനർ ഉപയോഗിച്ച് ഉപകരണം പതിവായി വൃത്തിയാക്കുക.amp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഒഴിവാക്കുക.
• ലൂബ്രിക്കേഷൻ: Periodically apply a small amount of silicone-based lubricant to moving parts, such as the latch bolt mechanism and the pivot points of the push bar, to ensure smooth operation. Do not over-lubricate.
• പരിശോധന: Routinely inspect the device for any signs of wear, loose screws, or damage. Ensure all mounting hardware remains tight. Address any issues promptly to prevent further damage or malfunction.
• പ്രവർത്തനക്ഷമത പരിശോധന: Test the push bar and latch bolt operation regularly to confirm they function smoothly and securely.

7. പൊതുവായ പ്രശ്‌നങ്ങൾ പരിഹരിക്കുന്നു

8 സാങ്കേതിക സവിശേഷതകൾ

Image 8.1: Compliance certifications: ANSI Grade 1, UL 305, and ADA.

9. വാറൻ്റി വിവരങ്ങൾ

This BRINKS Commercial Door Exit Device comes with a manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your product packaging or visit the official BRINKS webസൈറ്റ്.

10. പിന്തുണ

For further assistance, technical support, or inquiries regarding your BRINKS Commercial Door Exit Device, please contact BRINKS customer service. Contact information can typically be found on the BRINKS official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
