ലിങ്ക് LKMS06 HDMI കേബിൾ ടെസ്റ്റർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

Thank you for choosing the LINK LKMS06 HDMI Cable Tester. This device is designed for both domestic and professional use to verify the integrity and configuration of HDMI Type A and Type C cables. It can detect open circuits, short circuits, and correctly connected conductors, ensuring optimal cable performance. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting.

2 സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety instructions before using the device. Failure to follow these instructions may result in damage to the device or personal injury.

• ഈർപ്പം അല്ലെങ്കിൽ അങ്ങേയറ്റത്തെ താപനിലയിലേക്ക് ഉപകരണം തുറന്നുകാട്ടരുത്.
• Use only a 9V battery (not included) for power. Ensure correct polarity during installation.
• ഉപകരണം തുറക്കാനോ പരിഷ്ക്കരിക്കാനോ ശ്രമിക്കരുത്. എല്ലാ സേവനങ്ങളും യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർക്ക് റഫർ ചെയ്യുക.
• ഉപകരണം കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Avoid connecting the tester to live circuits or Power over Ethernet (PoE) circuits to prevent damage.

3. പാക്കേജ് ഉള്ളടക്കം

അൺപാക്ക് ചെയ്യുമ്പോൾ, താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• LINK LKMS06 Main Unit (Master)
• LINK LKMS06 Remote Unit
• സിപ്പർഡ് കാരിയിംഗ് കേസ്
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Note: A 9V battery is required for operation and is not included in the package.

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

The LINK LKMS06 consists of two main parts: the Master unit and the Remote unit. Both units feature HDMI Type A and Type C ports, along with LED indicators for each of the 19 pins and the shield connection.

4.1. Main Unit (Master) and Remote Unit

The Master unit and Remote unit can be connected together for storage or separated for testing longer cables. Each unit has clearly labeled HDMI ports and LED indicators.

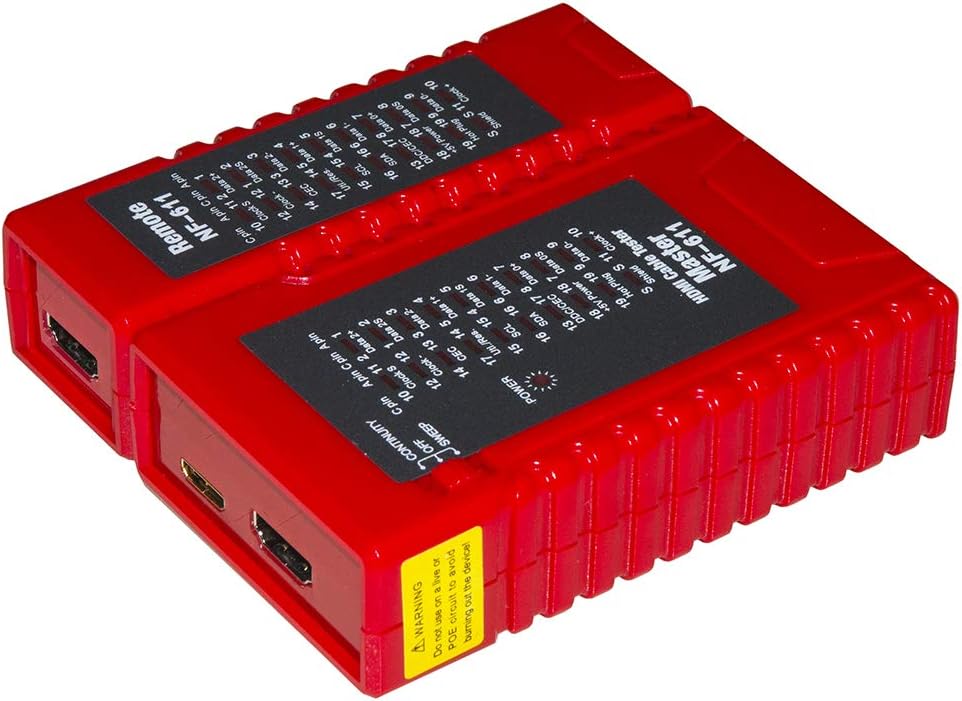

ചിത്രം 1: The LINK LKMS06 HDMI Cable Tester showing the Master and Remote units connected. The top surface of each unit displays LED indicators for the 19 pins and shield, along with power and test mode switches. This configuration is suitable for storage or testing shorter cables.

ചിത്രം 2: The LINK LKMS06 HDMI Cable Tester with the Master and Remote units separated. This view highlights the HDMI Type A and Type C ports on each unit, which are used for connecting the HDMI cable under test. The separation allows for testing of longer cables where the remote end is distant from the master unit.

4.2. Zippered Carrying Case

The device comes with a protective zippered carrying case for portability and storage.

ചിത്രം 3: The black zippered carrying case provided with the LINK LKMS06 HDMI Cable Tester. This case offers protection and convenience for transporting the tester and its components.

5. സജ്ജീകരണം

5.1. ബാറ്ററി ഇൻസ്റ്റാളേഷൻ

The LINK LKMS06 requires one 9V battery (not included) for operation.

1. Locate the battery compartment on the back of the Master unit.
2. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ തുറക്കുക.
3. Insert a new 9V battery, ensuring the correct polarity (+/-).
4. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

Note: The Remote unit does not require a battery as it is powered by the Master unit through the cable under test.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

6.1. കേബിൾ ബന്ധിപ്പിക്കുന്നു

1. Separate the Master unit and the Remote unit if they are connected.
2. Connect one end of the HDMI cable (Type A or Type C) to the corresponding port on the Master unit.
3. Connect the other end of the HDMI cable to the corresponding port on the Remote unit.

6.2. Selecting Test Mode

The LINK LKMS06 offers three testing modes: Auto Fast, Auto Slow, and Manual. Use the switch on the Master unit to select your desired mode.

• ഓട്ടോ ഫാസ്റ്റ്: The tester cycles through each pin connection quickly. This mode is suitable for quick checks of cable continuity.
• Auto Slow: The tester cycles through each pin connection at a slower pace, allowing for more detailed observation of the LED indicators.
• മാനുവൽ: In this mode, you can manually step through each pin connection one by one. This is useful for pinpointing specific issues on individual pins.

6.3. Interpreting LED Indicators

Both the Master and Remote units feature 19 LEDs corresponding to the 19 pins of an HDMI cable, plus an additional LED for the shield connection. When a pin is correctly connected, its corresponding LED on both the Master and Remote units will illuminate simultaneously.

• LED On (both units): Indicates a good connection for that specific pin.
• LED On (one unit only): Indicates an open circuit (break) in the cable for that specific pin.
• Multiple LEDs On (one unit, or unexpected pattern): May indicate a short circuit or miswiring.
• No LED On: Indicates an open circuit for that specific pin.

The tester verifies continuity and correct configuration for all 19 poles and the ground connection. This allows you to determine how many conductors are connected, which is crucial for assessing the cable's standard compliance and quality.

6.4. Testing Cable Lengths

The LINK LKMS06 can test HDMI cables up to 50 meters (approximately 164 feet) in length.

7. പരിപാലനം

7.1. വൃത്തിയാക്കൽ

To clean the device, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the casing അല്ലെങ്കിൽ ആന്തരിക ഘടകങ്ങൾ.

7.2. സംഭരണം

When not in use, store the LINK LKMS06 in its zippered carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Remove the 9V battery if the device will not be used for an extended period to prevent battery leakage.

8. പ്രശ്‌നപരിഹാരം

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the documentation provided at the time of purchase or visit the official LINK product support webസൈറ്റ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.
