1. ആമുഖവും അവസാനവുംview
The EASTRON SDM630MCT-Modbus Power Consumption Monitor is a robust device designed for precise monitoring and management of single and three-phase electrical usage. It features an easy-to-read digital backlit LCD display, ensuring clear data visibility in various lighting conditions. This meter facilitates seamless integration with other systems via its Modbus RS485 communication function.
The SDM630MCT-Modbus accurately measures a comprehensive range of electrical parameters, including voltage, frequency (Hz), current (A), power (KW/kVA/kVAr), and both import, export, and total energy (kWH/kVArh). This detailed measurement capability assists users in identifying areas for energy consumption reduction, leading to potential energy and cost savings.
ചിത്രം 1: മുൻഭാഗം view of the EASTRON SDM630MCT V2 Electricity Meter, showing the LCD display and control buttons.
2 പ്രധാന സവിശേഷതകൾ
- Versatile Network Compatibility: Supports single-phase or three-phase networks (3P4W, 3P3W, 1P2W).
- Current Transformer (CT) Input: Compatible with 1A or 5A current transformers.
- Comprehensive Measurement: Measures kWh, kVArh, W, Var, VA, V, A, PF (Power Factor), THD (Total Harmonic Distortion), Hz, Max.DMD (Maximum Demand), Imp_kWh (Import kWh), Exp_kWh (Export kWh), and more.
- Bi-directional Measurement: Capable of measuring both import and export for kW and kWh.
- Modbus RS485 Communication: Built-in Modbus RS485 RTU for integration with building management systems or data loggers.
- Pulsed Outputs: Includes 2 configurable pulsed outputs for energy indication (e.g., import/export/net kWh).
- DIN റെയിൽ മൗണ്ടിംഗ്: Designed for easy installation on a standard 35mm DIN rail.
- കോംപാക്റ്റ് ഡിസൈൻ: Four-module wide housing, optimizing space in electrical panels.
- ബാക്ക്ലിറ്റ് എൽസിഡി ഡിസ്പ്ലേ: Digital display with backlight for clear readability day and night.
- User-Friendly Navigation: Easy menu navigation via intuitive buttons.
- MID Certified: Suitable for billing purposes (MID calibrated).
- Sealing Hole: Provides a safety seal option after installation to prevent tampഎറിംഗ്.

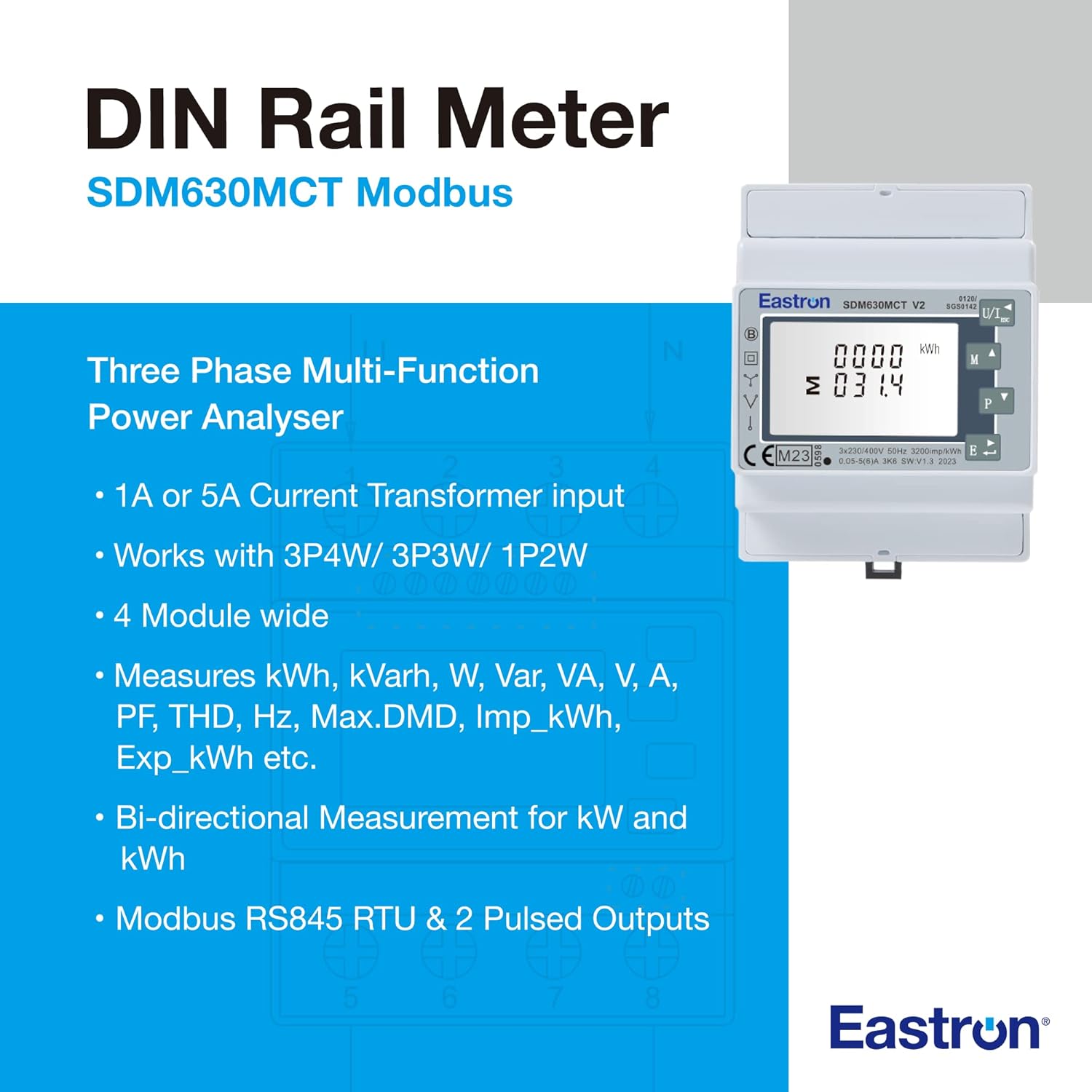

Figure 2: Key features and capabilities of the SDM630MCT Modbus meter, highlighting its multi-function power analysis.

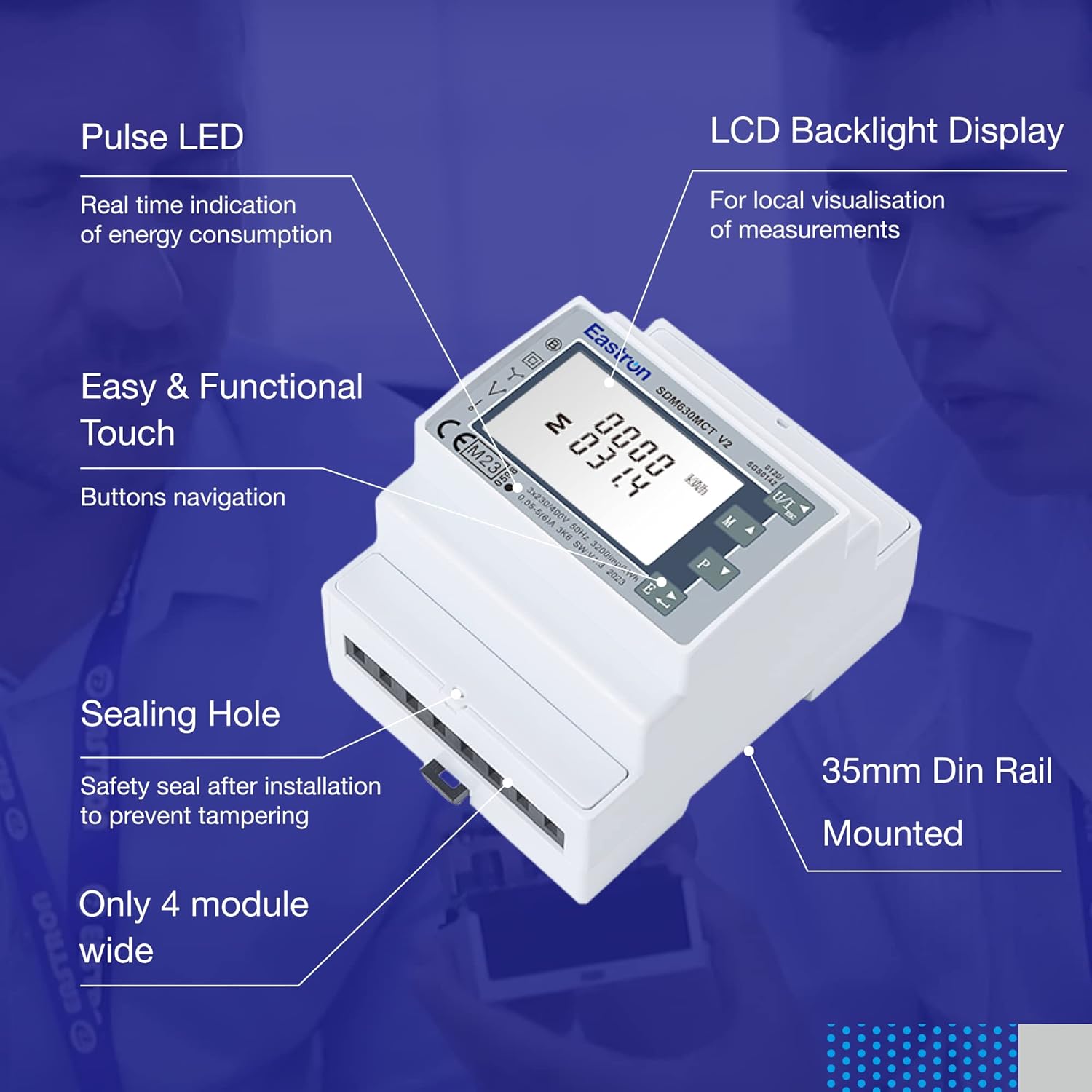

ചിത്രം 3: ക്ലോസപ്പ് view illustrating the Pulse LED, LCD Backlight Display, functional touch buttons, sealing hole, and 35mm DIN rail mounting.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The EASTRON SDM630MCT V2 is designed for DIN rail mounting within an electrical enclosure. Proper installation requires knowledge of electrical systems and adherence to local electrical codes. It is strongly recommended that installation be performed by a qualified electrician.
3.1 Current Transformer (CT) Connection
This meter requires external Current Transformers (CTs) for operation. CTs are essential for measuring current in high-amperage circuits and provide isolation between the measurement device and the main power lines. The meter supports 1A or 5A CT inputs. Ensure the CTs are correctly sized for your application and connected according to the wiring diagram provided in the full product manual.
CT-powered meters are widely used to monitor power grid operation. Multiple CTs may be installed for different applications, such as protective devices and revenue measurement, to ensure proper isolation and allow for CTs with varying characteristics (accuracy, overload capacity).
3.2 Modbus RS485 Connection
The Modbus RS485 interface allows the meter to communicate with other devices, such as data loggers, PLCs, or building management systems. Connect the RS485 A and B terminals to your Modbus network. Ensure proper polarity and termination resistors are used as per Modbus standards. The meter's Modbus address can typically be configured via the device's menu.
3.3 ഫിസിക്കൽ ഇൻസ്റ്റലേഷൻ
- Mount the meter securely on a standard 35mm DIN rail within an appropriate electrical enclosure.
- വോളിയം ബന്ധിപ്പിക്കുകtage inputs (L1, L2, L3, N) as per your single or three-phase system configuration.
- Connect the secondary windings of the Current Transformers to the meter's CT input terminals. Ensure correct phase and direction.
- Connect the Modbus RS485 communication lines (A and B) and any pulsed output lines if required.
- After installation, the sealing hole can be used to apply a safety seal, preventing unauthorized tampഎറിംഗ്.
കുറിപ്പ്: ഈ മാനുവൽ ഒരു പൊതു ഓവർ നൽകുന്നുview. For detailed wiring diagrams, safety precautions, and specific installation steps, please refer to the complete installation guide provided with your product or consult a qualified electrician.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The EASTRON SDM630MCT V2 features an intuitive interface for easy operation and data retrieval.
4.1 എൽസിഡി ഡിസ്പ്ലേയും നാവിഗേഷനും
The backlit LCD display provides real-time readings of various electrical parameters. Navigation through the display screens and configuration menus is done using the front panel buttons (typically 'M' for Menu/Mode, 'Up' and 'Down' arrows for navigation, and 'Enter' for selection).
4.2 Viewing Measurements
Upon power-up, the meter typically displays the total energy (kWh). Use the navigation buttons to cycle through different measurement screens, which may include:
- വാല്യംtage (V) per phase and line-to-line
- Current (A) per phase
- Active Power (kW) per phase and total
- Reactive Power (kVAr) per phase and total
- Apparent Power (kVA) per phase and total
- പവർ ഫാക്ടർ (പിഎഫ്)
- ആവൃത്തി (Hz)
- Import/Export kWh and kVArh
- Maximum Demand (Max.DMD)
4.3 Configuration (Advanced Users)
The meter allows configuration of various settings, such as the CT ratio, Modbus address, baud rate, and pulse output parameters. Accessing and modifying these settings typically involves entering a password-protected menu. Refer to the detailed product manual for specific instructions on menu navigation and parameter configuration.
ഉദാample, some users have reported that when connecting to specific inverters (e.g., Growatt), the Modbus address may need to be set to '2' for proper communication.
കുറിപ്പ്: Incorrect configuration can lead to inaccurate readings or communication issues. Only modify settings if you are familiar with the required parameters.
5. പരിപാലനം
The EASTRON SDM630MCT V2 is designed for long-term, reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance:
- വൃത്തിയാക്കൽ: Keep the meter's display and casing clean using a soft, dry cloth. Avoid abrasive cleaners or solvents.
- കണക്ഷനുകൾ: Periodically inspect all wiring connections (voltage, CT, Modbus, pulse outputs) to ensure they are secure and free from corrosion. Loose connections can lead to inaccurate readings or intermittent operation.
- പരിസ്ഥിതി: Ensure the meter is operating within its specified environmental conditions (temperature, humidity) to prevent damage and ensure accuracy.
- ഫേംവെയർ അപ്ഡേറ്റുകൾ: While not typically user-serviceable, check with EASTRON support for any available firmware updates that might improve performance or address known issues.
മുന്നറിയിപ്പ്: Always disconnect power to the meter and associated circuits before performing any inspection or maintenance to prevent electric shock.
6. പ്രശ്നപരിഹാരം
This section provides solutions to common issues you might encounter with your EASTRON SDM630MCT V2 meter. If the problem persists, contact technical support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Meter display is blank or not powering on. | No power supply to the meter; incorrect wiring; internal fault. |
|
| Readings are inaccurate or zero. | Incorrect CT wiring (polarity, ratio); incorrect meter configuration; faulty CT. |
|
| Modbus communication failure. | Incorrect Modbus address; incorrect baud rate; wiring issues (A/B swapped, no termination); incompatible inverter/device. |
|
| Meter not responding to button presses. | Temporary software glitch; physical button damage. |
|
നിരാകരണം: This troubleshooting guide covers common issues. For complex problems or if you are unsure, always consult a qualified professional or EASTRON technical support.
7 സ്പെസിഫിക്കേഷനുകൾ
Below are the technical specifications for the EASTRON SDM630MCT V2 Electricity Meter.
Figure 4: Comprehensive technical specification table for the SDM630MCT V2 meter.
| വിഭാഗം | പരാമീറ്റർ | മൂല്യം |
|---|---|---|
| സ്പെസിഫിക്കേഷൻ | നാമമാത്ര വോളിയംtagഇ (അൺ) | 3x230/400V AC |
| പ്രവർത്തന വോളിയംtage | 80% - 120% of Un | |
| Insulation capabilities - AC voltagഇ ചെറുക്കുക | 4 മിനിറ്റിന് 1കെ.വി | |
| Insulation capabilities - Impulse voltagഇ ചെറുക്കുക | 6KV - 1.2µS | |
| Rated current (Ib) | 5A CT or 333mV CT input | |
| പ്രവർത്തന നിലവിലെ ശ്രേണി | 0.4% Ib - Imax | |
| ഓവർ കറന്റ് പ്രതിരോധം | 20 സെക്കൻഡിനുള്ള 0.01 ഐമാക്സ് | |
| പ്രവർത്തന ആവൃത്തി ശ്രേണി | 50 അല്ലെങ്കിൽ 60Hz | |
| Power consumption per phase | ≤ 2W/10VA | |
| പൾസ് ഔട്ട്പുട്ട് 1 | ക്രമീകരിക്കാവുന്നത് | |
| പൾസ് ഔട്ട്പുട്ട് 2 | 3200 Imp/kWh | |
| പ്രദർശിപ്പിക്കുക | എൽസിഡി | |
| പരമാവധി വായന | 999999.9 കിലോവാട്ട്/കെവിഎആർഎച്ച് | |
| പ്രകടന മാനദണ്ഡം | പ്രവർത്തന ഈർപ്പം | ≤ 90% |
| സംഭരണ ഈർപ്പം | ≤ 95% | |
| പ്രവർത്തന താപനില | -25°C - +55°C | |
| സംഭരണ താപനില | -40°C - +70°C | |
| റഫറൻസ് താപനില | 23°C ± 2°C | |
| അന്താരാഷ്ട്ര നിലവാരം | IEC 62053-21 / EN50470-1/3 | |
| കൃത്യത ക്ലാസ് | Class 1 / Class B | |
| പരിസ്ഥിതി | ഇൻസ്റ്റലേഷൻ വിഭാഗം | CAT III |
| മെക്കാനിക്കൽ പരിസ്ഥിതി | M1 | |
| വൈദ്യുതകാന്തിക പരിസ്ഥിതി | E2 | |
| മലിനീകരണത്തിൻ്റെ അളവ് | 2 | |
| പൊടിയും വെള്ളവും തുളച്ചുകയറുന്നതിനെതിരായ സംരക്ഷണം | IP51 (ഇൻഡോർ) | |
| സംരക്ഷിത ക്ലാസിന്റെ ഇൻസുലേറ്റിംഗ് ഇൻകേസ്ഡ് മീറ്റർ | II | |
| ഇ.എം.സി | ഇലക്ട്രോസ്റ്റാറ്റിക് ഡിസ്ചാർജുകൾ | 8KV contact / 15KV air gap |
| Radiated & conducted emissions | EN 55022 | |
| കൃത്യത | വാല്യംtage, കറന്റ് | 1.0 % or 0.5% option available |
| ആവൃത്തി | മിഡ് ഫ്രീക്വൻസിയുടെ 0.2% | |
| പവർ ഫാക്ടർ | 1% of Unity (0.01) | |
| Active power / Apparent power | പരമാവധി ശ്രേണിയുടെ ±1% | |
| റിയാക്ടീവ് പവർ | പരമാവധി ശ്രേണിയുടെ ±1% | |
| റിയാക്ടീവ് എനർജി (kVArh) | ക്ലാസ് 2 | |
| സജീവ ഊർജ്ജം (kWh) | ക്ലാസ് 1 | |
| ഉൽപ്പന്ന അളവുകൾ | 10.3 x 11 x 8 സെ.മീ; 290 ഗ്രാം | |
| മോഡ്ബസ് | ബസ് തരം | RS485 (semi-duplex) |
| പ്രോട്ടോക്കോൾ | മോഡ്ബസ് RTU | |
| ബൗഡ് നിരക്ക് | 2400/4800/9600/19200/38400bps | |
| വിലാസ ശ്രേണി | 1-247 | |
| Max. Bus loading | 64 പീസുകൾ | |
| ആശയവിനിമയ ദൂരം | 1000മീ | |
| സമത്വം | EVEN/ODD/ഒന്നുമില്ല | |
| ഡാറ്റ ബിറ്റ് | 8 | |
| ബിറ്റ് നിർത്തുക | 1 |
Figure 5: Dimensional drawing of the EASTRON SDM630MCT V2, showing height, width, and depth.
- ഉൽപ്പന്ന അളവുകൾ: 10.3 x 11 x 8 സെ.മീ; 290 ഗ്രാം
- ഇനം മോഡൽ നമ്പർ: SDM630MCT-MODBUS-MID
- നിർമ്മാതാവ്: ഈസ്ട്രൺ
8. വാറൻ്റിയും പിന്തുണയും
EASTRON is committed to providing high-quality electrical measurement instruments. While specific warranty details are not provided in this document, standard manufacturer warranties typically cover defects in materials and workmanship for a defined period from the date of purchase.
For warranty claims, technical assistance, or to obtain the full product documentation (including detailed wiring diagrams and advanced configuration guides), please contact EASTRON customer support or your authorized reseller. Many users have reported positive experiences with EASTRON's responsiveness in providing necessary documentation and support.
You can typically find contact information on the official EASTRON webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ വഴി.
Figure 6: EASTRON's commitment to quality and reliability, as evidenced by certifications like the SGS EU Type Examination Certificate.
Figure 7: EASTRON's dedication to innovation and quality in the development of intelligent meters.
