ROBOTIME 3D Wooden Puzzle Siege Heavy Ballista (Model KW401) Instruction Manual

ആമുഖം

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your ROBOTIME 3D Wooden Puzzle Siege Heavy Ballista, Model KW401. Please read through these instructions carefully before beginning assembly to ensure a smooth and enjoyable building experience.

Image: The ROBOTIME Siege Heavy Ballista 3D Wooden Puzzle set up in a miniature medieval battle scenario, showcasing its design and potential for interactive play.

സുരക്ഷാ വിവരങ്ങൾ

ഇനിപ്പറയുന്ന സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ പാലിക്കുക:

• ചെറിയ ഭാഗങ്ങൾ മുന്നറിയിപ്പ്: ഈ കിറ്റിൽ ചെറിയ ഭാഗങ്ങൾ അടങ്ങിയിരിക്കുന്നു, ശ്വാസംമുട്ടൽ അപകടങ്ങൾ ഉള്ളതിനാൽ 3 വയസ്സിന് താഴെയുള്ള കുട്ടികൾക്ക് ഇത് അനുയോജ്യമല്ല.
• ശുപാർശ ചെയ്യുന്ന പ്രായം: This product is recommended for ages 14 and up. Adult supervision is advised for younger builders.
• മൂർച്ചയുള്ള അഗ്രങ്ങൾ: While parts are laser-cut, some edges may be sharp. Handle with care during assembly.
• Do Not Aim at Eyes or Face: The ballista fires small projectiles. Never aim the assembled model at people or animals, especially at the eyes or face.
• Use Provided Projectiles Only: Only use the wooden arrows provided with the kit. Do not use other objects as projectiles.
• Keep Away from Water and Fire: Wood is susceptible to damage from moisture and fire. Store and use the model in a dry environment away from open flames.

പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Laser-cut wooden sheets with puzzle pieces.
• Detailed English instruction manual.
• Rubber bands (for tensioning the ballista).
• Three mini wooden arrows.
• One wooden warrior figure.
• Small sandpaper block (for smoothing edges, if needed).

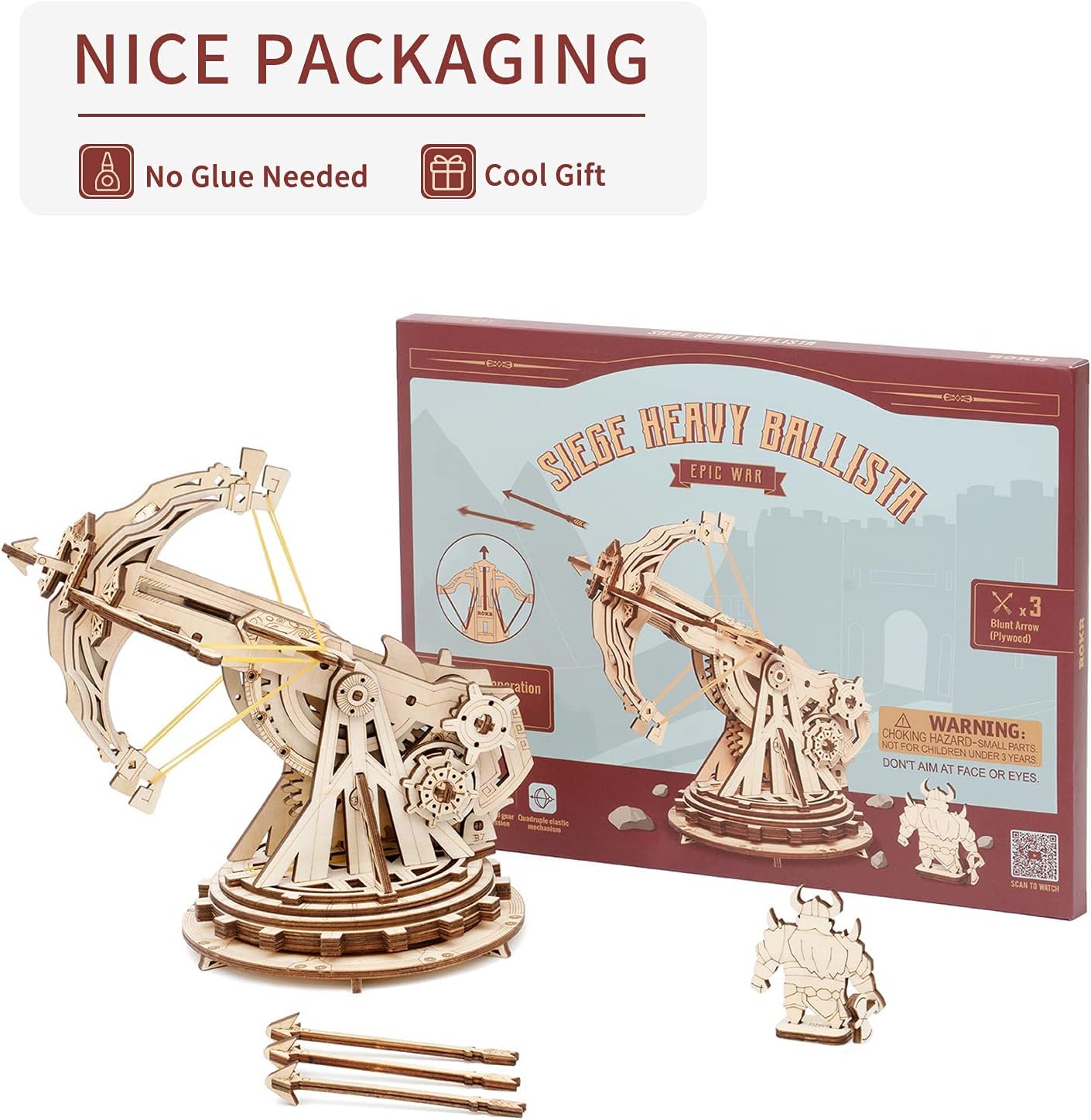

Image: The complete ROBOTIME Siege Heavy Ballista kit, showing the unassembled wooden sheets, the instruction booklet, rubber bands, and the wooden arrows and warrior figure.

അസംബ്ലി നിർദ്ദേശങ്ങൾ

Follow the step-by-step instructions provided in the included manual. No glue or additional tools are required for assembly. Gently press out the pieces from the wooden sheets.

1. ജോലിസ്ഥലം തയ്യാറാക്കുക: Ensure you have a clean, flat, and well-lit area for assembly.
2. ഭാഗങ്ങൾ തിരിച്ചറിയുക: Refer to the instruction manual to identify each piece before detaching it from the wooden sheet.
3. Detach Pieces: Carefully push out each piece. If a piece is difficult to remove, use a small, blunt object to gently push it from the back, or use the provided sandpaper to smooth any rough edges.
4. അക്കമിട്ട ഘട്ടങ്ങൾ പാലിക്കുക: Assemble the model by following the numbered diagrams and instructions in the manual. Pay close attention to the orientation of each piece.
5. Interlocking Design: Pieces are designed to interlock. Apply gentle, even pressure to fit them together. Avoid forcing pieces, as this may cause damage.
6. Rubber Band Installation: Install the rubber bands as indicated in the manual. These provide the tension for the ballista's firing mechanism.

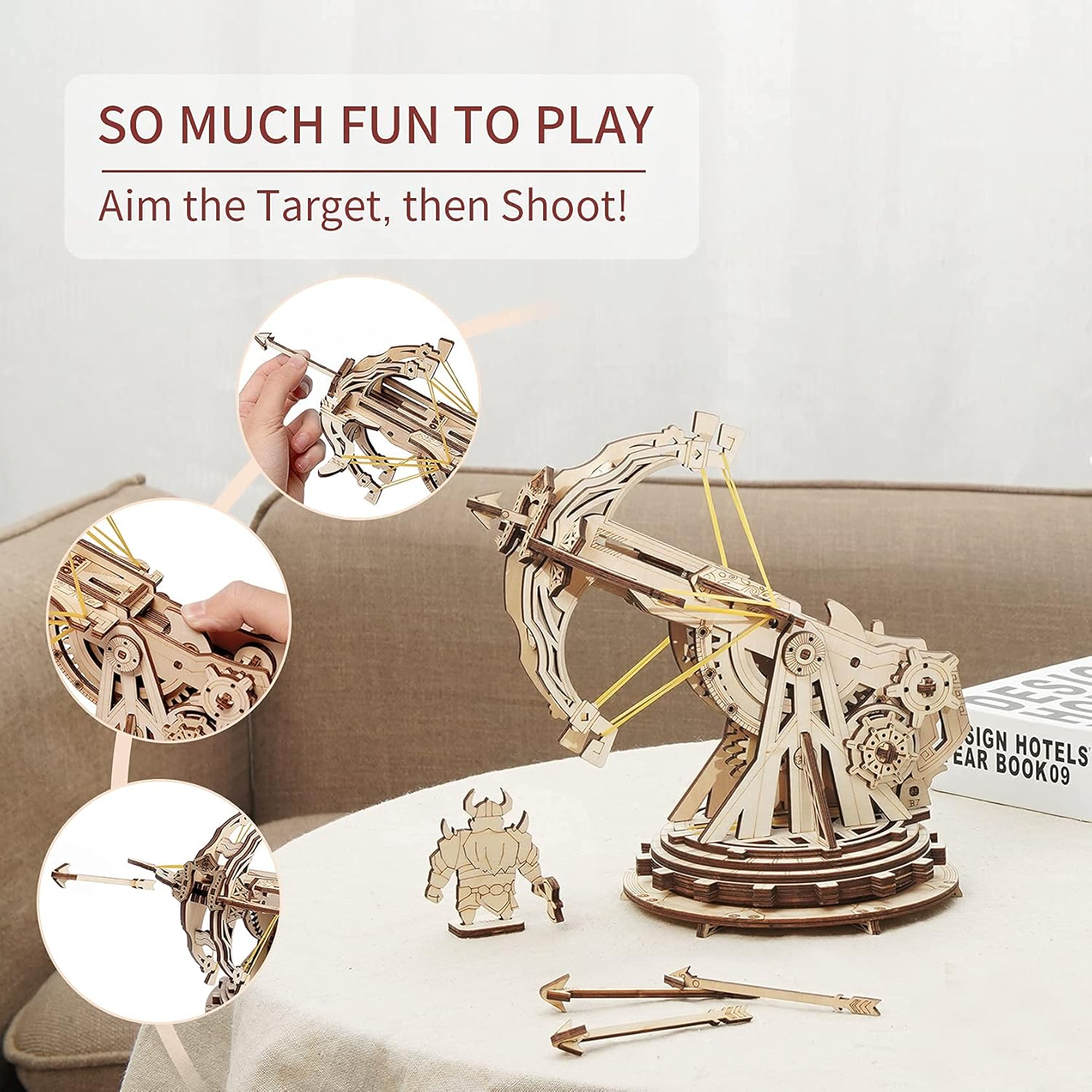

Image: A close-up of hands carefully fitting a wooden puzzle piece into the base structure of the ballista, demonstrating the assembly process.

Image: An intricate view of the wooden gears and interlocking components being assembled, highlighting the detailed craftsmanship of the puzzle.

അസംബ്ലി വീഡിയോ ഗൈഡ്

For a visual guide on assembly and operation, please watch the official product video below:

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once assembled, your Siege Heavy Ballista is ready for action. Follow these steps to operate it:

1. Load the Arrow: Place one of the provided wooden arrows onto the firing mechanism, ensuring it sits securely.
2. Tension the Ballista: Pull back the firing arm until it locks into place. The rubber bands will provide the necessary tension.
3. ലക്ഷ്യം: Adjust the angle and direction of the ballista to aim at your target. Remember the safety warning: കണ്ണും മുഖവും ലക്ഷ്യമാക്കരുത്.
4. തീ: Press the release trigger to launch the wooden arrow.

Image: The fully assembled Siege Heavy Ballista, positioned with a wooden warrior figure and arrows, ready for simulated play.

മെയിൻ്റനൻസ്

To ensure the longevity and proper function of your wooden puzzle model, consider the following maintenance tips:

• വൃത്തിയാക്കൽ: Dust the model regularly with a soft, dry cloth. Avoid using water or cleaning solutions, as they can damage the wood.
• സംഭരണം: Store the model in a cool, dry place away from direct sunlight and extreme temperature changes to prevent warping or fading of the wood.
• ലൂബ്രിക്കേഷൻ (ഓപ്ഷണൽ): For smoother movement of gears or moving parts, a small amount of paraffin wax can be applied to contact points. Avoid oil-based lubricants.
• റബ്ബർ ബാൻഡ് മാറ്റിസ്ഥാപിക്കൽ: Over time, rubber bands may lose elasticity. Replace them with similar size and strength bands if needed.

ട്രബിൾഷൂട്ടിംഗ്

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

ROBOTIME is committed to providing high-quality products and customer satisfaction. If you encounter any issues with your product, such as defective or missing pieces, please contact our customer service team for assistance.

പിന്തുണയ്ക്ക്, ദയവായി ഔദ്യോഗിക ROBOTIME സന്ദർശിക്കുക. website or contact the retailer where you purchased the product. Your satisfaction is our ultimate pursuit.
