TOPDON ഫീനിക്സ് പ്ലസ് 2 സ്കാനർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

The TOPDON Phoenix Plus 2 is a professional-grade automotive diagnostic scan tool designed for comprehensive vehicle system analysis, maintenance, and advanced functions. This manual provides detailed instructions for setting up, operating, and maintaining your device to ensure optimal performance and accurate diagnostics.

2 പ്രധാന സവിശേഷതകൾ

• ഇസിയു കോഡിംഗ്: Compatible with various brands including Benz, BMW, and V.A.G, allowing for customization and module replacement.
• Bidirectional Control (Active Test): Perform specific tests on vehicle components to identify issues directly.
• 41+ Hot Reset Services: A wide range of maintenance functions such as AdBlue Reset, Oil Reset, SAS Reset, EPB Reset, TPMS Reset, BMS Reset, and more.
• All System Diagnostics: Comprehensive scanning of all available onboard systems (e.g., transmission, engine, body) to retrieve Diagnostic Trouble Codes (DTCs).
• Topology Map: Visual representation of the vehicle's full system status for easy fault identification.
• ഓട്ടോവിനും ഓട്ടോസ്‌കാനും: Quickly identify vehicle information and perform automatic system scans.
• AutoAuth for FCA SGW: Bypass Security Gateway Module in FCA vehicles for advanced diagnostics.
• V.A.G Guided Function: Streamlined procedures for V.A.G vehicles.
• Advanced Hardware: Android 10.0 OS, 10.1-inch touchscreen, 64GB ROM, and 2 years of free software updates.

3. ബോക്സിൽ എന്താണുള്ളത്?

Upon unboxing your TOPDON Phoenix Plus 2, you should find the following components:

• 1x Phoenix Plus 2 Diagnostic Tablet
• 1x VCI Dongle
• 1x ക്യാരി കേസ്
• 1x ഉപയോക്തൃ മാനുവൽ
• Various Diagnostic Connectors (e.g., BMW-20, Fiat-3, GM/VAZ-12, Benz-38, Honda-3, Toyota-17, Toyota-22, Nissan-14+16, Mitsubishi/Hyundai-12+16)
• OBD I Adapter
• OBD II Extension Cable
• യുഎസ്ബി കേബിളിലേക്ക് ടൈപ്പ്-സി
• സിഗരറ്റ് ലൈറ്റർ കേബിൾ
• ബാറ്ററി Clampഎസ് കേബിൾ
• Power Adaptors (UK, EU, US Gauge)
• പാസ്‌വേഡ് കത്ത്

Image: The TOPDON Phoenix Plus 2 Scanner, VCI dongle, and various cables neatly organized within its protective carry case.

4. സജ്ജീകരണവും പ്രാരംഭ കോൺഫിഗറേഷനും

4.1. ഡിവൈസ് ഓവർview and Charging

Before first use, ensure the Phoenix Plus 2 tablet is fully charged using the provided power adapter and Type-C USB cable. The tablet features a robust design with protected ports.

Image: Close-up of the TOPDON Phoenix Plus 2 tablet highlighting the USB port and Type C charging slot.

4.2. രജിസ്ട്രേഷനും സജീവമാക്കലും

To access all features and receive software updates, you must register and activate your device.

1. Connect the tablet to a Wi-Fi network.
2. Navigate to "User Info" > "Settings" > "Login".
3. Select "New Registration" and follow the on-screen prompts to create an account. You will need to input a username, password, and email address.
4. A verification code will be sent to your email. Enter this code when prompted.
5. Locate the "PASSWORD LETTER" included in your package. This contains the Serial Number and Activation Code for your VCI (Vehicle Communication Interface) dongle.
6. Input the Serial Number and Activation Code into the device.
7. Tap "Activate" to complete the registration process.

4.3. ഒരു വാഹനവുമായി ബന്ധിപ്പിക്കുന്നു

The Phoenix Plus 2 uses a VCI dongle for wireless communication with the vehicle. For older vehicles, various diagnostic connectors are provided.

1. Locate the vehicle's OBD-II port (typically under the dashboard).
2. Plug the VCI dongle directly into the OBD-II port. For non-standard OBD-II ports, use the appropriate diagnostic connector and cable from the kit.
3. Ensure the VCI dongle's indicator light is on, signifying a successful connection to the vehicle's power.
4. The tablet will automatically connect to the VCI via Bluetooth within a 10-meter range.

Image: A selection of diagnostic connectors, including BMW-20, Fiat-3, GM/VAZ-12, and Benz-38, for various vehicle models.

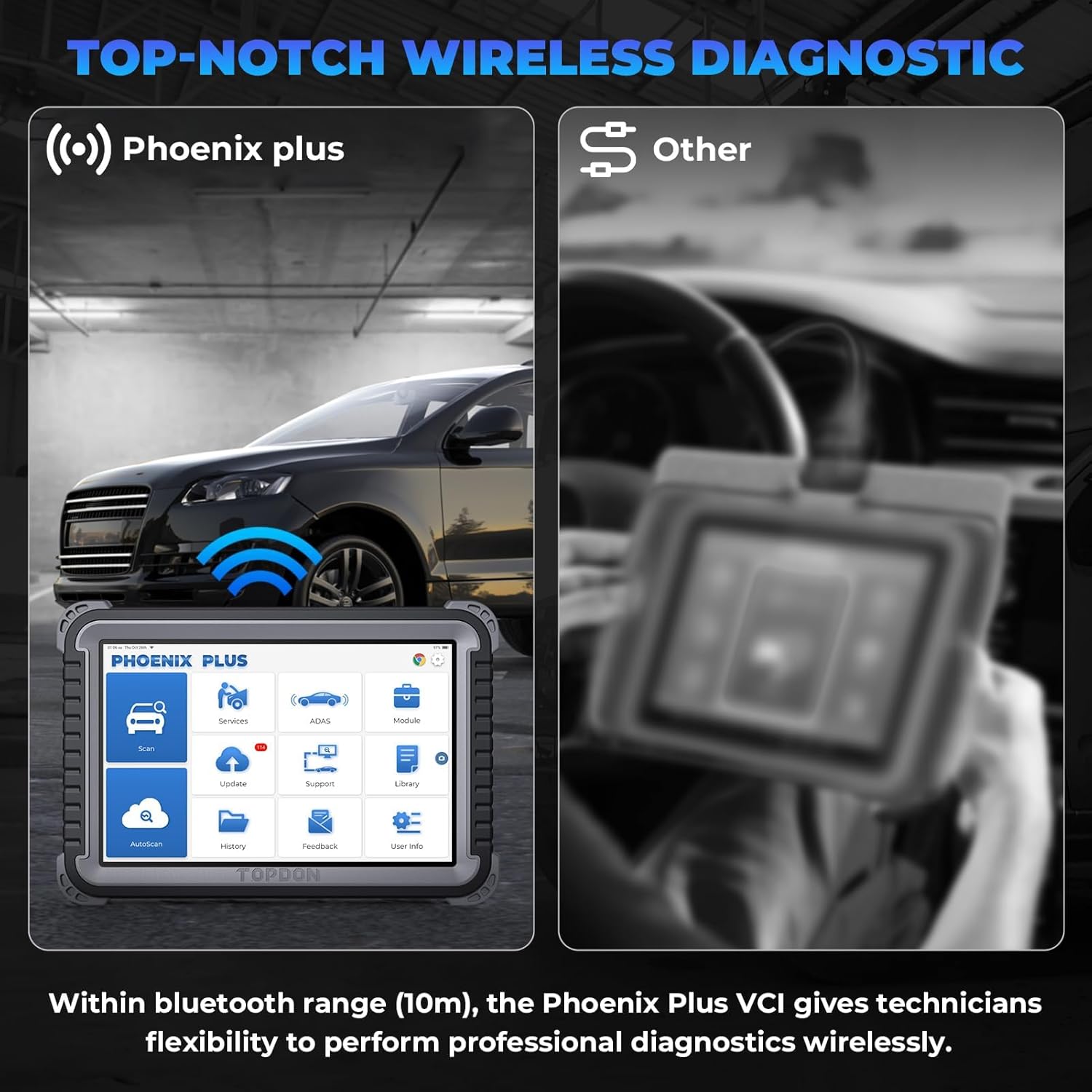

Image: The Phoenix Plus 2 tablet performing wireless diagnostics with a vehicle, illustrating the 10m Bluetooth range.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. ഇന്റർഫേസ് നാവിഗേറ്റ് ചെയ്യുന്നു

The Phoenix Plus 2 operates on Android 10.0 with a user-friendly 10.1-inch touchscreen interface. The main screen provides access to key functions:

• സ്കാൻ ചെയ്യുക: Initiate a diagnostic scan.
• സേവനങ്ങൾ: Access various maintenance and reset functions.
• ADAS: Advanced Driver-Assistance Systems calibration.
• മൊഡ്യൂൾ: Specific module functions.
• അപ്ഡേറ്റ്: Download and install software updates.
• പിന്തുണ: Access technical support and resources.
• ലൈബ്രറി: Contains OBD Fault Code Library, Coverage List, and Learning Materials.
• ഓട്ടോ സ്കാൻ: Automatic vehicle identification and full system scan.
• ചരിത്രം: Review past diagnostic reports.
• ഫീഡ്ബാക്ക്: Send feedback to TOPDON.
• ഉപയോക്തൃ വിവരം: Manage account settings and device information.

5.2. Performing a Diagnostic Scan

The device offers both manual and automatic scanning options.

1. Ensure the VCI is connected to the vehicle and the tablet is powered on.
2. ടാപ്പ് ചെയ്യുക "AutoScan" on the home screen for automatic vehicle identification and a comprehensive scan of all available systems.
3. പകരമായി, ടാപ്പ് ചെയ്യുക "Scan" to manually select vehicle make, model, and year, then proceed with a system-specific scan.
4. ദി Topology Map feature will display the vehicle's system status, highlighting any faulty areas for quick identification.

Image: The Topology Map function on the Phoenix Plus 2 screen, showing a visual overview of a vehicle's electronic control units and their status.

Image: The device demonstrating Topology Mapping to quickly locate faults and AutoVIN for rapid vehicle identification.

5.3. ECU Coding and Bidirectional Control

These advanced functions allow for in-depth vehicle customization and component testing.

• ഇസിയു കോഡിംഗ്: Access the ECU Coding menu to activate or deactivate hidden functions, match new ECUs after replacement, and perform variant coding. This is compatible with various vehicle brands.
• Bidirectional Control (Active Test): From the diagnostic menu, select the desired system and then choose "Active Test" to command specific components (e.g., turn on radiator fan, test fuel injectors, operate windows).

Image: The Phoenix Plus 2 illustrating ECU coding capabilities, such as activating hidden functions and matching new ECUs.

Image: The device demonstrating bidirectional control by activating various vehicle components like the radiator fan and windows.

ചിത്രം: വിശദമായത് view of bidirectional control functions, including testing fuel injectors, coolant pumps, windows, and windshield wipers.

5.4. പരിപാലന സേവനങ്ങൾ

The Phoenix Plus 2 offers over 41 maintenance and reset services. Access these via the "Services" icon on the home screen.

• Common services include: Oil Reset, SAS (Steering Angle Sensor) Reset, EPB (Electronic Parking Brake) Reset, TPMS (Tire Pressure Monitoring System) Reset, BMS (Battery Management System) Reset, AdBlue Reset, Gearbox Reset, Sunroof Reset, Suspension Reset, AFS (Adaptive Front-lighting System) Headlamp Reset, and more.
• Follow the on-screen instructions for each specific service.

Image: The Phoenix Plus 2 screen showing a selection of over 41 maintenance services, including Oil Reset, Adblue Reset, and EPB Reset.

Image: A more detailed list of the 41+ maintenance services available, such as SRS, ABS, Transport, Suspension Reset, and more.

5.5. Vehicle Coverage Inquiry

To check specific functions supported for a particular vehicle, use the Vehicle Coverage feature:

1. ഹോം സ്ക്രീനിൽ നിന്ന്, ടാപ്പ് ചെയ്യുക "Library".
2. തിരഞ്ഞെടുക്കുക "Coverage List" to go to the Coverage List page.
3. Select the make of the vehicle or the service function you wish to inquire about.
4. Select or enter the vehicle model, year, and other relevant details to check the specific service functions covered.

6. പരിപാലനം

6.1. സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ

Regular software updates are crucial for maintaining optimal performance, expanding vehicle coverage, and adding new features. The Phoenix Plus 2 includes 2 years of free software updates.

• ഉപകരണം ഒരു സ്ഥിരതയുള്ള വൈഫൈ നെറ്റ്‌വർക്കിലേക്ക് കണക്റ്റുചെയ്‌തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• ടാപ്പ് ചെയ്യുക "Update" ഹോം സ്ക്രീനിൽ ഐക്കൺ.
• Select the available updates and follow the on-screen instructions to install them.

6.2. ജനറൽ കെയർ

• ഉപകരണം വൃത്തിയായും പൊടിയും ഈർപ്പവും ഇല്ലാതെയും സൂക്ഷിക്കുക. വൃത്തിയാക്കാൻ മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിക്കുക.
• Store the device in its protective carry case when not in use to prevent damage.
• ഉപകരണത്തെ തീവ്രമായ താപനിലയിലോ നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിലോ ദീർഘനേരം തുറന്നുകാട്ടുന്നത് ഒഴിവാക്കുക.
• ഉപകരണം സ്വയം ഡിസ്അസംബ്ലിംഗ് ചെയ്യാനോ നന്നാക്കാനോ ശ്രമിക്കരുത്. സഹായത്തിന് ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your TOPDON Phoenix Plus 2, refer to the following common solutions:

• ഉപകരണം ഓണാക്കുന്നില്ല: Ensure the battery is charged. Connect the device to the power adapter and try again.
• VCI not connecting: Check if the VCI dongle is securely plugged into the vehicle's OBD-II port and the vehicle's ignition is on. Verify Bluetooth is enabled on the tablet.
• Software freezing/crashing: Restart the tablet. Ensure the software is up to date. If the issue persists, contact technical support.
• തെറ്റായ ഡയഗ്നോസ്റ്റിക് ഫലങ്ങൾ: Ensure the correct vehicle make, model, and year are selected. Verify all connections are secure.
• Update failures: Check your Wi-Fi connection stability. Ensure sufficient storage space on the device.

For further assistance, refer to the "Support" section on your device or visit the official TOPDON webസൈറ്റ്.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

TOPDON provides a product assurance period. For specific warranty details, please refer to the documentation included with your device or contact TOPDON customer service directly. Technical support is available to assist with any operational or technical queries.

For support, visit the official TOPDON website or use the "Support" feature within the device's interface.
