CATCHFACE Smart Lock User Manual

1. ആമുഖം

Thank you for choosing the CATCHFACE Smart Lock. This advanced 5-in-1 keyless entry door lock provides multiple convenient and secure access methods, including fingerprint recognition, anti-peep virtual password, smartphone app control, IC card, and traditional physical keys. This manual will guide you through the installation, operation, and maintenance of your new smart lock to ensure optimal performance and security.

2. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:

• 1 x Smart Lock Assembly
• 1 x 60/70mm ക്രമീകരിക്കാവുന്ന ബാക്ക്‌സെറ്റ് ലാച്ച്
• 1 x ഇൻസ്റ്റലേഷൻ സ്ക്രൂസ് ബാഗ്
• 1 x ലാച്ച് ബോക്സും സ്ട്രൈക്ക് പ്ലേറ്റും
• 2 x മെക്കാനിക്കൽ കീകൾ
• 5 x CATCHFACE IC Cards

ചിത്രം: കഴിഞ്ഞുview of the CATCHFACE Smart Lock and its included components, such as the handle, latch, keys, and IC cards.

3 സ്പെസിഫിക്കേഷനുകൾ

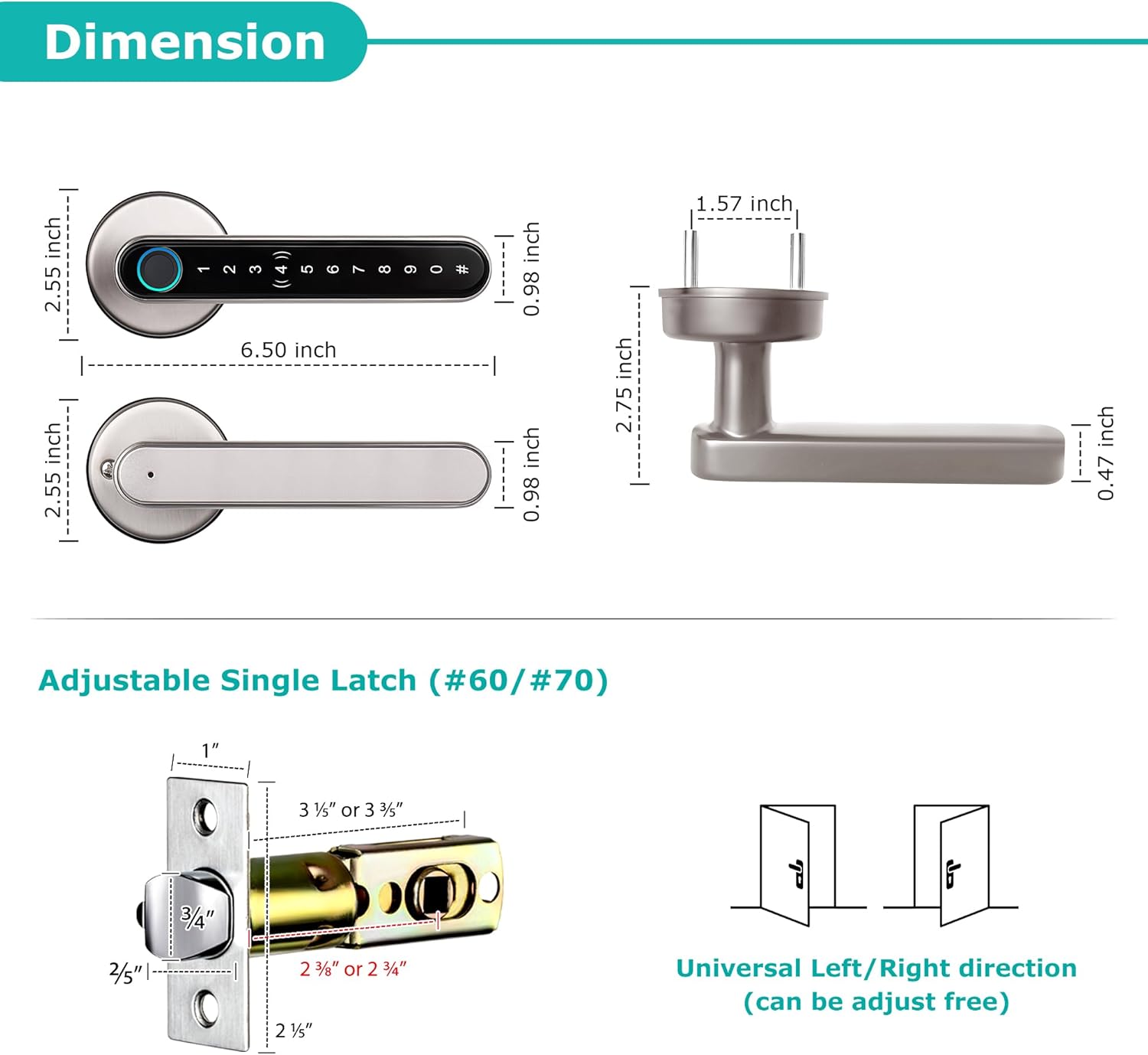

Image: Detailed dimensions of the smart lock and its adjustable latch mechanism.

4. ഇൻസ്റ്റലേഷൻ

The CATCHFACE Smart Lock is designed for easy installation, typically taking minutes. It replaces standard single-cylinder U.S. door locks and supports both left and right-handed doors.

4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധന

• Ensure your door thickness is between 1.38" and 1.97" (35-50mm).
• Verify the adjustable latch can be set to 2.36" or 2.76" (60-70mm) backset.
• എല്ലാ പാക്കേജ് ഉള്ളടക്കങ്ങളും ഉണ്ടെന്ന് സ്ഥിരീകരിക്കുക.

4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ

Follow the step-by-step instructions provided in the included installation guide. While a video guide is typically provided by the manufacturer for visual assistance, it is not available in this manual. Key steps include:

1. Prepare the door: Ensure the existing lock is removed and the door is ready for the new smart lock.
2. Install the latch: Adjust the latch to the correct backset and insert it into the door edge.
3. Install the exterior assembly: Feed the cable through the door and align the exterior handle.
4. Install the interior mounting plate: Secure the mounting plate to the exterior assembly.
5. Connect the cable and install the interior assembly: Connect the cable and attach the interior handle, ensuring proper alignment.
6. Insert batteries: Install 4 AAA alkaline batteries into the battery compartment.
7. Test the lock: Manually test the lock and handle for smooth operation.

Image: Components laid out for installation, illustrating the process.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The CATCHFACE Smart Lock offers multiple ways to unlock and manage access.

5.1 അൺലോക്ക് രീതികൾ

• ഫിംഗർപ്രിന്റ് അൺലോക്ക്: Place your registered finger on the fingerprint sensor. The lock will recognize your fingerprint instantly (0.3s recognition speed) for seamless entry. The lock supports up to 100 fingerprints.


  Image: Close-up of the fingerprint sensor on the smart lock, highlighting its quick recognition.
• Code Unlock (Anti-Peep Password): Enter your passcode on the backlit keypad. To prevent others from peeking, you can input any random numbers before or after your correct password. Press '#' to confirm and unlock.


  Image: Illustration of the anti-peeping password feature, allowing extra digits to be entered before or after the actual code.

• ഐസി കാർഡ് അൺലോക്ക്: Tap the included IC card on the designated sensor area of the lock. The lock will verify the card and unlock. This method is ideal for users who prefer not to use a smartphone or fingerprint.


  Image: A hand holding an IC card near the smart lock for unlocking.

• ഫിസിക്കൽ കീ അൺലോക്ക്: In case of emergency or battery depletion, use one of the two provided mechanical keys to unlock the door manually.
• സ്മാർട്ട്ഫോൺ ആപ്പ് നിയന്ത്രണം: Use the TT Lock app on your smartphone to unlock the door via Bluetooth when within range. For remote control, a CATCHFACE WiFi Gateway (sold separately, ASIN: B085HFFF9T) ആവശ്യമാണ്.

5.2 വാതിൽ പൂട്ടുന്നു

To lock the door, simply lift the handle upwards or long-press the '#' button on the keypad. The lock will engage automatically.

Image: Demonstrates how to lock the smart handle lock by long-pressing the '#' button.

5.3 TT Lock App Features

The TT Lock app provides comprehensive management of your smart lock:

• മോണിറ്റർ ലോക്ക് സ്റ്റാറ്റസ്: View remaining power, alerts, and real-time status.
• eKey അയയ്ക്കുക: Share virtual keys with other TT Lock users.
• പാസ്‌കോഡുകൾ സൃഷ്ടിക്കുക: Create permanent, timed, one-time, or recurring passcodes for various users (e.g., family, friends, maintenance, Airbnb guests).
• റിമോട്ട് കൺട്രോൾ: Lock/unlock remotely and manage codes from anywhere with the optional CATCHFACE WiFi Gateway.
• Manage Access Information: Generate or delete passwords, fingerprints, cards, or eKeys, and authorize administrators.
• പ്രവർത്തന ലോഗുകൾ പരിശോധിക്കുക: View unlock records and alarm records for enhanced security monitoring.
• Employee Attendance: Support office attendance management.

Image: The TT Lock Smart APP interface, illustrating its various features for lock management.

Image: Demonstrates the comprehensive management capabilities through both the mobile app and a web പോർട്ടൽ.

5.4 Remote Control with Gateway

To enable remote lock/unlock, code management, and real-time access logs from anywhere, you must pair your smart lock with the optional CATCHFACE WiFi Gateway (sold separately, ASIN: B085HFFF9T). This also allows seamless integration with Amazon Alexa and Google Home for voice control.

Image: Illustrates remote control functionality via smartphone and voice commands with a smart speaker, requiring the CATCHFACE Gateway.

6. പരിപാലനം

6.1 ബാറ്ററി മാനേജ്മെൻ്റ്

The smart lock is powered by 4 AAA alkaline batteries. The TT Lock app will provide low battery alarms. When battery levels are critically low (below 20%), the smart lock will emit a 'di-di' sound as a warning.

In case of complete battery depletion, a micro USB power bank can be used as a temporary power supply by connecting it to the micro USB charging port on the lock. Always keep the physical keys as a fail-safe option.

Image: Shows the micro USB port for emergency power supply and the battery compartment.

6.2 വൃത്തിയാക്കൽ

To maintain the lock's appearance and functionality, wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your CATCHFACE Smart Lock, please refer to the following common problems and solutions:

• ലോക്ക് പ്രതികരിക്കുന്നില്ല: Check battery levels in the TT Lock app. If low, replace batteries or use a micro USB power bank for temporary power. Ensure the lock is properly installed and all connections are secure.
• വിരലടയാളം തിരിച്ചറിയാൻ കഴിഞ്ഞില്ല: Ensure your finger is clean and dry. Try re-registering your fingerprint in the app. Clean the fingerprint sensor with a soft cloth.
• കീപാഡ് പ്രതികരിക്കുന്നില്ല: Ensure the keypad is clean. If the keypad is not lighting up, check battery levels.
• റിമോട്ട് അൺലോക്ക് പ്രവർത്തിക്കുന്നില്ല: Verify that the CATCHFACE WiFi Gateway is properly set up and connected to your home Wi-Fi network. Ensure the gateway is within Bluetooth range of the smart lock. Check your internet connection.
• Lock makes unusual sounds: This might indicate low battery. If the sound persists after battery replacement, contact customer support.
• Difficulty with app connection: Ensure Bluetooth is enabled on your smartphone. Try restarting the app or your phone. If issues persist, try re-pairing the lock with the app.

For more detailed troubleshooting or persistent issues, please consult the TT Lock app's help section or contact CATCHFACE customer support.

8. വാറൻ്റിയും പിന്തുണയും

CATCHFACE is committed to providing high-quality smart lock solutions. While specific warranty details are not provided in this manual, most CATCHFACE products come with a standard manufacturer's warranty covering defects in materials and workmanship.

For warranty claims, technical support, or any inquiries regarding your CATCHFACE Smart Lock, please contact CATCHFACE customer service through their official website or the contact information provided with your purchase. You can also visit the CATCHFACE Store on Amazon കൂടുതൽ വിവരങ്ങൾക്കും പിന്തുണാ ഉറവിടങ്ങൾക്കും.
