ZKTeco MB20-VL Multi-Biometric Terminal

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The ZKTeco MB20-VL is an advanced contactless multi-biometric identification terminal designed for efficient and secure access control and time attendance. It incorporates ZKTeco's innovative Visible Light facial recognition technology, allowing for recognition at distances of 30cm to 50cm. This device automatically detects human faces within its detection range, providing enhanced recognition speed and accuracy compared to previous infrared facial recognition systems.

Equipped with a leading 3D neural fingerprint algorithm, the MB20-VL offers multiple verification methods including face, fingerprint, and password, making it suitable for diverse work environments and customer needs. It supports TCP/IP network communication and USB connectivity for data transfer and management.

ചിത്രം 1.1: മുൻഭാഗം view of the ZKTeco MB20-VL Multi-Biometric Terminal, showing the display, keypad, and fingerprint sensor.

പ്രധാന സവിശേഷതകൾ:

• Visible Light Facial Recognition: Contactless and fast recognition.
• Anti-Spoofing Algorithm: Protection against print attacks (laser, color, B/N photos), video attacks, and 3D mask attacks.
• Multiple Verification Methods: Supports Face, Fingerprint, and Password.
• Communication: TCP/IP network and USB port for data management.
• Integrated SSR Excel Software: Standard inclusion for simplified reporting.
• Basic Access Control Functions: Manages entry and exit.
• Storage Capacity: Up to 500 fingerprints, 100 faces, and 50,000 events.

2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the optimal performance of your MB20-VL terminal. Ensure the device is mounted securely and connected correctly.

2.1 അൺപാക്കിംഗും പരിശോധനയും

• Carefully remove the device and all accessories from the packaging.
• Verify that all components are present and undamaged. Contact your supplier immediately if any items are missing or damaged.

2.2 ഉപകരണം മൌണ്ട് ചെയ്യുന്നു

Choose a suitable location for installation, preferably indoors, away from direct sunlight and strong electromagnetic interference. Ensure the mounting surface is stable and can support the device's weight.

• Use the provided mounting template (if applicable) to mark the drilling points on the wall.
• ദ്വാരങ്ങൾ തുരന്ന് മതിൽ പ്ലഗുകൾ തിരുകുക.
• Secure the mounting bracket (if separate) to the wall using screws.
• Attach the MB20-VL terminal to the mounting bracket or directly to the wall, ensuring it is firmly in place.

2.3 വൈദ്യുതിയും നെറ്റ്‌വർക്കും ബന്ധിപ്പിക്കുന്നു

Refer to the back panel of the device for port identification.

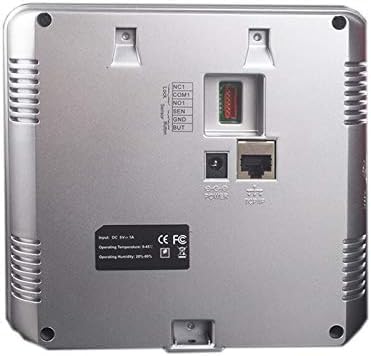

ചിത്രം 2.1: പിന്നിലേക്ക് view of the ZKTeco MB20-VL, illustrating power input, TCP/IP port, and other connections.

• പവർ കണക്ഷൻ: Connect the DC 9V-1A power adapter to the 'POWER' port on the back of the device. Plug the adapter into a suitable power outlet.
• Network Connection (TCP/IP): Connect an Ethernet cable from your network router or switch to the 'TCP/IP' port on the back of the device. This enables network communication for data synchronization and remote management.
• USB കണക്ഷൻ: A USB port is available for local data transfer, such as exporting attendance records or importing user data. This port is typically located on the side of the device.

ചിത്രം 2.2: വശം view of the ZKTeco MB20-VL, highlighting the USB port for data transfer.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

This section outlines the basic operation of the MB20-VL terminal, including user enrollment and verification.

3.1 Initial Setup and Administrator Enrollment

• Upon first power-on, the device will prompt for initial setup.
• It is highly recommended to enroll an administrator (using face, fingerprint, or password) to secure device settings.
• Access the main menu by pressing the 'M/OK' button. If an administrator is set, you will be prompted for verification.

3.2 User Enrollment

To enroll new users:

1. From the main menu, navigate to 'User Management' or 'Enroll User'.
2. Select 'New User' and enter a User ID.
3. എൻറോൾ മുഖം: Follow the on-screen prompts to position your face within the recognition area. Ensure good lighting and a clear view നിങ്ങളുടെ മുഖത്തിൻ്റെ.
4. വിരലടയാളം എൻറോൾ ചെയ്യുക: Place your finger firmly on the fingerprint sensor. Lift and repeat as prompted (typically 3 times) for accurate registration.
5. Enroll Password: Enter a numeric password using the keypad and confirm it.
6. ഉപയോക്തൃ വിവരങ്ങൾ സംരക്ഷിക്കുക.

3.3 User Verification

For time attendance or access control:

• Face Verification: Stand within 30-50cm of the device. The device will automatically detect and verify your face.
• Fingerprint Verification: നിങ്ങളുടെ രജിസ്റ്റർ ചെയ്ത വിരൽ ഫിംഗർപ്രിന്റ് സെൻസറിൽ വയ്ക്കുക.
• Password Verification: Enter your registered password using the keypad and press 'M/OK'.

Upon successful verification, the device will display a confirmation message (e.g., 'Welcome' or 'Access Granted') and record the event.

3.4 ഡാറ്റ മാനേജ്മെൻ്റ്

• ഡാറ്റ ഡൗൺലോഡ് ചെയ്യുന്നു: Connect a USB drive to the device's USB port or use the TCP/IP connection with compatible software to download attendance logs and user data.
• SSR Excel Software: Utilize the integrated SSR Excel software for generating attendance reports directly from the device via USB.

4. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your MB20-VL terminal.

4.1 വൃത്തിയാക്കൽ

• Display and Lens: മൃദുവായ, ലിൻ്റ് രഹിത തുണി ഉപയോഗിക്കുകampened with a non-abrasive cleaner (e.g., screen cleaner) to gently wipe the display screen and the facial recognition lens. Avoid excessive moisture.
• ഫിംഗർപ്രിന്റ് സെൻസർ: Use a clean, dry, soft cloth to wipe the fingerprint sensor. Do not use harsh chemicals or abrasive materials, as they can damage the sensor surface.
• ഉപകരണം സിasing: പുറംഭാഗം തുടയ്ക്കുക casinമൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് ഗ്രാം.

4.2 പരിസ്ഥിതി വ്യവസ്ഥകൾ

Ensure the device operates within the specified environmental ranges:

• പ്രവർത്തന താപനില: 0°C മുതൽ 45°C വരെ (32°F മുതൽ 113°F വരെ)
• പ്രവർത്തന ഈർപ്പം: 20% മുതൽ 80% വരെ (കണ്ടെൻസിംഗ് അല്ലാത്തത്)

Avoid exposing the device to extreme temperatures, direct sunlight, high humidity, or dusty environments.

4.3 ഡാറ്റ ബാക്കപ്പ്

Regularly back up attendance records and user data to prevent data loss. This can be done via USB export or through network software.

5. പ്രശ്‌നപരിഹാരം

This section provides solutions to common issues you might encounter with the MB20-VL terminal.

If the problem persists after attempting these solutions, please contact your reseller or ZKTeco technical support.

6 സ്പെസിഫിക്കേഷനുകൾ

7. വാറൻ്റിയും പിന്തുണയും

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official ZKTeco webസൈറ്റ്. വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും പ്രദേശത്തിനും റീസെല്ലറിനും അനുസരിച്ച് വ്യത്യാസപ്പെടാം.

For technical support, product inquiries, or service requests, please contact your authorized ZKTeco reseller or visit the official ZKTeco support portal. Provide your product model number (MB20_01) and a detailed description of your issue for efficient assistance.
