1. ആമുഖം
This user manual provides comprehensive instructions for the safe and effective operation of the Rigol DG1062Z Function/Arbitrary Waveform Generator. The DG1062Z is a high-performance, multi-functional signal source capable of generating various waveforms, including sine, square, ramp, pulse, noise, and arbitrary waveforms, with a maximum frequency of 60MHz across two independent channels. It features a 14-bit vertical resolution and 8Mpts arbitrary wave length, making it suitable for a wide range of applications in electronics testing, education, and research.
Please read this manual thoroughly before operating the device to ensure proper usage and to prevent damage to the instrument or injury to personnel. Keep this manual for future reference.

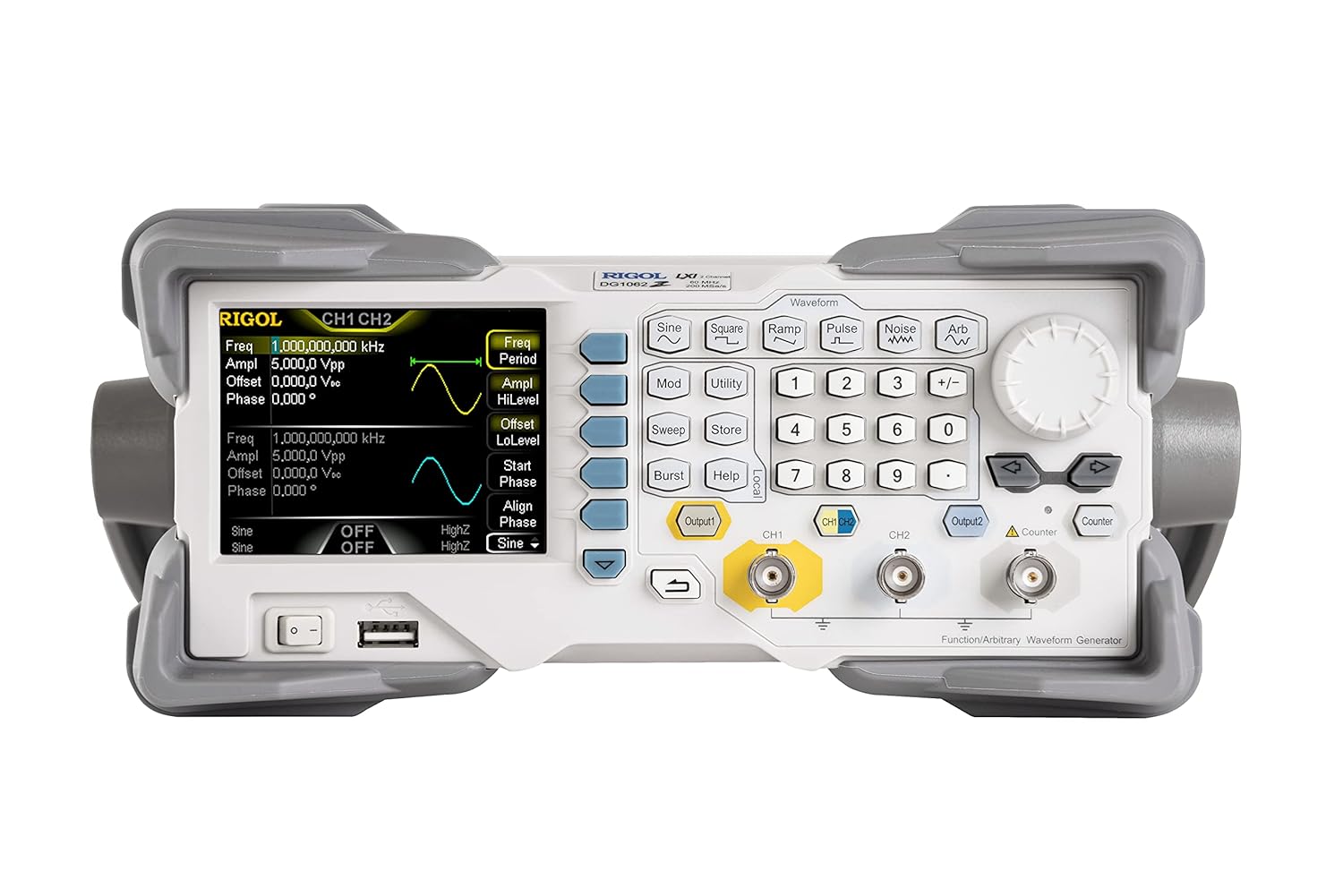

ചിത്രം 1.1: മുൻഭാഗം view of the Rigol DG1062Z Function/Arbitrary Waveform Generator, showing the display, control buttons, and output connectors.
2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
2.1 പായ്ക്ക് ചെയ്യലും പ്രാരംഭ പരിശോധനയും
Carefully remove the DG1062Z from its packaging. Inspect the instrument for any signs of damage that may have occurred during transit. If any damage is found, contact your Rigol distributor immediately.
Figure 2.1: The Rigol DG1062Z Function/Arbitrary Waveform Generator along with its standard accessories, including power cords and BNC cables.
2.2 പവർ കണക്ഷൻ
- Ensure the power switch on the front panel is in the ഓഫ് സ്ഥാനം.
- Connect the supplied AC power cord to the power input connector on the rear panel of the instrument.
- Plug the other end of the power cord into a grounded AC power outlet. The DG1062Z supports AC 100-240V, 45-440Hz.
2.3 Connecting to Other Devices
The DG1062Z offers various connectivity options for integration into your test setup.
- Output Channels (CH1, CH2): Use BNC cables to connect the CH1 and CH2 output connectors on the front panel to your device under test or an oscilloscope.
- USB Host/Device: The front panel USB host port allows for connecting USB storage devices. The rear panel USB device port can be used for PC communication.
- LAN (LXI): The Ethernet port on the rear panel enables network connectivity for remote control and data transfer.
- External Reference Input/Output (10MHz In/Out): For synchronization with external reference clocks.
- External Modulation/Trigger Inputs: For external control of modulation and burst functions.
Figure 2.2: Rear panel of the Rigol DG1062Z, highlighting the power input, LAN, USB device, and external reference/trigger ports.
2.4 പ്രാരംഭ പവർ-ഓൺ
After connecting the power cord, press the power switch on the front panel to turn on the instrument. The display will illuminate, and the system will perform a self-test. Once the boot sequence is complete, the main interface will appear, ready for operation.
3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
3.1 ഫ്രണ്ട് പാനൽ ഓവർview
The front panel of the DG1062Z is designed for intuitive operation. It includes a color LCD display, waveform selection buttons, numeric keypad, navigation keys, and output connectors.
ചിത്രം 3.1: കോണാകൃതിയിലുള്ളത് view of the DG1062Z, providing a clear perspective of the display and the arrangement of control buttons.
3.2 Generating Standard Waveforms
To generate a standard waveform:
- Press one of the waveform buttons (e.g., സൈൻ, സമചതുരം, Ramp, പൾസ്, ശബ്ദം, Arb) to select the desired waveform type.
- Use the numeric keypad and navigation keys to set parameters such as ആവൃത്തി, Ampഅക്ഷാംശം (Vpp), ഓഫ്സെറ്റ്, ഒപ്പം ഘട്ടം.
- അമർത്തുക ഔട്ട്പുട്ട് button for the desired channel (CH1 or CH2) to enable the waveform output. The button will illuminate when the output is active.
3.3 Modulation Functions
The DG1062Z supports various modulation types. Press the മോഡ് button to access modulation settings.
- AM (Amplitude Modulation): Adjust carrier frequency, modulation depth, and modulating waveform.
- FM (Frequency Modulation): Set carrier frequency, frequency deviation, and modulating waveform.
- PM (Phase Modulation): Configure carrier frequency, phase deviation, and modulating waveform.
- ചോദിക്കുക (Amplitude Shift Keying): Define carrier frequency and keying rate.
- FSK (Frequency Shift Keying): Specify carrier frequency and keying rate.
3.4 Sweep and Burst Modes
The instrument can generate swept and burst waveforms.
- സ്വീപ്പ്: അമർത്തുക തൂത്തുവാരുക to configure start/stop frequency, sweep time, and sweep type (linear/log).
- പൊട്ടിത്തെറി: അമർത്തുക പൊട്ടിത്തെറിക്കുക to set the number of cycles, burst period, and trigger source (internal/external/manual).
3.5 Using the Counter Function
The DG1062Z includes a built-in frequency counter. Press the കൗണ്ടർ button to activate and configure the counter. It can measure frequency, period, and duty cycle of external signals.
3.6 Saving and Recalling Settings
നിലവിലെ ഉപകരണ ക്രമീകരണങ്ങൾ സംരക്ഷിക്കാൻ, സ്റ്റോർ button. To recall previously saved settings, press the തിരിച്ചുവിളിക്കുക button (often accessed via Utility menu or dedicated button).
4. പരിപാലനം
4.1 ഉപകരണം വൃത്തിയാക്കൽ
To maintain the appearance and prolong the life of the instrument, clean the exterior surfaces regularly. Use a soft cloth dampened with a mild detergent or water. Do not use abrasive cleaners or solvents that may damage the plastic parts.
4.2 കാലിബ്രേഷൻ
The DG1062Z is factory calibrated. For optimal performance, periodic calibration by qualified service personnel is recommended. Refer to Rigol's official support channels for calibration services.
4.3 സംഭരണം
When not in use for extended periods, store the instrument in a clean, dry environment, away from direct sunlight and extreme temperatures. Ensure all cables are disconnected and the power is off.
5. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഉപകരണം ഓണാക്കുന്നില്ല. | Power cord not connected properly; Power outlet faulty; Internal fuse blown. | Check power cord connection; Test power outlet; Contact service for fuse replacement. |
| തരംഗരൂപ ഔട്ട്പുട്ട് ഇല്ല. | Output channel not enabled; Amplitude set to zero; Cable connection faulty. | അമർത്തുക ഔട്ട്പുട്ട് button for the channel; Increase amplitude setting; Check BNC cable connections. |
| Incorrect waveform displayed on oscilloscope. | Incorrect settings on DG1062Z; Oscilloscope settings incorrect (e.g., vertical scale, time base). | Verify waveform parameters on DG1062Z; Adjust oscilloscope settings to match expected signal. |
| റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല. | Incorrect LAN/USB settings; Driver issues; Network connectivity problems. | Check network cable and IP settings; Install correct USB drivers; Verify network connection. |
6 സ്പെസിഫിക്കേഷനുകൾ
The following table lists the key specifications for the Rigol DG1062Z Function/Arbitrary Waveform Generator.
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 10.3 x 12.54 x 4.41 ഇഞ്ച്; 7.05 പൗണ്ട് |
| ഇനം മോഡൽ നമ്പർ | DG1062Z |
| നിർമ്മാതാവ് | റിഗോൾ |
| മൗണ്ടിംഗ് തരം | ഉപരിതല മൗണ്ട് |
| ചാനലുകളുടെ എണ്ണം | 2 |
| പരമാവധി ആവൃത്തി | 60MHz |
| ലംബ മിഴിവ് | 14 ബിറ്റ് |
| Arbitrary Wave Length | 8Mpts |
7. വാറൻ്റിയും പിന്തുണയും
7.1 വാറൻ്റി വിവരങ്ങൾ
Rigol products are typically covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and duration, please refer to the warranty card included with your product or visit the official Rigol webവാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
7.2 സാങ്കേതിക പിന്തുണ
For technical assistance, troubleshooting, or service inquiries, please contact Rigol customer support. You can find contact information, FAQs, and additional resources on the official Rigol webസൈറ്റ്:
When contacting support, please have your instrument's model number (DG1062Z) and serial number ready.
