1. ആമുഖം
The TOPDON TORNADO1200 is a versatile 6V and 12V smart battery charger designed for various lead-acid and 12V lithium-ion batteries. It features a fully automatic 5-step charging process, ensuring optimal battery health and longevity. This charger is compatible with a wide range of vehicles, including cars, SUVs, motorcycles, light trucks, boats, and lawnmowers.
Image: The TOPDON TORNADO1200 Smart Battery Charger, showcasing its robust design and water resistance.
1.1 പാക്കേജ് ഉള്ളടക്കം
- TOPDON TORNADO1200 Battery Charger Unit
- Copper Clamps (Red and Black)
- ഉപയോക്തൃ മാനുവൽ
2 സുരക്ഷാ വിവരങ്ങൾ
Always prioritize safety when working with electrical devices and batteries. Read and understand all safety warnings and instructions before using the TOPDON TORNADO1200 charger.
- നേത്ര സംരക്ഷണം: Always wear eye protection when working near batteries.
- വെൻ്റിലേഷൻ: Ensure adequate ventilation in the charging area to prevent the accumulation of explosive gases.
- Spark-Proof Connections: The charger features spark-proof connections. However, avoid creating sparks near the battery.
- പോളാരിറ്റി സംരക്ഷണം: The device includes reverse polarity protection. Always ensure correct connection to battery terminals (red to positive, black to negative).
- ഓവർചാർജ് പരിരക്ഷണം: The charger automatically stops charging when the battery is full to prevent overcharging.
- താപനില: Do not expose the charger to extreme temperatures outside its operating range (-10°C to 40°C).
- ജല പ്രതിരോധം: The charger is IP65 rated for water resistance, but avoid submerging it in water.
Image: Premium copper clamps with built-in safety features including reverse polarity, short circuit, overcharge, over-discharge, over-temperature, low voltage, റിവേഴ്സ് കണക്ഷൻ സംരക്ഷണം.
Image: The charger's spark-proof design ensures safe connection to battery terminals.
Image: Overcharge protection ensures the battery is not damaged by excessive charging, allowing for safe, unattended use.
3. സജ്ജീകരണം
3.1 ചാർജർ ബന്ധിപ്പിക്കുന്നു
- Ensure the charger is unplugged from the AC power outlet.
- ചുവന്ന പോസിറ്റീവ് (+) cl ബന്ധിപ്പിക്കുകamp പോസിറ്റീവ് (+) ബാറ്ററി ടെർമിനലിലേക്ക്.
- ബ്ലാക്ക് നെഗറ്റീവ് (-) cl ബന്ധിപ്പിക്കുകamp നെഗറ്റീവ് (-) ബാറ്ററി ടെർമിനലിലേക്ക്.
- Plug the charger into a suitable AC power outlet (100-240V, 50-60Hz).
- The charger will automatically detect the battery type and begin the charging process.

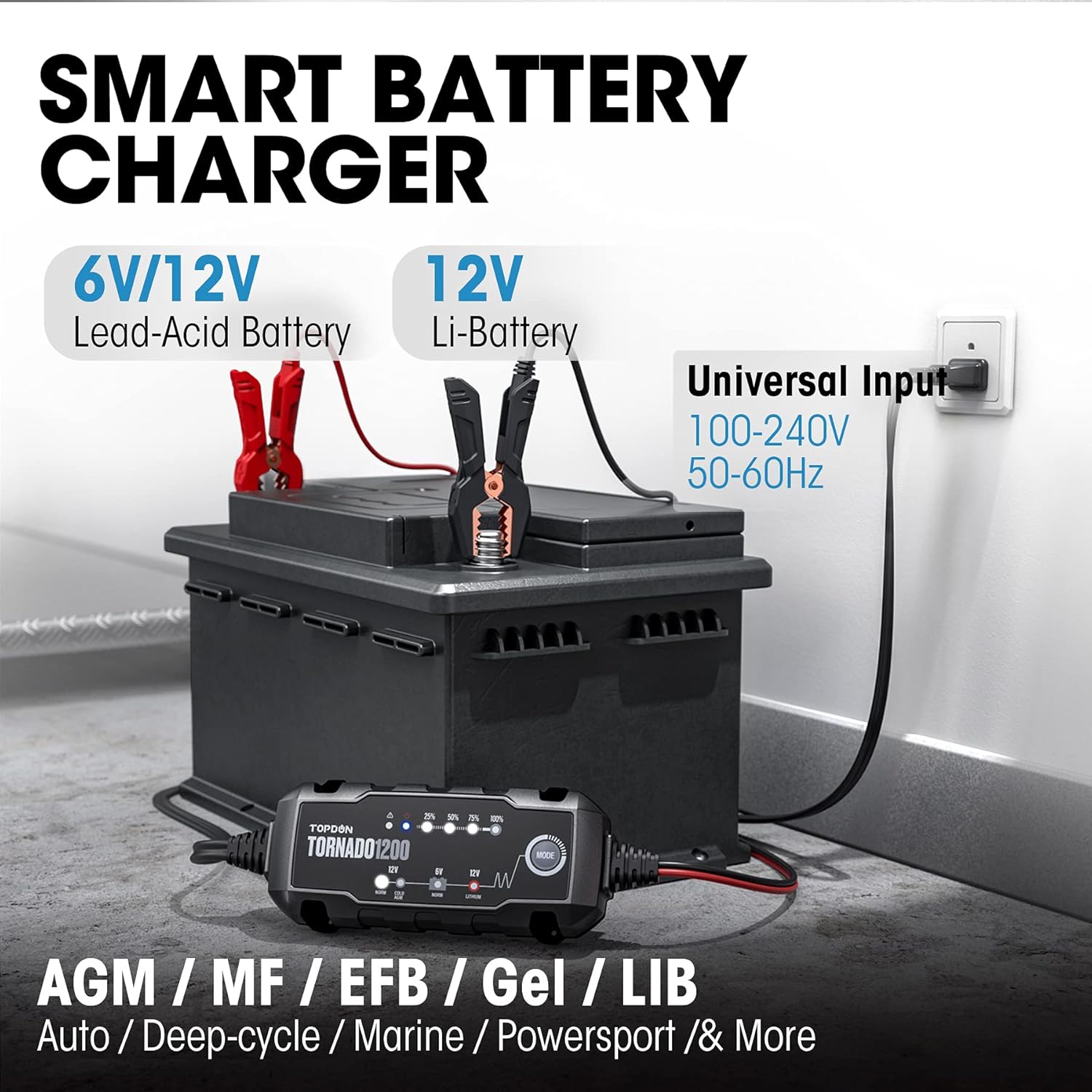

Image: The TOPDON TORNADO1200 charger connected to a battery, illustrating its universal input compatibility for 6V/12V lead-acid and 12V lithium batteries.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 ചാർജിംഗ് മോഡുകൾ
The TORNADO1200 offers multiple charging modes to suit different battery types and conditions. Press the 'MODE' button to cycle through the available options:
- സ്റ്റാൻഡ് ബൈ: No charging, no power supplied to the battery.
- 6V Norm: For 6V wet, gel cell, enhanced flooded, and maintenance-free batteries.
- 12V Norm: For 12V wet, gel cell, enhanced flooded, and maintenance-free batteries.
- 12V Cold/AGM: For 12V batteries in cold temperatures (below 14°F/-10°C) or AGM batteries.
- 12V Lithium: For 12V lithium iron phosphate batteries.
Image: The charger's interface displaying various multi-compatibility charging modes for different battery types and conditions.
4.2 5-ഘട്ട സ്മാർട്ട് ചാർജിംഗ് പ്രക്രിയ
The TORNADO1200 employs a sophisticated 5-step charging process to diagnose and charge your battery efficiently, optimizing its lifespan and performance:
- Battery Analysis & Diagnosis: The charger assesses the battery's condition.
- Battery Desulfation: If needed, the charger attempts to restore sulfated batteries.
- Battery Bulk Charge: Rapid charging to bring the battery to approximately 80% capacity.
- ആഗിരണം മോഡ്: Charging at a decreasing current to bring the battery to 100% capacity.
- Battery Float Charge: Maintains the battery at full charge without overcharging.
Image: Visual representation of the 5-step smart charging process, from diagnosis to float charge.
Image: A detailed diagram explaining each stage of the 5-step charging process, highlighting battery analysis, desulfation, bulk charge, absorption, and float charge.
Image: The charger provides continuous monitoring of the charging process, indicated by a sequential progress bar from 25% to 100%.
5. പരിപാലനം
5.1 Battery Desulfation and Recovery
The TORNADO1200 can automatically detect battery sulfation and acid stratification. It attempts to restore lost battery power, which can lead to faster starts and extended battery life.
Image: Illustration of the battery recovery process, showing a depleted battery being restored to full capacity.
5.2 Long-Term Battery Maintenance
Once a battery is fully charged, the TORNADO1200 enters a float charge mode, maintaining the battery's charge without overcharging. This makes it ideal for long-term maintenance of infrequently used vehicles.
Image: The TOPDON TORNADO1200 performing advanced battery maintenance, ensuring optimal voltagഇ ലെവലുകൾ.
Image: The IP65 water-resistant design allows for safe operation in various environmental conditions.
Image: The charger is designed to operate reliably in extreme climates, from -10°C (14°F) to 40°C (104°F).
6. പ്രശ്നപരിഹാരം
If you encounter issues with your TOPDON TORNADO1200, refer to the table below for common problems and solutions.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ചാർജർ ഓണാകുന്നില്ല. | No AC power; faulty outlet. | Check AC power connection; try a different outlet. |
| Charging indicator lights not active. | Incorrect battery connection; battery too deeply discharged. | Verify correct clamp connections (red to +, black to -); if battery is below 2V, it may not be recognized. |
| Charger shows error (e.g., reverse polarity). | Clampകൾ തെറ്റായി ബന്ധിപ്പിച്ചിരിക്കുന്നു. | Disconnect from AC, then reconnect clampശരിയായി. |
| ചാർജ് ചെയ്യാൻ വളരെയധികം സമയമെടുക്കുന്നു. | Battery capacity is large; battery is heavily discharged; battery health is poor. | This is normal for large or deeply discharged batteries. If excessively long, consider battery replacement. |
| പ്രവർത്തന സമയത്ത് ചാർജർ ചൂടാകുന്നു. | സാധാരണ പ്രവർത്തനം. | ഇത് സാധാരണമാണ്. ചാർജറിന് ചുറ്റും മതിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | ടോപ്ഡൺ |
| മോഡൽ നമ്പർ | T1200 |
| ഇൻപുട്ട് വോളിയംtage | 100-240V എസി, 50-60Hz |
| Putട്ട്പുട്ട് വോളിയംtage | 6V / 12V ഡിസി |
| ചാർജിംഗ് കറൻ്റ് | 1.2എ |
| അനുയോജ്യമായ ബാറ്ററി തരങ്ങൾ | 6V & 12V Lead-Acid (AGM, MF, EFB, Gel, Flooded), 12V Lithium-ion |
| ബാറ്ററി ശേഷി ശ്രേണി | 10AH മുതൽ 80AH വരെ |
| സുരക്ഷാ പാലിക്കൽ | CE, Spark-proof, Reverse Polarity, Overcharge, Short Circuit, Over-temperature, Low Voltage, Reverse Connection Protection |
| പ്രവർത്തന താപനില | -10°C മുതൽ 40°C വരെ (14°F മുതൽ 104°F വരെ) |
| ജല പ്രതിരോധം | IP65 |
| യു.പി.സി | 632111340326 |
8. വാറൻ്റിയും പിന്തുണയും
The TOPDON TORNADO1200 comes with a 3-year warranty, ensuring reliability and customer satisfaction. For any questions, concerns, or technical support, please contact TOPDON customer service.
ഉപഭോക്തൃ പിന്തുണാ ഇമെയിൽ: support@topdon.com
Please provide your product model and purchase details when contacting support for faster assistance.
