Elitech Inframate C Infrared R-744 Refrigerant Leak Detector User Manual

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Elitech Inframate C Infrared R-744 Refrigerant Leak Detector is engineered for precise and reliable detection of carbon dioxide (CO2) leaks in various applications. Utilizing an advanced infrared sensor, it offers high sensitivity and rapid response, making it an essential tool for professionals.

പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Advanced Infrared Sensor: Provides stable and accurate detection with a low possibility of contamination and strong anti-interference ability. The sensor boasts an impressive life of 40,000 hours.
• Higher Sensitivity: Adaptive sensitivity allows detection of leaks as small as 6g/year.
• Large TFT LCD Display: Clearly shows leakage levels using colorful bars, enhancing user experience and intuitive result presentation.
• ഉപയോഗിക്കാൻ എളുപ്പമാണ്: Equipped with a flexible stainless steel probing rod to reach difficult areas.
• സുരക്ഷിതവും വിശ്വസനീയവും: Features rechargeable and replaceable batteries for environmental friendliness and convenience.

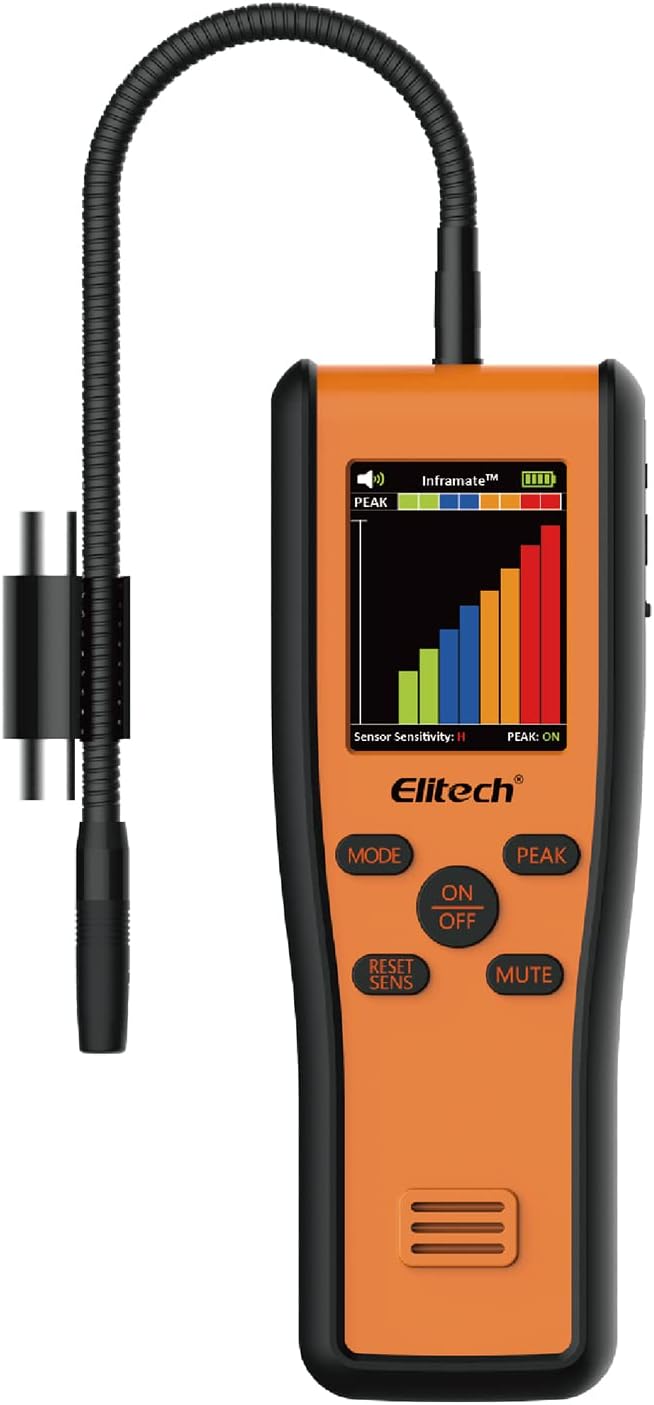

Figure 1: Elitech Inframate C Infrared R-744 Refrigerant Leak Detector

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജ് തുറക്കുമ്പോൾ, ഇനിപ്പറയുന്ന എല്ലാ ഇനങ്ങളും ഉൾപ്പെടുത്തിയിട്ടുണ്ടെന്ന് ദയവായി ഉറപ്പാക്കുക:

• 1 x Leak Detector
• 1 x ഉപയോക്തൃ മാനുവൽ
• 1 x USB കേബിൾ
• 1 x അഡാപ്റ്റർ
• 1 x Packet of Filters (5 filters)
• 1 x UV Light
• 1 x എക്സ്റ്റൻഷൻ പോൾ

Figure 2: All items included in the Elitech Inframate C package

3. സജ്ജീകരണവും പ്രവർത്തനവും

3.1 ഘടകം തിരിച്ചറിയൽ

Figure 3: Labeled components of the Elitech Inframate C, including flexible probe, UV LED, filter components, 3.5mm headphone jack, USB port (Type-C), display screen, buttons, and buzzer.

3.2 Powering On and Warm-up

To power on the detector, press the ഓൺ/ഓഫ് button. The device will enter a warm-up phase, which takes approximately 30 seconds. During this time, the display will show a warming-up message. Once warmed up, it will enter the infrared detection interface with a continuous beeping sound on standby.

3.3 സംവേദനക്ഷമത ക്രമീകരിക്കൽ

ദി സെൻസ് button allows you to adjust the detection sensitivity. You can cycle through High (H), Medium (M), and Low (L) levels as needed. The default sensitivity level is Medium (M).

3.4 Leak Detection and Automatic Reset

The Elitech Inframate C features an automatic reset function. This function resets the leaking level every 3 seconds, which is crucial for helping users pinpoint the exact leaking source by allowing the device to re-calibrate to the ambient air and then react to the leak as you move the probe.

3.5 Recording Peak Levels

അമർത്തുക കൊടുമുടി button to record the current peak level of refrigerant concentration detected. Pressing it again will clear the recorded peak value.

3.6 നിശബ്ദ പ്രവർത്തനം

To mute the continuous beeping sound during standby or operation, press the നിശബ്ദമാക്കുക ബട്ടൺ.

3.7 പവർ ഓഫ്

ഡിറ്റക്ടർ ഓഫ് ചെയ്യാൻ, അമർത്തിപ്പിടിക്കുക ഓൺ/ഓഫ് 2 സെക്കൻഡിനുള്ള ബട്ടൺ.

3.8 Operational Demonstration

Video 1: A comprehensive demonstration of the Elitech Inframate C's features, including power-on, warm-up, sensitivity adjustment, automatic reset for leak detection, peak recording, and power-off procedures.

4. പ്രധാന പരിഗണനകൾ

To ensure accurate readings and prolong the life of your detector, please observe the following:

• മലിനീകരണം ഒഴിവാക്കുക: Leaking areas are often covered with substances like compressor oil or dirt. It is crucial to prevent the sensor tip from coming into contact with these contaminants, as they can affect detection accuracy and sensor longevity.
• ഉണക്കി സൂക്ഷിക്കുക: Keep the sensor tip away from any moisture or other solvents to avoid false alarms and potential damage to the sensor.
• Wear Face Mask: When using the highest sensitivity setting, it is recommended to wear a face mask to avoid faulty alarms caused by exhaled breath.

5 സ്പെസിഫിക്കേഷനുകൾ

Figure 4: Detailed specifications of the Elitech Inframate C Leak Detector.

6. പരിപാലനം

Proper maintenance ensures the longevity and accuracy of your Elitech Inframate C Leak Detector:

• സെൻസർ പരിചരണം: The infrared sensor is a critical component. Avoid exposing the sensor tip to compressor oil, dirt, moisture, or other solvents, as these can contaminate or damage it, leading to inaccurate readings or malfunction.
• വൃത്തിയാക്കൽ: Regularly wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the probe and sensor tip are clean before and after each use.
• ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ: The device comes with a packet of filters. Replace filters periodically or if you notice a decrease in performance or increased false alarms, especially when operating in dusty environments.
• ബാറ്ററി മാനേജ്മെൻ്റ്: Use only the specified rechargeable batteries. Ensure they are properly charged before use and replaced when their performance degrades.
• സംഭരണം: Store the detector in its protective case in a cool, dry place away from direct sunlight, extreme temperatures, and corrosive substances.

7. പ്രശ്‌നപരിഹാരം

ചില സാധാരണ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും ഇതാ:

7.1 Device Beeps Continuously Upon Power On

ഇഷ്യൂ: The device starts beeping immediately when turned on.

പരിഹാരം: This is normal behavior. The device beeps upon powering on. The alarm sound becomes more urgent when a leak is detected.

7.2 Leaks Cannot Be Detected

ഇഷ്യൂ: The detector fails to identify leaks.

പരിഹാരങ്ങൾ:

• The product automatically calibrates. After moving away from a suspected leak point, approach it multiple times to confirm if a leak is present.
• Check if the sensor is damaged.
• Verify if the air pump has lost suction capability.
• Inspect for any blockages in the internal pipeline.

7.3 Product Alarms in Non-Leaking Environment

ഇഷ്യൂ: The detector triggers an alarm even when no leak is present.

പരിഹാരങ്ങൾ:

• Deformation of the optical chamber can affect detection data; this is a normal occurrence.
• A loose critical optical filter might be the cause. Contact support for repair assistance if this is suspected.
• Check for routers or other electronic devices nearby that might be causing electromagnetic interference.

8. വാറൻ്റിയും പിന്തുണയും

Elitech provides comprehensive customer support for the Inframate C Infrared R-744 Refrigerant Leak Detector.

• സാങ്കേതിക സഹായം: Enjoy 24/7 US Technician Support via Email and Phone for any operational or technical queries.
• വാറൻ്റി വിവരങ്ങൾ: Please refer to the warranty card included in your product package for detailed terms and conditions regarding your device's warranty.

For further assistance, please visit the official Elitech webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
