Pichler Glow Plug Heater - Model 15047

1. ആമുഖം

Thank you for choosing the Pichler Glow Plug Heater, Model 15047. This device, also known as Glow Power, is designed to provide efficient and reliable heating for glow plugs in methanol engines. It ensures easy engine starting, smooth operation, and improved throttle response. Please read this manual thoroughly before use to ensure proper installation and operation.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

• Always ensure correct polarity when connecting the glow plug heater to a power source. Incorrect connections can damage the device or the power source.
• ഈർപ്പം അല്ലെങ്കിൽ അങ്ങേയറ്റത്തെ താപനിലയിലേക്ക് ഉപകരണം തുറന്നുകാട്ടരുത്.
• Keep the device away from flammable materials, especially when in operation, as glow plugs generate heat.
• This product is intended for users aged 15 years and older. Adult supervision is recommended for younger users.
• ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ ക്രമീകരണങ്ങൾ നടത്തുന്നതിന് മുമ്പ് വൈദ്യുതി വിതരണം വിച്ഛേദിക്കുക.
• Do not attempt to modify or disassemble the device. Refer all servicing to qualified personnel.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക:

• Pichler Glow Plug Heater (Model 15047)
• Separate Push Button with Status Light

Note: Additional power sources (e.g., receiver battery, supplementary battery) are not included and must be purchased separately.

4. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Pichler Glow Plug Heater (Glow Power) is an essential accessory for methanol engines, providing controlled heating to the glow plug. This ensures optimal engine performance, especially during startup and at low speeds.

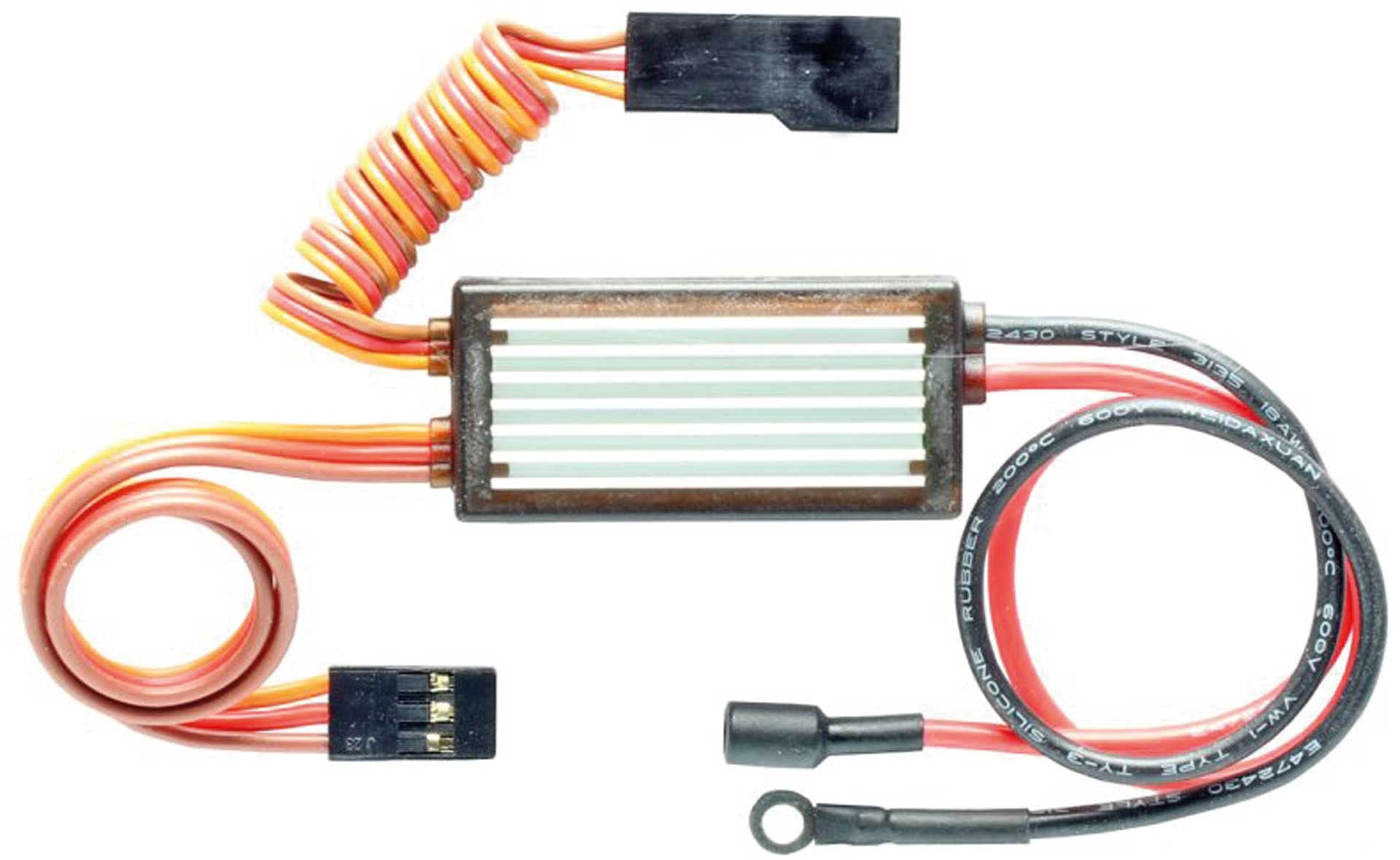

ചിത്രം 1: Pichler Glow Plug Heater (Model 15047). This image shows the compact design of the glow plug heater, which is used to provide controlled heating to glow plugs in methanol engines for improved starting and performance.

പ്രധാന സവിശേഷതകൾ:

• Easy Engine Start: Provides optimal glow plug temperature for quick ignition.
• Smooth Engine Operation: Maintains consistent glow plug heat for reliable performance, even at low RPMs.
• Improved Throttle Response: Contributes to better engine responsiveness.
• Reduced Nitromethane Requirement: Allows for a lower nitromethane content in the fuel.
• വഴക്കമുള്ള നിയന്ത്രണം: Can be controlled via the receiver or manually using the included push button.

5. സജ്ജീകരണം

The Glow Plug Heater offers several connection options:

1. Direct Connection to Receiver Power:

   Connect the glow plug heater directly to the receiver's power supply. This method utilizes the existing power source of your model.

2. Via Receiver with Supplementary Battery:

   Connect the glow plug heater to the receiver, and use an additional, dedicated battery to power the heater. This provides a separate power source for the glow plug, reducing load on the receiver battery.
3. Standalone with Push Button and Supplementary Battery:

   For applications without a receiver, or for manual control, connect the glow plug heater directly to a supplementary battery. Use the included separate push button to activate and deactivate the heating function. The push button includes a status light to indicate operation.

Ensure all connections are secure and observe correct polarity to prevent damage.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

സജീവമാക്കൽ:

• If connected via the receiver, activate the glow plug heater through your model's control system.
• If using the standalone setup, press the separate push button to activate the heating. The status light on the button will illuminate.

വാല്യംtagഇ Outട്ട്പുട്ട്:

• During the engine starting phase, the glow plug heater provides a voltagഇ ഔട്ട്പുട്ട് 1.4 വി.
• Once the engine is running, the voltage stabilizes to 0.8 വി തുടർച്ചയായ പ്രവർത്തനത്തിന്.

നിർജ്ജീവമാക്കൽ:

• Deactivate the glow plug heater via your model's control system or by pressing the push button again. The status light will turn off.

7. പരിപാലനം

• Keep the device clean and free from dirt, dust, and fuel residues. Use a soft, dry cloth for cleaning.
• Regularly inspect all cables and connections for signs of wear or damage. Replace any damaged components immediately.
• Store the glow plug heater in a dry, cool place when not in use.
• Ensure the glow plug itself is in good condition and free from carbon buildup for optimal performance.

8. പ്രശ്‌നപരിഹാരം

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറണ്ടിയും പിന്തുണയും

Specific warranty information for the Pichler Glow Plug Heater Model 15047 is not provided in this manual. Please refer to the retailer or manufacturer's webവിശദമായ വാറന്റി നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കും സൈറ്റ്.

For technical support or inquiries, please contact your point of purchase or the official Pichler customer service channels.
