1. ആമുഖവും അവസാനവുംview
The Marantec Comfort 260 is a high-quality garage door operator designed for reliable and energy-efficient automation of various garage door types. This system is engineered for both swing gates and sectional doors, offering enhanced safety features and user convenience.
Key features include integrated power-saving technology, LED lighting, and a sensitive obstacle detection system that ensures the gate stops and reverses upon contact with an obstruction. The system also incorporates slide-on protection to prevent unintended movement. With its robust design and advanced radio technology, the Comfort 260 provides a secure and comfortable solution for your garage door automation needs.
2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ
Always prioritize safety when installing, operating, or maintaining the garage door operator. Failure to follow these instructions could result in serious injury or property damage.
- Ensure the installation area is clear of obstructions and that the garage door operates smoothly manually before installing the operator.
- Do not allow children to play with or near the garage door operator or its controls. Keep remote controls out of reach of children.
- Never walk or stand under a moving garage door.
- Regularly inspect the garage door system, including springs, cables, rollers, and pulleys, for signs of wear or damage. Do not attempt to repair these components yourself; contact a qualified technician.
- The Comfort 260 features a sensitive obstacle detection system. Test this feature periodically by placing a soft object (e.g., a cardboard box) in the path of the closing door to ensure it reverses upon contact.
- In case of power failure, use the manual release mechanism to operate the door. Refer to the installation guide for details on manual release.
- Disconnect power to the operator before performing any maintenance or repairs.
3. പാക്കേജ് ഉള്ളടക്കം
Carefully unpack the box and verify that all components are present. If any items are missing or damaged, contact your retailer immediately.
Image: The Marantec Comfort 260 garage door operator, including the main unit, power cable, and handheld transmitter, displayed next to its packaging box.
- Marantec Comfort 260 Drive Unit with integrated control
- 1 Handheld Transmitter (with 1 CR2032 battery included)
- 1 Module Receiver
- 1 Universal Installation Kit for swing and sectional doors
- 1 Power Cable with plug
- പ്രവർത്തന നിർദ്ദേശങ്ങൾ (ഈ മാനുവൽ)
- മുന്നറിയിപ്പ് സ്റ്റിക്കർ
Note: Drive rail can be selected separately depending on the gate height and is not included in this standard package.
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The Marantec Comfort 260 is designed for quick and easy assembly with common tools. Refer to the detailed installation guide provided in the package for specific steps and diagrams. This section provides a general overview.
Image: The main unit of the Marantec Comfort 260 garage door operator, showing its compact design and connection to the drive rail.
4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
- Verify the type and weight of your garage door are within the operator's specifications (e.g., swing gates up to 3.5m width/90kg, sectional doors up to 5m width/90kg).
- Ensure adequate clearance around the door and the installation area for the operator and rail system.
- Confirm a suitable power outlet is available near the installation point.
4.2 Mounting the Drive Unit and Rail
Mount the drive unit securely to the ceiling or wall above the garage door opening, following the instructions in the universal installation kit. Assemble and attach the drive rail to the unit and the door.
4.3 ഇലക്ട്രിക്കൽ കണക്ഷൻ
Connect the power cable to the drive unit and plug it into a grounded electrical outlet. Ensure all connections are secure.
4.4 Programming and Limit Settings
Follow the instructions in the detailed manual to program the opening and closing limits of your garage door. This step is crucial for safe and proper operation.

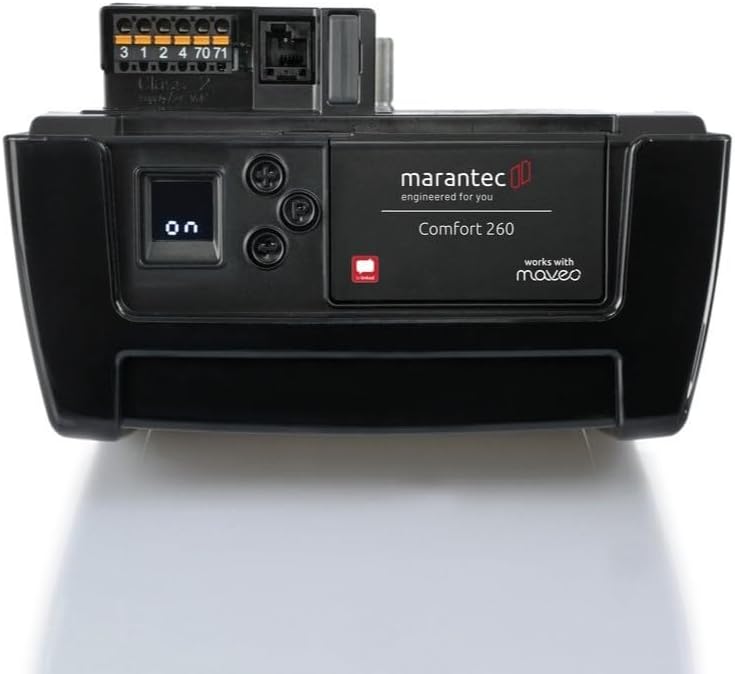

ചിത്രം: ക്ലോസ്-അപ്പ് view of the Marantec Comfort 260 control panel, showing the display and programming buttons.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The Marantec Comfort 260 offers convenient and secure operation via its handheld transmitter and optional accessories.
5.1 ഹാൻഡ്ഹെൽഡ് ട്രാൻസ്മിറ്റർ ഉപയോഗിക്കുന്നു
Image: A person demonstrating the ease of use of the Marantec handheld transmitter to operate the garage door.
- The handheld transmitter uses secure bi.linked radio technology with 128-bit encryption and rolling codes for maximum security.
- Press the assigned button on the transmitter to open or close the garage door. The operator features soft start and soft stop functions for smooth and quiet operation.
- The transmitter has two function keys that can be freely assigned for various commands or to control other Marantec devices.
ചിത്രം: വിശദമായത് view of the Marantec handheld transmitter, showing its compact size and key dimensions (60mm, 39mm, 12mm).
5.2 Smart Home Integration (maveo)
The Comfort 260 is compatible with the maveo smart home system, allowing you to integrate your garage door into a smart home environment. This enables control via smartphone apps and linkage with other smart devices.
5.3 വിപുലമായ ക്രമീകരണങ്ങൾ
Further settings can be programmed on the drive unit, such as gate running speed and intermediate positions. Refer to the detailed programming guide for instructions on accessing and adjusting these parameters.
Image: The Marantec garage door operator installed in a garage, illuminating the space with its integrated LED lighting, with a car parked underneath.
6. പരിപാലനം
Regular maintenance ensures the longevity and safe operation of your Marantec Comfort 260 garage door operator. Always disconnect power before performing any maintenance.
- പ്രതിമാസ: Inspect the garage door and operator for any signs of wear, damage, or loose parts. Check the balance of the door by manually opening it halfway; it should stay in place.
- ത്രൈമാസിക: Lubricate moving parts of the garage door (rollers, hinges, bearings) with a garage door specific lubricant. Do not lubricate the operator's drive rail unless specified by Marantec.
- വാർഷികം: Have a qualified technician perform a comprehensive inspection and service of your garage door system and operator.
- Keep the area around the operator clean and free from debris.
ചിത്രം: ക്ലോസ്-അപ്പ് view of the integrated LED lighting module within the Marantec Comfort 260 operator, highlighting its energy-efficient design.
7. പ്രശ്നപരിഹാരം
This section provides solutions to common issues you might encounter with your Marantec Comfort 260 garage door operator. For problems not listed here, or if solutions do not resolve the issue, contact customer support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Door does not move or stops unexpectedly. | പവർ യൂtage; Obstruction in door path; Remote control battery low; Safety sensors misaligned. | Check power supply; Remove obstruction; Replace remote battery (CR2032); Align safety sensors. |
| റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല. | Battery dead; Out of range; Remote needs reprogramming. | Replace battery; Move closer to the operator; Refer to manual for reprogramming steps. |
| Door reverses immediately after touching the floor. | Closing force setting too high; Limit settings incorrect. | Adjust closing force (refer to manual); Re-program limit settings. |
| പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദങ്ങൾ. | Lack of lubrication; Worn parts; Loose components. | Lubricate door components; Inspect for worn or loose parts and tighten/replace as necessary. |
8 സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the Marantec Comfort 260 garage door operator.
| മോഡൽ | ആശ്വാസം 260 |
| ഭാഗം നമ്പർ | 183501 |
| ഇനത്തിൻ്റെ ഭാരം | 3.2 കിലോഗ്രാം |
| ഉൽപ്പന്ന അളവുകൾ | 36 x 19 x 12.5 സെ.മീ |
| നിറം | കറുപ്പ് |
| മെറ്റീരിയൽ | ലോഹം |
| Handheld Transmitter Battery | 1 CR2032 (ഉൾപ്പെടുത്തിയിരിക്കുന്നു) |
| Max. Gate Weight (Swing/Sectional) | 90 കി.ഗ്രാം |
| Max. Gate Width (Swing) | 3.5 മീ |
| Max. Gate Width (Sectional) | 5 m (single-walled), 3 m (double-walled) |
| റണ്ണിംഗ് സ്പീഡ് | പരമാവധി. 160 മിമി/സെക്കൻഡ് |
9. വാറൻ്റിയും പിന്തുണയും
Marantec stands behind the quality of its products.
Image: A graphic indicating "Made in Germany" quality and a "5-year warranty" for Marantec products.
9.1 വാറൻ്റി വിവരങ്ങൾ
Marantec offers a 5 വർഷത്തെ വാറൻ്റി on drive systems for private use. This warranty covers the engine unit and the engine control. Replacement parts receive a 6 മാസ വാറൻ്റി.
വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിൻ്റെ തെളിവ് സൂക്ഷിക്കുക.
9.2 ഉപഭോക്തൃ പിന്തുണ
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Marantec customer support:
- ഇമെയിൽ: info@marantec.com
- Please visit the official Marantec website for regional contact information and further resources.
