1. ആമുഖം
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Elitech MTC-6000N Microcomputer Controller. The MTC-6000N is a versatile digital temperature controller designed for precise temperature management in cold rooms, refrigerators, and other cooling systems. It features advanced functions including cooling, defrosting, fan control, auxiliary output, and RS-485 communication for remote monitoring. Additionally, it offers temperature calibration, high/low temperature alarms, over-range alarms, and sensor failure alarms to ensure reliable performance.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Elitech MTC-6000N is engineered for ease of use and high accuracy, featuring a multi-functional button panel and a clear dual-screen display for intuitive operation and monitoring.

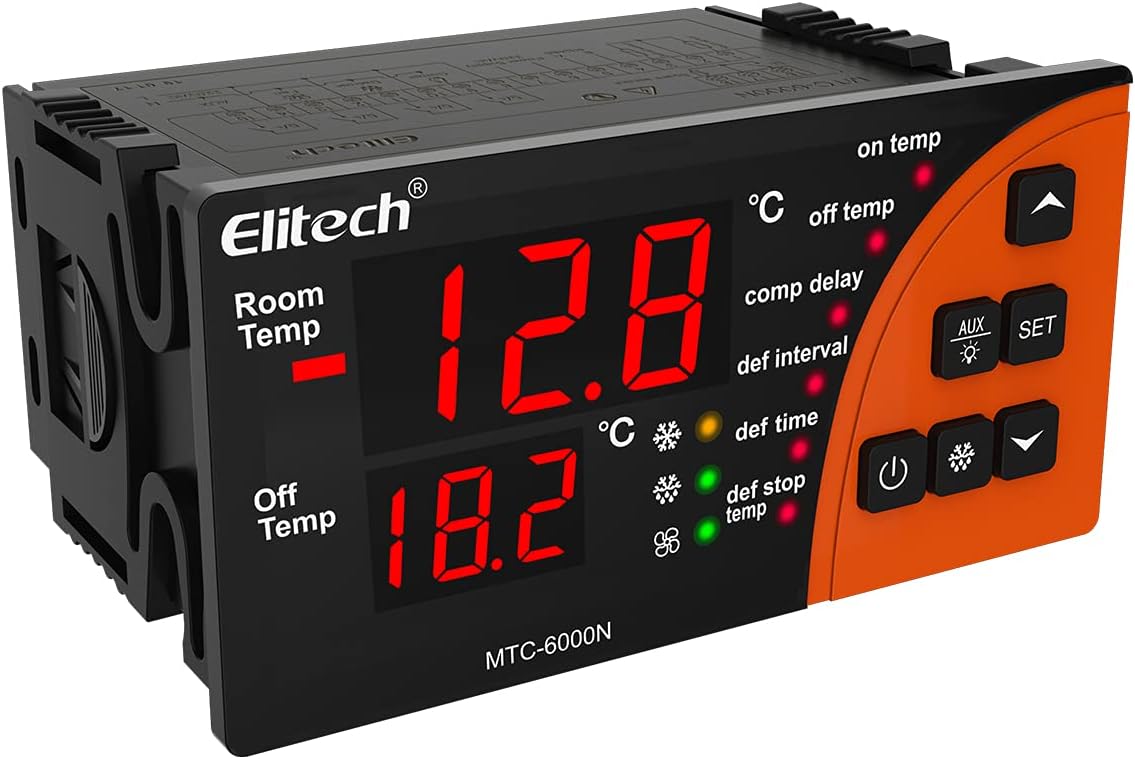

ചിത്രം 2.1: മുൻഭാഗം view of the Elitech MTC-6000N controller, showing the dual digital displays for room temperature and off temperature, along with control buttons and indicator lights.

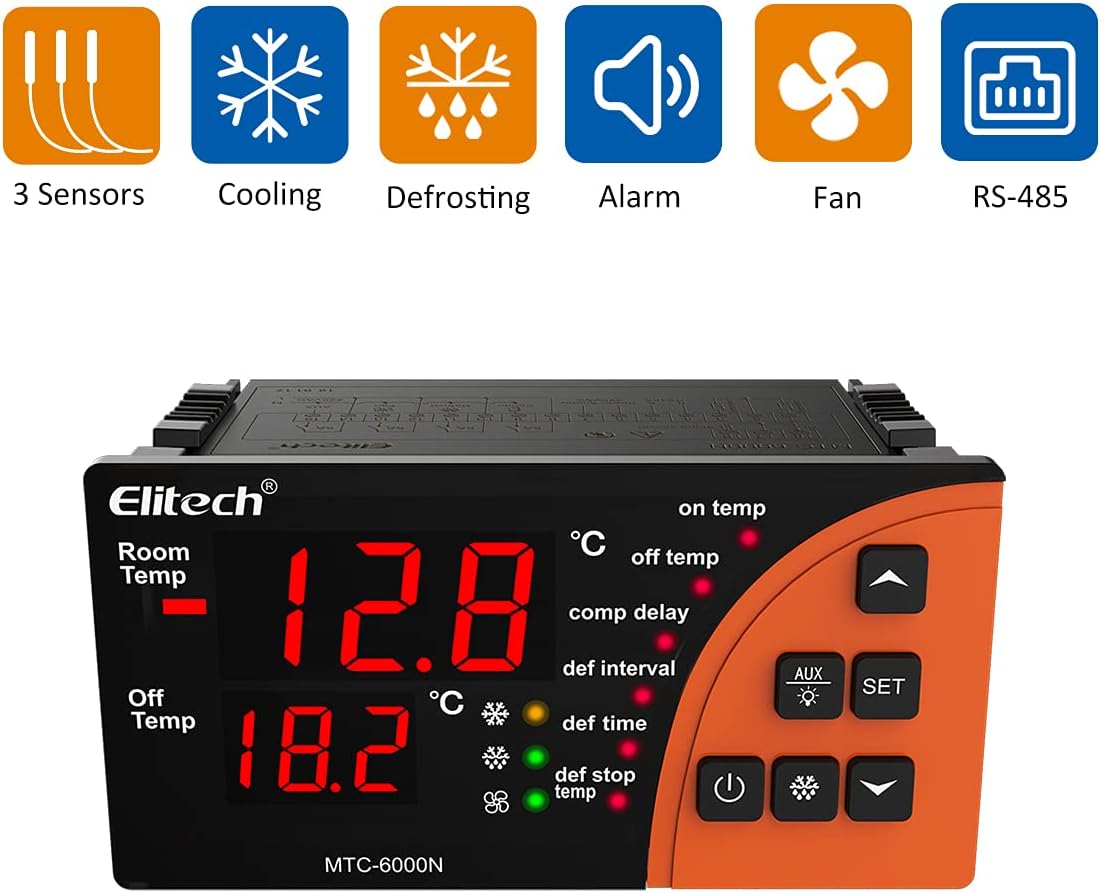

Figure 2.2: Elitech MTC-6000N controller with icons illustrating its key features: 3 Sensors, Cooling, Defrosting, Alarm, Fan, and RS-485 communication.
3 പ്രധാന സവിശേഷതകൾ
- റിമോട്ട് മോണിറ്ററിംഗ്: Equipped with RS485 communication function for real-time remote monitoring of cold storage conditions.
- എളുപ്പമുള്ള പ്രവർത്തനം: Features a multi-functional button panel allowing common functions to be operated with a single button, simplifying setup without needing to navigate complex menus.
- ഉയർന്ന കൃത്യത: Utilizes high-precision sensors and chips designed to withstand 3000 times of high and low temperature shocks, ensuring minimal drift and stable performance.
- ഡിസ്പ്ലേ മായ്ക്കുക: Large-sized panel with dual-screen temperature display, intuitively showing current temperature and set temperature simultaneously.
- ഒന്നിലധികം ഔട്ട്പുട്ടുകൾ: Provides refrigeration, dual defrosting, fan, and alternative four-way outputs for comprehensive control.
- ഡ്യുവൽ സെൻസറുകൾ: Includes dual sensors for storage temperature and defrosting temperature.
Figure 3.1: The Elitech MTC-6000N controller shown in a cold storage setting, highlighting its application.
4 സാങ്കേതിക സവിശേഷതകൾ
| പരാമീറ്റർ | മൂല്യം |
|---|---|
| മോഡൽ നമ്പർ | MTC-6000N-SG |
| ബ്രാൻഡ് | എലിടെക് |
| ASIN | B097D7GF6P |
| യു.പി.സി | 781454242269 |
| വൈദ്യുതി വിതരണം | 110V |
| ബാറ്ററികൾ ആവശ്യമാണ് | ഇല്ല |
| മൗണ്ടിംഗ് വലുപ്പം | 92*44മിമി / 3.6*1.7ഇഞ്ച് |
| അളവുകൾ (ഏകദേശം) | 100mm (length) x 82.5mm (height) x 51mm (depth) |
Figure 4.1: Dimensional drawing of the Elitech MTC-6000N controller, showing approximate measurements for length, height, depth, and mounting hole size.
5. ഇൻസ്റ്റലേഷനും സജ്ജീകരണവും
5.1 സുരക്ഷാ മുൻകരുതലുകൾ
- Ensure power is disconnected before any installation or wiring.
- യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ ഇൻസ്റ്റാളേഷൻ നടത്തണം.
- ശരിയായ വോളിയം പരിശോധിക്കുകtage (110V) before connecting power.
- Avoid installing in environments with excessive moisture, dust, or corrosive gases.
5.2 മൗണ്ടിംഗ്
The MTC-6000N is designed for panel mounting. Ensure the cutout dimensions are 92mm x 44mm (3.6in x 1.7in). Secure the controller firmly in place using the provided clips or mounting hardware.
5.3 വയറിംഗ് ഡയഗ്രം
Refer to the following diagram for proper wiring connections. Pay close attention to power supply, sensor inputs, and output relays for cooling, defrosting, fan, and auxiliary functions. The RS485 communication ports (A and B) are for remote monitoring connections.
Figure 5.1: Detailed wiring diagram for the Elitech MTC-6000N controller, showing connections for power, sensors, and various outputs.
5.4 സെൻസർ ഇൻസ്റ്റാളേഷൻ
The controller uses two temperature sensors: one for room temperature and one for defrosting temperature. Install the room temperature sensor in the area where temperature control is critical. Install the defrosting sensor near the evaporator coil to accurately monitor defrosting cycles.
Figure 5.2: Illustration of the three sensors included with the MTC-6000N: two temperature sensors for active use and one spare sensor.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1 Display and Indicators
The MTC-6000N features a dual-screen display. The upper display shows the current room temperature, and the lower display shows the set temperature or other parameter values during configuration. Various indicator lights illuminate to show the status of cooling, defrosting, fan, and alarm functions.
6.2 ബട്ടൺ പ്രവർത്തനങ്ങൾ
- SET ബട്ടൺ: Used to enter parameter setting mode and confirm changes.
- മുകളിലേക്ക്/താഴ്ന്ന ബട്ടണുകൾ: Used to navigate through parameters and adjust values.
- പവർ ബട്ടൺ: യൂണിറ്റ് ഓൺ/ഓഫ് ചെയ്യുന്നു.
- ഡിഫ്രോസ്റ്റ് ബട്ടൺ: Initiates manual defrosting cycle.
- AUX ബട്ടൺ: Controls the auxiliary output.
Figure 6.1: A hand interacting with the control panel of the Elitech MTC-6000N, demonstrating its user-friendly interface.
6.3 Parameter Settings (Exampലെ)
ആവശ്യമുള്ള താപനില സജ്ജമാക്കാൻ:
- അമർത്തുക സെറ്റ് button once. The lower display will flash, showing the current set temperature.
- ഉപയോഗിക്കുക UP or താഴേക്ക് buttons to adjust the temperature to your desired value.
- അമർത്തുക സെറ്റ് button again to confirm and save the setting.
For advanced parameter settings (e.g., defrost interval, fan delay, alarm thresholds), refer to the detailed parameter table in the full product manual (if available) or contact Elitech support for specific codes and ranges.
7. പരിപാലനം
7.1 വൃത്തിയാക്കൽ
Regularly clean the surface of the controller with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the display or casing. Ensure no liquid enters the unit.
7.2 Sensor Check
Periodically inspect the temperature sensors for any physical damage or corrosion. Ensure they are securely connected and positioned correctly for accurate readings.
7.3 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ
Occasionally check all electrical connections to ensure they are tight and free from signs of overheating or loose wiring. Disconnect power before performing any checks.
8. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| കൺട്രോളർ പവർ ഓണാക്കുന്നില്ല | No power supply; Loose wiring; Blown fuse. | Check power source; Verify wiring connections; Inspect and replace fuse if necessary. |
| തെറ്റായ താപനില വായന | Faulty sensor; Sensor not properly installed; Sensor cable damage. | Check sensor connection and placement; Replace sensor if faulty; Inspect sensor cable for damage. |
| Cooling/Defrosting not activating | Incorrect parameter settings; Relay failure; Wiring issue to load. | Review and adjust set parameters; Check relay functionality; Verify wiring to cooling/defrosting unit. |
| അലാറം തുടർച്ചയായി സജീവമാണ് | Temperature out of set range; Sensor failure; Alarm parameter misconfiguration. | Check actual temperature vs. set limits; Verify sensor operation; Adjust alarm parameters. |
If the problem persists after attempting these solutions, please contact Elitech customer support for further assistance.
9. വാറൻ്റിയും പിന്തുണയും
9.1 വാറൻ്റി വിവരങ്ങൾ
Elitech products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Elitech webവാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
9.2 ഉപഭോക്തൃ പിന്തുണ
For technical assistance, troubleshooting, or inquiries regarding your Elitech MTC-6000N controller, please contact Elitech customer support. You can find contact information on the Elitech webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ റീട്ടെയിലർ വഴി.
Elitech Official Webസൈറ്റ്: www.elitechlog.com
