KONNWEI KW510 Professional Car Battery Charger and Carrying Case User Manual

1. ആമുഖം

The KONNWEI KW510 is a versatile 3-in-1 device designed for automotive battery maintenance. It functions as a battery tester, a fully automatic battery charger, and a battery maintainer with pulse repair technology. This manual provides instructions for the safe and effective use of the KW510 device and its accompanying protective carrying case.

The KW510 is compatible with all 12-volt lead-acid batteries, including regular flooded, AGM flat plate, AGM spiral, and gel batteries, with a capacity range of 100-2000 CCA.

Image: The KONNWEI KW510 device, highlighting its capabilities as an all-in-one smart automatic battery tool for testing, charging, and repairing batteries.

2 സുരക്ഷാ വിവരങ്ങൾ

Always observe the following safety precautions when operating the KONNWEI KW510 to prevent injury or damage to the device or vehicle.

• ഉപകരണം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക.
• ബാറ്ററികളുമായി പ്രവർത്തിക്കുമ്പോൾ കണ്ണ് സംരക്ഷണവും സംരക്ഷണ വസ്ത്രവും ധരിക്കുക.
• ജോലിസ്ഥലം നന്നായി വായുസഞ്ചാരമുള്ളതാണെന്ന് ഉറപ്പാക്കുക.
• തീപ്പൊരി, തീജ്വാല, പുകയുന്ന വസ്തുക്കൾ എന്നിവ ബാറ്ററികളിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Avoid touching battery acid. If contact occurs, flush immediately with water and seek medical attention.
• ചാർജറിന് ശക്തമായ പ്രഹരം ഏൽക്കുകയോ, താഴെ വീഴുകയോ, അല്ലെങ്കിൽ മറ്റെന്തെങ്കിലും കേടുപാടുകൾ സംഭവിക്കുകയോ ചെയ്താൽ അത് പ്രവർത്തിപ്പിക്കരുത്.
• Disconnect the AC power cord before making or breaking the battery connections.
• ശീതീകരിച്ച ബാറ്ററി ഒരിക്കലും ചാർജ് ചെയ്യരുത്.

3. ഉൽപ്പന്ന സവിശേഷതകൾ

The KONNWEI KW510 offers a comprehensive solution for battery management:

• 3-ഇൻ-1 പ്രവർത്തനം: Combines battery testing, charging, and pulse repair/maintenance in a single unit.
• Accurate Battery Tester: Provides an overall analysis of battery health, including voltage, internal resistance, and state of charge (SOH). It also performs cranking and charging system tests.
• Fully Automatic Charger: Charges 12V batteries from as low as 2 volts, with a maximum output of 12V 5A. Features multi-stage charging and automatic detection of battery sulfation and acid stratification for restoration.
• Pulse Repair Technology: Revitalizes deeply discharged or sulfated batteries, extending their lifespan.
• സാർവത്രിക അനുയോജ്യത: Supports 12V lead-acid batteries (100-2000 CCA) including flooded, AGM flat plate, AGM spiral, and gel types.
• ഉപയോക്തൃ-സൗഹൃദ ഇൻ്റർഫേസ്: Features a large color LCD display and intuitive button operation for ease of use.

The included carrying case provides protection and portability for your KW510 and other diagnostic tools.

• Universal Protective Case: Designed to fit the KW510 and other KONNWEI products (e.g., KW310, KW208, KW850, KW650, KW206, KW681, KW210, KW450). Also compatible with various other diagnostic tools.
• അളവുകൾ: Approximately 9" x 5" x 3.7" (L x W x H).

4. സജ്ജീകരണം

Before using the KONNWEI KW510, ensure the device is clean and free from damage. Prepare your vehicle's battery for connection.

1. Inspect the Battery: Check the battery terminals for corrosion. Clean them if necessary to ensure good electrical contact.
2. Cl ബന്ധിപ്പിക്കുകamps:
   • ബന്ധിപ്പിക്കുക ചുവപ്പ് പോസിറ്റീവ് (+) clamp പോസിറ്റീവ് ബാറ്ററി ടെർമിനലിലേക്ക്.
   • ബന്ധിപ്പിക്കുക കറുപ്പ് നെഗറ്റീവ് (-) clamp നെഗറ്റീവ് ബാറ്ററി ടെർമിനലിലേക്ക്.
   Ensure a secure connection. The device will power on automatically once connected to the battery.
3. Power Connection (for Charging/Repair): If you intend to charge or repair the battery, connect the KW510's AC power cord to a standard electrical outlet.

Image: The KONNWEI KW510 device with its battery clamps, ready for connection to a vehicle battery. The screen displays "Battery Test" results.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1. ബാറ്ററി പരിശോധന

The KW510 can perform a comprehensive battery health check without needing external power.

1. Connect the KW510 to the battery as described in the "Setup" section.
2. The device will power on and display the main menu. Select "Battery Test" using the navigation buttons and press "ENTER".
3. Follow the on-screen prompts to input battery type (e.g., Flooded, AGM) and CCA rating.
4. The KW510 will analyze the battery and display results such as State of Health (SOH), State of Charge (SOC), internal resistance (R), and voltage. It will also recommend actions like "GOOD-RECHARGE" or "REPLACE BATTERY".

Image: The KONNWEI KW510 performing a battery test, showing detailed results and various diagnostic capabilities such as cranking test and voltagഇ ടെസ്റ്റ്.

5.2. ക്രാങ്കിംഗ് സിസ്റ്റം ടെസ്റ്റ്

This test evaluates the vehicle's starting system.

1. From the main menu, select "Cranking Test".
2. Follow the on-screen instructions to start the vehicle's engine.
3. The device will measure the cranking voltage and time, providing an assessment of the starter motor's performance.

5.3. Charging System Test (Alternator Test)

This test assesses the vehicle's charging system, including the alternator.

1. From the main menu, select "Charging Test".
2. Follow the on-screen instructions, which typically involve starting the engine and revving it to a specified RPM.
3. The KW510 will monitor the output voltage of the alternator and provide a status report.

5.4. ബാറ്ററി ചാർജിംഗ്

The KW510 functions as a fully automatic smart charger.

1. Connect the KW510 to the battery and to an AC power outlet.
2. From the main menu, select "Charge".
3. The device will automatically detect the battery type and condition, then initiate the appropriate charging cycle. The display will show charging progress, current, and voltage.
4. Once charging is complete, the device will automatically switch to maintenance mode to prevent overcharging.

Image: The KONNWEI KW510 in charging mode, indicating a full charge. This image also illustrates the charger's ability to revive deeply discharged batteries and maintain optimal performance.

5.5. ബാറ്ററി റിപ്പയർ (പൾസ് റിപ്പയർ)

This function uses pulse technology to desulfate and recondition batteries.

1. Connect the KW510 to the battery and to an AC power outlet.
2. From the main menu, select "Repair".
3. The device will begin the pulse repair process. This can take several hours depending on the battery's condition. Monitor the display for progress.
4. Once the repair cycle is complete, the device will indicate its status.

5.6. കാരിയിംഗ് കേസ് ഉപയോഗിക്കുന്നത്

The protective carrying case is designed to store and transport your KW510 and accessories safely.

1. Open the zipper of the carrying case.
2. Place the KW510 device into the main compartment.
3. Utilize the mesh pockets or elastic straps (if present) to secure cables, manuals, or other small accessories.
4. Close the zipper securely before transport.

Image: A visual guide demonstrating the steps to properly store the KONNWEI KW510 device and its user manual within the universal carrying case for secure transport.

6. പരിപാലനം

Proper maintenance ensures the longevity and reliable operation of your KONNWEI KW510.

• വൃത്തിയാക്കൽ: ഉപകരണം തുടച്ചുമാറ്റുക, ക്ലീനർ നീക്കം ചെയ്യുക.amps with a soft, dry cloth after each use. Do not use abrasive cleaners or solvents.
• സംഭരണം: Store the KW510 and its accessories in the provided carrying case in a cool, dry place, away from direct sunlight and moisture.
• കേബിൾ പരിശോധന: Regularly inspect the cables and clampകേടുപാടുകൾ, ഉരച്ചിൽ അല്ലെങ്കിൽ നാശത്തിന്റെ ഏതെങ്കിലും ലക്ഷണങ്ങൾക്കായി समाना. ആവശ്യമെങ്കിൽ മാറ്റിസ്ഥാപിക്കുക.

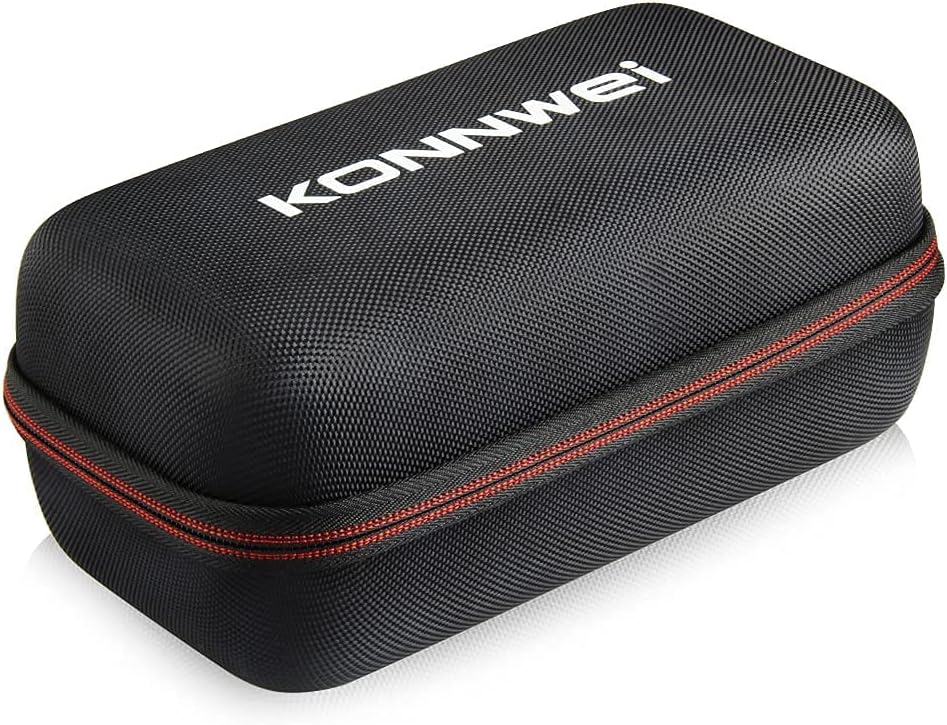

Image: The KONNWEI universal protective carrying case, designed for safe storage and transport of the KW510 device and its accessories.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your KONNWEI KW510, refer to the following common problems and solutions:

If problems persist, contact KONNWEI customer support for further assistance.

8 സ്പെസിഫിക്കേഷനുകൾ
