1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Please read this entire user manual carefully before operating the Bagotte Cordless Vacuum Cleaner. Keep this manual for future reference.
- അപ്ലയൻസ് ഔട്ട്ഡോർ അല്ലെങ്കിൽ ആർദ്ര പ്രതലങ്ങളിൽ ഉപയോഗിക്കരുത്.
- കുട്ടികളെ വാക്വം ക്ലീനർ പ്രവർത്തിപ്പിക്കാൻ അനുവദിക്കരുത്. കുട്ടികളുടെ അടുത്ത് ഉപയോഗിക്കുമ്പോൾ അടുത്ത മേൽനോട്ടം ആവശ്യമാണ്.
- ഗ്യാസോലിൻ പോലുള്ള കത്തുന്നതോ കത്തുന്നതോ ആയ ദ്രാവകങ്ങൾ എടുക്കരുത്, അല്ലെങ്കിൽ അവ ഉള്ള സ്ഥലങ്ങളിൽ ഉപയോഗിക്കരുത്.
- കത്തുന്നതോ പുകവലിക്കുന്നതോ ആയ സിഗരറ്റ്, തീപ്പെട്ടി, ചൂടുള്ള ചാരം എന്നിവയൊന്നും എടുക്കരുത്.
- പവർ അഡാപ്റ്റർ നിങ്ങളുടെ പ്രാദേശിക പവർ സപ്ലൈയുമായി പൊരുത്തപ്പെടുന്നുണ്ടെന്ന് ഉറപ്പാക്കുക.
- Always turn off the appliance before performing any maintenance or cleaning.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The Bagotte BS900 Cordless Vacuum Cleaner is designed for versatile cleaning across various surfaces. It features a powerful motor, multiple suction modes, and a lightweight design for ease of use.

Figure 2.1: Bagotte Cordless Vacuum Cleaner and Included Accessories
ഘടകങ്ങളും അനുബന്ധ ഉപകരണങ്ങളും:

ചിത്രം 2.2: വിശദമായി View of Vacuum Components
- Main Vacuum Body (Host)
- Motorized Floor Brush Assembly
- നീണ്ട വിള്ളൽ നോസൽ
- 2-ഇൻ-1 ബ്രിസ്റ്റിൽ ബ്രഷ്
- ചാർജർ
- ക്ലീനിംഗ് ടൂൾ
- Carpet Brush Roll
- Plush Roller Bar (for hard floors)
- HEPA ഫിൽട്ടർ
- മതിൽ ബ്രാക്കറ്റ്
- ഉപയോക്തൃ മാനുവൽ
- Lightweight Aluminum Alloy Extension Tube

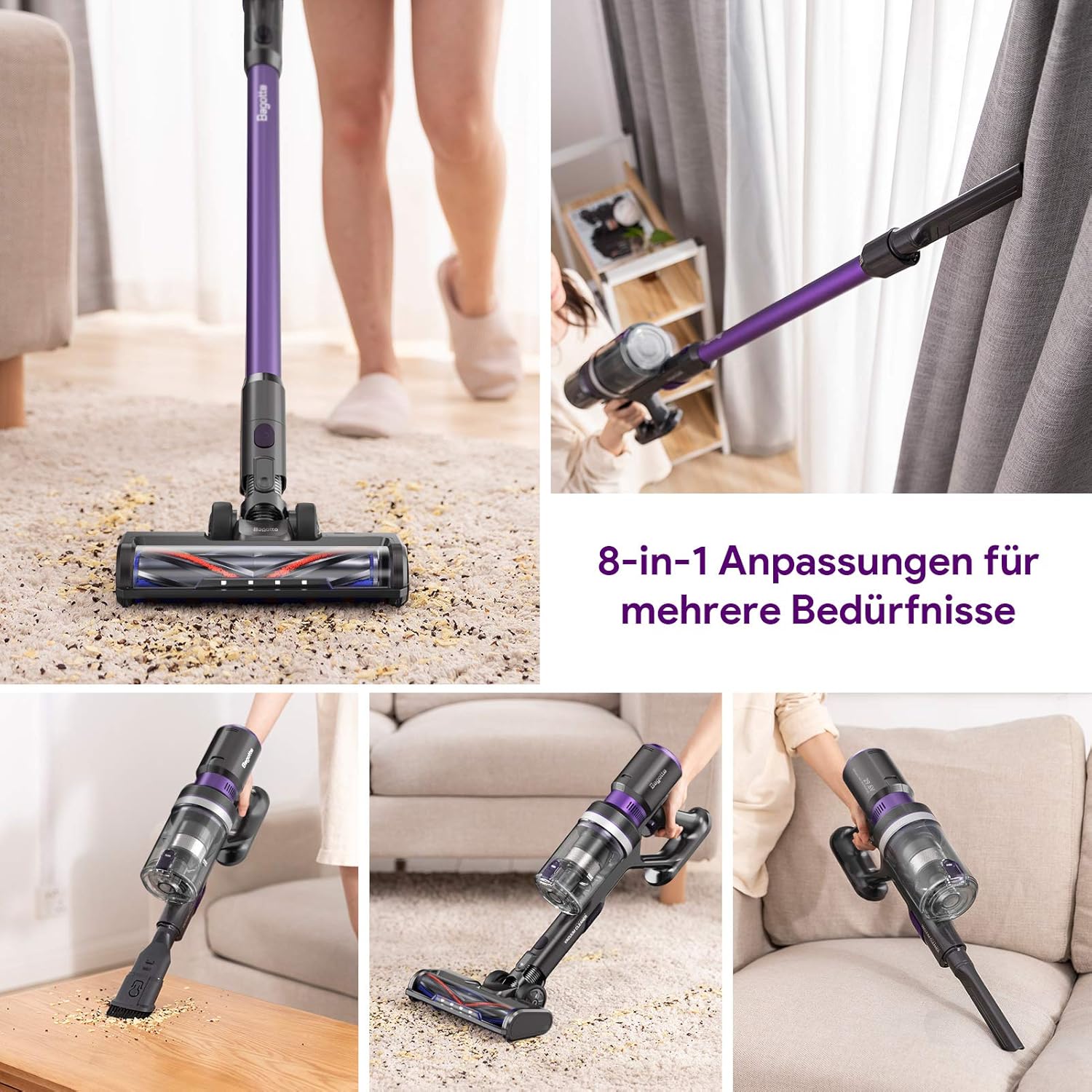

Figure 2.3: Versatile 8-in-1 Adaptations
3. സജ്ജീകരണവും പ്രാരംഭ ഉപയോഗവും
3.1 അസംബ്ലി
To assemble your vacuum cleaner:
- Connect the extension tube to the main vacuum body until it clicks into place.
- Attach the desired floor brush (motorized floor brush with plush roller bar for hard floors or carpet brush for carpets) to the other end of the extension tube, ensuring it clicks securely.
- For handheld use, detach the extension tube and attach accessories like the long crevice nozzle or 2-in-1 bristle brush directly to the main vacuum body.
3.2 ബാറ്ററി ചാർജ് ചെയ്യുന്നു
Fully charge the battery before the first use to ensure optimal performance and battery longevity.
- Mount the wall bracket in a convenient location.
- Connect the charger to the wall bracket and then to the charging port on the main vacuum body.
- The charging indicator lights will illuminate during charging. A full charge typically takes approximately 5.5 hours.
- പൂർണ്ണമായി ചാർജ് ചെയ്തുകഴിഞ്ഞാൽ, ചാർജർ വിച്ഛേദിക്കുക.

Figure 3.1: Charging the Vacuum on the Wall Mount
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 പവർ ഓൺ/ഓഫ്, സക്ഷൻ മോഡുകൾ
- വാക്വം ക്ലീനർ ഓണാക്കാൻ പവർ ബട്ടൺ അമർത്തുക.
- The vacuum offers three suction modes:
- Low Gear (7KPa): Suitable for light debris and extended runtime.
- Middle Gear (13KPa): Ideal for everyday cleaning.
- High Gear (25KPa): Provides powerful suction for intensive spot cleaning and stubborn dirt.
- Toggle between these modes by tapping the speed-adjustment button on the main body.
- വാക്വം ക്ലീനർ ഓഫാക്കാൻ വീണ്ടും പവർ ബട്ടൺ അമർത്തുക.
4.2 ക്ലീനിംഗ് പ്രകടനം
The Bagotte BS900 is versatile and effective on various floor types, including hardwood, tile, and carpet.
- The motorized floor brush with plush roller bar is designed for hard floors, while the carpet brush is optimized for carpets. Ensure you use the appropriate brush for best results.
- The flexible design of the floor brush allows for 270° horizontal rotation and 90° vertical rotation, making it easy to clean around furniture and in tight spaces.
- LED lights on the floor head illuminate dark areas, ensuring no dust or debris is missed.

Figure 4.1: Vacuuming on Carpet

Figure 4.2: Flexible Cleaning Under Furniture
4.3 പ്രവർത്തനസമയം
The vacuum cleaner provides up to 55 minutes of runtime on a single charge, depending on the selected suction mode and attachments used. For optimal battery life, it is recommended to complete cleaning tasks in one continuous session rather than frequently starting and stopping the vacuum.
5. പരിപാലനം
Regular maintenance ensures the longevity and optimal performance of your Bagotte Cordless Vacuum Cleaner.
5.1 ഡസ്റ്റ് കപ്പ് ശൂന്യമാക്കൽ
- Empty the dust cup when debris reaches the MAX fill line, or after each use.
- Press the dust cup release button to detach it from the main body.
- Open the dust cup lid and dispose of the contents into a trash bin.
5.2 ഫിൽട്ടറുകൾ വൃത്തിയാക്കുന്നു
The vacuum features a 4-stage high-efficiency filtration system with a high-density HEPA filter and washable stainless steel filter.

Figure 5.1: Filtration System Components
- Remove the HEPA filter and the washable filter from the dust cup.
- ഫിൽട്ടറുകളിൽ നിന്ന് അയഞ്ഞ അഴുക്ക് നീക്കം ചെയ്യുക.
- Rinse both filters under cold running water until the water runs clear.
- Allow the filters to air dry completely for at least 24 hours before reinserting them into the dust cup. Do not use a dryer or heat to dry.
- It is recommended to clean the filters monthly, or more frequently with heavy use.
5.3 Cleaning the Brush Rolls
- Turn off the vacuum and detach the floor brush assembly.
- Locate the brush roll release tab and remove the brush roll.
- Use the provided cleaning tool or scissors to remove any tangled hair or debris from the brush roll.
- ക്ലീൻ ബ്രഷ് റോൾ അതിന്റെ സ്ഥാനത്ത് ക്ലിക്ക് ആകുന്നതുവരെ വീണ്ടും വയ്ക്കുക.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your Bagotte Cordless Vacuum Cleaner, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| വാക്വം ഓണാക്കുന്നില്ല | ബാറ്ററി ചാർജ് ചെയ്തിട്ടില്ല പവർ ബട്ടൺ ശരിയായി അമർത്തിയില്ല | ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്യുക പവർ ബട്ടൺ ദൃഡമായി അമർത്തിയെന്ന് ഉറപ്പാക്കുക |
| കുറഞ്ഞ സക്ഷൻ പവർ | ഡസ്റ്റ് കപ്പ് നിറഞ്ഞിരിക്കുന്നു ഫിൽട്ടറുകൾ അടഞ്ഞുപോയിരിക്കുന്നു Hose or brush roll is blocked | ഡസ്റ്റ് കപ്പ് ശൂന്യമാക്കുക ഫിൽട്ടറുകൾ വൃത്തിയാക്കുക അല്ലെങ്കിൽ മാറ്റിസ്ഥാപിക്കുക തടസ്സങ്ങളുണ്ടോയെന്ന് പരിശോധിക്കുകയും നീക്കം ചെയ്യുകയും ചെയ്യുക |
| ബ്രഷ് റോൾ കറങ്ങുന്നില്ല | Tangled hair or debris Brush roll not properly installed | Remove tangled hair/debris Ensure brush roll is securely clicked into place |
| ചെറിയ റൺടൈം | ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്തിട്ടില്ല Using high suction mode continuously | ബാറ്ററി പൂർണ്ണമായും ചാർജ് ചെയ്യുക Use lower suction modes for general cleaning to extend runtime |
7 സ്പെസിഫിക്കേഷനുകൾ
Key technical specifications for the Bagotte BS900 Cordless Vacuum Cleaner:
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | ബാഗോട്ടെ |
| മോഡലിൻ്റെ പേര് | BS900 |
| പ്രത്യേക ഫീച്ചർ | HEPA, Lightweight |
| ഫിൽട്ടർ തരം | ഡിസ്ക് |
| കോർഡ്ലെസ് ആണോ? | അതെ |
| ശേഷി | 0.5 ലിറ്റർ |
| വാട്ട്tage | 400 വാട്ട്സ് |
| പ്രവർത്തനസമയം | 55 മിനിറ്റ് (പരമാവധി) |
| ചാർജിംഗ് സമയം | 5.5 മണിക്കൂർ |
| ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ | കാർപെറ്റ്, ഹാർഡ് ഫ്ലോർ |
| ഫോം ഫാക്ടർ | കൈയിൽ പിടിക്കാവുന്ന, വടി |
| ബാറ്ററി വിവരണം | ലിഥിയം-അയൺ |
| ശബ്ദ നില | 75 ഡി.ബി |
| Ampഉന്മേഷം | 3.33 Amps |
| വേഗതകളുടെ എണ്ണം | 3 |
| ഇനത്തിൻ്റെ ഭാരം | 2.86 പൗണ്ട് |
| പാക്കേജ് അളവുകൾ | 26.7 x 13.3 x 5.2 ഇഞ്ച് |
8. വാറൻ്റിയും പിന്തുണയും
For warranty information, technical support, or any questions regarding your Bagotte Cordless Vacuum Cleaner, please contact Bagotte customer service through their official website or the contact details provided with your purchase. Please have your model number (BS900) and purchase details ready when contacting support.
