OMTech XF-180 ഫ്യൂം എക്സ്ട്രാക്റ്റർ യൂസർ മാനുവൽ

1. ആമുഖവും അവസാനവുംview

The OMTech XF-180 Fume Extractor is an industrial-strength air purification system designed to effectively remove harmful fumes and particulates generated during various industrial processes such as laser cutting, engraving, soldering, CNC machining, and welding. Equipped with an 80W DC motor, it provides a powerful 106 CFM (Cubic Feet per Minute) airflow, ensuring a cleaner and safer working environment.

This unit features a highly efficient 3-stage filtration system that captures a wide range of airborne contaminants, from large dust particles to microscopic fumes and unpleasant odors. Its compact design, coupled with four quality caster wheels, allows for easy mobility and flexible placement within your workspace.

2. സുരക്ഷാ നിർദ്ദേശങ്ങൾ

Please read and understand all safety warnings and instructions before operating the OMTech XF-180 Fume Extractor. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ഇലക്ട്രിക്കൽ സുരക്ഷ: ശരിയായ വോള്യം ഉള്ള ഒരു ഗ്രൗണ്ടഡ് പവർ ഔട്ട്‌ലെറ്റിലേക്ക് യൂണിറ്റ് ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.tage. Do not operate with a damaged power cord or plug.
• വെൻ്റിലേഷൻ: While the fume extractor significantly reduces airborne contaminants, ensure adequate general ventilation in the workspace.
• ഫിൽട്ടർ മെയിന്റനൻസ്: Always turn off and unplug the unit before performing any maintenance, especially filter replacement. Wear appropriate personal protective equipment (PPE) such as gloves and a mask when handling used filters.
• കത്തുന്ന വസ്തുക്കൾ: Do not use the fume extractor near highly flammable liquids, gases, or explosive dust.
• ഉദ്ദേശിച്ച ഉപയോഗം: Use the unit only for its intended purpose of fume and particulate extraction. Do not block the intake or exhaust vents.
• കുട്ടികളും വളർത്തുമൃഗങ്ങളും: Keep children and pets away from the operating unit.

3. ഉൽപ്പന്ന ഘടകങ്ങൾ

The OMTech XF-180 Fume Extractor comes with the following main components:

• Main Fume Extractor Unit with Caster Wheels
• Flexible Extraction Tube (Gooseneck Arm)
• Extraction Hood/Nozzle
• 2.6" to 4" Adapter

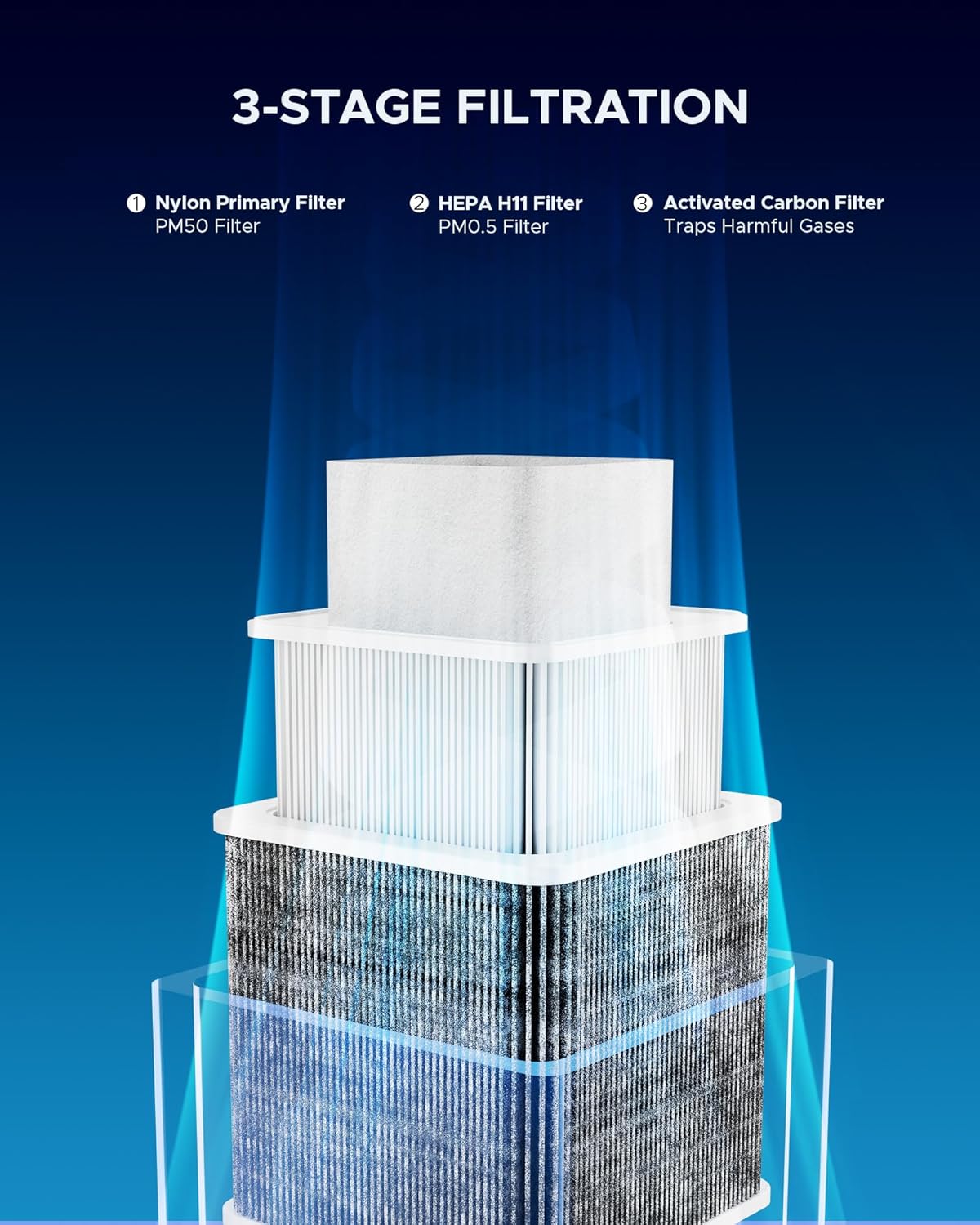

• 3-എസ്tage Filter Set:
  • Nylon Primary Filter (PM50 Filter)
  • HEPA H11 Filter (PM0.5 Filter)
  • സജീവമാക്കിയ കാർബൺ ഫിൽട്ടർ
• പവർ കേബിൾ

4. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ

Follow these steps to set up your OMTech XF-180 Fume Extractor:

1. അൺപാക്ക് ചെയ്യുന്നു: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക. ഷിപ്പിംഗ് കേടുപാടുകൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക.
2. ഇൻസ്റ്റാളേഷൻ ഫിൽട്ടർ ചെയ്യുക: 3-സെtage filters are typically pre-installed. If not, open the top cover by unlatching the side clips. Insert the filters in the correct order: Nylon Primary Filter at the top, followed by the HEPA H11 Filter, and finally the Activated Carbon Filter at the bottom. Ensure they are seated properly. Close and latch the cover securely.
3. Attach Exhaust Port: Remove the four screws from the top exhaust port. Place the exhaust port adapter over the opening and secure it with the screws.
4. Connect Flexible Tube: Attach one end of the flexible extraction tube to the exhaust port adapter on the fume extractor. Secure it with the provided clamp, tightening with a screwdriver.
5. Connect to Machine: Attach the other end of the flexible tube to your laser engraver, cutter, or other machine's exhaust port. Use the 2.6" to 4" adapter if necessary for compatibility. Secure this connection with another clamp.
6. സ്ഥാനനിർണ്ണയം: Utilize the caster wheels to easily move the fume extractor to your desired location. Lock the wheels in place once positioned.
7. പവർ കണക്ഷൻ: Plug the power cable into the unit's power input, then plug the other end into a grounded electrical outlet.

സജ്ജീകരണ പ്രകടന വീഡിയോ

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The OMTech XF-180 Fume Extractor is designed for intuitive operation.

1. പവർ ഓൺ/ഓഫ്: Press the power button on the front panel to turn the unit on or off. The indicator light will illuminate when the unit is active.
2. വായുപ്രവാഹം ക്രമീകരിക്കുക: The unit features three adjustable airflow modes. Press the power button repeatedly to cycle through the modes:
   • സൗമ്യ: Indicated by a green light. Suitable for light fume generation.
   • മോഡറേറ്റ്: Indicated by a blue light. For average fume levels.
   • ശക്തമായ: Indicated by a red light. For heavy fume generation or when maximum extraction is required.
3. Positioning the Extraction Arm: Adjust the flexible gooseneck arm and hood to optimally capture fumes at their source. Ensure the hood is positioned as close as possible to the work area without obstructing your work.

6. പരിപാലനം

Regular maintenance ensures the optimal performance and longevity of your fume extractor.

ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ

The OMTech XF-180 uses a 3-stage filtration system, and each filter has a recommended replacement cycle:

• Nylon Primary Filter (PM50 Filter): Recommended replacement every 7-30 days, depending on usage and material.
• HEPA H11 Filter (PM0.5 Filter): Recommended replacement every 3-6 months.
• സജീവമാക്കിയ കാർബൺ ഫിൽട്ടർ: Recommended replacement every 6-12 months.

To Replace Filters:

1. Turn off the fume extractor and unplug it from the power source.
2. Unlatch the side clips and carefully open the top cover of the unit.
3. Remove the old filters, starting from the top (Nylon, then HEPA, then Activated Carbon). Dispose of used filters according to local regulations, as they may contain hazardous materials.
4. Insert new filters in the correct order: Activated Carbon Filter at the bottom, followed by the HEPA H11 Filter, and finally the Nylon Primary Filter at the top. Ensure they fit snugly.
5. Close the top cover and secure the side latches.
6. Plug the unit back in and test its operation.

ജനറൽ ക്ലീനിംഗ്

ഇടയ്ക്കിടെ യൂണിറ്റിന്റെ പുറംഭാഗം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp cloth. Do not use abrasive cleaners or solvents. Ensure the intake and exhaust vents are free from obstructions.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your OMTech XF-180 Fume Extractor, refer to the following common troubleshooting steps:

• യൂണിറ്റ് പവർ ഓൺ ആകുന്നില്ല:
  • Check if the power cable is securely plugged into both the unit and the electrical outlet.
  • Verify that the electrical outlet is functional by testing it with another device.
  • Ensure the power button on the unit is pressed.
• Low Airflow/Poor Fume Extraction:
  • Check if the filters are clogged. Replace them if necessary, especially the primary filter.
  • Ensure the flexible extraction tube is not kinked or obstructed.
  • Verify that the extraction arm and hood are positioned correctly and close to the fume source.
  • Confirm the unit is set to an appropriate speed level (Moderate or Strong for higher fume generation).
• പ്രവർത്തന സമയത്ത് അസാധാരണമായ ശബ്ദം:
  • Check for any loose components or foreign objects inside the unit or the flexible tube.
  • യൂണിറ്റ് സുസ്ഥിരവും നിരപ്പും ഉള്ള പ്രതലത്തിൽ സ്ഥാപിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
  • If the noise persists and is excessive, contact customer support.

For issues not covered here, please contact OMTech customer service for assistance.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

OMTech stands behind the quality of the XF-180 Fume Extractor with a strong warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official OMTech webസൈറ്റ്.

Our dedicated customer service team is available 24/7 to assist you with any questions, concerns, or technical support needs. We are committed to ensuring your satisfaction and providing prompt assistance for years to come.

കൂടുതൽ സഹായത്തിന്, സന്ദർശിക്കുക OMTech Store.
