MACHSWON Universal 12 Inch 80W Electric Cooling Fan Instruction Manual

1. ആമുഖം

This manual provides essential information for the proper installation, operation, and maintenance of your MACHSWON Universal 12 Inch 80W Electric Cooling Fan. This fan is designed for various automotive applications, including engine bays, radiators, A/C systems, intercoolers, oil systems, and transmissions, to assist in heat dissipation. Please read these instructions carefully before installation and use.

2 സുരക്ഷാ വിവരങ്ങൾ

• പ്രൊഫഷണൽ ഇൻസ്റ്റാളേഷൻ ശുപാർശ ചെയ്യുന്നു: Due to the electrical and mechanical nature of this product, professional installation is highly recommended to ensure correct wiring and secure mounting.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: Always disconnect the vehicle's battery before performing any electrical work. Ensure all wiring connections are secure and properly insulated to prevent short circuits.
• ചലിക്കുന്ന ഭാഗങ്ങൾ: The fan contains rapidly moving blades. Keep hands, tools, and loose clothing clear of the fan blades when the fan is connected to power.
• ചൂട്: The fan motor and surrounding components can become hot during operation. Allow components to cool before handling.
• വാല്യംtage: This fan operates on a 12-volt DC electrical system. Do not connect to higher voltagഇ ഉറവിടങ്ങൾ.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1x Electric Cooling Fan (12 Inch)
• 1x Fan Accessories Kit (includes mounting straps, foam pads, springs, and washers)
• 1x Cord

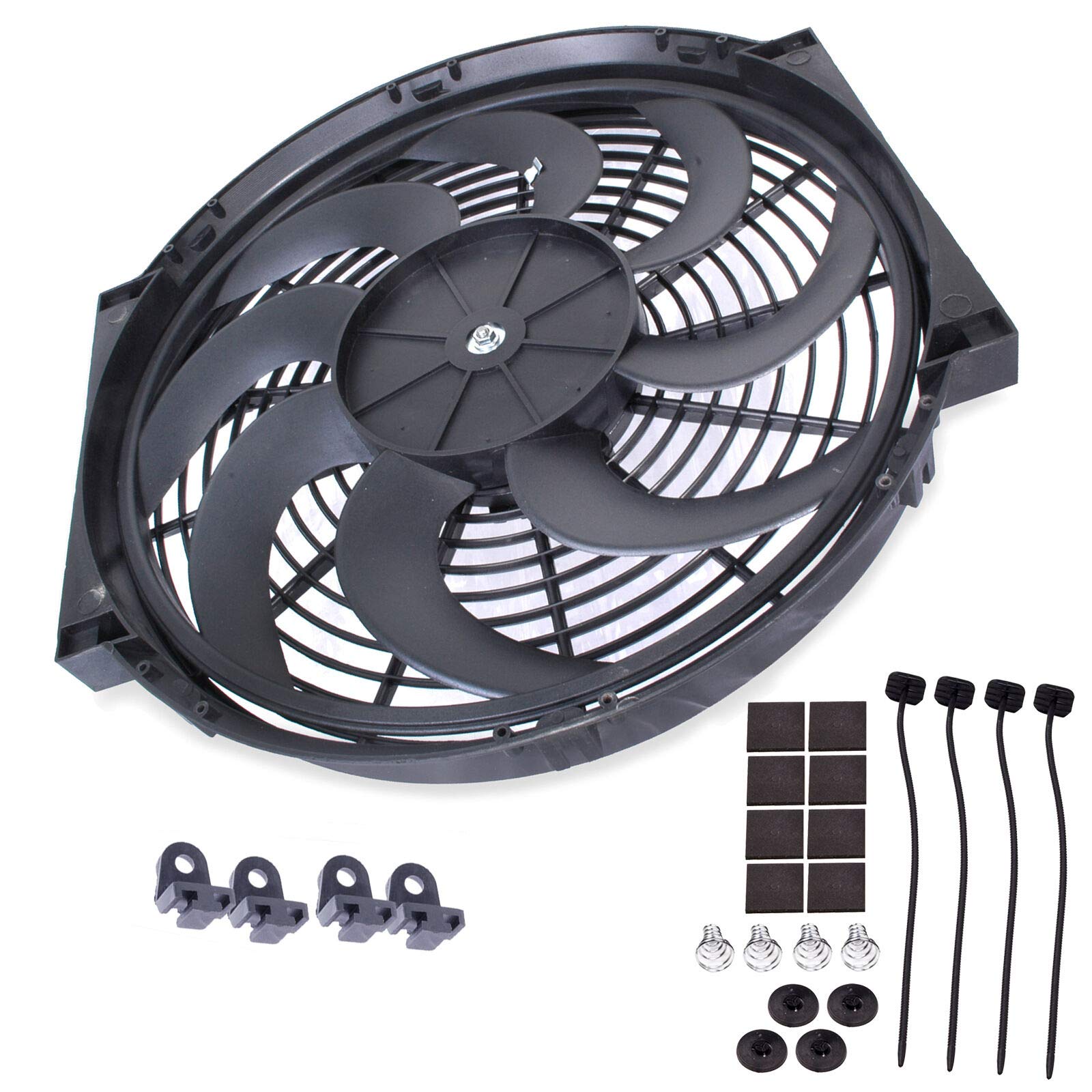

Image: Included fan accessories kit for mounting.

4 സ്പെസിഫിക്കേഷനുകൾ

Key technical specifications for the 12 Inch 80W Electric Cooling Fan:

Image: The 12 inch electric cooling fan.

Image: Close-up of the fan motor housing.

Image: Close-up of the fan blades and housing.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

This fan can be configured for either a push or pull application, depending on your vehicle's cooling system requirements. No modification of OE fitment or replacement is typically needed for direct installation.

പൊതു ഇൻസ്റ്റാളേഷൻ ഘട്ടങ്ങൾ:

1. ഫാൻ ഓറിയന്റേഷൻ നിർണ്ണയിക്കുക: Decide whether the fan will operate in a 'push' configuration (mounted in front of the radiator, pushing air through it) or a 'pull' configuration (mounted behind the radiator, pulling air through it). Ensure the fan blades are oriented correctly for the desired airflow direction.
2. മൗണ്ടിംഗ്: Use the provided mounting kit (straps, foam pads, springs, washers) to securely attach the fan to the radiator or condenser. Ensure the fan is centered and does not obstruct other components. The foam pads help reduce vibration and protect the radiator fins.
3. വയറിംഗ്: Connect the fan's 2-pin power connector to your vehicle's 12V electrical system. This typically involves connecting to a fused power source that is activated by a thermostat or a manual switch. Consult a vehicle wiring diagram or a professional for proper electrical connections.
4. ടെസ്റ്റ് ഓപ്പറേഷൻ: After installation, reconnect the battery and test the fan's operation to ensure it turns on and off as expected and provides adequate airflow.

കുറിപ്പ്: If you are unsure about any part of the installation process, it is strongly recommended to seek assistance from a qualified automotive professional.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once properly installed and wired, the electric cooling fan will operate automatically if connected to a thermostatic switch, or manually if connected to a manual switch. Its primary function is to draw or push air through the radiator or condenser to maintain optimal operating temperatures for your vehicle's engine or air conditioning system.

• യാന്ത്രിക പ്രവർത്തനം: If connected to a thermostat, the fan will activate when the engine coolant or A/C refrigerant reaches a predetermined temperature, and will switch off once the temperature drops to a safe level.
• മാനുവൽ പ്രവർത്തനം: If connected to a manual switch, you can control the fan's operation as needed. Ensure the fan is not left running unnecessarily when the engine is off to prevent battery drain.

7. പരിപാലനം

Regular maintenance helps ensure the longevity and efficient operation of your cooling fan.

• ആനുകാലിക പരിശോധന: Annually or every 10,000 miles, inspect the fan blades for any damage, cracks, or debris accumulation. Check the mounting hardware for tightness and ensure the fan is securely attached.
• വൃത്തിയാക്കൽ: Gently clean the fan blades and motor housing to remove dirt, dust, and road grime. Use a soft cloth and mild detergent if necessary. Avoid spraying water directly into the motor.
• വയറിംഗ് പരിശോധന: Inspect all electrical connections for corrosion, fraying, or loose terminals. Ensure insulation is intact.
• ശബ്ദ പരിശോധന: Listen for any unusual noises during operation, which could indicate a bearing issue or blade imbalance.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your cooling fan, refer to the following common problems and solutions:

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support regarding your MACHSWON Universal 12 Inch 80W Electric Cooling Fan, please contact MACHSWON customer service. MACHSWON is committed to providing timely responses and professional service to ensure customer satisfaction.

You can typically find contact information on the product packaging or the official MACHSWON webസൈറ്റ്. പിന്തുണയുമായി ബന്ധപ്പെടുമ്പോൾ നിങ്ങളുടെ ഉൽപ്പന്ന മോഡലും വാങ്ങൽ വിശദാംശങ്ങളും തയ്യാറായി വയ്ക്കുക.
