Amewi Climbing Beast 22529 Crawler 4WD 1:10 RTR Instruction Manual

1 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Not suitable for children under 3 years. Contains small parts that could be swallowed.

Always operate the vehicle in a safe environment, away from people, pets, and obstacles. Do not operate near public roads or water bodies. Adult supervision is recommended for younger users.

2. ആമുഖം

The Amewi Climbing Beast 22529 is a 1:10 scale 4WD remote-controlled crawler designed for off-road use. It features a powerful motor, oversized tires, and bright LED lighting for visibility in low-light conditions. The vehicle's plastic frame is engineered to absorb impacts, while metal ball bearings, splash-proof electronics, and shock absorbers with metal springs contribute to its durability and performance. The 2.4 GHz pistol-grip remote control provides precise and responsive handling, allowing multiple vehicles to operate simultaneously without interference. This model comes Ready-to-Run (RTR), with all necessary components and batteries included.

3. പാക്കേജ് ഉള്ളടക്കം

താഴെ കൊടുത്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Amewi Climbing Beast 22529 Crawler (Ready-to-Run)
• 2.4 GHz Pistol-Grip Remote Control
• 7.4 V 1500 mAh Lithium-Ion Battery
• യുഎസ്ബി ചാർജിംഗ് കേബിൾ
• 4 x AA Mignon 1.5 V Batteries (for remote control)
• 12 x Spare Body Pins
• Instruction Manual (German/English)

Image: The Amewi Climbing Beast 22529 Crawler, its 2.4 GHz remote control, and included accessories, displayed with the product packaging.

4. ഉൽപ്പന്ന സവിശേഷതകൾ

• Oversized TPR Rubber Tires: Designed for maximum grip on various terrains including mud, rocky paths, and sand.
• Metal Ball Bearings: Ensures smoother operation and reduced wear on all drive components.
• Steel Suspension System: Provides precise chassis movement and maximum traction on uneven terrain.
• Advanced Suspension System: Enhances off-road performance and stability.
• Splash-Proof Electronics: Protects internal components from water splashes.
• Collision-Resistant Frame: Durable plastic frame designed to absorb impacts.
• Adjustable Steering Trim: Allows fine-tuning of steering for straight tracking.
• Front and Rear LED Lighting: Improves visibility during low-light operation.
• ഉയർന്ന വേഗത: Approximately 15 km/h.
• 2.4 GHz Pistol-Grip Remote Control: Offers precise control and allows multiple vehicles to operate simultaneously.
• ആനുപാതികമായ സ്റ്റിയറിംഗും ത്രോട്ടിലും: Provides adjustable and responsive control over speed and direction.
• മേൽക്കൂര റാക്ക്: Functional roof rack for carrying small items.
• 4-വീൽ ഡ്രൈവ് (4WD): Ensures superior traction and climbing capability.

5. സജ്ജീകരണം

5.1 Vehicle Battery Installation and Charging

1. Carefully remove the vehicle's body shell by detaching the body pins.
2. ബാറ്ററി കമ്പാർട്ട്മെന്റ് കണ്ടെത്തുക.
3. Connect the included 7.4 V 1500 mAh Li-Ion battery to the vehicle's ESC (Electronic Speed Controller) connector.
4. Place the battery securely in the battery compartment.
5. To charge the battery, disconnect it from the vehicle. Connect the battery to the USB charging cable. Plug the USB cable into a suitable USB power source (e.g., computer USB port, USB wall adapter). The charging time is approximately 180-240 minutes. Do not leave charging unattended.
6. Once charged, disconnect the battery from the charger and reconnect it to the vehicle. Replace the body shell and secure it with the body pins.

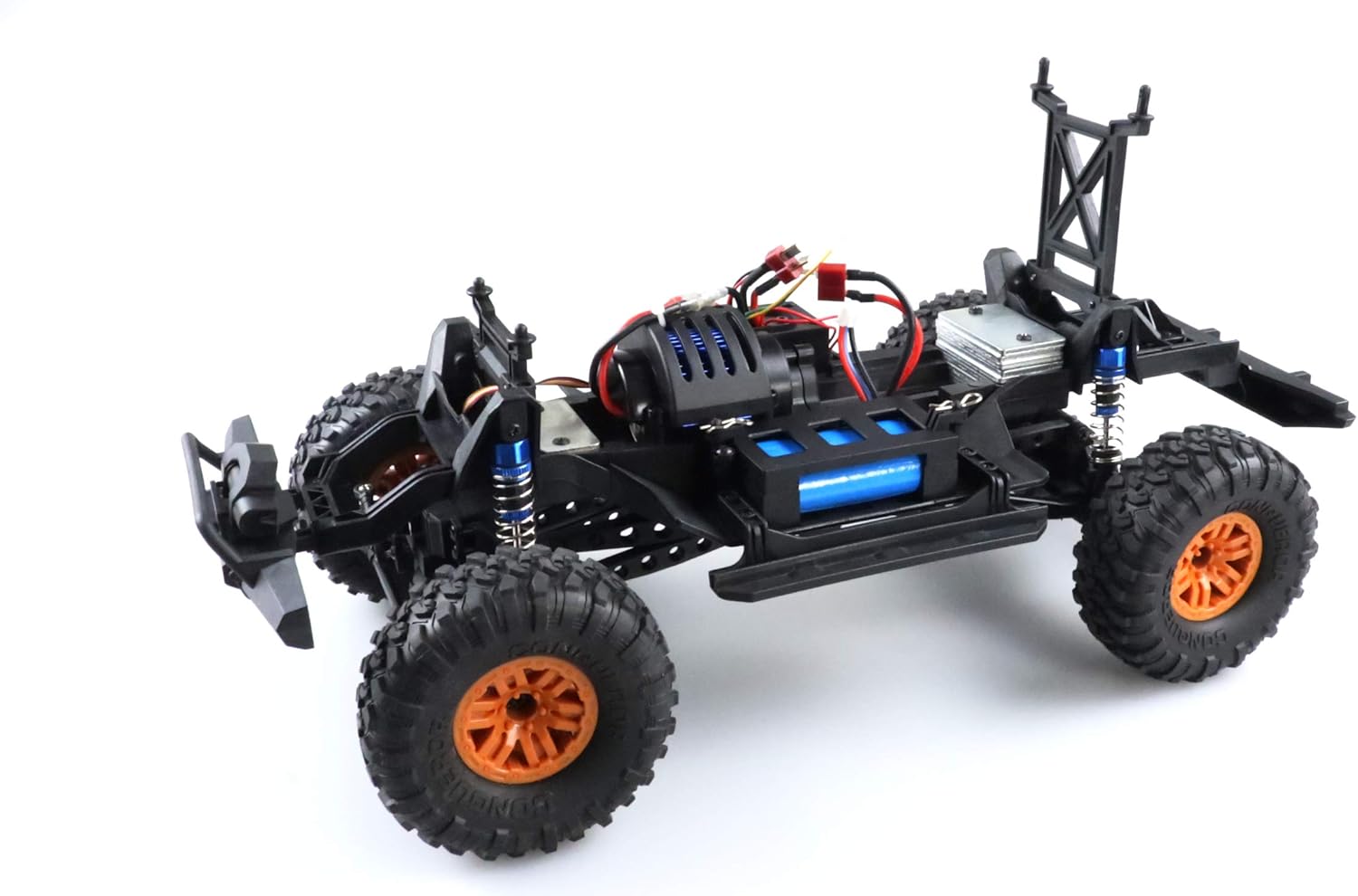

Image: The vehicle's chassis showing the battery securely placed in its compartment.

Image: The included USB charging cable, AA batteries for the remote control, and the 7.4V Li-Ion battery for the vehicle.

5.2 റിമോട്ട് കൺട്രോൾ ബാറ്ററി ഇൻസ്റ്റലേഷൻ

1. Open the battery compartment cover on the bottom of the 2.4 GHz remote control.
2. Insert the 4 x AA Mignon 1.5 V batteries, ensuring correct polarity (+/-).
3. ബാറ്ററി കമ്പാർട്ട്മെൻ്റ് കവർ സുരക്ഷിതമായി അടയ്ക്കുക.

Image: The 2.4 GHz pistol-grip remote control, showing its various controls and ergonomic design.

5.3 റിമോട്ട് കൺട്രോൾ ജോടിയാക്കുന്നു

The vehicle and remote control are typically pre-paired from the factory. If re-pairing is necessary:

1. Ensure both the vehicle battery and remote control batteries are fully charged and correctly installed.
2. Turn on the remote control first. The indicator light should flash.
3. Turn on the vehicle. The indicator light on the vehicle's receiver should also flash.
4. Wait a few seconds. The indicator lights on both the remote control and the vehicle should become solid, indicating a successful connection.
5. ജോടിയാക്കൽ പരാജയപ്പെട്ടാൽ, രണ്ട് ഉപകരണങ്ങളും ഓഫാക്കി പ്രക്രിയ ആവർത്തിക്കുക.

6. ഓപ്പറേഷൻ

6.1 അടിസ്ഥാന നിയന്ത്രണങ്ങൾ

• സ്റ്റിയറിംഗ് വീൽ: Rotate the steering wheel on the remote control left or right to steer the vehicle.
• ത്രോട്ടിൽ ട്രിഗർ: Pull the trigger towards you to move forward. Push the trigger away from you to brake or reverse.
• സ്റ്റിയറിംഗ് ട്രിം (ST.TRIM): Adjust this dial to ensure the vehicle drives straight when the steering wheel is centered.
• ത്രോട്ടിൽ ട്രിം (TH.TRIM): ത്രോട്ടിൽ ട്രിഗർ ന്യൂട്രൽ പൊസിഷനിൽ ആയിരിക്കുമ്പോൾ വാഹനം നിശ്ചലമായി തുടരുന്നുവെന്ന് ഉറപ്പാക്കാൻ ഈ ഡയൽ ക്രമീകരിക്കുക.
• പവർ സ്വിച്ച് (ഓൺ/ഓഫ്): റിമോട്ട് കൺട്രോൾ ഓൺ അല്ലെങ്കിൽ ഓഫ് ചെയ്യുന്നു.

Image: The remote control, highlighting the steering wheel, throttle trigger, and trim adjustments.

6.2 Driving Guidelines

• Start by practicing in an open, clear area to get accustomed to the controls.
• Avoid driving in deep water, as while the electronics are splash-proof, the vehicle is not fully waterproof.
• Be mindful of the vehicle's range (approximately 60 meters) to maintain control.
• The LED lights can be used for driving in low-light conditions, but ensure sufficient visibility for safe operation.
• When driving on challenging terrain, use gentle throttle and steering inputs to maintain traction and avoid rollovers.

7. പരിപാലനം

7.1 വൃത്തിയാക്കൽ

• After each use, especially after driving in dirt or mud, clean the vehicle.
• Use a soft brush or compressed air to remove loose dirt and debris from the chassis, wheels, and suspension components.
• Wipe down the body shell with a damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ലായകങ്ങളോ ഉപയോഗിക്കുന്നത് ഒഴിവാക്കുക.

7.2 സംഭരണം

• Always remove the batteries from both the vehicle and the remote control before storing.
• Store the vehicle in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ensure the Li-Ion battery is stored at a partial charge (around 50%) for optimal longevity.

7.3 ഘടക പരിചരണം

• Metal Ball Bearings: Periodically inspect and clean the metal ball bearings. Lubricate them with appropriate RC bearing oil if necessary to ensure smooth operation and prevent wear.
• Splash-Proof Electronics: While designed to resist splashes, avoid submerging the vehicle in water. If the electronics get wet, allow them to dry completely before operating again.
• സസ്പെൻഷൻ: Check the shock absorbers and springs for any damage or debris that might hinder their movement.

Image: The vehicle's chassis, illustrating the suspension, wheels, and drive components.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the vehicle's internal electronics, including the ESC and wiring.

8. പ്രശ്‌നപരിഹാരം

9 സാങ്കേതിക സവിശേഷതകൾ

10. വാറൻ്റിയും പിന്തുണയും

വാറന്റി വിവരങ്ങൾക്കും സാങ്കേതിക പിന്തുണയ്ക്കും, നിങ്ങളുടെ റീട്ടെയിലർ അല്ലെങ്കിൽ നിർമ്മാതാവിന്റെ ഉദ്യോഗസ്ഥൻ നൽകിയ കോൺടാക്റ്റ് വിശദാംശങ്ങൾ പരിശോധിക്കുക. website. Keep your proof of purchase for any warranty claims. Information regarding spare parts availability is not provided in this manual.
